Amphenol 112966 RF Connectors / Coaxial Connectors BNC Crimp Jack B1695A Cable

ITEM #: AMPH-112966 MFG #: 112966

Primary Image
Amphenol
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

112966 - Overview

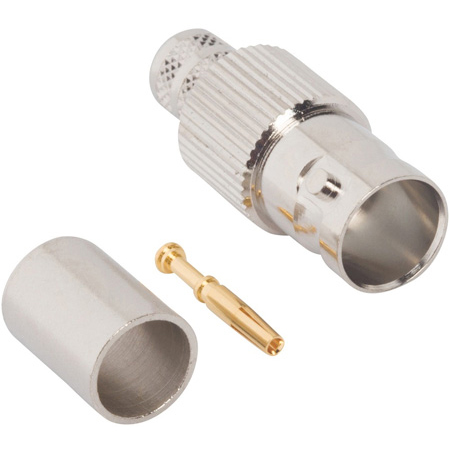

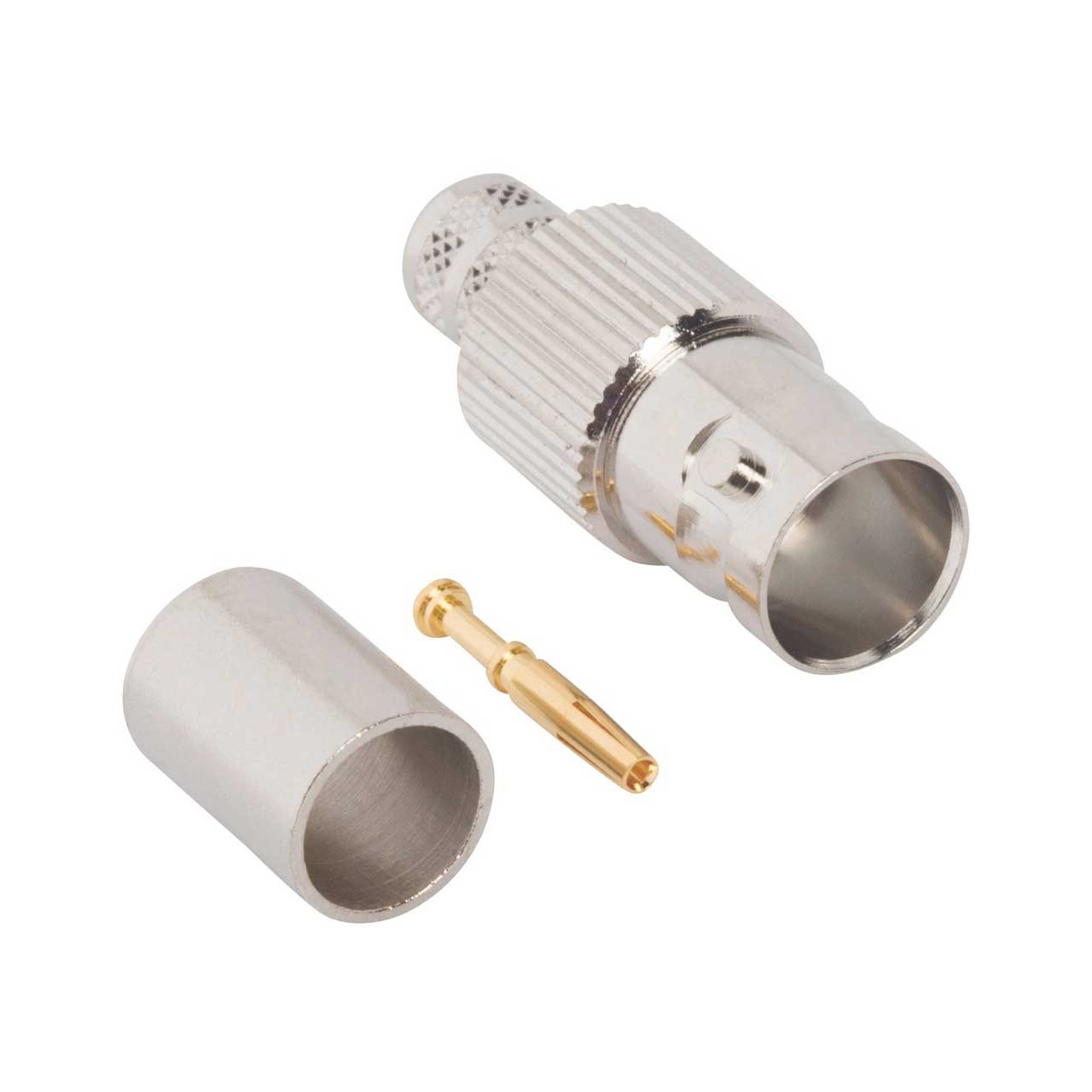

Ampehnol's 112966 is a 75 Ohm RF Connector, BNC Straight Crimp Jack for RG-6 Plenum.

  • Specifications:

    • Gender: Jack
    • Orientation: Straight
    • Termination Style: Cable - Crimp
    • Impedance (Ohms): 75
    • Body Finish: Nickel
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Phosphor Bronze
    • Contact Termination Style: Crimp
    • Insulator Material: PTFE
    • Cable Group: K2
    • Cable Type: Belden 1695A, RG-6 Plenum
    • Coupling Mechanism: Bayonet
    • Max Frequency (GHz): 4
    • Polarity: Standard
    • Min. Temp. (Celsius): -65
    • Max. Temp. (Celsius): 165
    • Mating Cycles: 500
    • Weight (Grams): 11.3
