Anchor WB-EXT500 Wireless Beltpack Transmitter for EXT500 Series - 540-570MHz

ITEM #: AN-WB-EXT500 MFG #: WB-EXT500

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Anchor
Free Shipping with $49 Minimum Order

List Price:

$233.00

Our Price:

$209.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    WB-EXT500 - Overview

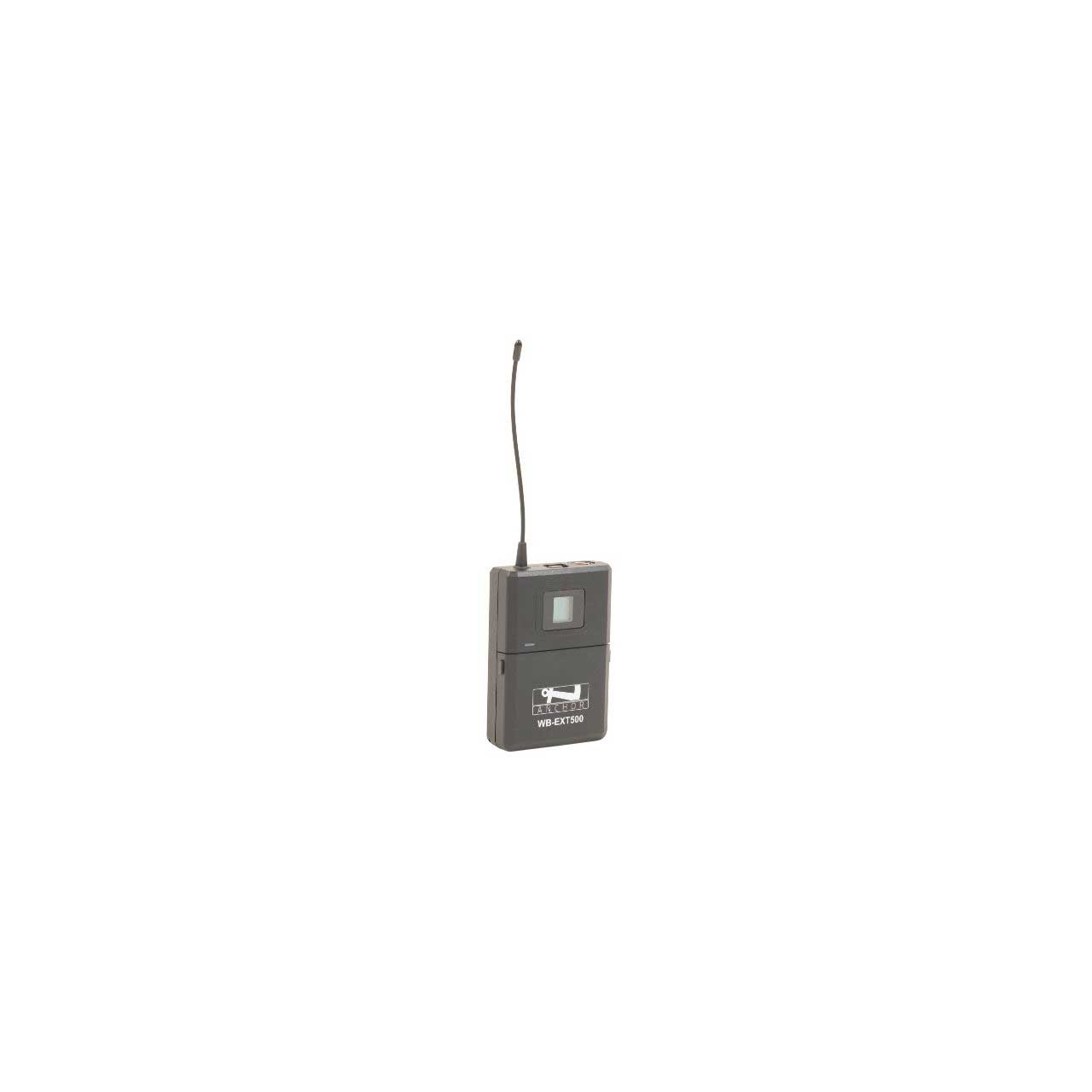

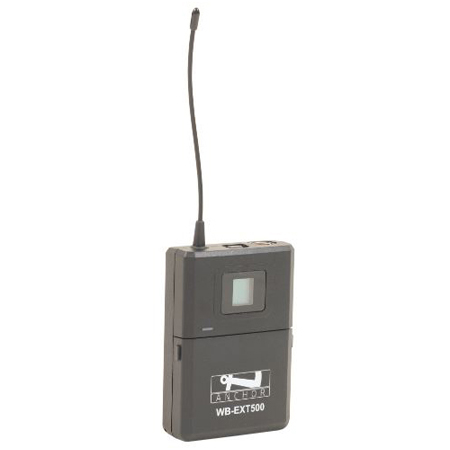

    Anchor WB-EXT500 wireless belt pack transmitter with TA4F plug compatible with UHF-EXT500 series. A PLL synthesized wireless microphone system that operates in the 540 ~ 570 MHz UHF band frequency with up to 700 selectable channels.

    Please note: Lavalier mic and receiver sold separately.

    • Features:

      • 700 Selectable Channels
      • Set Interference-free Channels by using Automatic Frequency Setting
      • PLL Synthesized
      • 540 ~ 570 MHz
      • Built-in Talk/Mute Button on Belt Pack


    • Specifications:

      • Frequency Range: UHF 540 ~ 570 MHz (Regionally Selected)
      • Channel Select: SYNC with Receiver
      • Display: LCD displays status, channel, or battery
      • RF Power Output: 10mW (max.)
      • Frequency Stability: ± 0.005%
      • Spurious Emission: >60 dB below carrier frequency
      • Belt Pack Gain Setting: 0 dB, -10 dB, -20 dB (3 settings)
      • Belt Pack: TA4F Plug
      • Battery: 1. DC2.4V (1.2V x 2 AA size rechargeable batteries), 2. DC3V (1.5V x 2 AA size batteries)
      • Current Consumption: 120 ± 10 mA

        Dimensions and Weight
      • Total (HW) Handheld: 10.2" x 2.1"
      • Total (HWD) Belt Pack: 3.8" x 2.5" x .95"
      • Weight Belt Pack: 0.19 lbs
