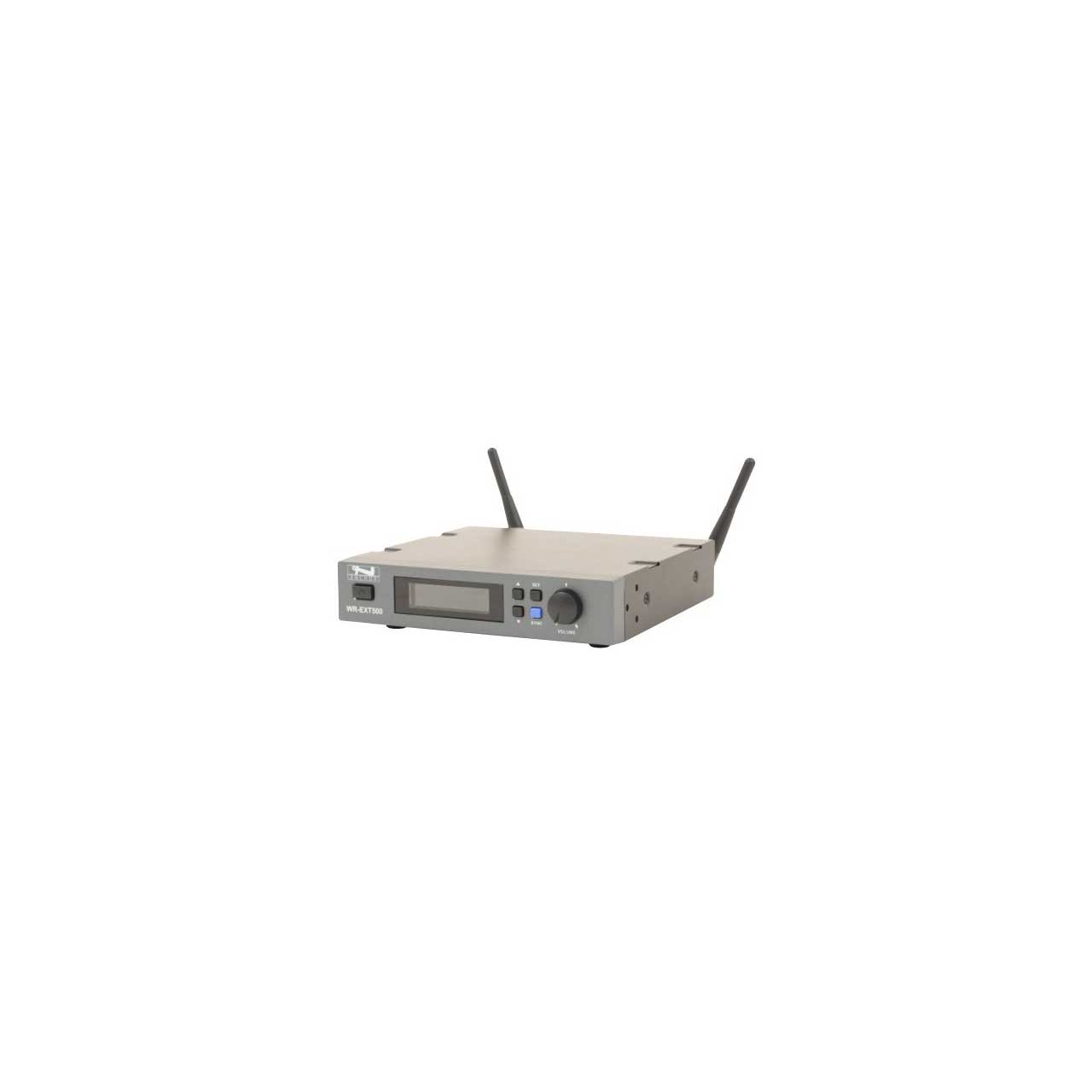

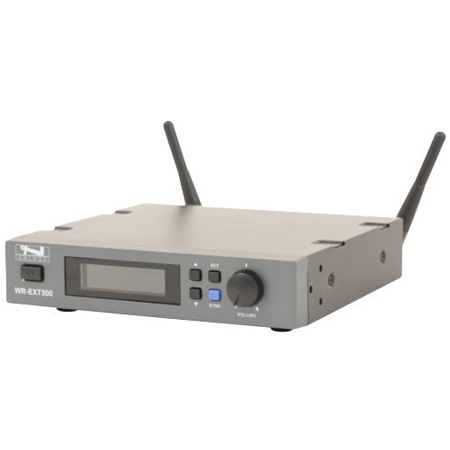

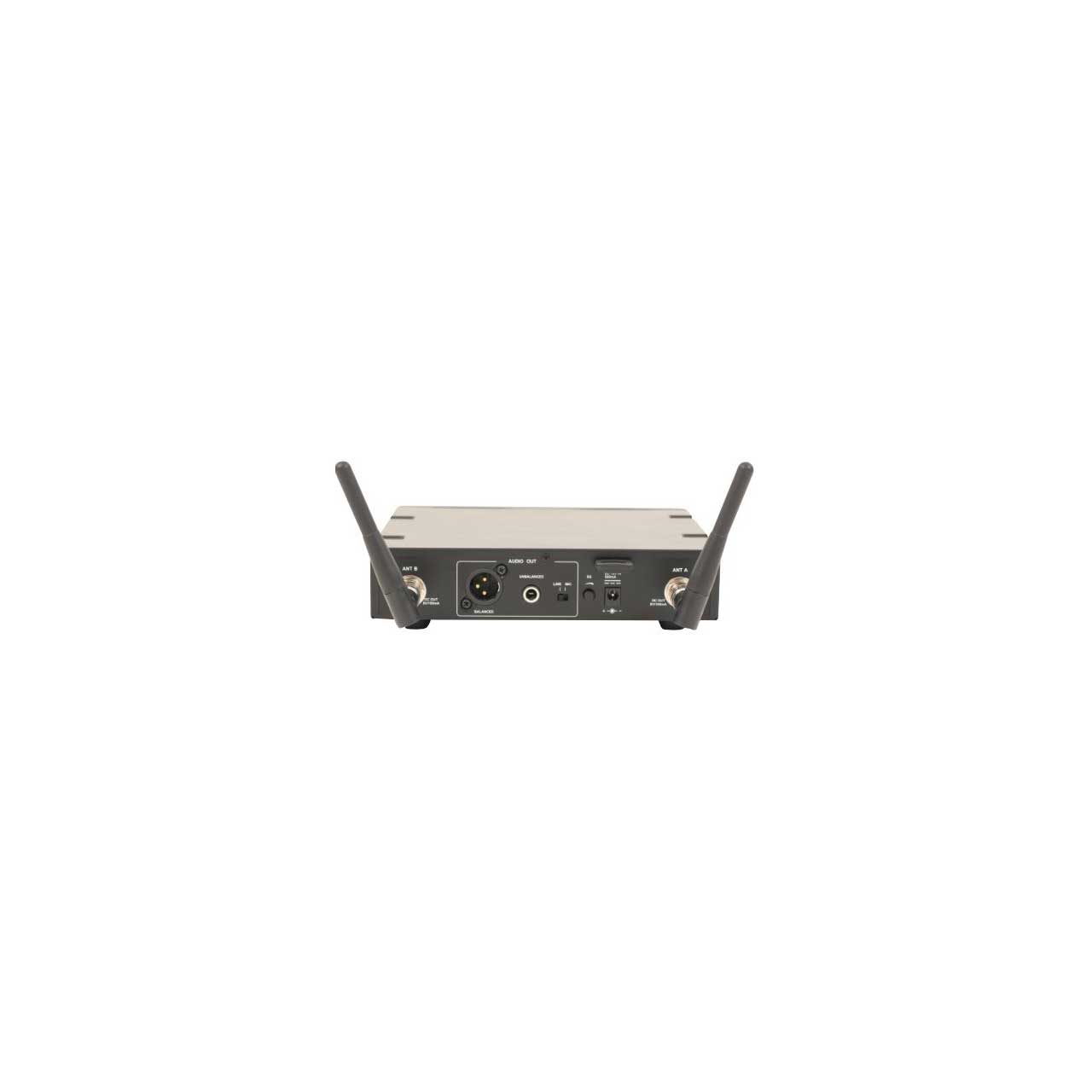

Anchor WR-EXT500 External Wireless Receiver for UHF-EXT500 Series - 540-570MHz w/ Power Supply

ITEM #: AN-WR-EXT500 MFG #: WR-EXT500

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$350.00

Our Price:

$309.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    WR-EXT500 - Overview

    Anchor Wireless Mic Receiver for the UHF-EXT500 Series

    External wireless receiver compatible with UHF-EXT500 series. A PLL synthesized wireless microphone system that operates in the 540 ~ 570 MHz UHF band frequency with up to 700 selectable channels.

    • Features:

      • 700 Selectable Channels
      • Set Interference-free Channels by using Automatic Frequency Setting
      • PLL Synthesized
      • 540 ~ 570 MHz
      • Built-in Talk/Mute Button on Handheld Mic and Belt Pack

    • Specifications:

      • Frequency Range: UHF 540 ~ 570 MHz (Regionally Selected)
      • Case: Half 19" EIA Rack Metal Case
      • Oscillator: PLL Synthesized
      • Modulation: FM
      • S/N Radio: > 100 dB, at 200 KHz deviation and 60 dBµV antenna input
      • Image & Spurious Rejection: 70 dB minimum
      • Receiving Sensitivity: At 2µV over 52 dB S/N ratio
      • AF Response: 80 Hz to 18 KHz
      • T.H.D.: <1% (at 1 KHz)
      • IF Frequency: 1st: 243.95 MHz 2nd: 10.7 MHz
      • Dynamic Range: >100 dB
      • Tone Signal: 32.768K Hz

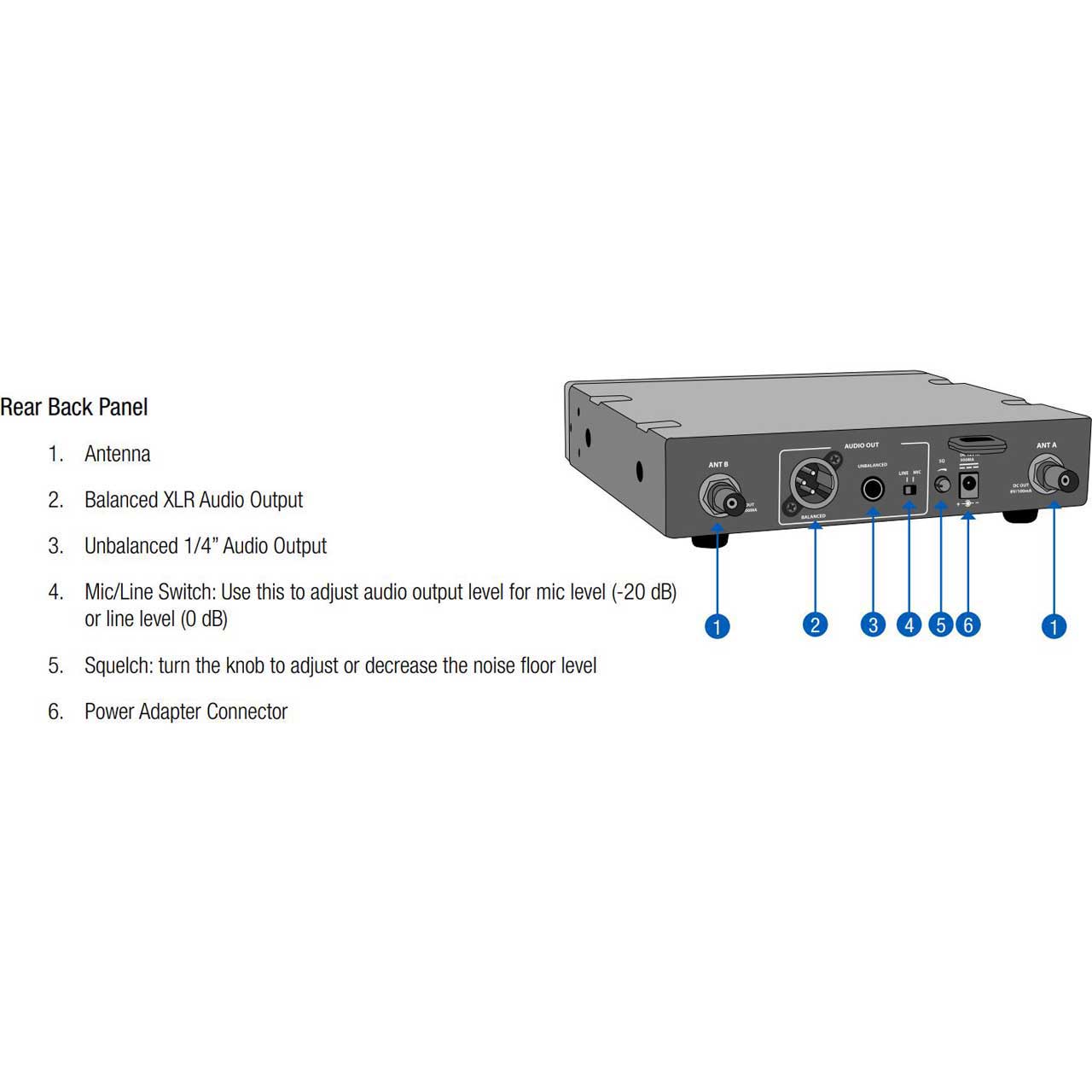

      • Audio Output: Balanced & Unbalanced
      • Power Supply: DC 12V
      • Current Consumption: 260 ± 10 mA

        Dimensions and Weight
      • Total (HWD): 1.65" x 7.9" x 7.2"
      • Weight: 2.05 lbs
