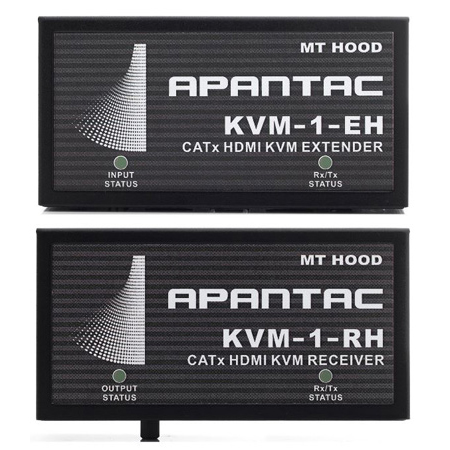

Apantac KVM-SET-10 HDMI KVM Extender Pair - KVM-1-EH Extender and KVM-1-RH Receiver

KVM-SET-10 - Overview

KVM-SET-10 - Overview

KVM-SET-10 - Details

• Features:

  • Extend USB, HDMI/DVI/USB Signals over a single CATx Cable
  • Maximum resolution of 1920 x 1200 up to 50 meters (150 feet)
  • Plug and play - no software required
  • Remote / local monitoring and control
  • Supports MS-DOS, Windows, FreeBSD, Linux, Unix, Novel operating systems
  • To be used with a DVI signal, a customer supplied HDMI male to DVI male adapter cable will need to be provided


• Specifications:

  • KVM-1-EH Single Port HDMI / USB KVM Extender
  • INPUT:
  • 1 x HDMI
  • 1 x USB
  • 1 x Audio
  • OUTPUT:
  • 1 x RJ45 (Link)
  • 1 x HDMI (Local Output)
  • 1 x Audio
  • MAXIMUM RESOLUTION / DISTANCE: 1920 x 1200 up to 50 meters (150 feet)
  • MOUNT: Magnetic
  • POWER: DC 5V 1200 mA
  • DIMENSIONS: 85 W x 192 D x 29 H (mm)


  • KVM-1-RH Single Port HDMI / USB KVM Receiver
  • INPUT: 1 x RJ45
  • OUTPUT:
  • 1 x HDMI
  • 2 x USB (Mouse, Keyboard)
  • 1 x Audio
  • ADJUSTMENTS: Equalizer
  • MAXIMUM RESOLUTION / DISTANCE: 1920 x 1200 up to 50 meters (150 feet)
  • MOUNT: Magnetic
  • POWER: DC 5V 1200 mA
  • DIMENSIONS: 85 W x 192 D x 29 H (mm)
