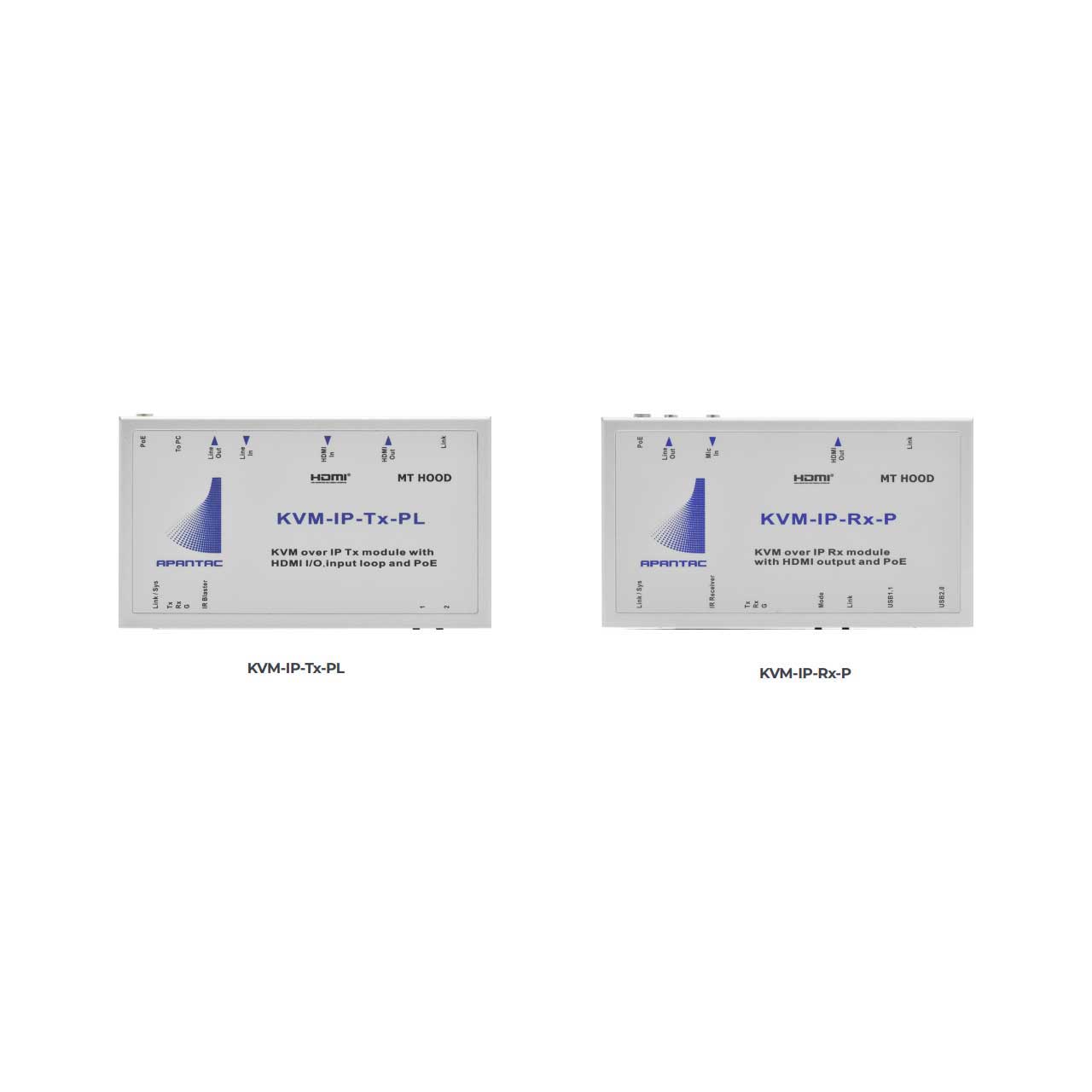

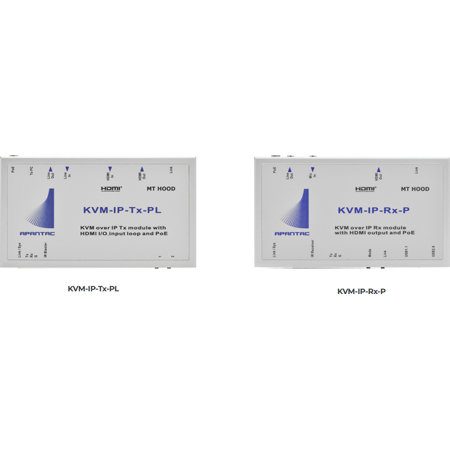

Apantac KVM-SET-14 KVM Extender & Receiver over IP - HDMI with POE USB Mouse & USB Keyboard over Gigabit Ethernet Bundle

KVM-SET-14 - Overview

• Features:

  • Based on Gigabit Ethernet Technology (IGMP and Jumbo frame)
  • Transmitter has built-in HDMI looping input with POE
  • Receiver with POE
  • Supports up to 170 meters point to point extension with CAT6 cable
  • Supports up to 100 meters when used with a GigE switch
  • Supports HDMI inputs and output signals
  • Supports point to point (Unicast), point to multi-point (Multicast) for Audio/Video distribution
  • Receiver has 4 USB ports that supports both HID and transparent USB (for USB storage, and tablets)
  • Supports bi-directional stereo audio. Both embedded HDMI as well as external stereo input
  • Supports RS-232 communication between Tx and Rx
  • Built-in webpage for configuration
  • Connection manager software for Tx/Rx management
  • Supports resolutions up to 4K/UHD @ 30Hz
  • Advanced EDID management functionality. Built-in EDID, EDID pass through, copy EDID and sharing EDID
  • Built-in Scaler
  • LED Status indicators
  • Plug and Play


• Specifications:

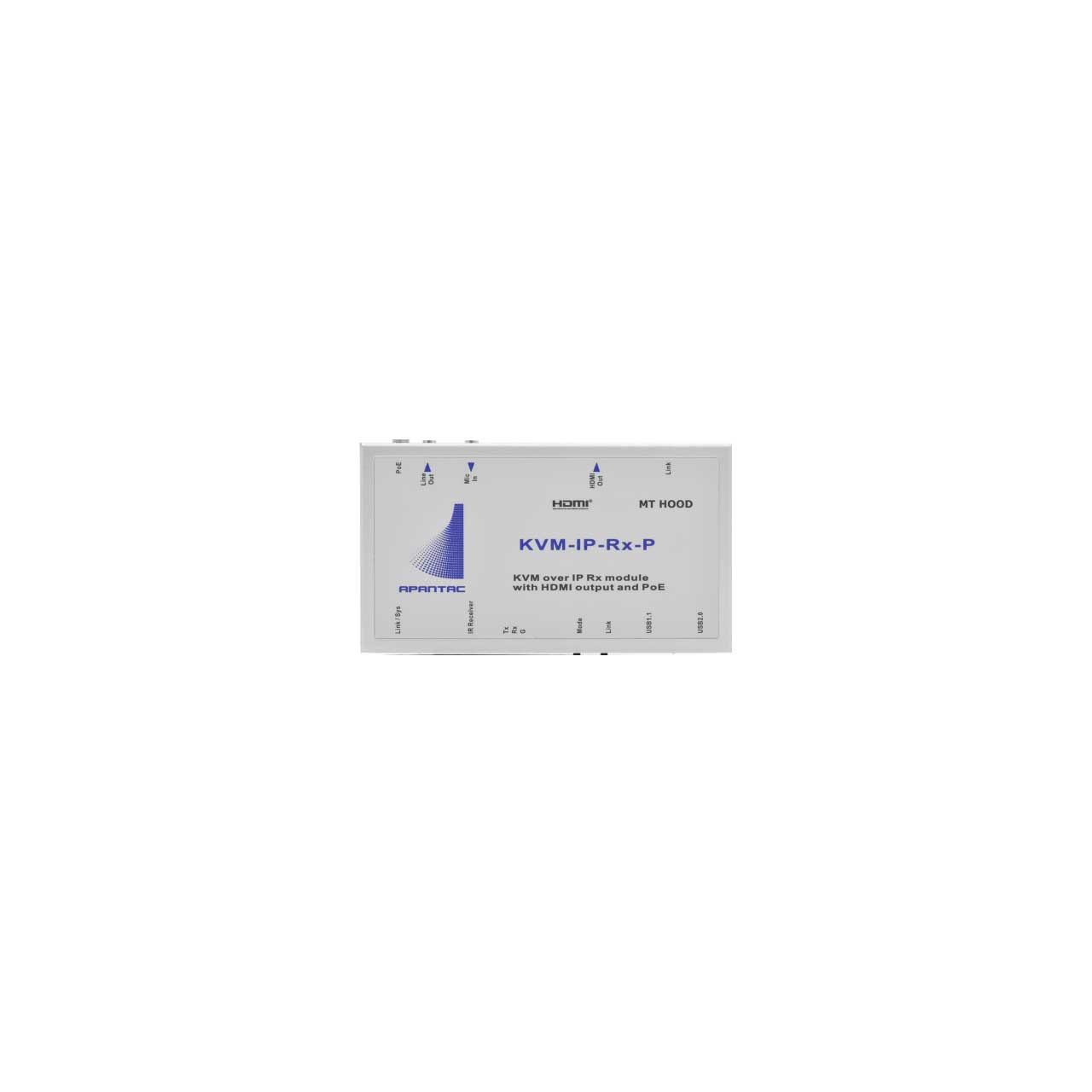

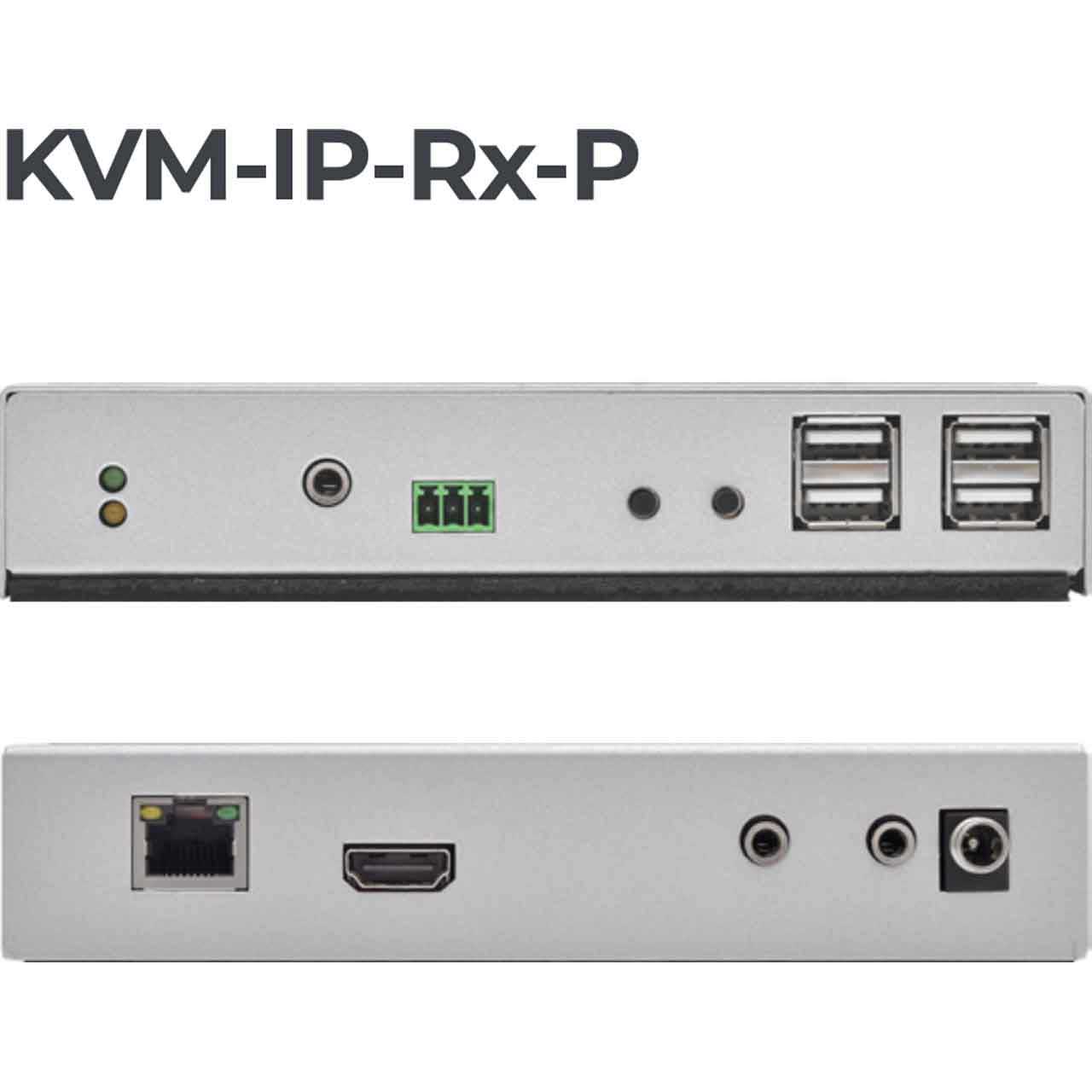

  • KVM-IP-Rx-P Front View
  • 1x System Status LED
  • 1x Link Status LED
  • 1x IR Receiver
  • 1x 3 Pin - RS-232
  • 2x buttons - Function & Mode
  • 2x USB Type A inputs - 2 HID
  • 2x USB Type A inputs - 2 USB 2.0

    KVM-IP-Rx-P Back View
  • 1x RJ45 Link In with POE
  • 1x HDMI Output
  • 1x phone jack - Microphone In
  • 1x phone jack - Audio Line Out
  • 1x 24V DC (Optional)

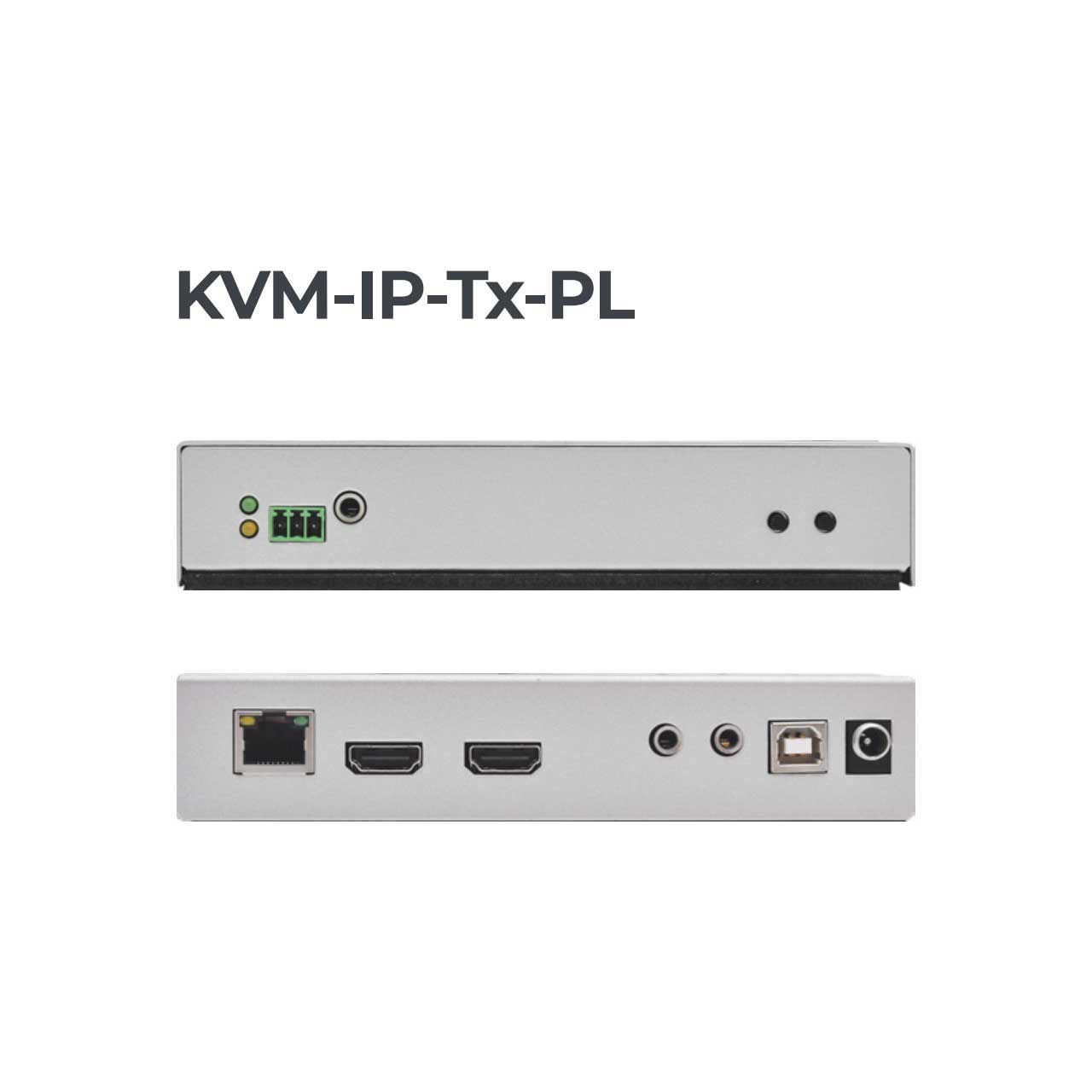

    KVM-IP-Tx-PL Front View
  • 1x System Status LED
  • 1x Link Status LED
  • 1x 3 Pin - RS-232
  • 1x IR Transmitter
  • 2x buttons - Function & Mode

    KVM-IP-Tx-PL Back View
  • 1x RJ45 Link Out with POE
  • 1x HDMI Input
  • 1x HDMI Loop out
  • 1x phone jack - Audio Line In
  • 1x phone jack - Audio Line Out
  • 1x USB Type B - PC In
  • 1x 24V DC (Optional)

    Video
    Input: RX: RJ45 TX: HDMI
    Output TX/RX: HDMI
  • Audio
    Input TX/RX: 3.5mm Stereo Phone Jack
    Output: RX: N/A TX: 3.5mm Stereo Phone Jack
  • Microphone Input: N/A
  • USB
    TX: USB TYPE B (Female)
    RX: 4x USB Type A (Female)
  • System Link
    Input RX: RJ45
    Output TX: RJ45
  • RS-232 Baud Rate: 3-pin Pheonix Connector / up to 115,200 bps / Full Duplex
  • Video Resolution: Maximum 4K/UHD@30Hz
  • Interconnect Cable: Standard CAT6/CAT6a/CAT7 network cable
  • Maximum Cable Length: 170m point to point, 100m when connected to a switch
  • Operating Temperature: 32° to 122°F (0° to 50°C)
  • Storage Temperature: -4° to 185°F (-20° to 85°C)
  • Environmental Humidity: 0 to 80% (non-consensing)
  • Power: DC 12V, 1.5A
  • Power Consumption: 400 mA
  • Weight: 1.32Lbs (600g)
  • Dimension: 6.03 x 3.47 x 1.24" (153.4 x 88.2 x 31.5mm)


• Item Includes:

  • 1x KVM-IP-RX-P Receiver
  • 1x KVM-IP-Tx-PL Extender


• Warranty:

  • 1 Year
