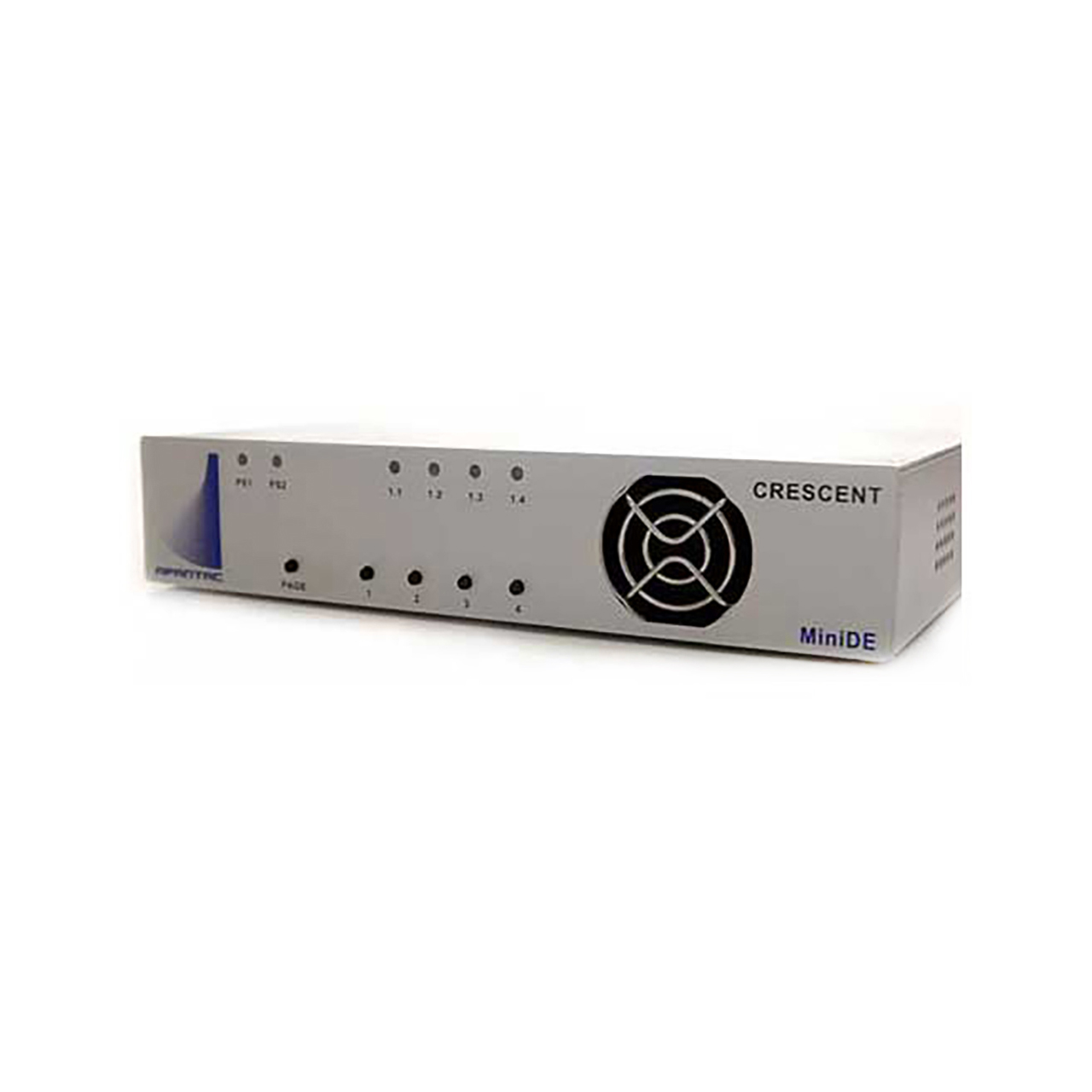

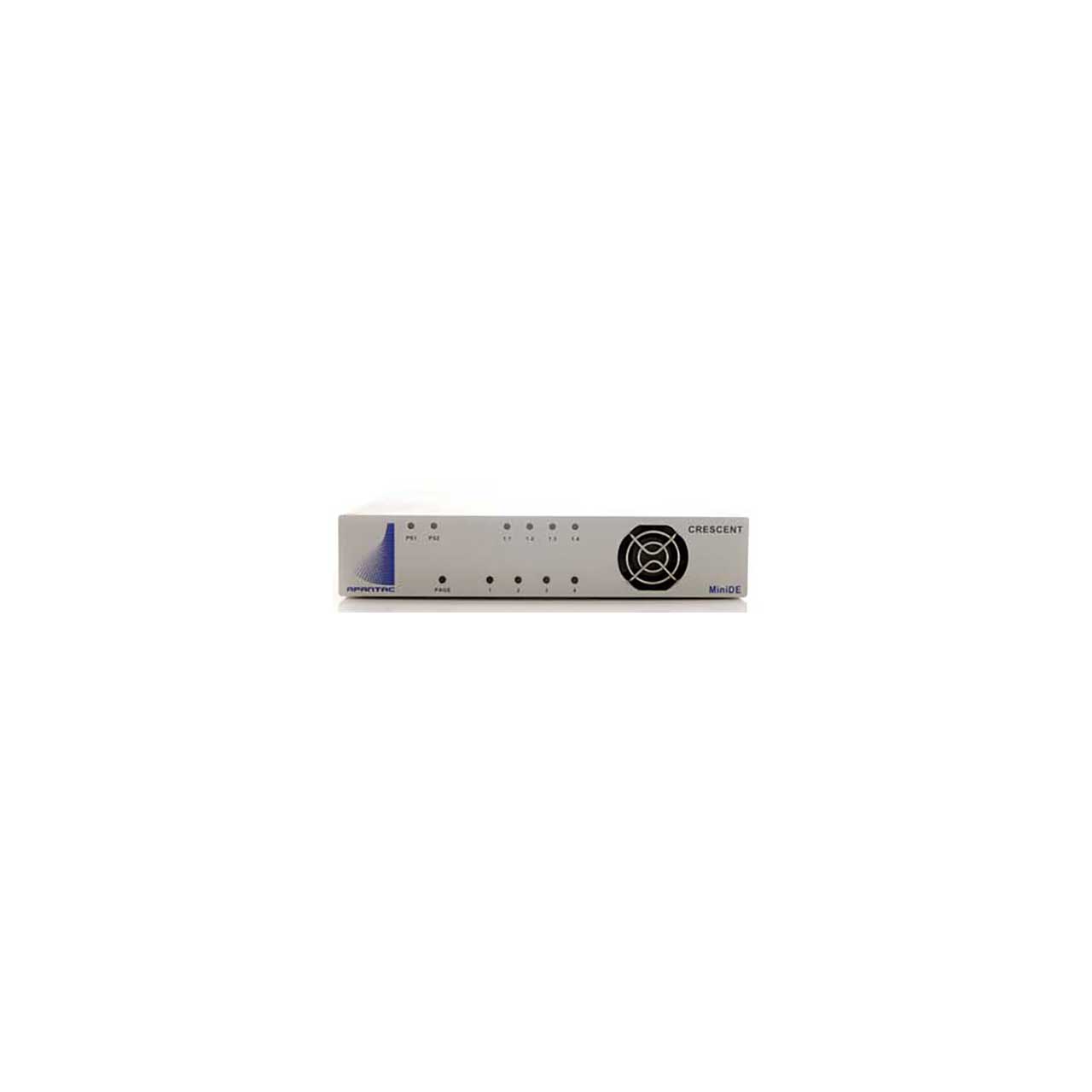

Apantac MINIDE-4 Four HDMI with HDCP/DVI/VGA/YPbPr/CVBS Inputs Compact Multiviewer with DVI/HDMI Output

MINIDE-4 - Overview

• Features:

  • Costs Effective Multimedia Input Multiviewer
  • 4 Universal Inputs: DVI, HDMI - with HDCP, VGA, YPbPr, composite
  • Windows can be resized
  • ASCII Protocol for Remote Control
  • IP and RS232 Control
  • DVI / HDMI outputs up to 1080P60


• Specifications:

  • Video inputs: HDMI, VGA, DVI, Component, Composite
  • Outputs: 1 DVI, HDMI
  • Output resolution: 800x480 - 1920x1080P
  • Built-in extender: Up to 35 feet with passive receiver; Up to 115 feet with active receiver
  • General purpose IO: RJ50 (8 connectors)
  • IP: 100 Base-Tx, Supported Protocol: AXP_Lite, Connector: RJ45
  • Total windows: 4

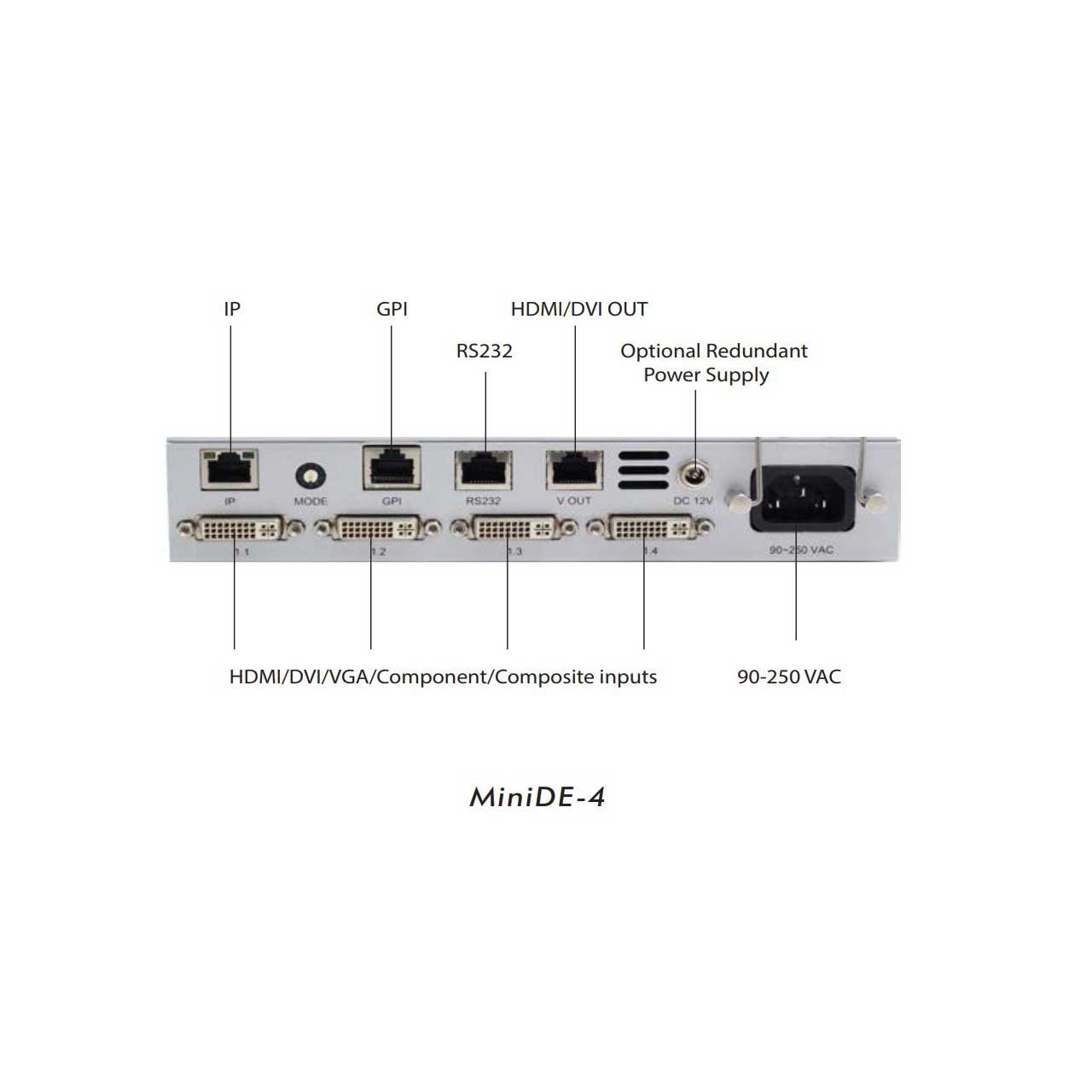

  • Connectors: DVI-I (DVI-I-VGA Adapter DVI-I-Composite Adapter; Optional DVI-I-HDMI Adapter; Optional DVI-I-YPbPr Adapter) BNC IEC 61169-8 Annex A
  • Control: Front Panel buttons for quick preset recalls, GPIs, AXP_Lite, built-in webpage, MiniDE_Lite control Application
  • Composite: NTSC (SMPTE-170M) PAL (ITU624-2)
  • Signal level: 1V nominal
  • DC offset: 0V, + - 0.1V
  • Impedence: 75 ohm
  • Return loss: 40db up to 5MHz
  • Electrical: 25 W, 90-250 V 50/60 Hz
  • EMI/RFI: Complies with FCC Part 15, Class A, CE, EU EMC, C-tick
  • Size(W x D): 1/2 width of 1RU 8.5 inch x 14.6 inch (21.5cm x 37 cm)

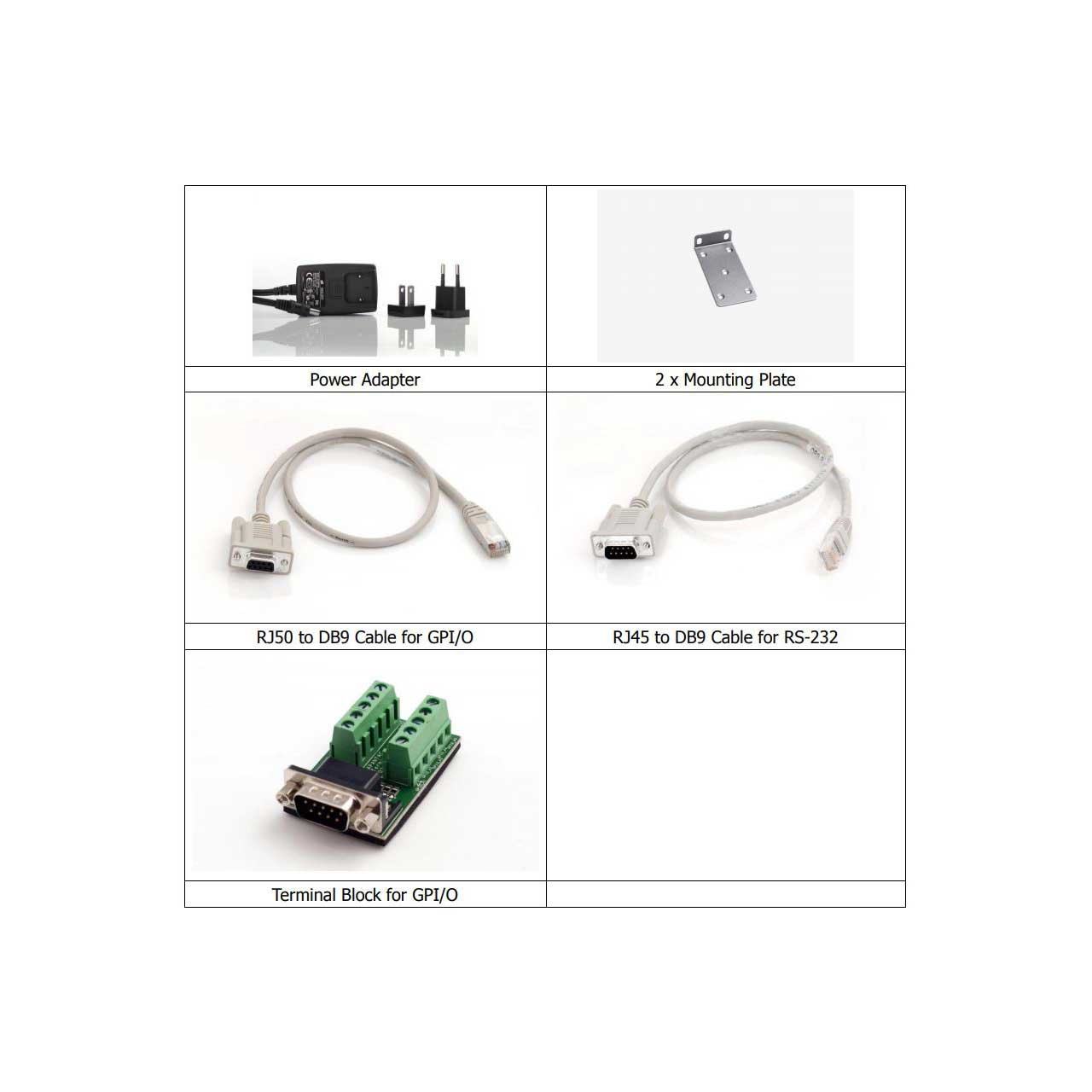

• Item Includes:

  • 1 x MiniDE Multiviewer
  • 1 x Rack Mount Kit
  • 1 x RJ50 to DB9 cable with terminal block for GPI/Tally
  • 1 x RJ45 to DB9 cablec for RS-232
