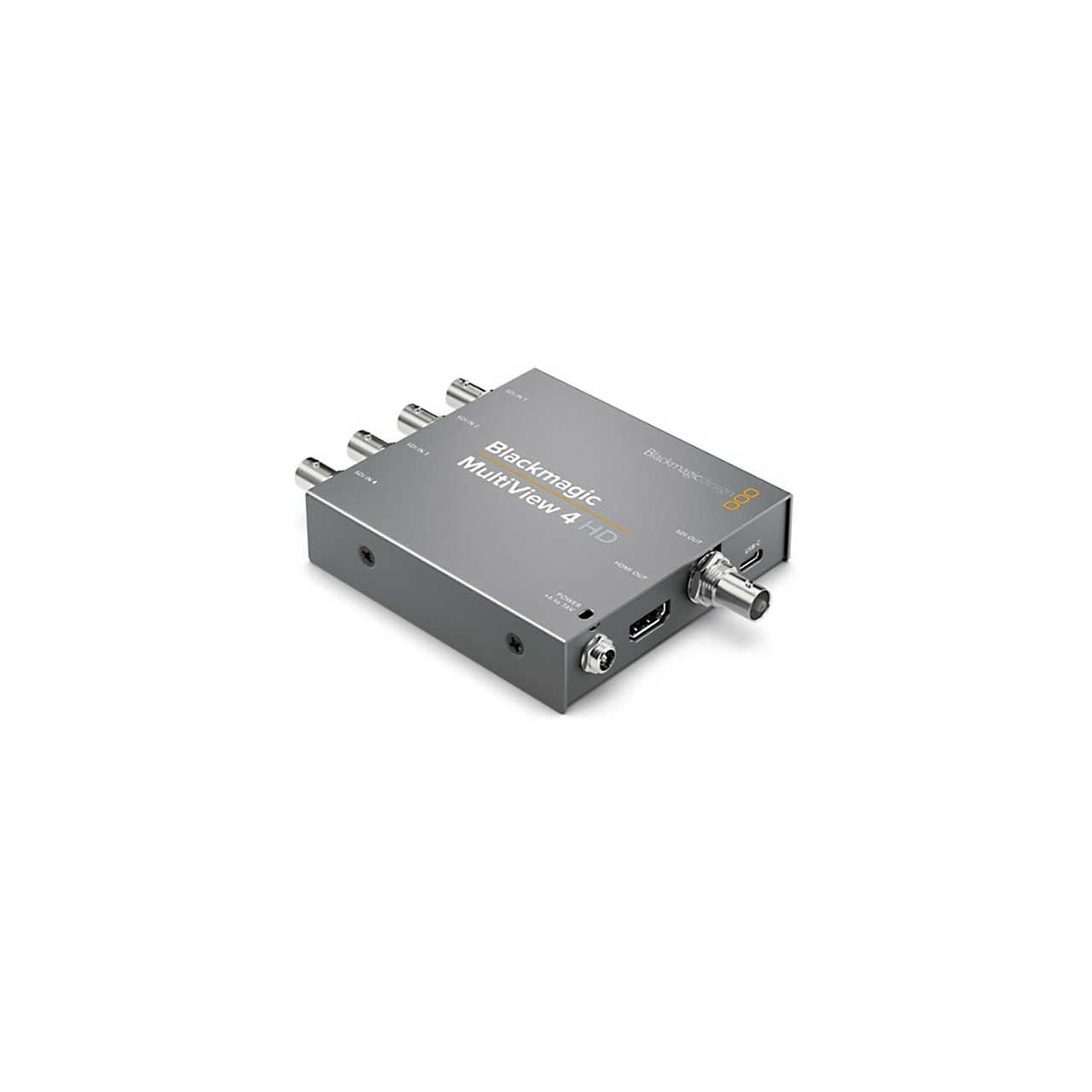

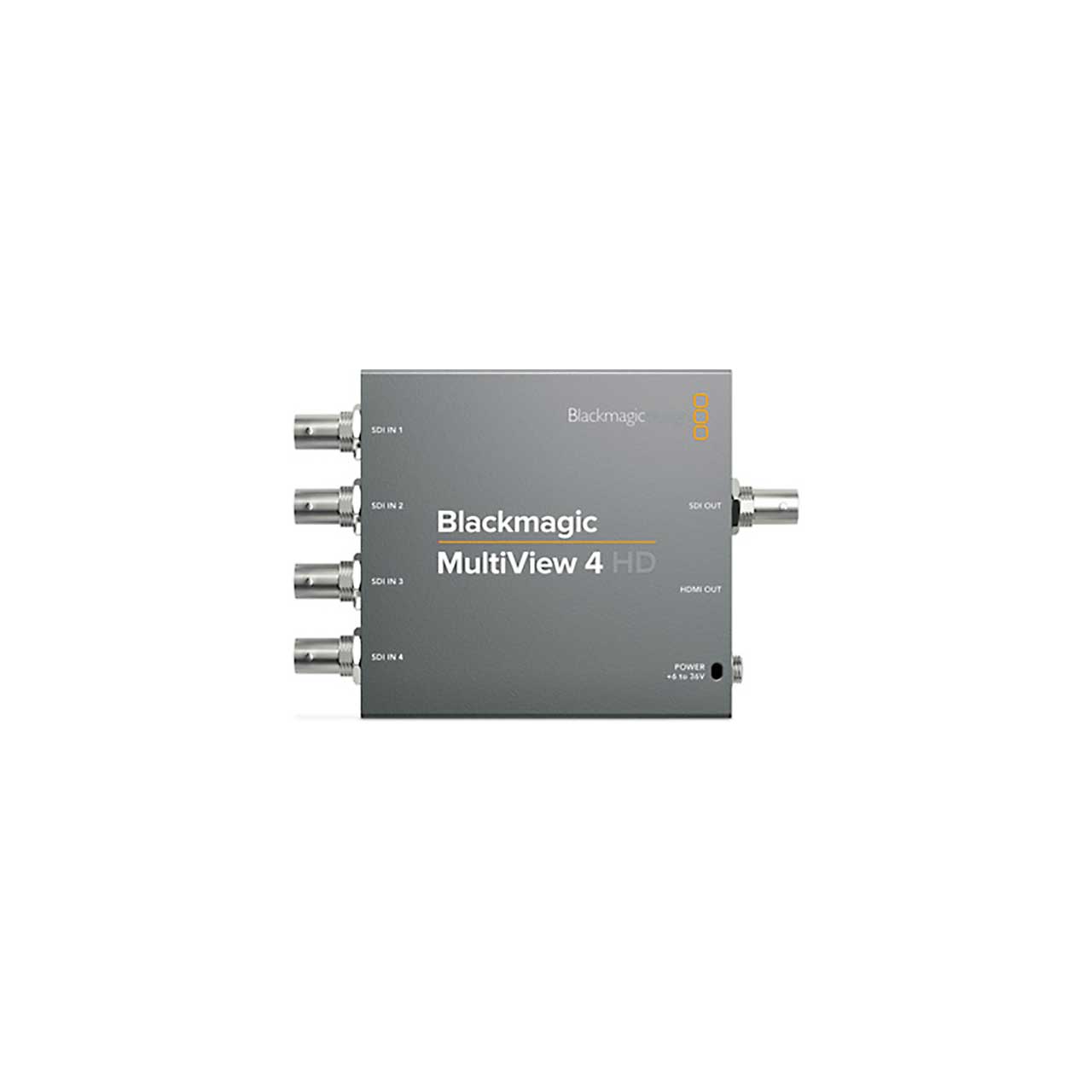

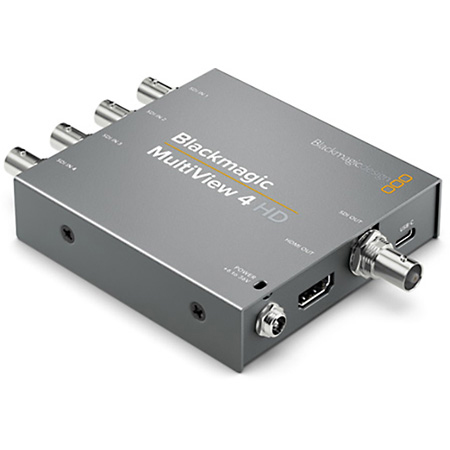

Blackmagic Design HDL-MULTIP3G/04HD MultiView 4 HD Mini Converter

ITEM #: BMD-MULTIVIEW4HD MFG #: HDL-MULTIP3G/04HD

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$199.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    HDL-MULTIP3G/04HD - Overview

    Now you can monitor multiple SDI sources on an HD or Ultra HD display or TV!

    The Blackmagic MultiView 4 HD is a low cost multi viewer that lets you simultaneously monitor 4 different SDI video sources on a single display! Each view is a completely independent video monitor with overlays that you can turn on and off such as custom labels, audio meters and more. Full frame re-synchronization on each input lets you monitor any combination of video signals, even if they are different frame rates. The multi rate 3G-SDI connections are compatible with all existing SD and HD equipment and formats up to 1080p60, including Level A and B devices. Plus, you get both 3G-SDI and HDMI outputs so you can use traditional SDI displays or even low cost big screen televisions!

    Multi view monitoring is perfect for massive control rooms with lots of incoming feeds, for live multi camera production or for use on location and in tight spaces that don't have room for multiple monitors. With Blackmagic MultiViews you don't need to connect multiple monitors, dozens of cables or run extra power to see all of your video sources! Simply plug your cameras, decks, switchers and routers into the SDI connections to see everything with amazing clarity and detail on a single HD or Ultra HD monitor!

    • Features:

      • The world's highest resolution multi viewer!
      • Multi source monitoring designed for broadcasters!
      • Mix any combination of SD, HD and Ultra HD sources
      • Custom labels, tally, audio meters and more!
      • Supports all of your SD, HD and Ultra HD equipment!

    • Specifications:

      • Connections
      • SDI Video Inputs: 4 x 10-bit SD-SDI and HD-SDI.
      • SDI Video Outputs: 1 x HD-SDI.
      • SDI Rates: 270Mb, 1.5G, 3G.
      • SDI Video Multi View Outputs: 1 x 10-bit HD-SDI.
      • HDMI Video Multi View Outputs: 1 x HDMI type A connector. Output supports EDID of the monitor.
      • SDI Reclocking: On all SDI outputs, auto switching between standard definition or high definition.
      • Reference Input: None
      • Multi Rate Support: Auto detection of SD or HD.
      • Updates: USB 2.0 high speed (480Mb/s) interface.
      • Configuration: USB 2.0

        Standards
      • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
      • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
      • 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU R BT.656 and ITU R BT.601.
      • Audio Meters: Each view, VU standard.
      • Source Routing: None
      • SDI Video Sampling: 4:2:2 and 4:4:4.
      • SDI Audio Sampling: Television standard sample rate of 48kHz and 24-bit.
      • SDI Color Precision: 10-bit 4:2:2 and 4:4:4.
      • SDI Color Space: YUV or RGB for inputs, YUV for outputs.
      • SDI Auto Switching: Automatically selects between SD-SDI and HD-SDI on each input so that each input can be running a different television standard.
      • SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.

        Control
      • Built in Control Panel: None
      • External Control Panel: None

        Software
      • Software Control: MultiView software included free for Windows™ and Mac™.
      • Internal Software Upgrade: Via included updater application.

        Operating Systems
      • Mac 10.12 Sierra, Mac 10.13 High Sierra or later. Windows 8.1 and 10.

        Power Requirements
      • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
      • Power Fail Protection: MultiView 4 HD settings preserved and restored instantly at power on.

    • Item Includes:

      • Blackmagic MultiView 4 HD
      • +12V universal power supply with international socket adapters

    • Warranty:

      • 3 Year Limited Manufacturer's Warranty.

    • GTIN:

      9338716005424
