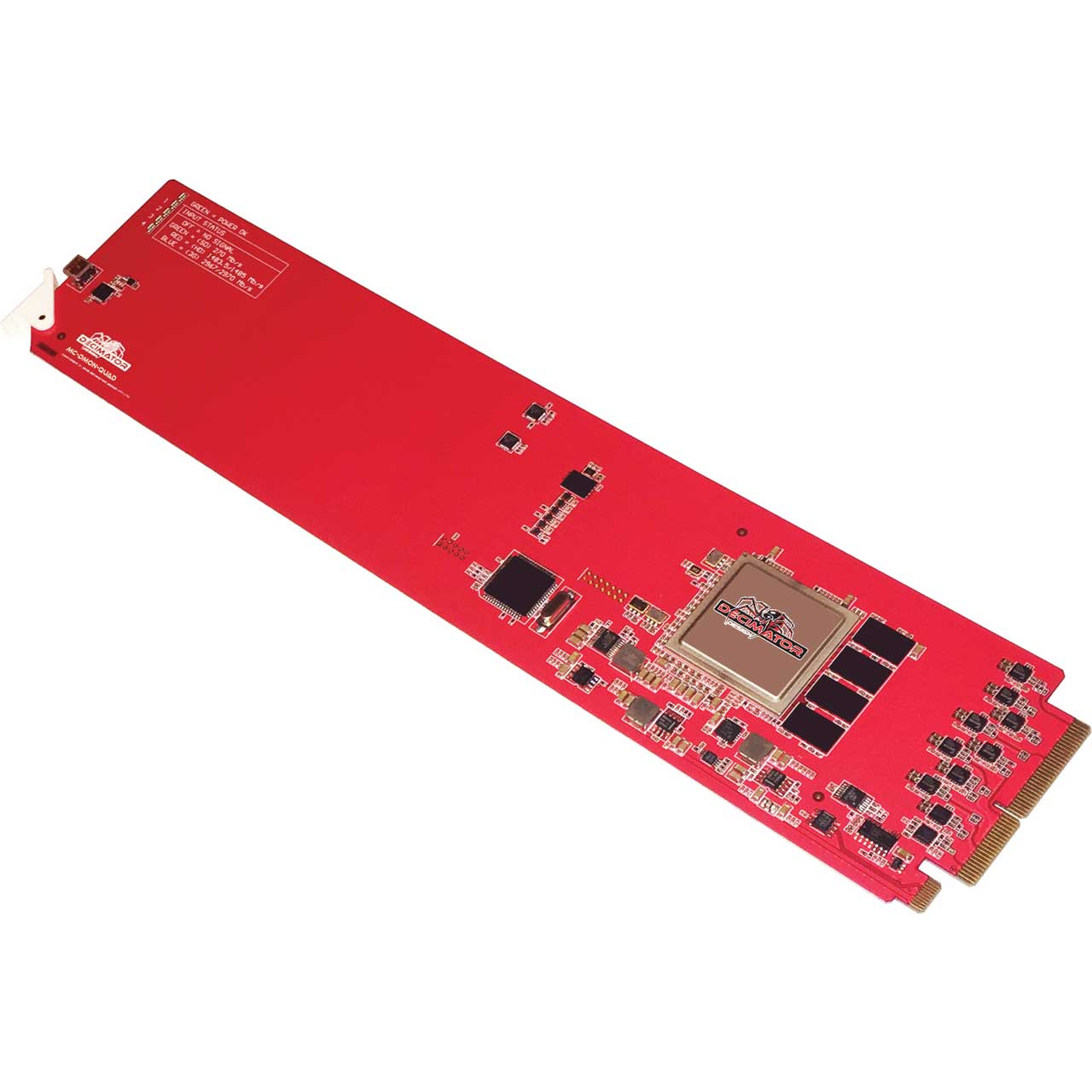

Decimator Design MC-DMON-QUAD 1 to 4 Channel (3G/HD/SD)-SDI openGear MultiViewer Card with Custom Layouts

ITEM #: DEC-MC-DMON-QUAD MFG #: MC-DMON-QUAD

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$295.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    MC-DMON-QUAD - Overview

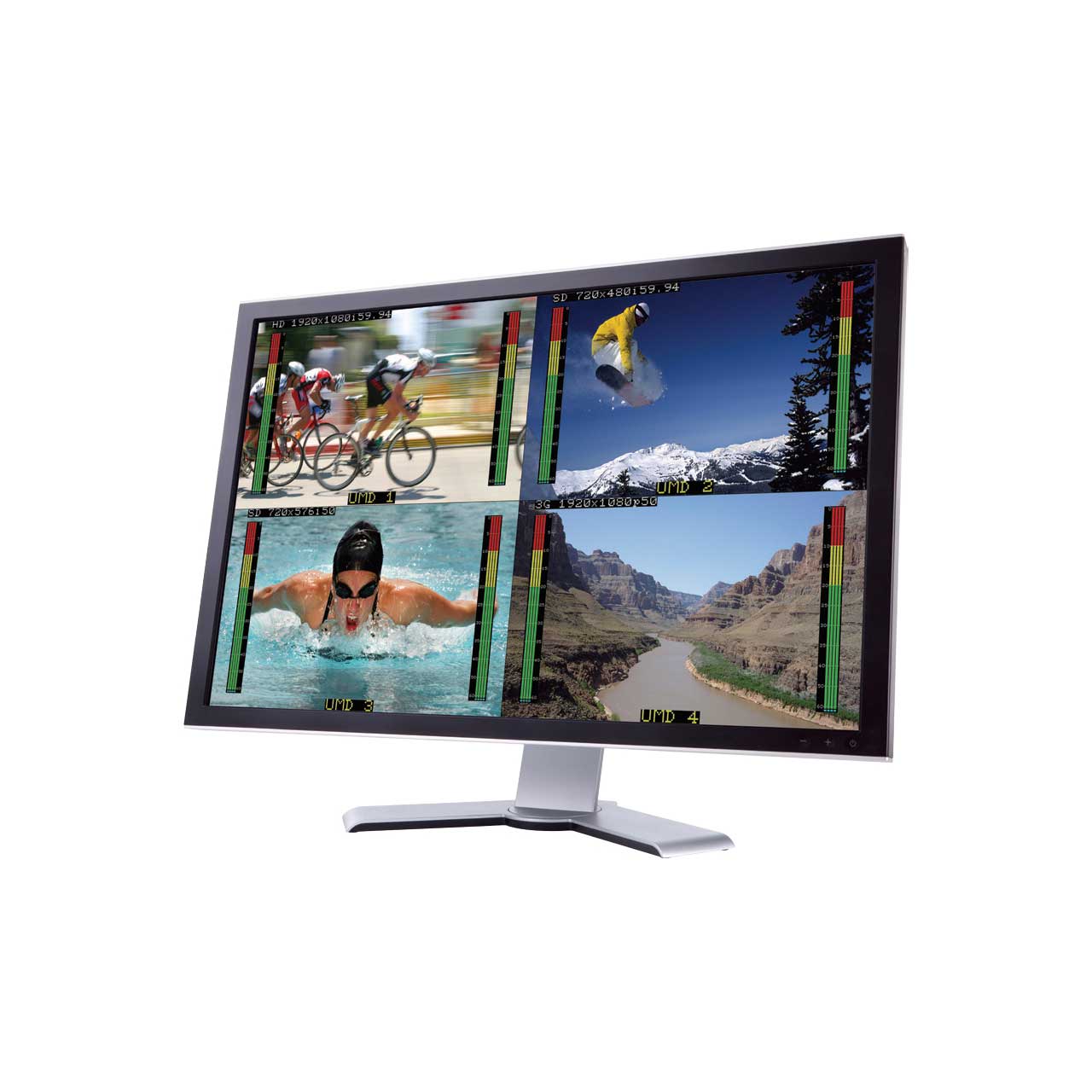

    The Decimator MC-DMON-QUAD is a low cost openGear, 1 to 4 Channel, (3G/HD/SD)-SDI MultiViewer with Custom Layouts, UMDs, Audio Meters and Tallies. It supports 3G level A and B on inputs and output, which allows conversions between 3G level A and B. You can customize your layouts to fit your needs or simply use the various standard layouts already included. This card supports openGear DashBoard for more control.

    Please Note: The required MC-DMON-9SRM (DR1-10B1G) rear module adds 10 BNC connectors and a 3 pin connector for RS422/485. (module sold separately)

    • Features:

      • Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
      • Low cost miniature (3G/HD/SD)-SDI 1 to 4 MultiViewer or 4 to 1 input multiplexer
      • Custom Layouts with various standard layouts
      • 16 Character UMD overlay per window with individual enables, custom positioning and size
      • 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
      • Audio ID overlay
      • 3 pin connector on the DR1-10B1G rear module allows for Dynamic UMD and Tallies via RS422/485 using the industry standard TSL protocol
      • Tallies can be applied to either Tally Boxes (Default) or Border
      • Tally boxes allows for up to 4 Tallies per window
      • Fast switching between inputs using Full-Screen scaling
      • Selectable output format in both Full-Screen MultiViewer mode
      • Low latency buffering for each input allowing non-synchronous inputs
      • 4 x (3G/HD/SD)-SDI inputs with auto detection (29 Formats supported in total)
      • Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
      • Variable aspect ratios per quadrant
      • In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI outputs
      • USB Mini B port for control and firmware updates
      • Supports openGear DashBoard for control
      • The DR1-10B1G rear is sold seperately and adds 10 BNC connectors and a 3 pin connector for RS422/485 Control.

    • Specifications:

      • SDI INPUT & OUTPUT FORMATS
      • 3G:
      • SMPTE [email protected] and 2.967Gb/s
      • 1080p@60/59.94/50Hz HD:SMPTE 292M/274M/[email protected] and 1.435Gb/s
      • 1080i@60/59.94/50Hz
      • 1080p/psf@30/29.97/25/24/23.98Hz
      • 720p@60/59.94/50/30/29.97/25/24/23.98Hz
      • SD:
      • SMPTE 259M@270Mb/s
      • 625i50 (PAL)
      • 525i59.94 (NTSC)

        INPUTS
      • 4 x (3G/HD/SD)-SDI
      • USB Mini B for control and updates
      • 3-pin connector for UMD and Tallies via RS422/485 LED STATUS

        OUTPUTS
      • 1 x SDI (3G/HD/SD)-SDI

        LED STATUS
      • Power / Update
      • 4 x Signal lock and rate

    • GTIN:

      5060417390151
