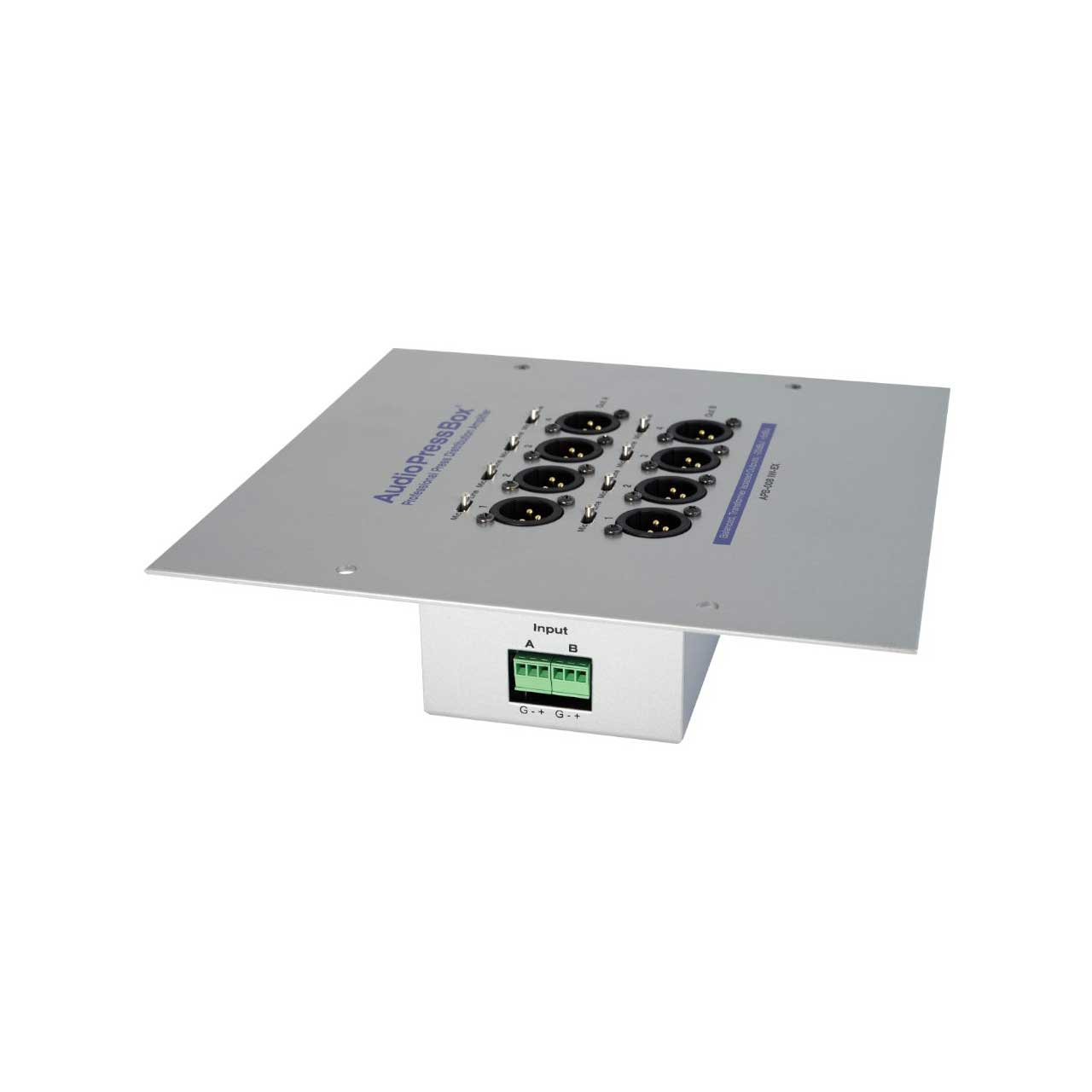

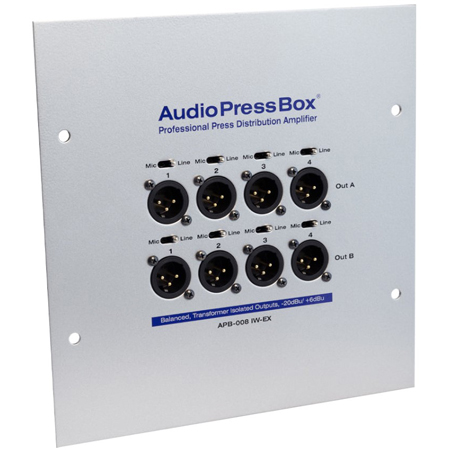

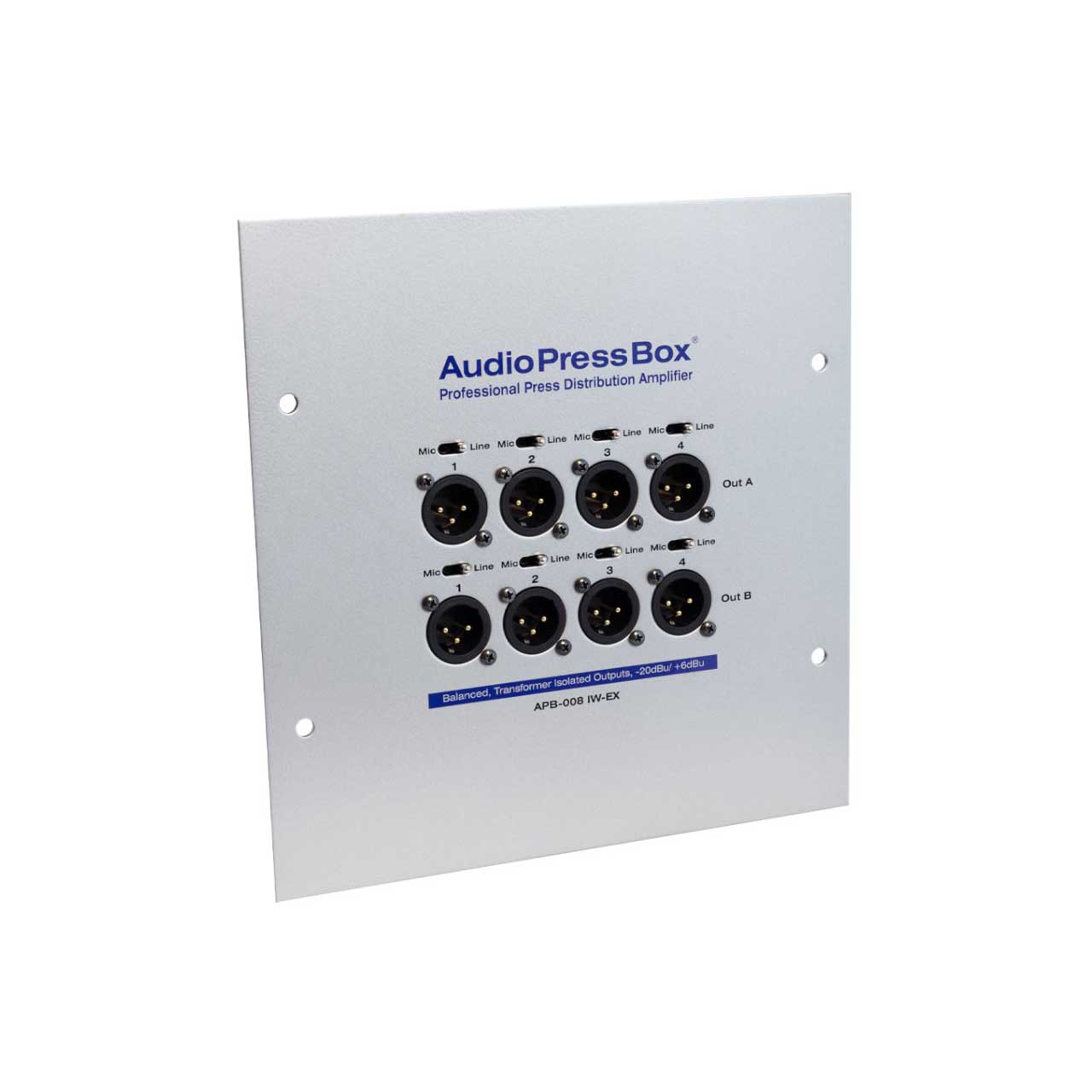

AudioPressBox APB-008 IW-EX-US Professional Press Box Expander w/8 Line/MIC Outputs - Compatible with NEMA Box

APB-008 IW-EX-US - Overview

• Features:

  • 8 High quality balanced Outputs, independent transformer isolated and switchable LINE or MIC Output level. Two Groups (A,B) with 4 Outputs per Group
  • Color: Silver APB-008 IW-EX (SV), White (WH) or Black (BK)
  • US standard NEMA Box 884


• Specifications:

  • Type: Expander Groups: 2 Input Section
  • Inputs: 1x Bus A; 1x Bus B

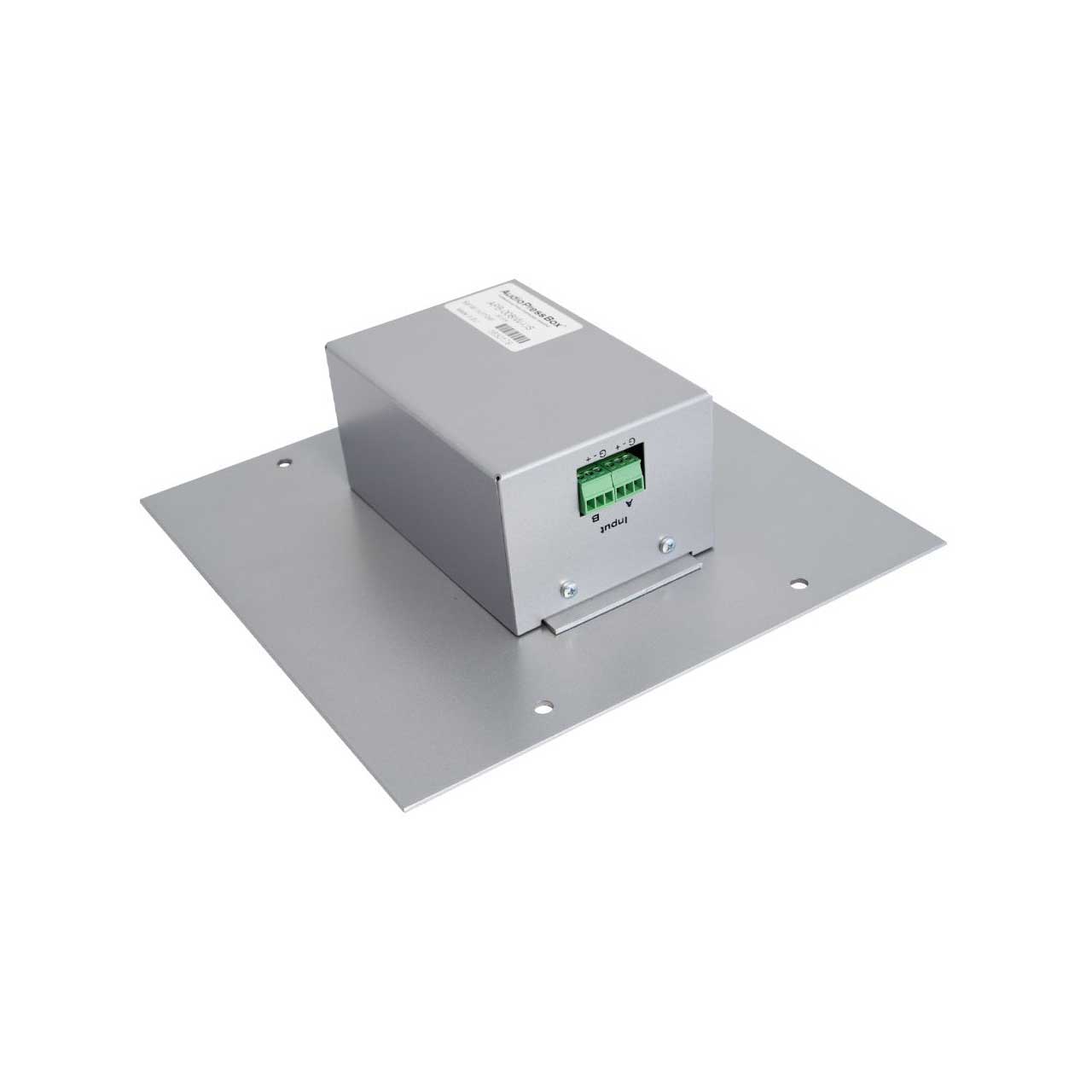

  • Input Connectors: Balanced, 3-pin phoenix connector

    Output Section:
  • Outputs: 4x Bus A, Line/MIC level; 4x Bus B, Line/MIC level
  • Output Connectors: Balanced, XLR-M connector
  • Nominal Output Level: MIC: -20dBu; LINE: +6 dBu
  • Output Impedance: Mic: 220Ω; Line: 600Ω
  • Transformer Isolated Outputs: Yes (each output)

    Mechanical:
  • Dimensions (WxHxD): 214 x 214 x 65mm
  • Weight: 1400g
  • Compatible NEMA Box: 884


• Item Includes:

  • 1x APB-008 IW-EX-US


• Warranty:

  • 2 Years
