ZOOM F8n Pro MultiTrack Field Recorder with 32-bit Float Recording and Full Metadata Entry

ITEM #: ZOOM-F8N-PRO MFG #: ZF8NPRO

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,099.99

Availability: In Stock
iAvailability Description Popup


    ZF8NPRO - Overview

    ZOOM'S New Flagship Field Recorder
    Filmmakers and sound professionals know the importance of sharp, clean audio in storytelling. From the click of a seatbelt to the roar of an engine, the ZOOM F8n Pro has 8 inputs to help capture full dynamic range using 32-bit float technology.

    Create Immersive Audio
    With 8 inputs and 10 tracks, the F8n Pro can capture the most complex audio, expanding your options so that you can create sonic magic in post. The F8n Pro's Ambisonics mode offers precision A-to-B decoding and balanced gain linking, enabling you to capture 360° spatial audio for VR, AR and more.

    Explosive Audio
    32-Bit Float is a game-changer! The F8n Pro uses dual A/D converters and professional-grade preamps to capture clip-free audio - without ever needing to adjust your gain.

    Multiple Feeds
    The F8n Pro has three outputs for external devices, headphones, and camera connections. You can keep tabs on your tracks pre or post-fader, check levels, route signals to the left or right and set alert tones for battery and recording status.

    Record And Stream Together
    When connected to your computer, the F8n Pro can be used as an 8-IN/4-OUT audio interface. Record and stream in 32-bit float/96kHz while simultaneously recording to SD cards.

    Go Mobile & Expand Your Control
    The F8 Control App lets you monitor signals, adjust levels, trigger transport controls, enter metadata and more from your Android device, iPhone or iPad via Bluetooth. The ZOOM F-Control (FRC-8) gives you more flexibility in the field. With 60mm faders and controls for trim, pan and track-arming, the FRC-8 is a must-have for any professional filmmaker.

    • Features:

      • 32-bit float recording technology
      • Record on 8 channels and up to 10 tracks
      • Records in BWF-compliant WAV format up to 192kHz/32-bit float

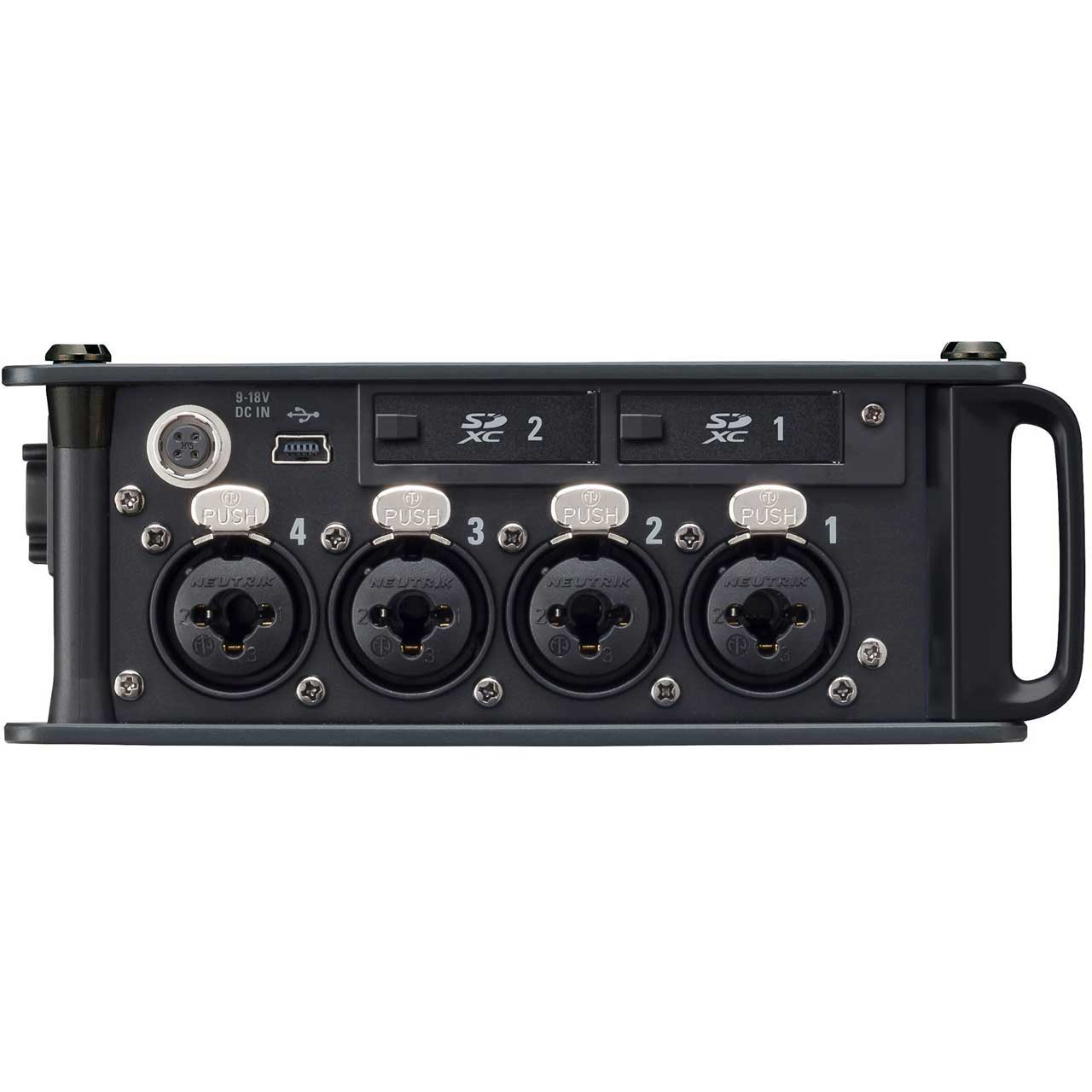

      • 8 discrete inputs with locking Neutrik XLR/TRS combo connectors
      • High quality mic preamps with up to 75dB gain and less than -127dBu EIN
      • Switchable +4dB inputs with MIC/LINE options for both XLR and TRS
      • Accurate Time Code (0.2ppm when on and up to 0.2ppm when powered off) I/O on standard BNC connectors; dropframe/non-drop formats with Jam Sync
      • Zoom AutoMix™ software lets you automatically adjust the levels of your mix to reduce ambient sound
      • Full Metadata Entry lets you enter track names, scene names, notes, and more directly from the unit or via the Zoom F8 Control App for iOS
      • Three different power supply options: 8x AA batteries, external DC battery pack with Hirose connector, or 12V AC adapter (AA's and DC battery pack not included)
      • High pass filter, phase invert, and mid-side decoder

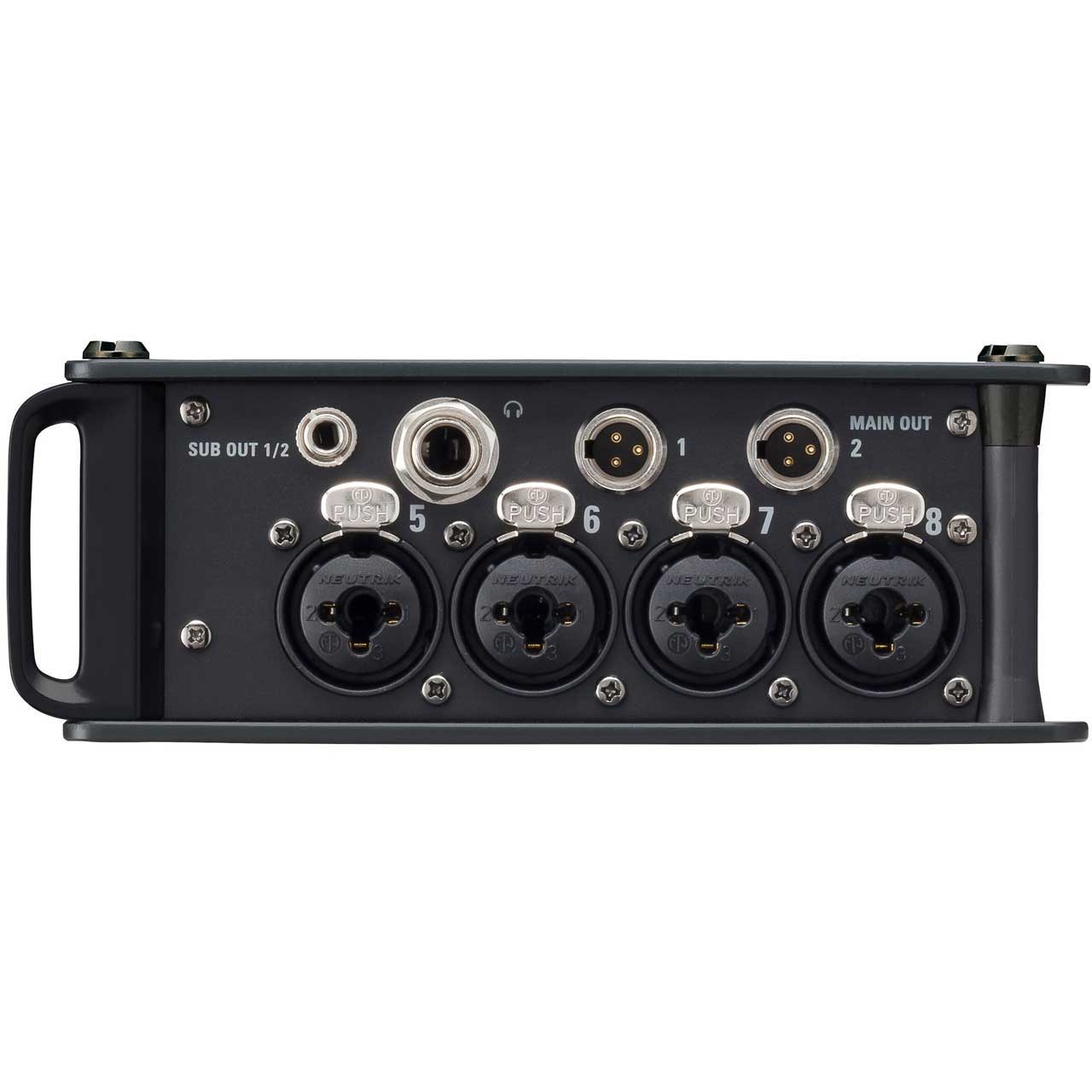

      • Dual mini-XLR (TA3) balanced Main Outs plus 3.5mm stereo mini-jack Sub Out
      • Dedicated headphone output (100mW) with front panel volume control

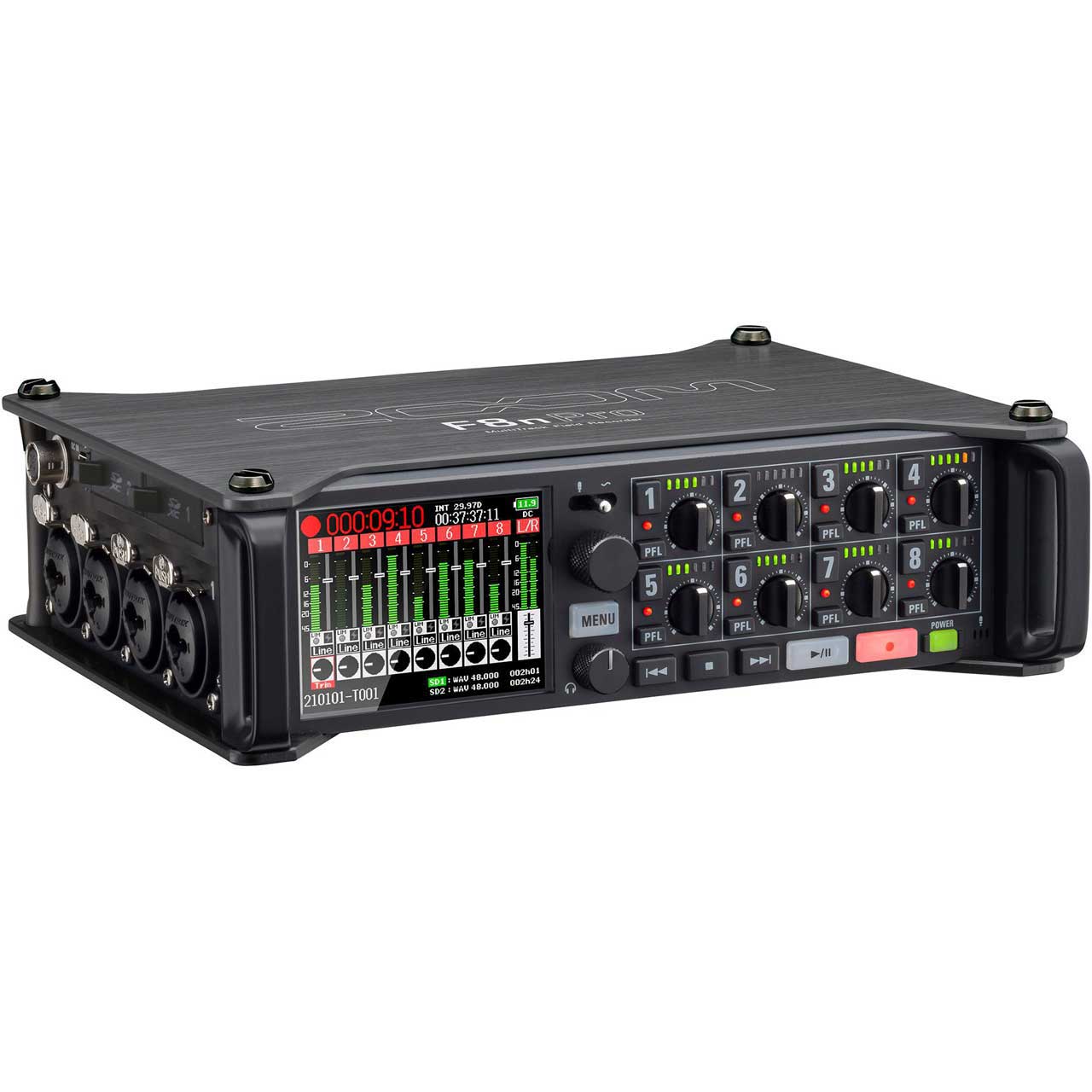

      • 2.4" full-color backlit LCD with monochromatic mode
      • Dual SD/SDHC/SDXC card slots, up to 1TB each
      • Use as an 8-IN/4-OUT USB audio interface
      • Free Zoom F8 Control App for iOS and Android allows wireless remote control, file renaming, and metadata entry (Android app to be released March 2022)

    • Specifications:

      • Input Connectors: XLR/TRS combo jacks
      • Input Gain: 10dB - 75dB
      • Input Impedance: 3kΩ or more
      • Max Input Level: 4dBu (@ 0dBFS)
      • Phantom Power: 24V/48V, 10mA max per channel
      • EIN: -127dBu or less (A-weighted, 75dB input gain, 150Ω input)
      • Frequency Response: 20Hz - 60kHz, 0.5dB/-1kHz (192kHz sample rate)
      • A/D Dynamic Range: 113dB typ. (-60dBFS input, A-weighted)
      • Crosstalk: -90dB or less (between adjacent channels, 1kHz)
      • MIC In: ZOOM mic capsule input (use disables INPUTS 1/2)
      • Slate MIC: Built-in mic for voice memos can be assigned to tracks freely
      • Output Connectors: TA3 connectors
      • Output Impedance: 150Ω or less
      • Reference Output Level:
        -10dBV (normal output level)
        4dBu (line output level)
        1kHz, 600Ω load
      • Max Output Level:
        10dBV (normal output level)
        24dBu (line output level)
        1kHz, 600Ω load
      • Sub Connectors: 3.5mm stereo mini
      • Output Impedance: 100Ω or less
      • Reference Output Level:
        -10dBV (normal output level)
        -40dBu (mic output level)
        1kHz, 10kΩ load
      • Max Output Level: 10dBV (normal output level)
      • Headphone Connector: 1/4" stereo
      • Output Impedance: 18Ω or less
      • Max Output Level: 100mW + 100mW (32Ω load)
      • D/A Dynamic Range: 105dB typ. (-60dBFS input, A-weighted)
      • Recording Media:
        SDHC Cards: 4GB - 32GB
        SDXC Cards: 64GB - 1TB
      • WAV Formats:
        44.1, 47.952, 48, 48.048, 88.2, 96 and 192kHz
        16-bit linear, 24-bit linear and 32-bit float
        Mono/stereo/2-10 ch poly
        BWF and iXML
      • WAV Max Simultaneous Recording Tracks: 10 (8 inputs + stereo mix)
      • MP3 Formats:
        128, 192 and 320kbps
        44.1 and 48 kHz
        ID3v1 tags
      • Max Simultaneous Recording Tracks: 2

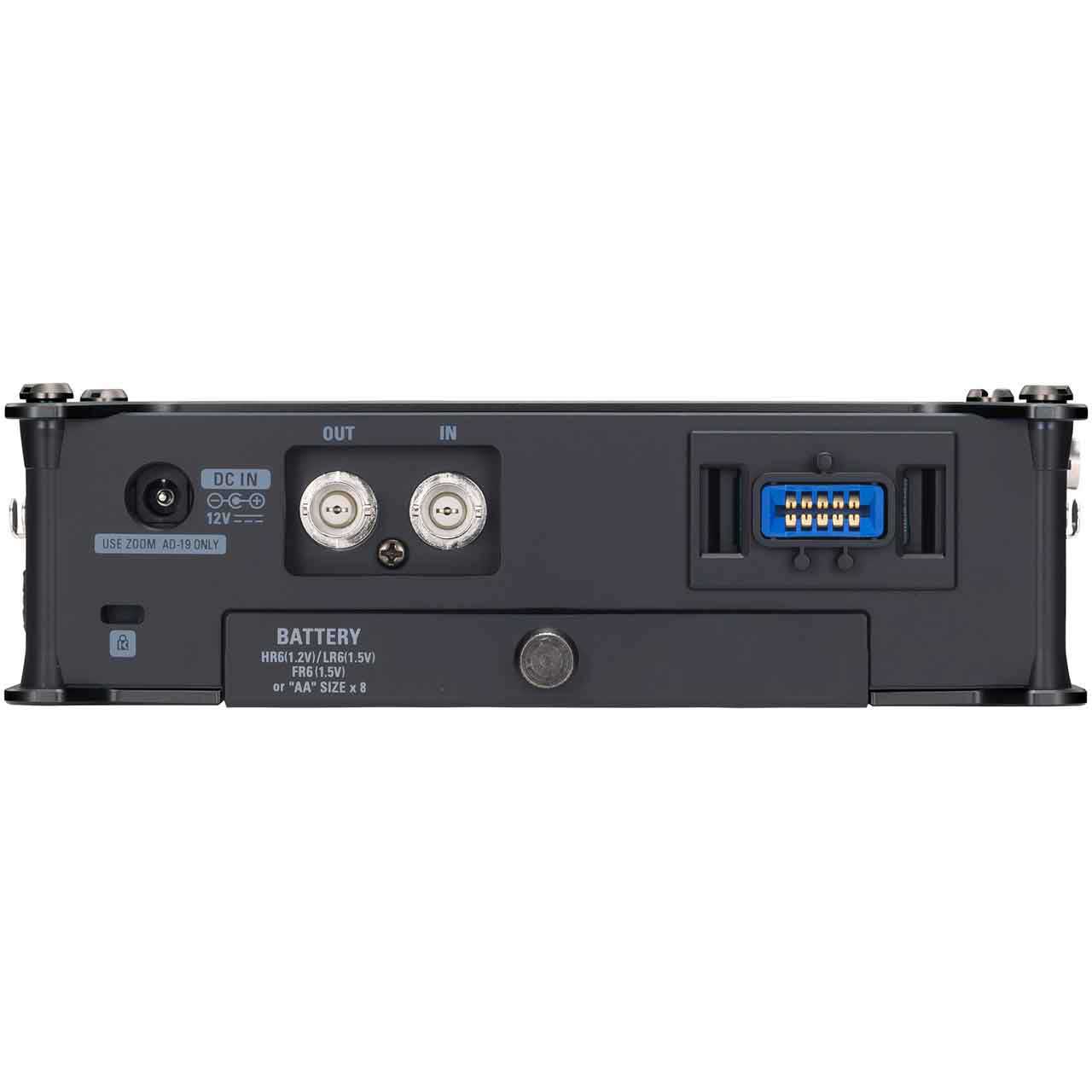

      • Timecode Connector: BNC
      • Timecode Modes: Off, Int Free Run, Int Record Run, Int RTC Run, Ext and Ext Auto Rec (audio clock can be synchronized to timecode)
      • Frame Rates: 23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND and 30D
      • Precision: ±0.2ppm
      • Supported Input Levels: 0.2 - 5.0Vpp
      • Input Impedance: 4.6kΩ
      • Output Level: 3.3Vpp
      • Output Impedance: 50Ω or less
      • Display: 2.4" full-color LCD (320x240)
      • USB Connector: USB 2.0 Mini-B
      • Power Supplies: 8x AA batteries; AD-19 AC adpater; External DC power supply with Hirose 4-pin connector
      • Power Consumption: 15W
      • Dimensions (DxWxH): 5.5" x 7.0" x 2.1" (140mm x 178mm x 53mm)
      • Weight (Incl. Batteries): 2.65lbs (1200g)

    • Item Includes:

      • 1x ZOOM F8n Pro Field Recorder
      • 1x ZOOM AD-19 12V AC adapter
      • 1x Operation manual

    • GTIN:

      0884354026158
