    APB-008 SB EX - Overview

    Portable AudioPressBox Expander with 8 Line/MIC Outputs

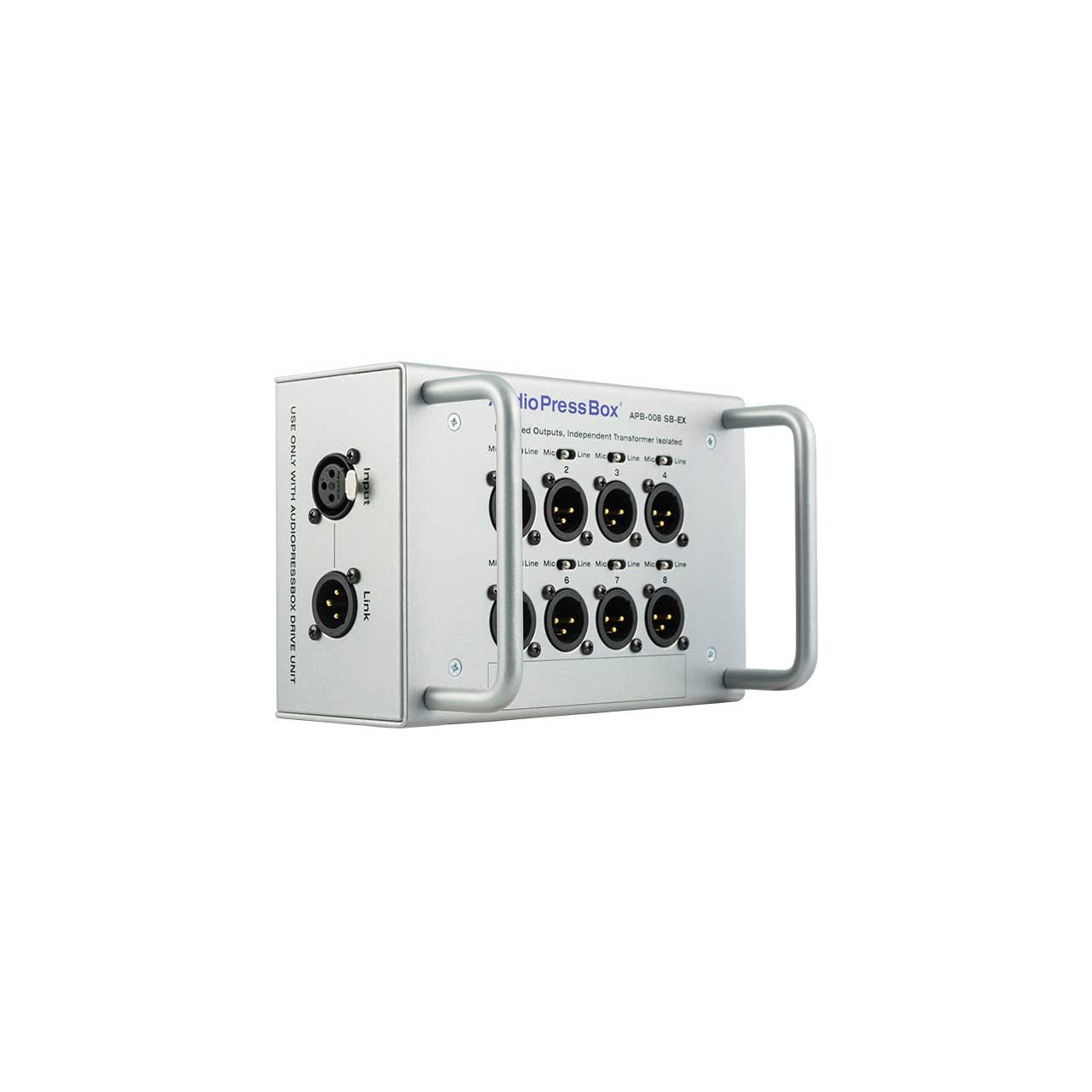

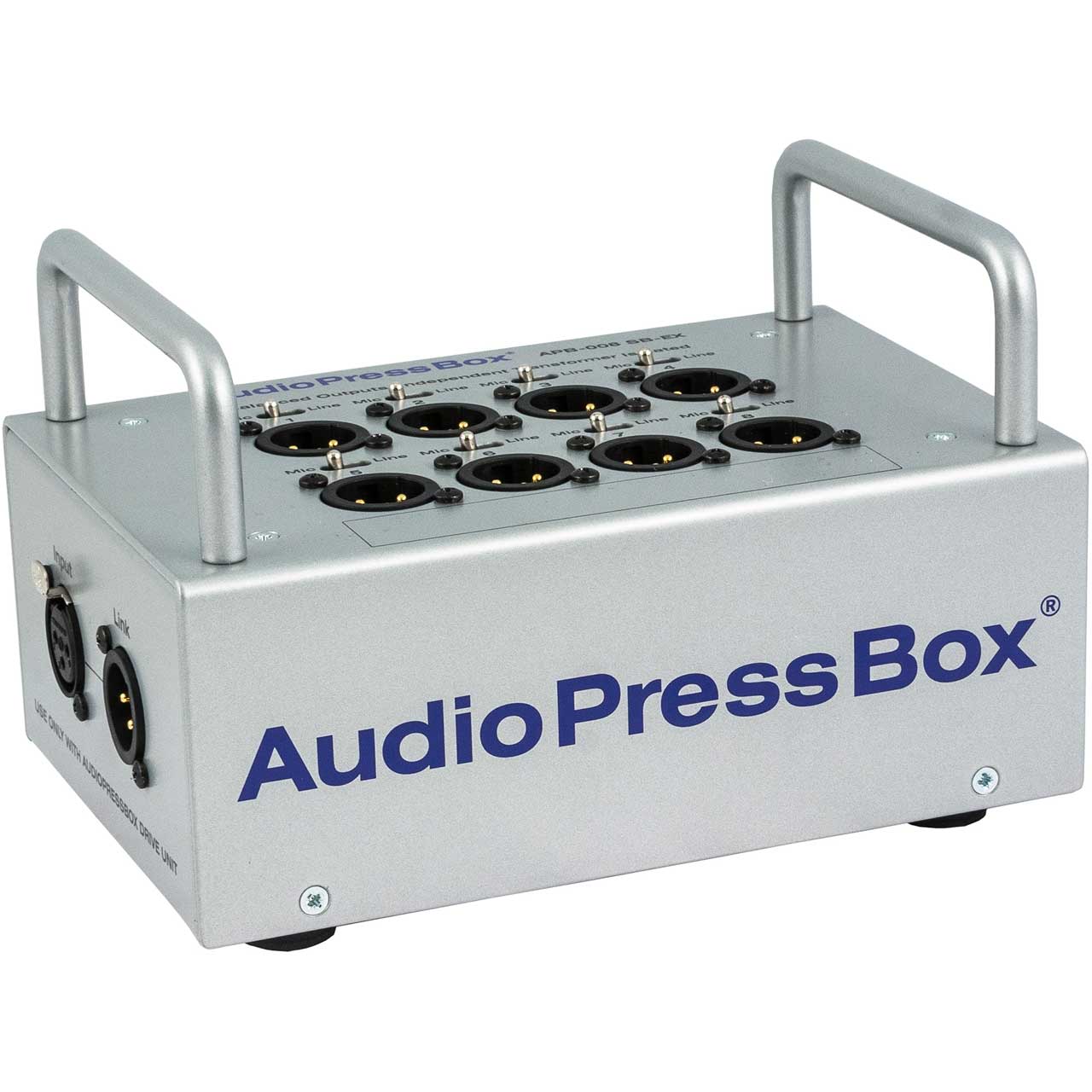

    AudioPressBox APB-008 SB EX is a professional portable press box (Audio Splitter) expander suitable for both indoor and outdoot press conferences. It features 1 Line Input and 8 Line/MIC outputs. Each Output is independent transformer balanced and isolated.

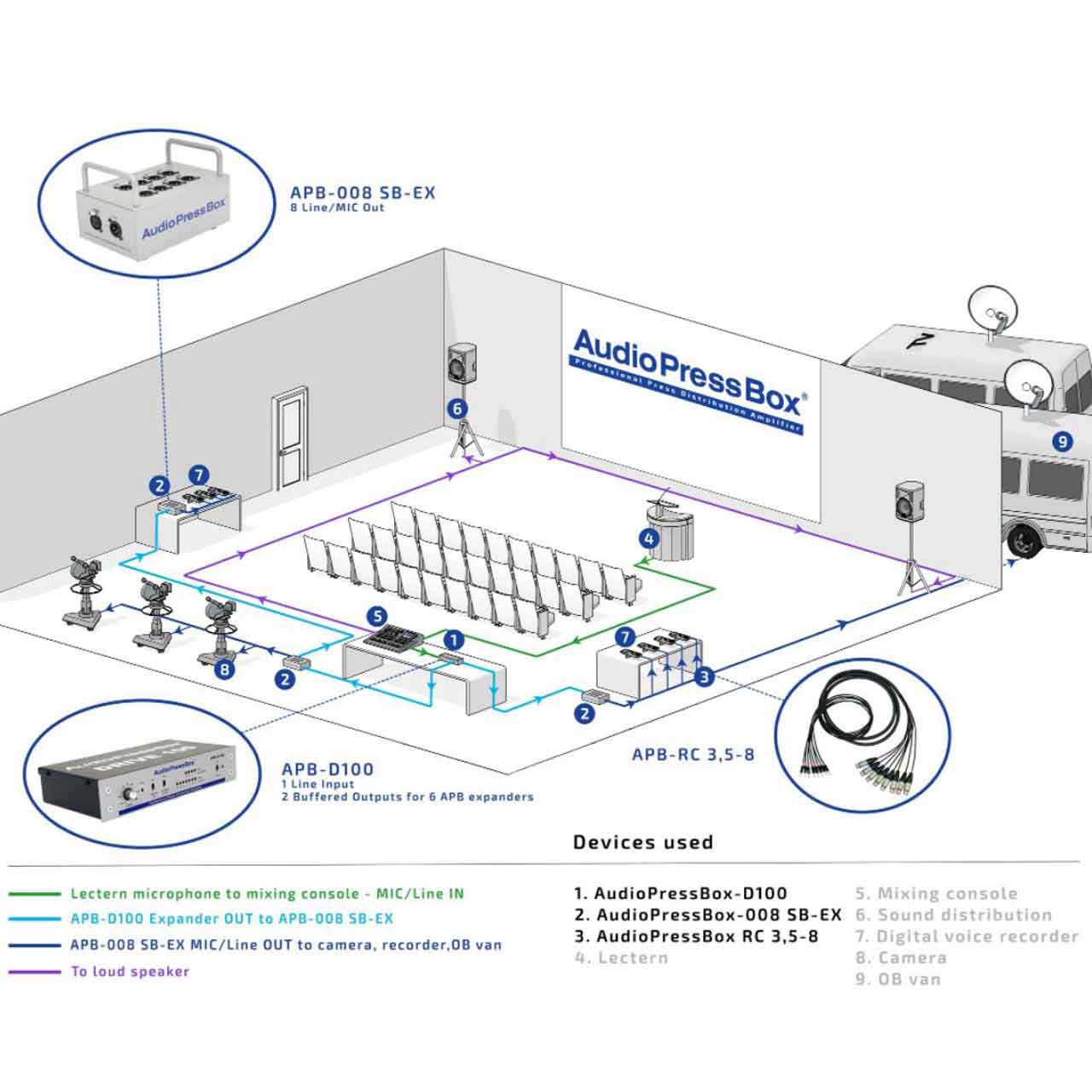

    It also has a link Output so you can daisy chain 3 of them in a row per 1 expander output on a drive unit giving you a total of 24 Line/MIC outputs.

    The biggest advantage is that the total length of the cable in the daisy chain can go up to 500m so this way you can cover any type or shapre of a room.

    Professional
    APB is a sophisticated tool for professional audio distribution at press conferences, presentations and other events.

    Easy to use
    Perfect signal conditioning means securing a high quality, constant and identical signal for all connected users, without possibilty of interacting.

    FIxed installation
    AudioPressBox expanders are a perfect solution for any kind of conference room. Whether it is indoor or outdoor you always get the same perfect functionality.

    • Features:

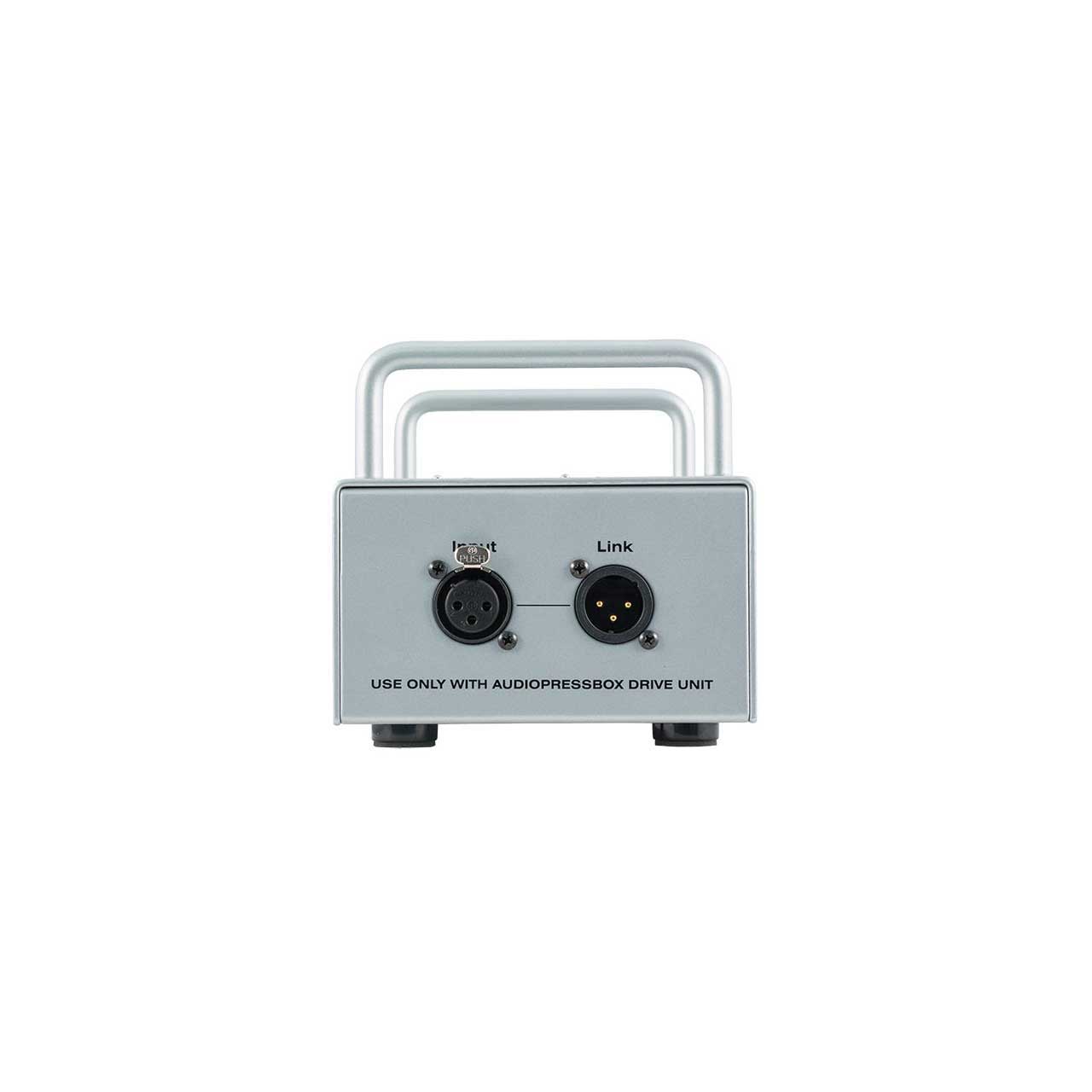

      • 1 balanced Input for APB drive unit with link Output for another expander unit

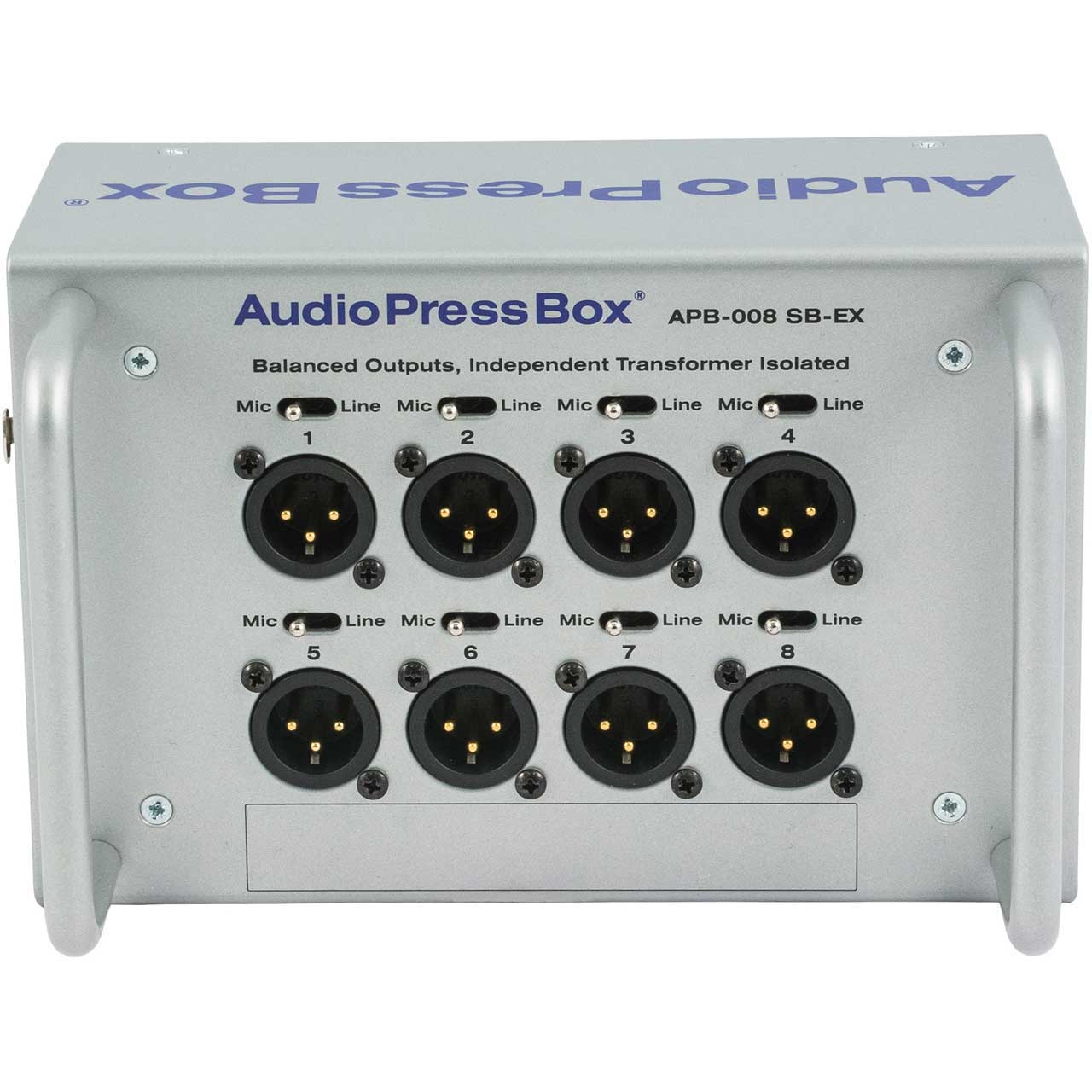

      • 8 High quality balanced Outputs, each Output is independent transformer isolated
      • Each Output is switchable between LINE or MIC Output level.
      • You can connect 3x APB-008 SB-EX in a row and make a daisy chain. Cable length goes up to 300m.

    • Specifications:

      • Type: Expander
      • Groups: 1
      • Inputs: 1
      • Input connectors: ballanced, XLR
      • Ouputs: 8x Line/MIC level
      • Output connectors: ballanced, XLR-M connector
      • Transfomer isolated outputs: Yes (each output)
      • Nominal Output level: MIC: -20dBu, LINE: +6 dBu
      • Output Impedance: MIC: 220Ω, LINE: 600Ω
      • Dimensions (WxHxD): 180x120x115mm
      • Weight: 1670g

    • Item Includes:

      • 1x AudioPressBox APB-008 SB EX 8 LINE/MIC Out Passive portable AudioPressBox Expander
