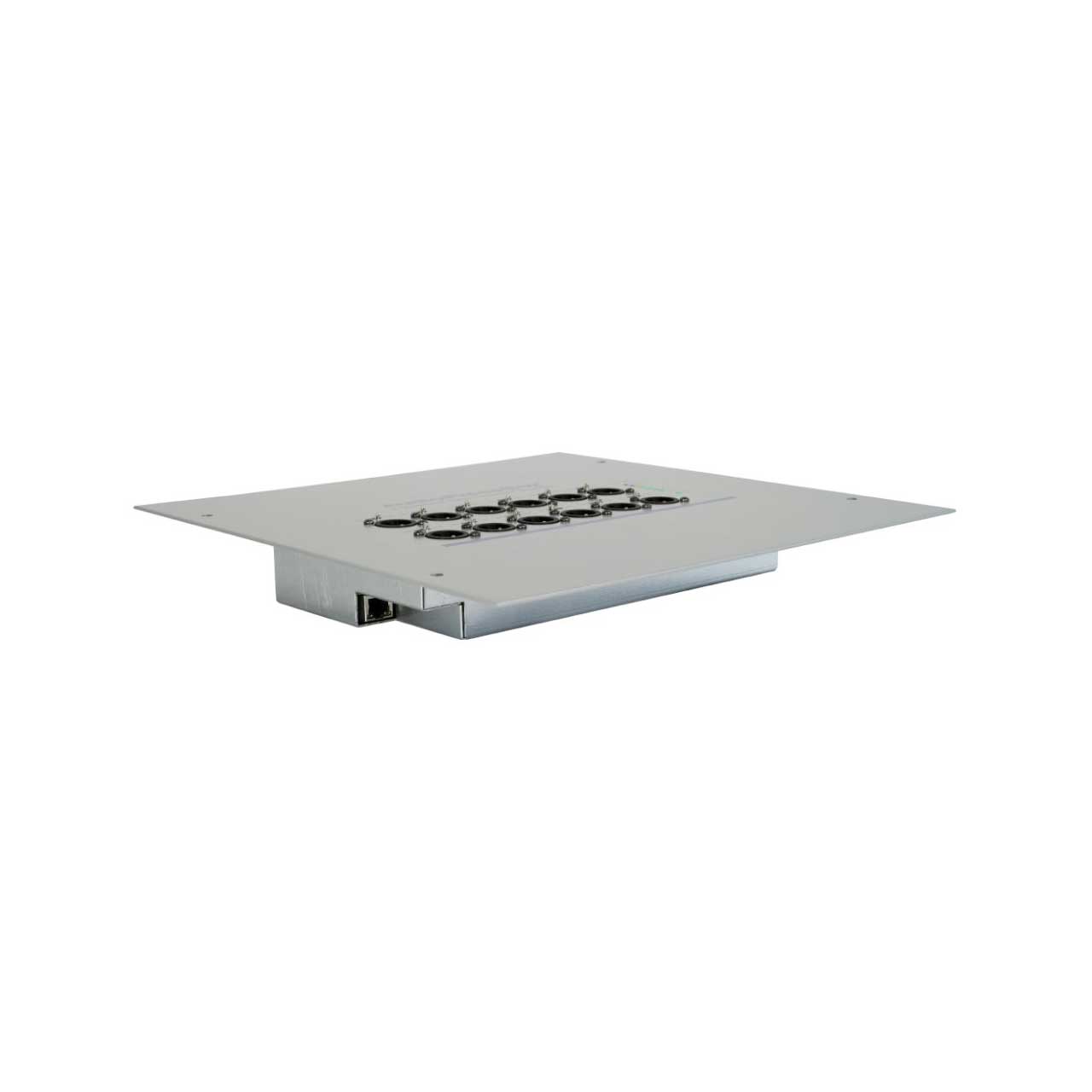

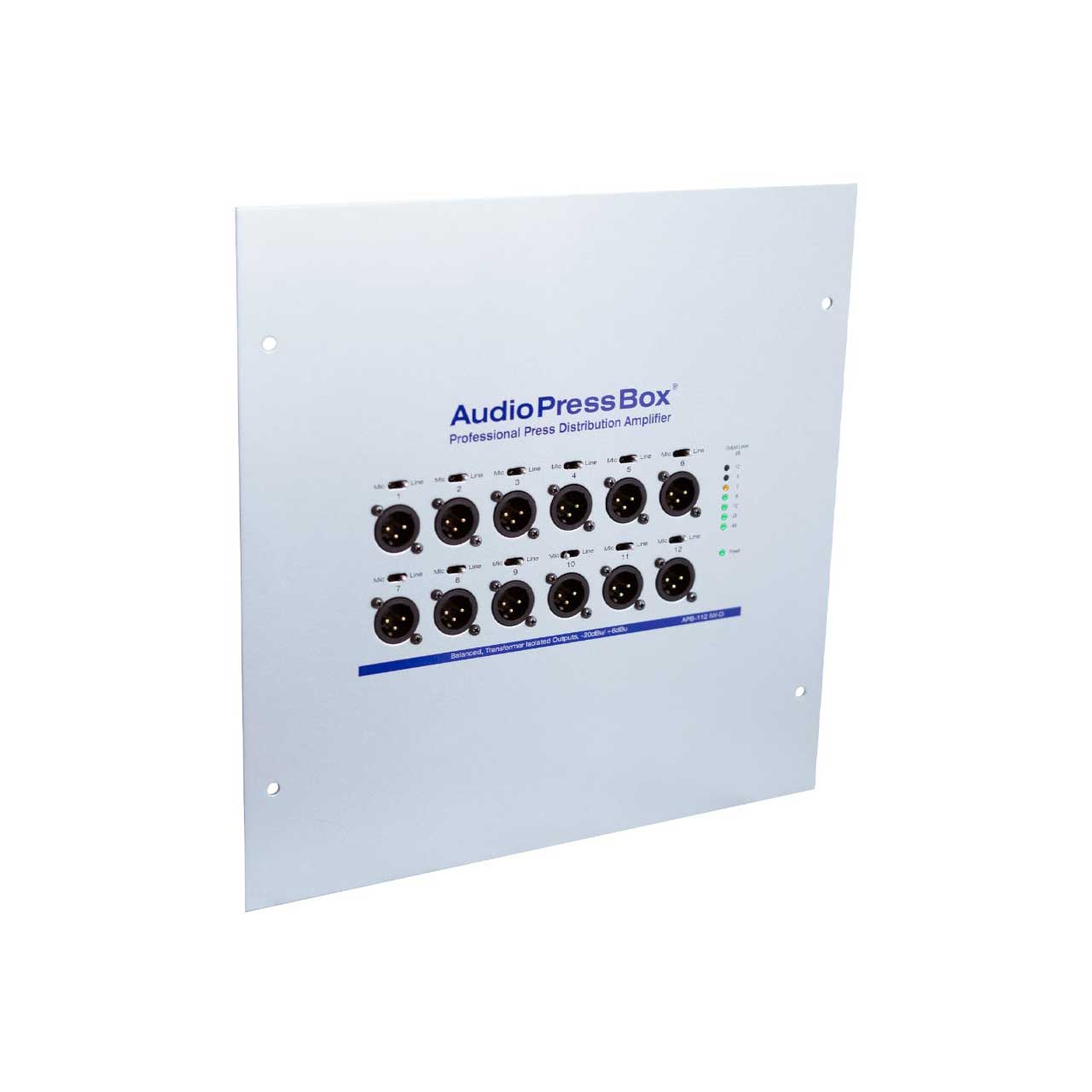

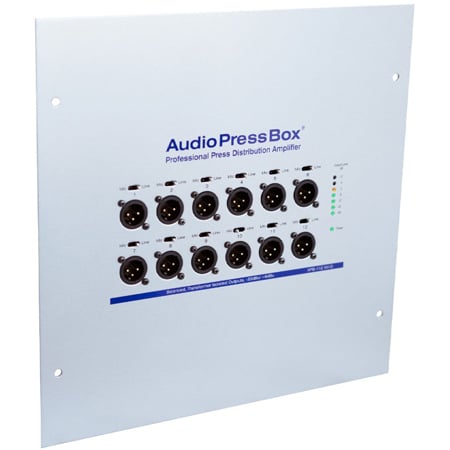

AudioPressBox APB-112 IW-D-US Professional In Wall Active Unit w/ 1 Channel DANTE Input and 12 LINE/Mic Outputs

APB-112 IW-D-US - Overview

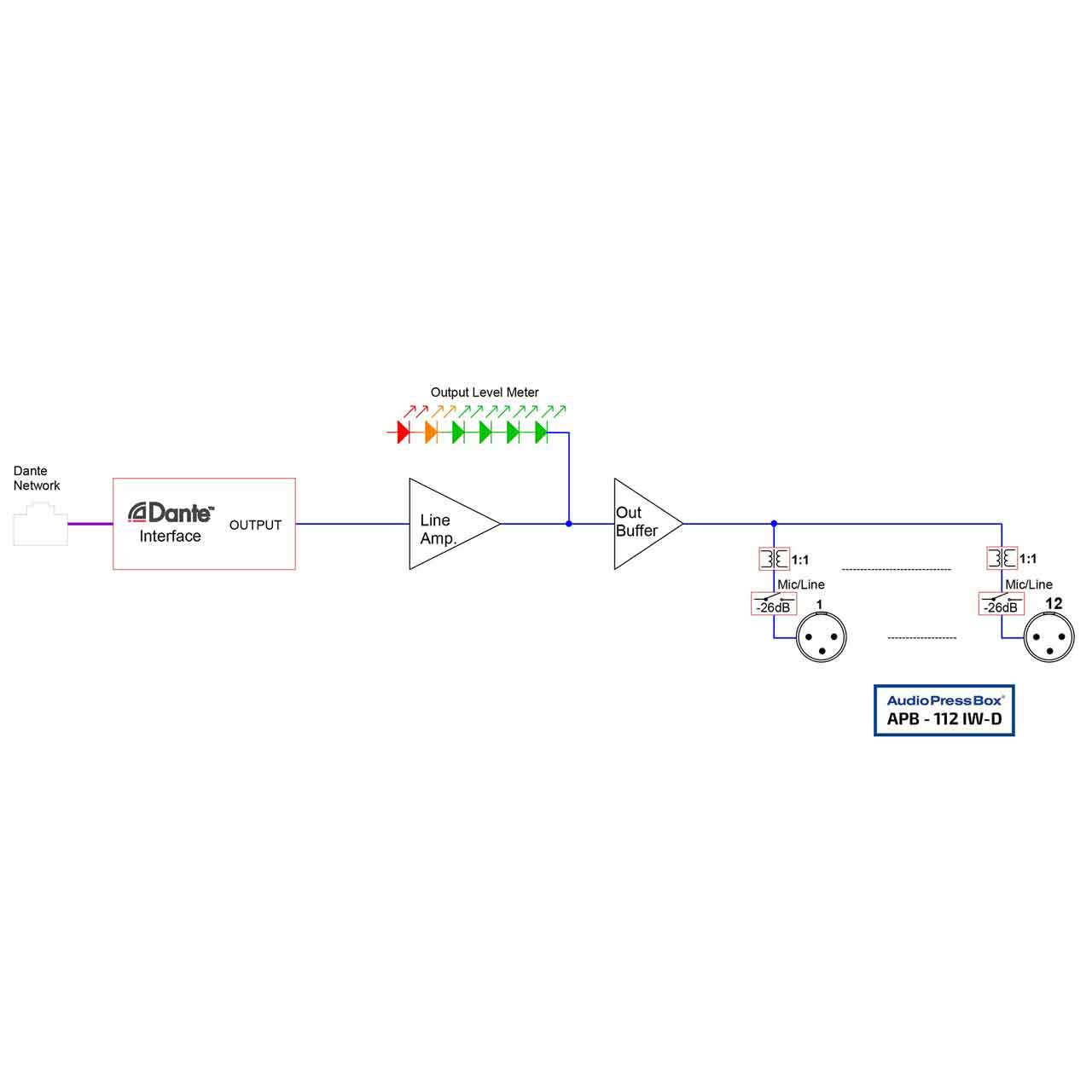

• Features:

  • 1 Channel DANTE input - RJ45
  • 12 high quality balanced, individually transformer isolated outputs
  • Each output is switchable between Line or MIC level

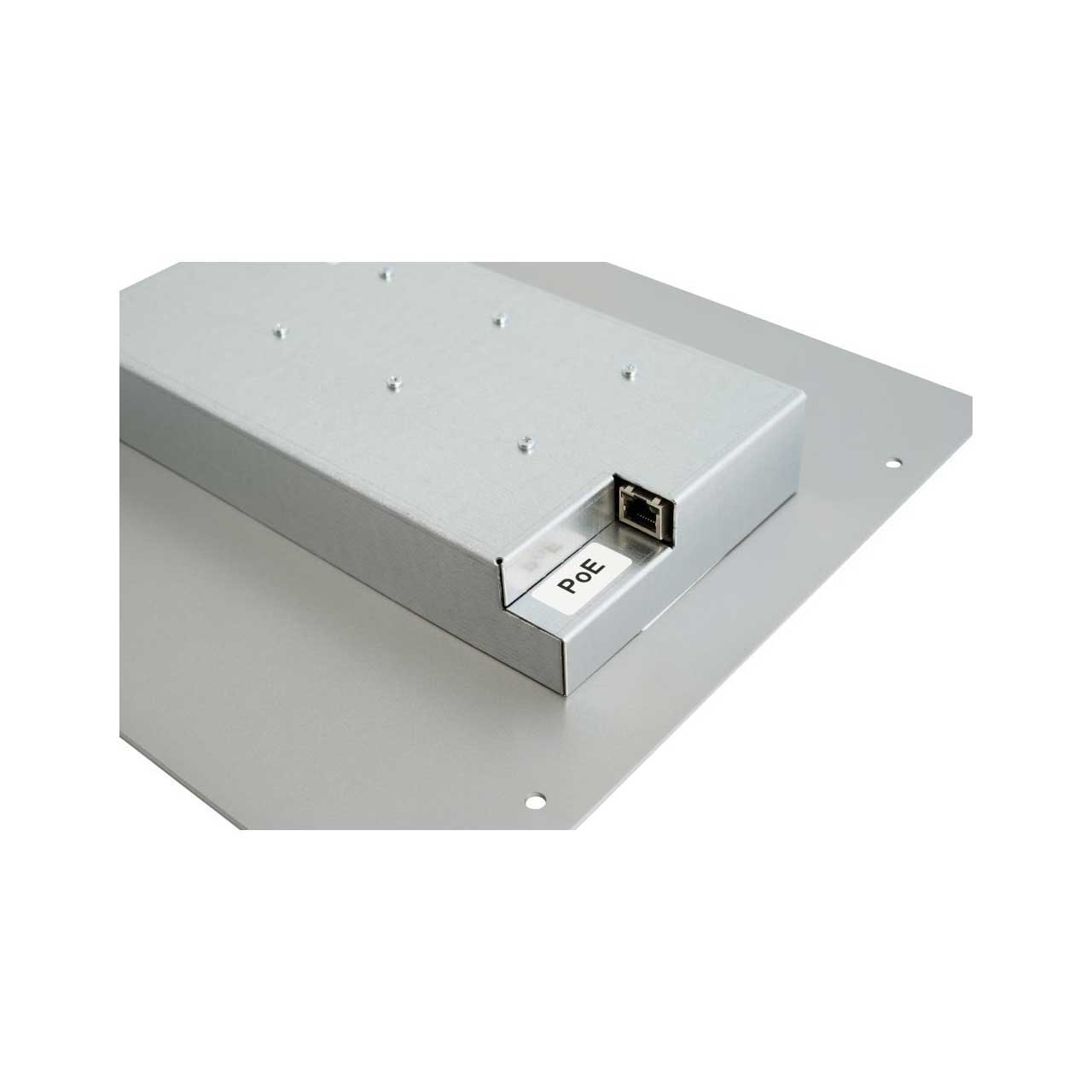

  • Powered only via PoE from DANTE network

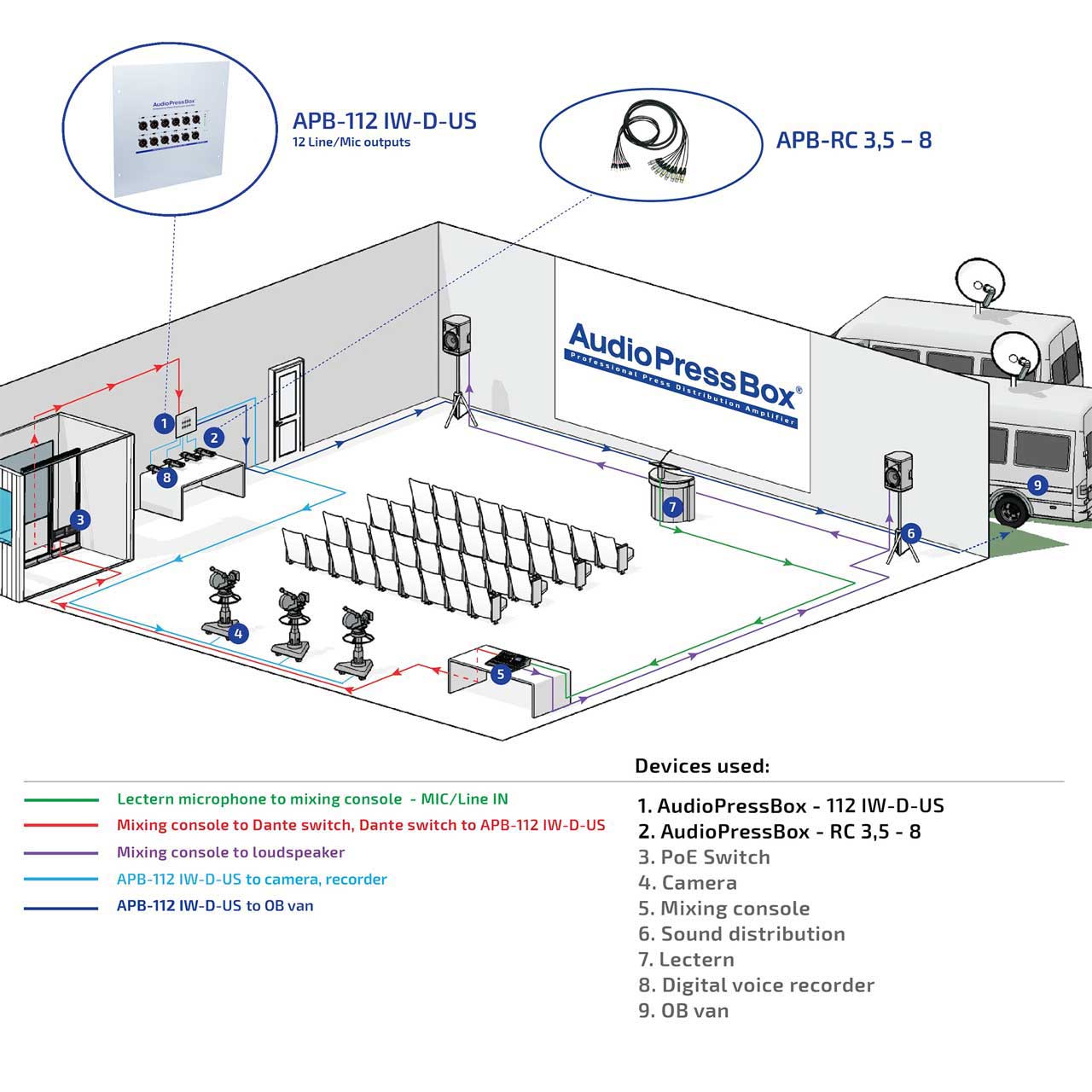

  • Thanks to DANTE patching you can easily expand the number of channels or number of outputs by adding other APB-112 IW-D
  • US standard NEMA BOX 12124


• Specifications:

  • Type: 1 In 12 Out Groups: 1 Input Section
  • Inputs: 1
  • Input Connectors: RJ45 - Dante
  • PoE Requirement: YES
  • Reference Level: -18dBFS

    Output Section:
  • Outputs: 12 Line/MIC level
  • Output Connectors: Balanced, XLR
  • Nominal Output Level: +6dBu (front outputs)
  • Maximum Output Level: +20dBu (no load); +14dBu (600Ohm)
  • Output Impedance: Mic: 220 Ohm; Line: 600 Ohm
  • Transformer Isolated Outputs: Yes (each output)
  • SNR: >70 dB
  • Frequency Response: 20Hz to 20kHz/-3dB

    Indicators:
  • Output Section: Output level, Power

    Power:
  • Power Supply: PoE (Type 1, Class 3 (12.95W))

    Mechanical:
  • Dimensions (WxHxD): 320 x 320 x 45mm

    Weight: 2800 g
  • Compatible NEMA Box: 12124


• Item Includes:

  • 1x APB-112 IW-D-US


• Warranty:

  • 2 Years
