AudioPressBox APB-116 R 19 Inch Rackmount Audio Press Box with 16 Mic/Line Outputs

ITEM #: APB-116-R MFG #: APB-116 R

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$2,199.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    APB-116 R - Overview

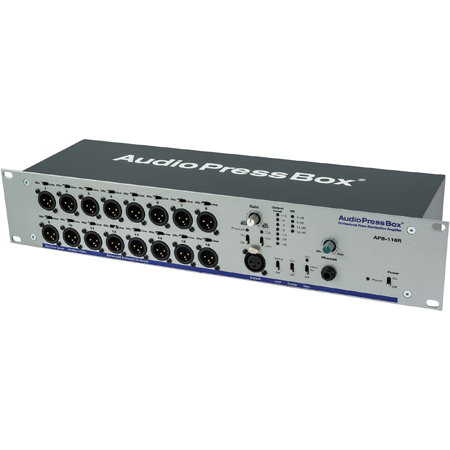

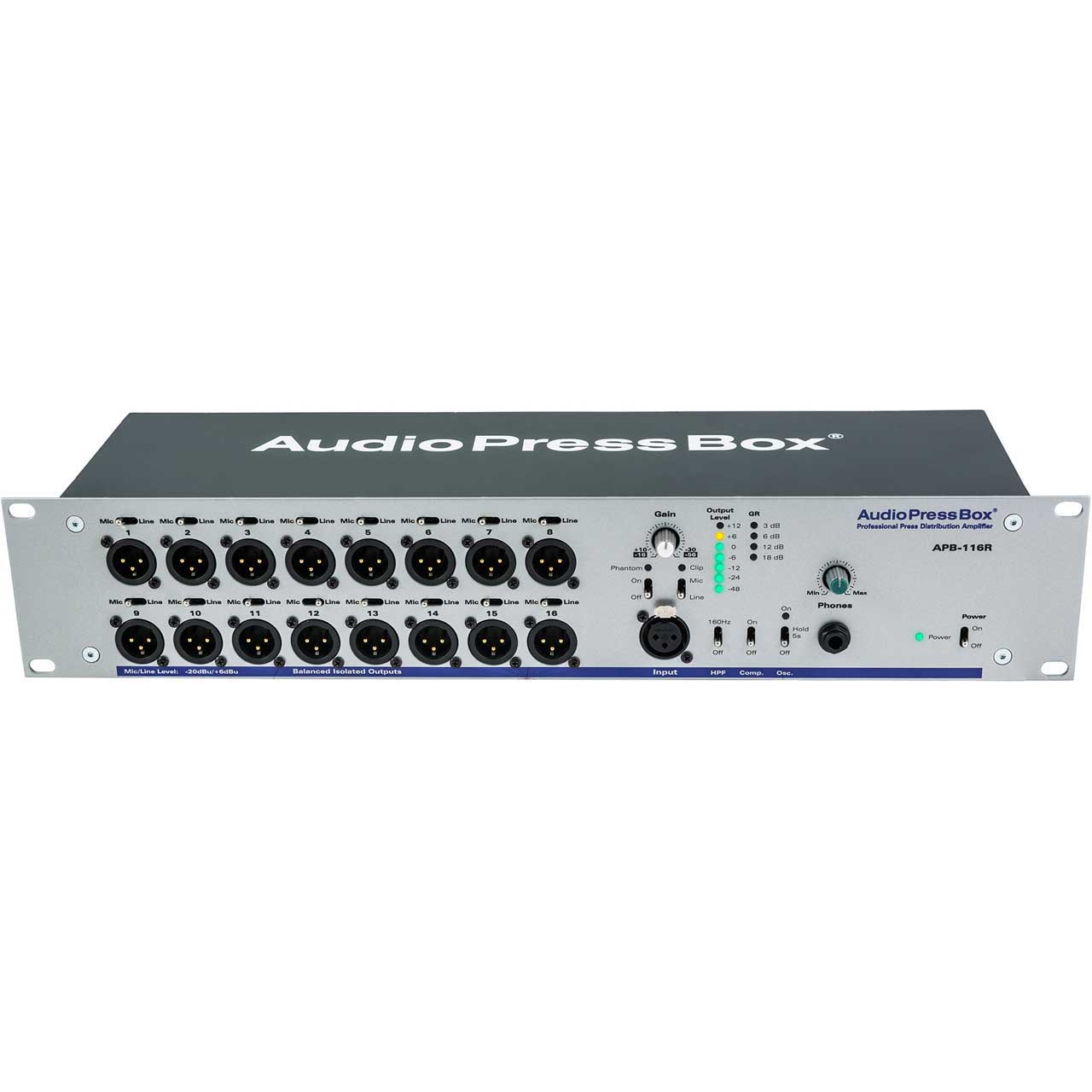

    The AudioPresssBox APB-116 R is a professional active press box (Audio Splitter) in a rack.

    It features 1 MIC/Line Input and 16 Line/Mic Outputs.

    Each Output is independent transformer balanced and isolated.

    +48V - If you are about to use condenser microphone, turn Phantom power switch ON to feed your microphone with 24/48V. If you use dynamic microphone or microphone with his own power, you can switch this OFF.

    PAD - If you are using microphone as an input, this button should be set to "Off" position. If you are using input from the mixing console or CD player, please set this switch to "On" position.

    COMP (Compressor/Limiter operation button) - To provide perfect output signal without clipping or distortion, you can switch the Comp button ON. If you switch this OFF, signal in output could contain signal clipping or distortion.

    HPF (High Pass Filter) - This button helps to avoid distributing low-end rumble like a microphone handling noise or pops. You have 2 options - full range or 160Hz low-cut frequency. The one you choose depends on the sound, you want to filter out.

    OSC (Oscillator operation switch) - To test signal level, which is coming to the outputs, you can switch this Test 1kHz sine signal oscillator on. After recipients set the levels in their recording devices, you should switch this function OFF. When compressor switch is set to ON, output signal level won't exceed this maximum output level.

    • Features:

      • 1 MIC (phantom power) / LINE Input - balanced with gain control and 26dB PAD
      • 16 High quality independent transformer balanced and isolated outputs
      • Each Output is switchable between MIC or LINE level
      • 2 internal Output Groups: 8x Output A and 8x Output B
      • Switchable High-Pass filter for each Input channel
      • Switchable Compressor and Limiter for each Input channel
      • Constant level Test signal oscillator with no mistake switch operation
      • Headphones control Output

    • Specifications:

      • Input Section
      • Type: 1 in16 out
      • Groups: 1
      • Input connectors: Balanced, XLR
      • Max. input level: Limiter ON
      • Mic: -10/-30dBu
      • Line: +36/-4dBu:Limiter OFF
      • Mic: -2/-42dBu
      • Line: +24/-16dBu
      • Phantom Voltage: 48V
      • Input Impedance: Mic: 2,4 kOhm:Line: 3,5 kOhm

        Output Section
      • Outputs: 16 Line/MIC leve
      • Output connectors: Balanced, XLR
      • Nominal Output Level: +6dBu
      • Maximum Output Level: +20dBu (no load), +14dBu (600kOhm)
      • Output impedance: Mic: 220 Ohm:Line: 600 Ohm
      • Transformer isolated outputs: Yes (each output)
      • SNR: 86dB
      • Frequency Response: 30/160Hz (filter) to 30kHz/-1dB
      • Controls: Mic/Line PAD, Input gain, Phantom, High-pass filter, Compressor, Oscillator, Phones level, Power, Output PAD
      • Indicators: Input clip, Phantom power, Output level, Gain reduction, Power

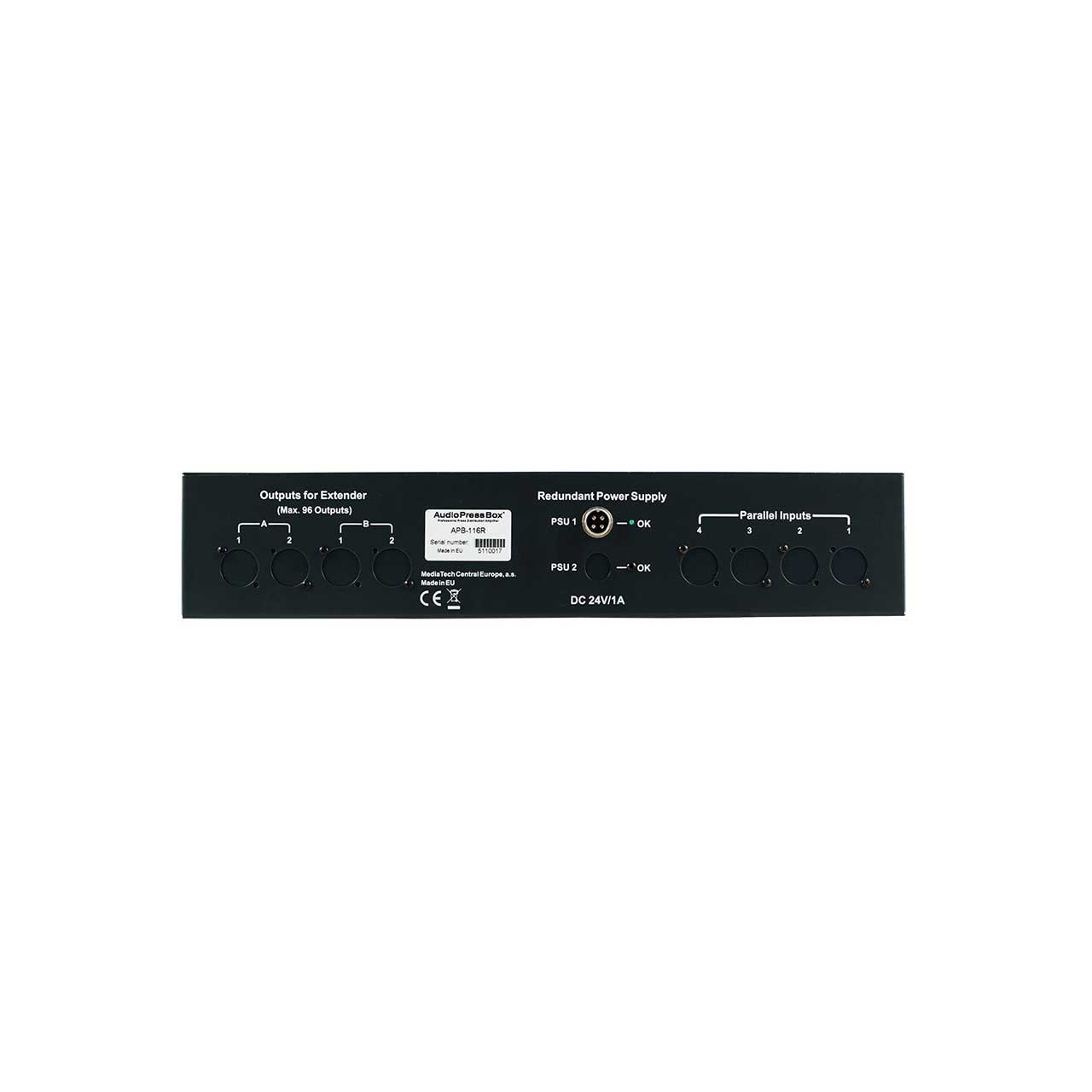

      • Power Supply: 24V DC, 1A external adaptor
      • Dimensions (WxHxD): 2 RU, 480x135x90mm
      • Weight: 3380 g
