    APB-116 SB - Overview

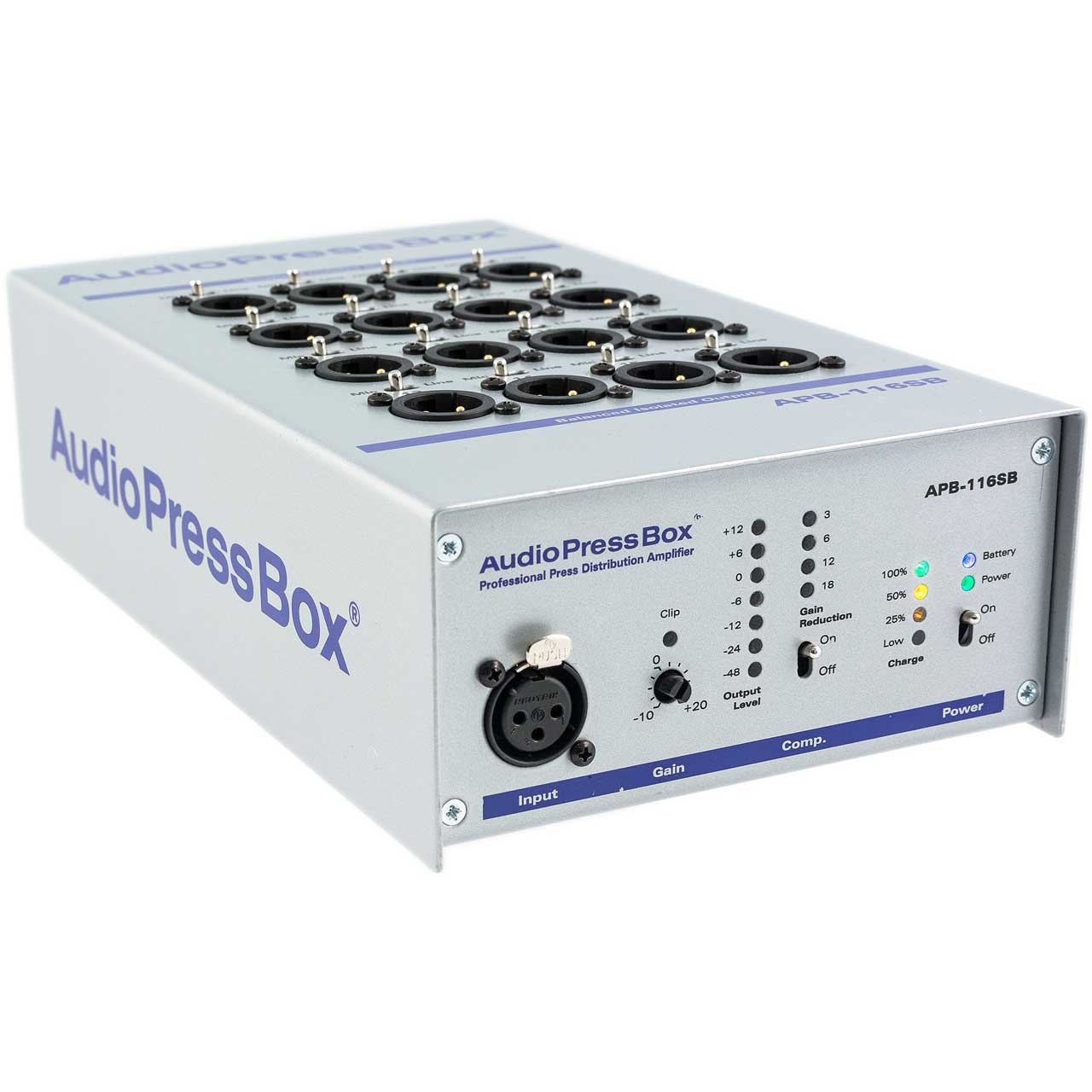

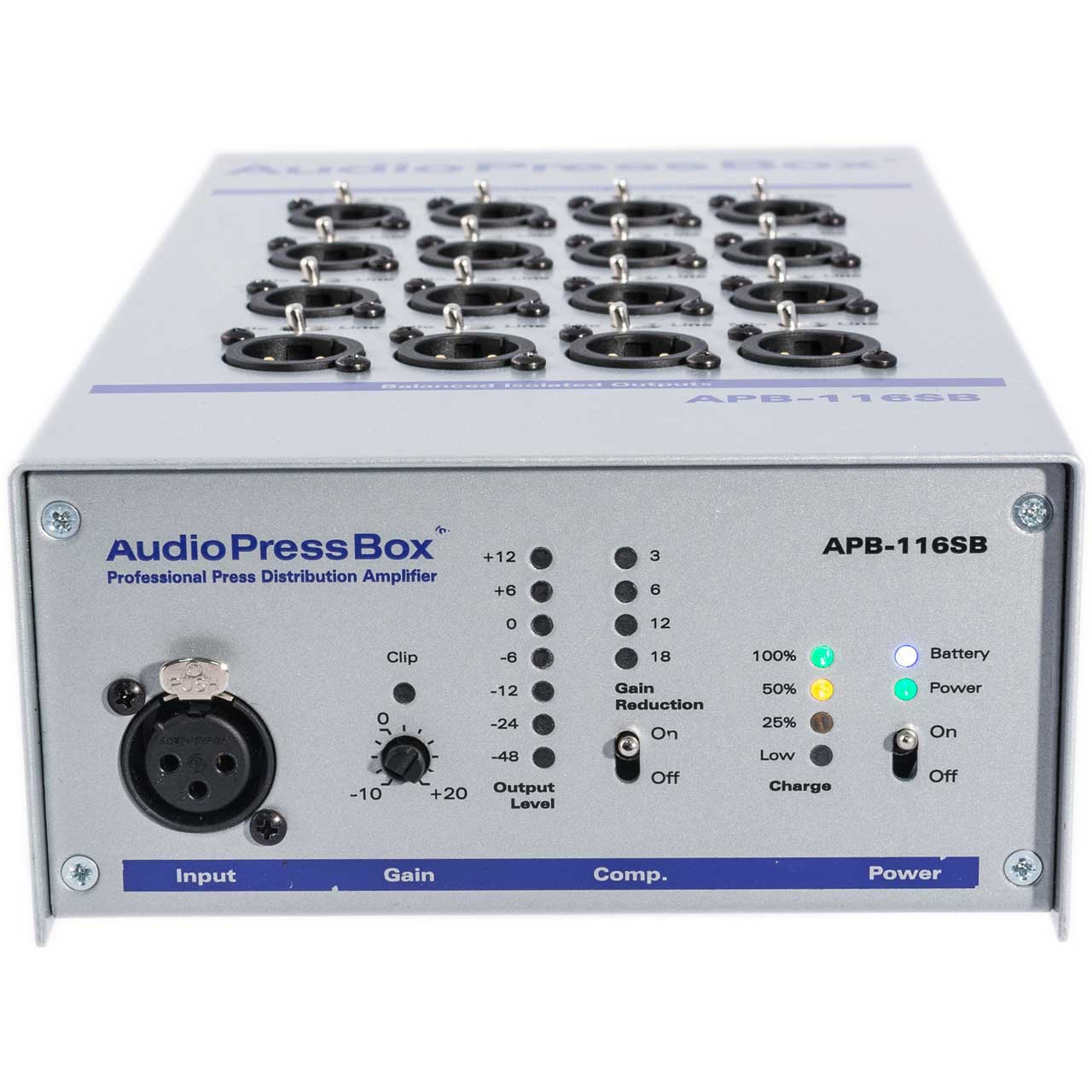

    A professional portable active press box (Audio Splitter) suitable for both indoor and outdoor press conferences.

    It features 1 Line Input and 16 Line/Mic Outputs.

    Each Output is independet transformer balanced and isolated.

    The APB-116 SB - also includes a rechargeable AccuPack so it can run on its own up to 10 hours.

    COMP (Compressor/Limiter operation button) - To provide perfect output signal without clipping or distortion, you can switch the Comp button ON. If you switch this OFF, signal in output could contain signal clipping or distortion.

    HPF (High Pass Filter) - This button helps to avoid distributing low-end rumble like a microphone handling noise or pops. You have 2 options - full range or 160Hz low-cut frequency. The one you choose depends on the sound, you want to filter out.

    Transformer - Separately transformer isolated outputs.

    Rechargeable batteries - Optional Built-in Li-Ion battery pack with microprocessor controlled battery management, 10 hour working time at full load. No self-discharge and memory effect, always ready to use. Short charging time compared to conventional batteries.

    • Features:

      • 1x LINE Input - balanced with ajustable gain -10db to +20 dB

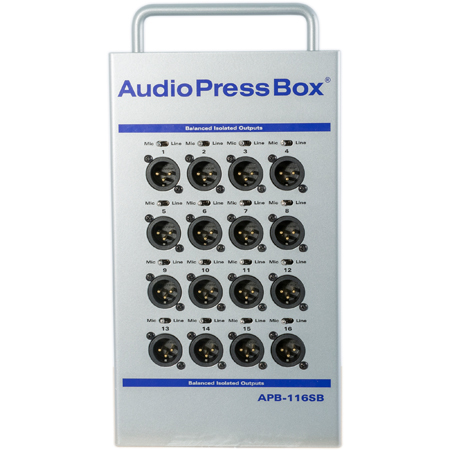

      • 16 High quality independent transformer balanced and isolated outputs
      • Each Output is switchable between MIC or LINE level
      • Built in High-Pass filter on the frequency of 40Hz
      • Switchable Compressor and Limiter for Input channel
      • Nominal Output level is selectable -6 dBu, 0 dBu, +4 dBu and +6 dBu
      • Li-Ion AccuPack with microprocessor controlled battery management
      • 10 hour full load capacity. Note: AccuPack is placed inside the unit

    • Specifications:

      • Input Section
      • Type: 1 IN/ 16
      • Groups: 1
      • Input connectors: Balanced, XLR
      • Max. input level: Line: +32/+2dBu
      • Input Impedance: >5kOhm

        Output Section
      • Outputs: 16 Line/MIC level
      • Output connectors: Balanced, XLR
      • Nominal Output Level -: -6/0/+4/+6 dBu
      • Max. Output Level: +20dBu (no load) +16dBu (600kOhm)
      • Output impedance: Mic: 220 Ohm:Line: 600 Ohm
      • Transformer isolated outputs: Yes (each output is Independant Transformer Isolated)
      • SNR: 86dB at 0dB Gain 78dB at +20dB Gain
      • Frequency Response: 30/160Hz (filter) to 60kHz/-1dB
      • Controls: Input gain, Compressor,Power, Output PAD
      • Indicators: Input clip, Output level, Gain reduction, Power, Battery status

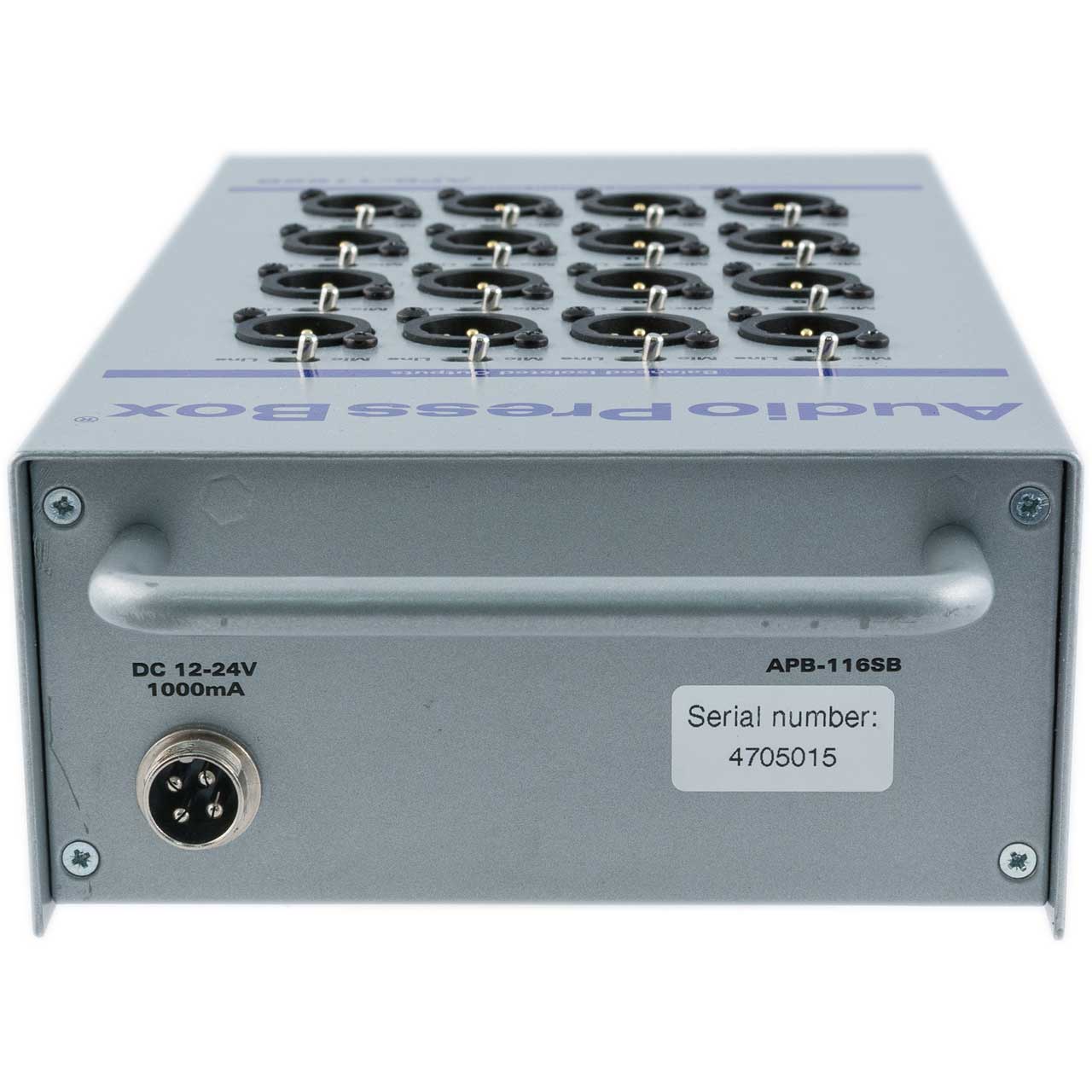

      • Power Supply: 24V DC, 1A external adaptor
      • Battery: Li-Ion, 7.2V 2200mAh (optional) , operation time 10 hours
      • Dimensions (WxHxD): 150x295x75mm
      • Weight: 2920 g
