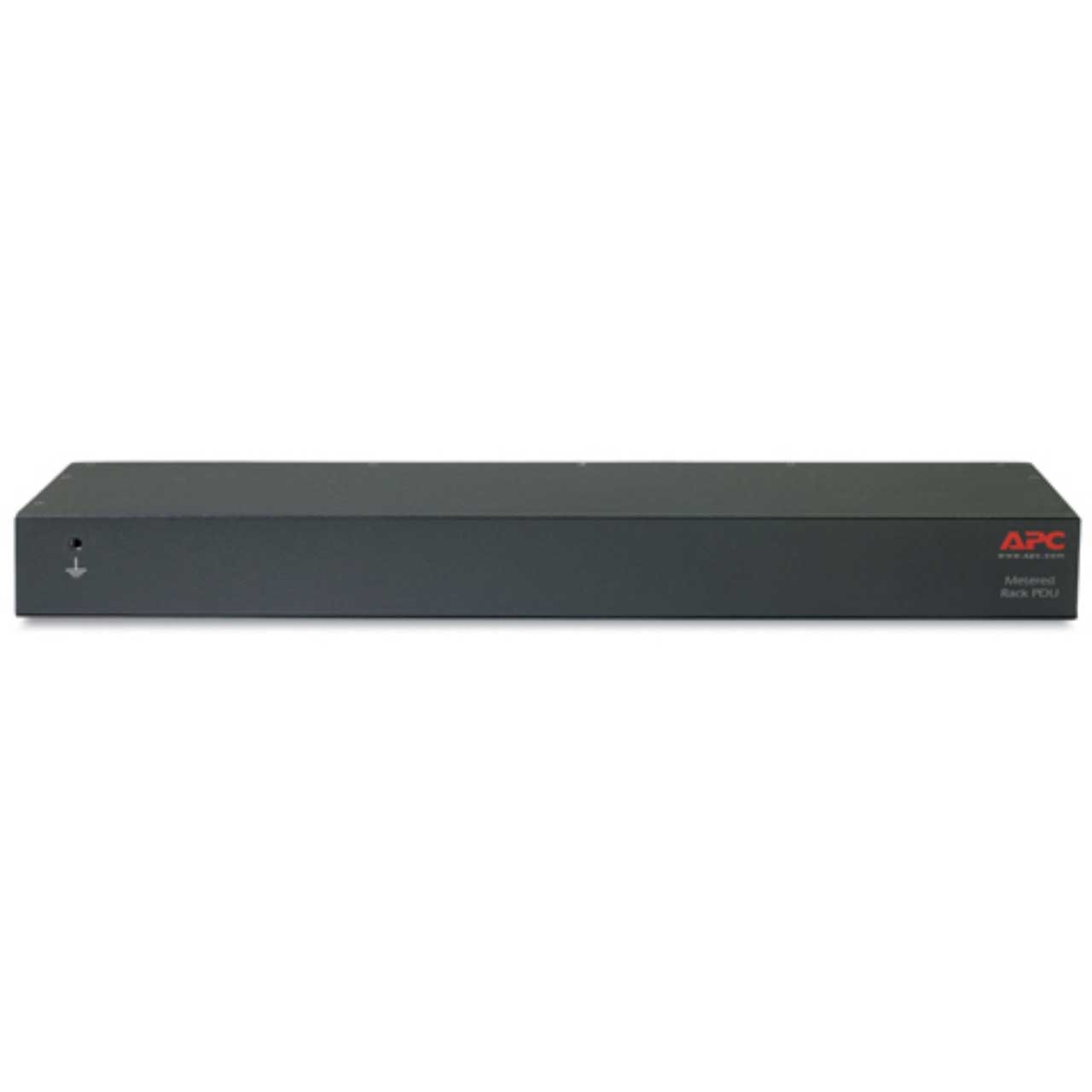

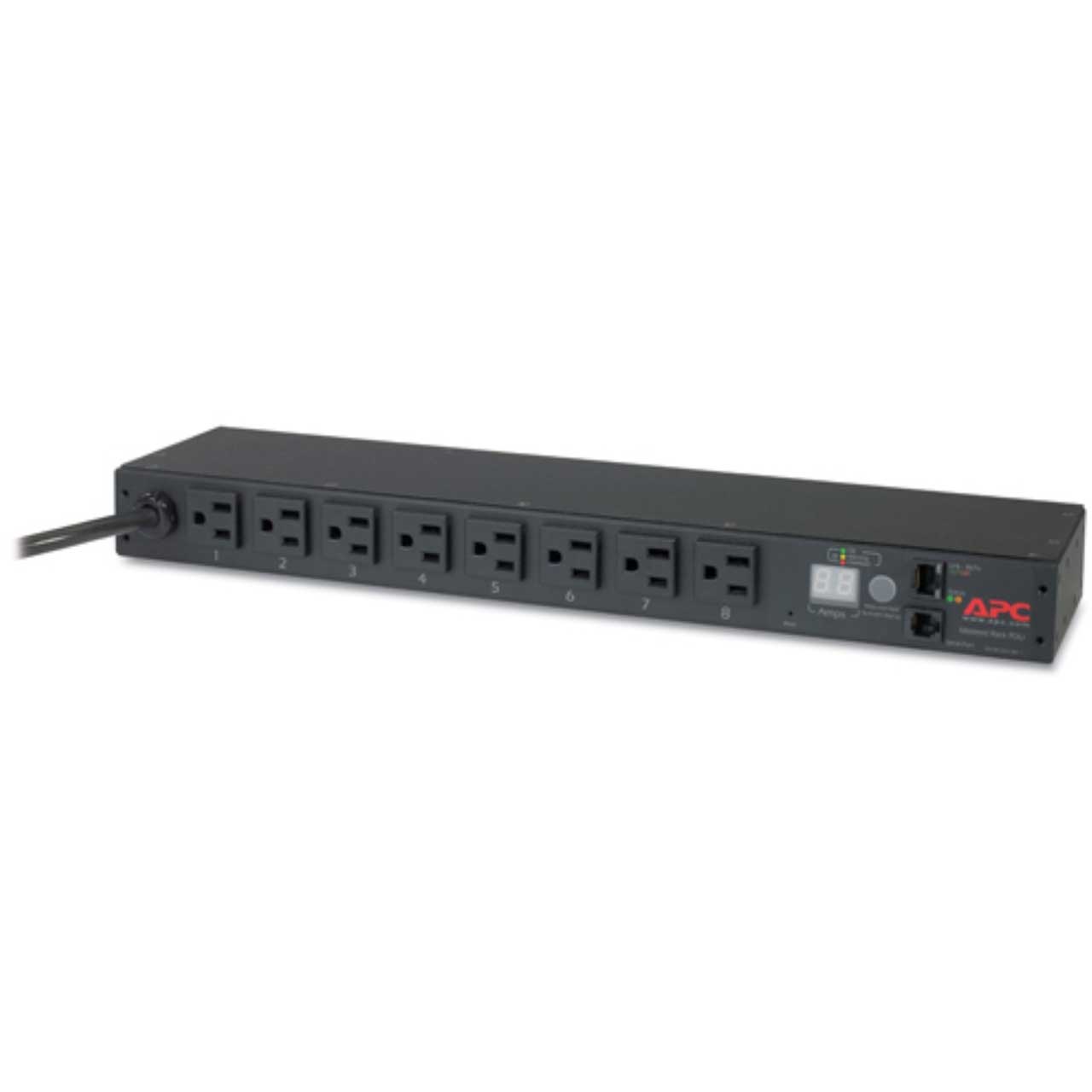

APC AP7800B 1RU Rack PDU - Metered - 15A / 100/120V / (8) 5-15

AP7800B - Overview

• Specifications:

  • Main
  • Input Voltage:
    100 V
    120 V
  • Output Voltage: 120 V
  • Input Connection Type: NEMA 5-15P
  • Number of Rack Unit: 1U
  • Cable Length: 12 ft (3.66 m)
  • Number of Cables: 1

    Physical
  • Dimensions (HxWxD): 1.73 x 17.48 x 4.02" (4.4 x 44.4 x 10.2cm)
  • Weight: 3.81Lbs (1.73kg)
  • Mounting Location: Front/Rear
  • mounting preference: No preference
  • Mounting Mode: Rack-mounted

    Input
  • Line Rated Current: 12 A
  • input current limits: 15 A
  • Load Capacity: 1440 VA
  • Input Frequency: 50/60 Hz

    Output
  • Number of Power Socket Outlets: 8 NEMA 5-15R

    Conformance
  • Product Certifications:
    CUL Listed
    CSA
    METI Denan
    UL Listed
    VCCI
  • Standards:
    FCC Part 15 class A
    ICES-003
    UL 60950

    Environmental
  • Operation Temperature: 23° to 113°F (-5° to 45°C)
  • Relative Humidity: 5 to 95%
  • Operating Altitude: 0 to 10000'
  • Storage Temperature: -13° to 149°F (-25° to 65°C)
  • Storage Relative Humidity: 5 to 95%
  • Storage Altitude: 0 to 50000' (0.00 to 15240m)
  • Weight: 1Lb (0.45kg)
  • Returnability: No
  • Dimensions (HxWxL): 2.52 x 18.50 x 13.27" (6.4 x 47 x 33.7cm)


• Item Includes:

  • 1x Cord retention bracket(s)
  • 1x Installation guide
  • 1x Rack Mounting brackets
  • 1x User Manual


• Warranty:

  • 2 Years Repair Or Replace
