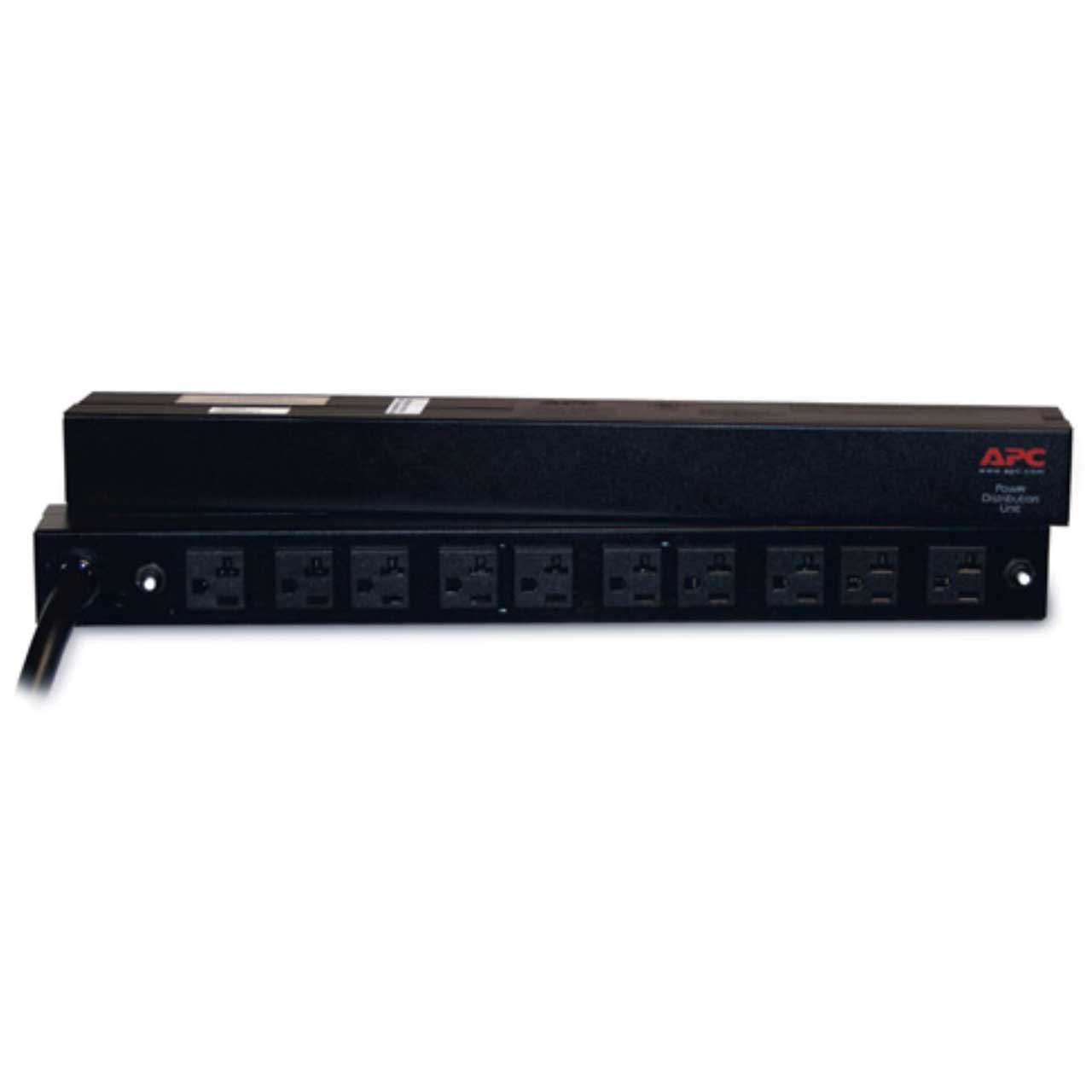

APC AP9560 1RU Basic Rackmount PDU - 30A / 120V - (10) 5-20

ITEM #: APC-AP9560 MFG #: AP9560

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
APC
Free Shipping with $49 Minimum Order

List Price:

$457.00

Our Price:

$359.99

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    AP9560 - Overview

    APC offers a wide variety of Basic Rack Power Distribution Units (PDUs) which allow users to distribute power outlets to rack-mount equipment. Horizontal and vertical units are available as well as a variety of power inputs and outputs to fit most power environments. APC now offers Basic Rack PDUs that mount veritcally without tools in the rear channel of a NetShelter VX.Primary InformationPower Device Type : Power distribution strip Voltage Provided : AC 120 V Voltage Required : AC 120 V Power Provided (W) : 2880 VA Power Provided (VA) : 2880 VA Power Device / Form Factor : Rack-mountable Networking Type : Basic Rack PDU Input Connector(s) : 1 x power NEMA L5-30 Output Connector(s) : 24 x power NEMA 5-20 Enclosure Color : Black Width : 2.2 Inch Depth : 1.7 Inch Height : 63.8 Inch Compliant Standards : cUL ListedCSA C22.2 No. 60950-1-03UL 60950-1UL Listed

    • Features:

      • 100V-120V Input, Basic 30A rackmount Power Distribution Unit
      • Input: NEMA L5-30P (2.9 kW)
      • Output Receptacles: Ten (10) 5-20 Outlets

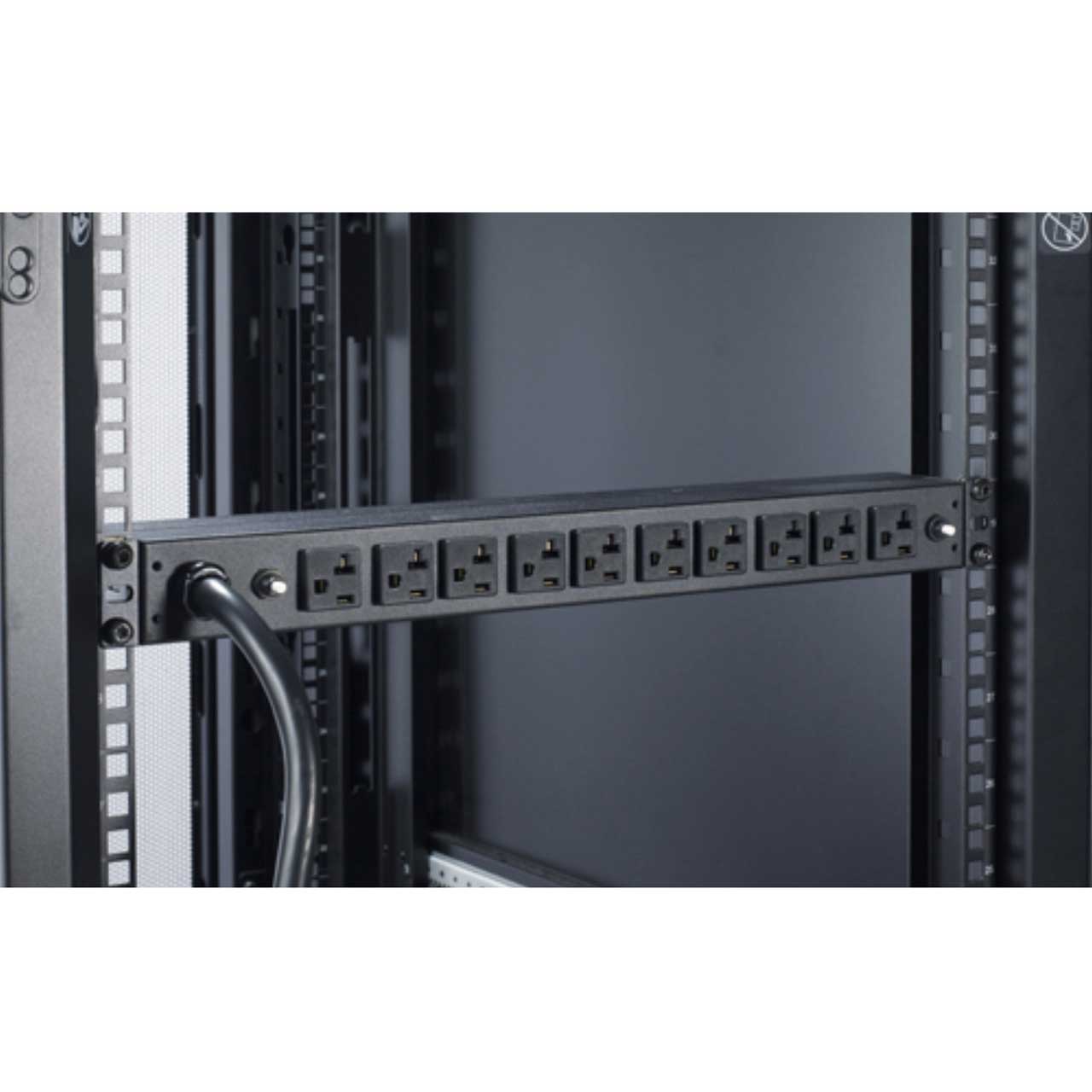

      • 1U Horizontal Mounting PDU
      • Cord Length: 11.8 feet


    • Specifications:

      • Main Input Voltage: 100 V, 120 V
      • Main Output Voltage: 120 V.
      • Input Connection Type: NEMA L5-30P.
      • number of rack unit: 1U.
      • cable length: 12 ft (3.66 m).
      • number of cables: 1.
      • Provided Equipment; User Manual, Rack Mounting brackets.
      • Color: Black.
      • Height: 1.73 in (4.4 cm), Width: 17.60 in (44.7 cm), Depth: 2.24 in (5.7 cm).
      • Net Weight: 5.51 lb(US) (2.5 kg)
      • Mounting Location: Front, Rear.
      • mounting preference: No preference.
      • Mounting Mode: Rack-mounted.
      • Line Rated Current: 24 A.
      • Acceptable Input Voltage: 90.132 V.
      • Max line current: 24 A.
      • input current limits: 30 A
      • Load Capacity: 2880 VA.
      • Input Frequency: 50/60 Hz.
      • number of power socket outlets: 10 NEMA 5-20R
      • Product Certifications: CUL Listed, UL Listed,
      • Standards: UL 60950.
      • Ambient air temperature for operation: 5.113 °F (-15.45 °C).
      • Relative Humidity: 0.95 %.
      • Operating altitude: 0...10000 ft.
      • Ambient Air Temperature for Storage: -13.149 °F (-25.65 °C).
      • Storage Relative Humidity: 0.95 %.
      • storage altitude: 0.50000 ft (0.00.15240.00 m).


    • GTIN:

      0731304192930
