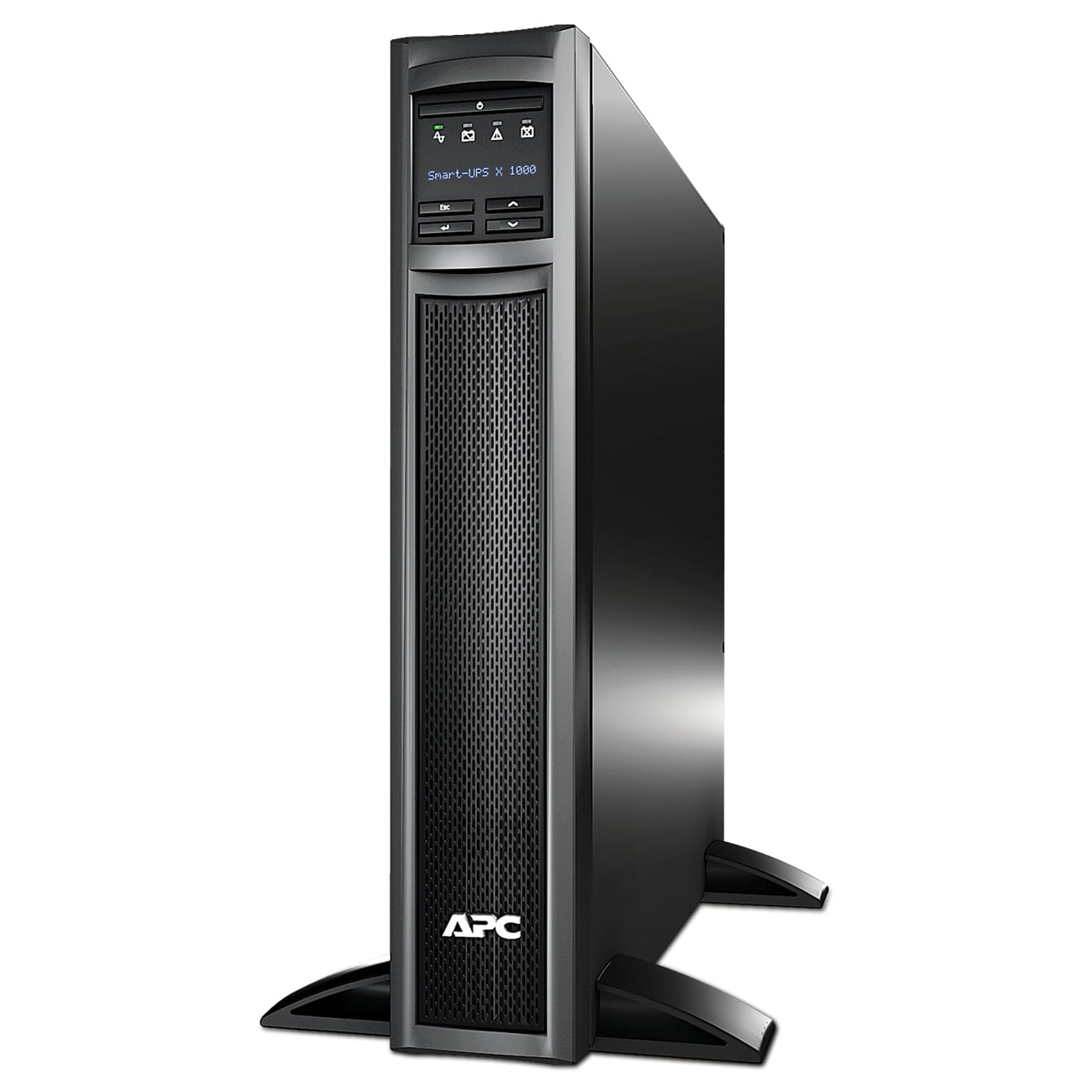

APC SMX1000CNC Smart-UPS X 1000VA Tower / Rack 120V with Network Card and SmartConnect

ITEM #: APC-SMX1000CNC MFG #: SMX1000CNC

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,420.00

Our Price:

$1,750.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


SMX1000CNC - Overview

The APC SMX1000CNC is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX1000CNC comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters.

The UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms.

The SMX1000CNC has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 2 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

  • Features:

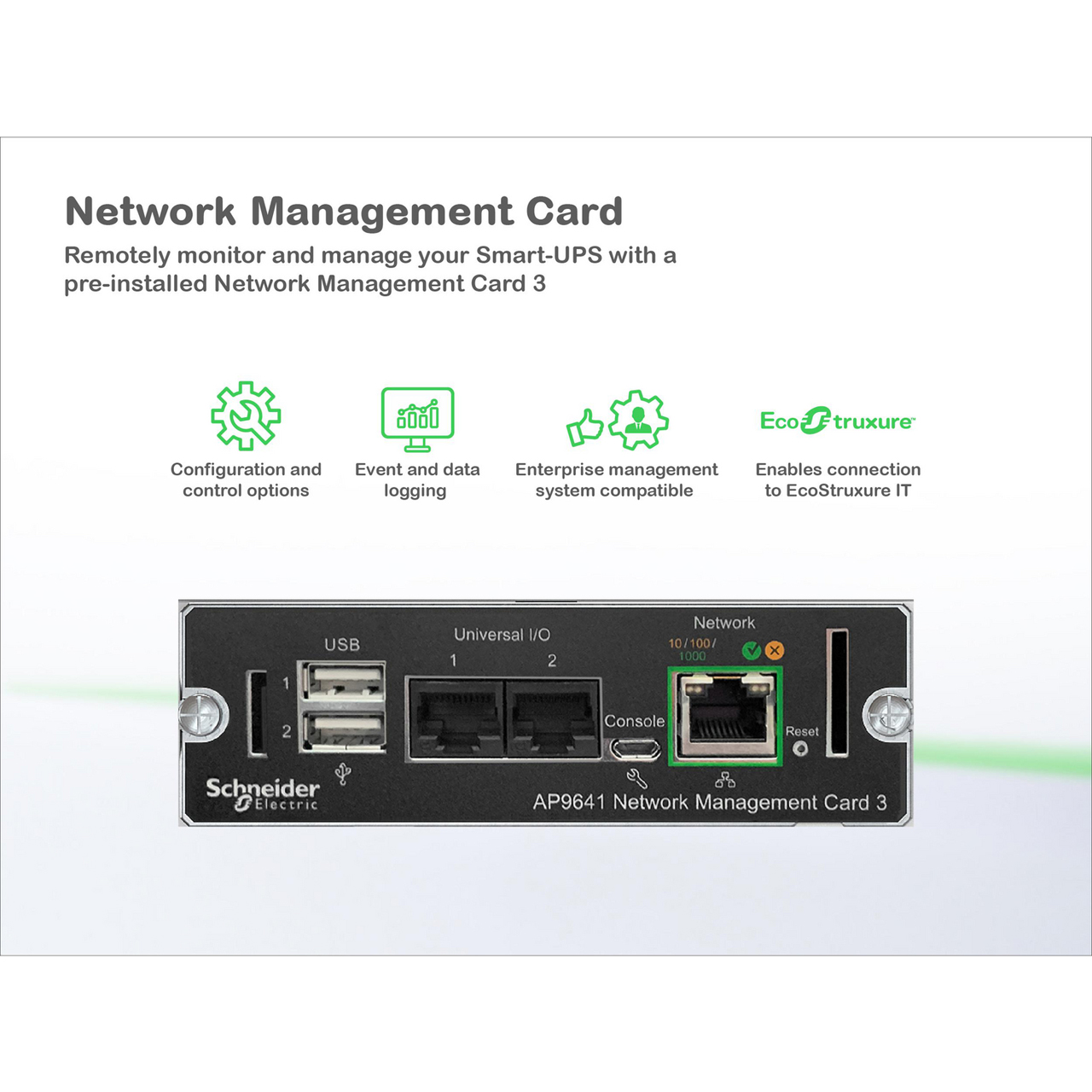

    • Preinstalled NMC for network-based UPS monitoring & management
    • Cloud-based remote power monitoring via SmartConnect Ethernet Port

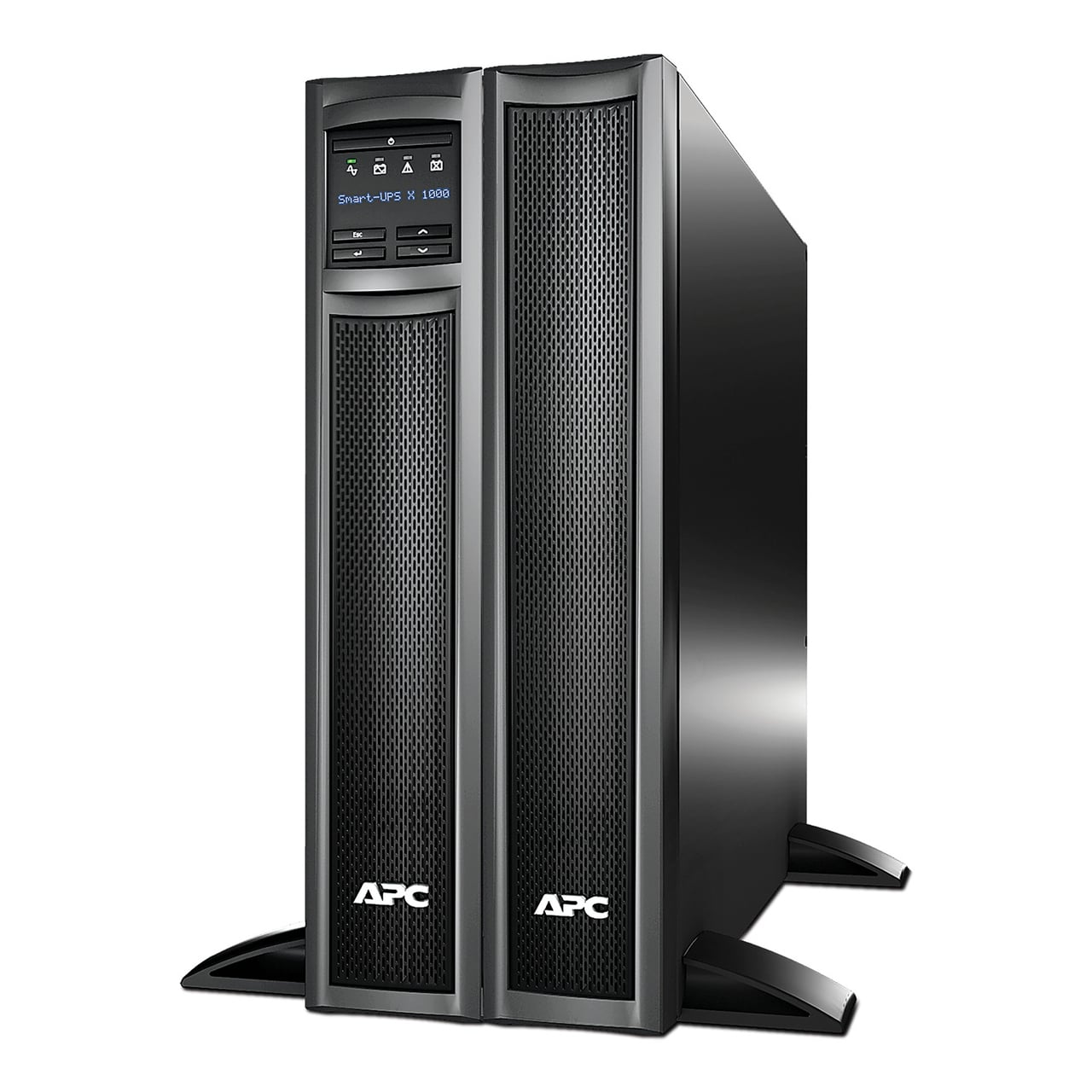

    • Add up to 5 external battery packs (SMX48RMBP2U)

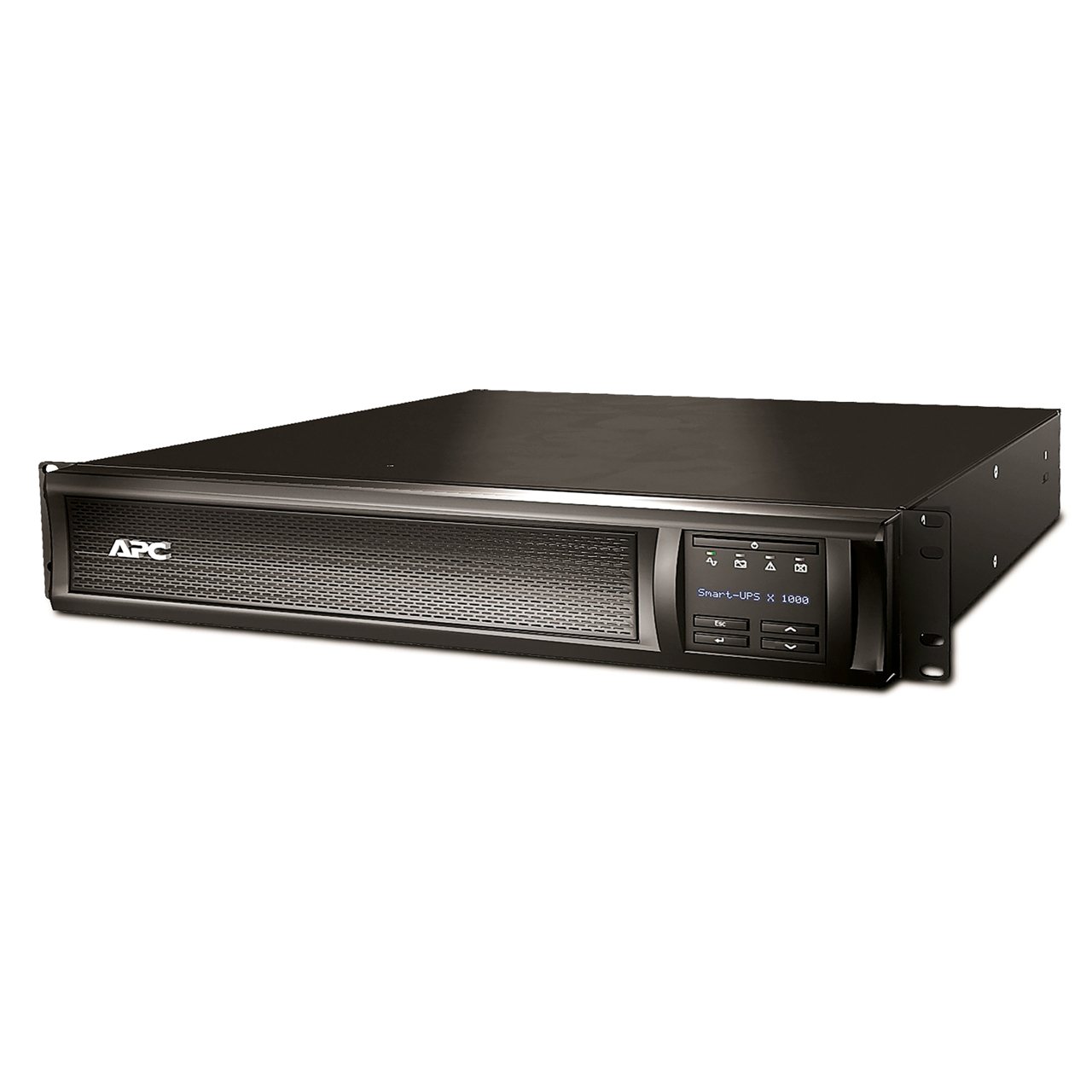

    • 1000VA/900W line interactive pure sine wave 2U rack/tower UPS (rail kit SU032A sold separately)
    • 1-Year Secure Network Management Card subscription included

  • Specifications:

    • Typical Recharge Time: 3 hours
    • Main Input Voltage: 120V AC 1 phase
    • Input Connection Type: NEMA 5-15P
    • Maximum Input Current per Phase: 12A
    • Input Protection Type: Circuit breaker
    • Switching Current Capacity: 15A
    • Plug Standard: 5-15P
    • Input Current: 8.33mA rated
    • Input Frequency: 50/60Hz ±3Hz auto-sensing
    • Output Voltage: 120V AC 1 phase
    • Rated Power in W: 900W
    • Rated Power in VA: 1000VA
    • Output Connection Type: 8 NEMA 5-15R
    • Crest Factor: 3:1
    • Harmonic Distortion: Less than 5%
    • Maximum Configurable Power in VA: 1000VA
    • Max Configurable Power: 900W
    • Output Voltage Tolerance: ±2%
    • Topology: Line Interactive
    • Waveform Type: Sine wave
    • Output Frequency (sync to mains): 50/60Hz ±3Hz sync to mains
    • Battery Capacity: 345Ah
    • Battery Size: Lead-acid internal included
    • Control Panel: Multi-function LCD status and control console
    • Emergency Power Off (EPO): Yes
    • Free Slots: 1
    • Pre-Installed SmartSlot™ Cards: Network management card 3 with environmental monitoring
    • Alarm: Alarm when on battery distinctive low battery alarm and overload continuous tone alarm

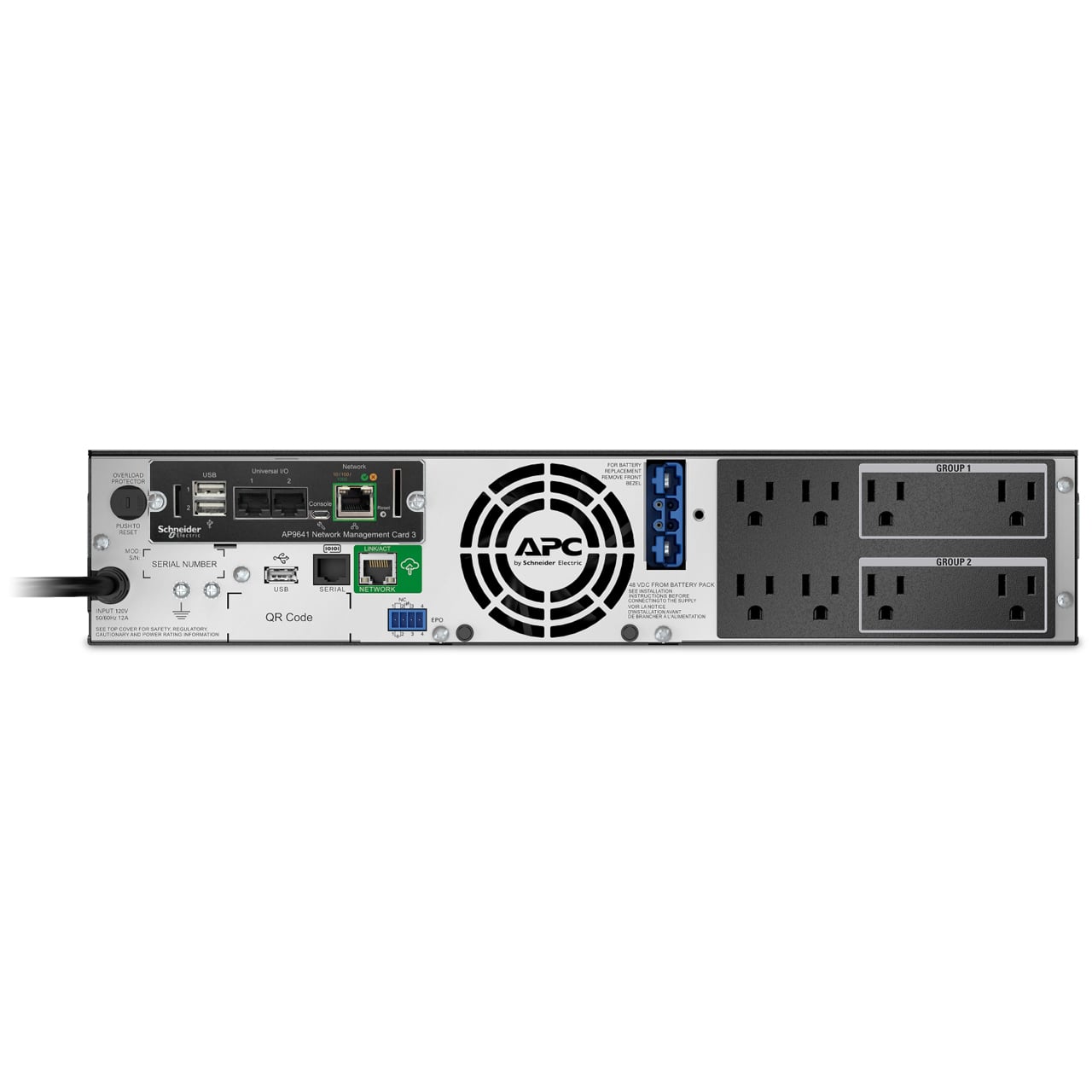

    • UPS Connectivity:
      - Serial port
      - USB port
      - SmartConnect port
      - Pre-installed Network Management Card
    • Surge Energy Rating: 693 J
    • Filtering:
      - Full time multi-pole noise filtering: 5% IEEE surge
      - Let-Through: zero clamping response time
    • Number of Rack Unit: 2U
    • Cable Length: 8ft (2.4m)
    • Number of Cables: 1
    • Color: Black
    • Dimensions (LxWxH): 19.3" x 3.5" x 17.008" (490mm x 89mm x 432mm)
    • Net Weight: 50.40lbs
    • Mounting Location: Front
    • Mounting Preference: Lower
    • Mounting Mode: Rack-mounted with kit
    • Two Post Mountable: 1
    • USB Compatible: Yes
    • Mounting Position: Horizontal and Vertical
    • Mounting Mode: Tower
    • Product Certifications: (USA) ENERGY STAR V2.0, cUL Listed
    • Ambient Air Temperature for Operation: 32°F - 104°F (0°C - 40°C)
    • Ambient Air Temperature for Storage: 5°F - 113°F (-15°C - 45°C)
    • IP Degree of Protection: IP20
    • Relative Humidity: 0% - 95%
    • Storage Relative Humidity: 0% - 95%
    • Acoustic Level: 40dB
    • Online Thermal Dissipation: 117 Btu/h
    • Operating Altitude: 0ft - 10,000ft
    • Battery Type: Lead-Acid battery
    • Battery Voltage: 48V
    • Extendable Run Time: 1
    • RBC Quantity: 1
    • DC Overcurrent Protection: 60A
    • Battery Life: 3.5 years
    • Replacement Battery: APCRBC116
    • Battery Charge Power: 99W rated

  • Item Includes:

    • 1x Installation guide
    • 1x Rack Mounting brackets
    • 1x Removable support feet
    • 1x Smart UPS signaling RS-232 cable
    • 1x USB cable
    • 1x Cat 5 Ethernet cable
