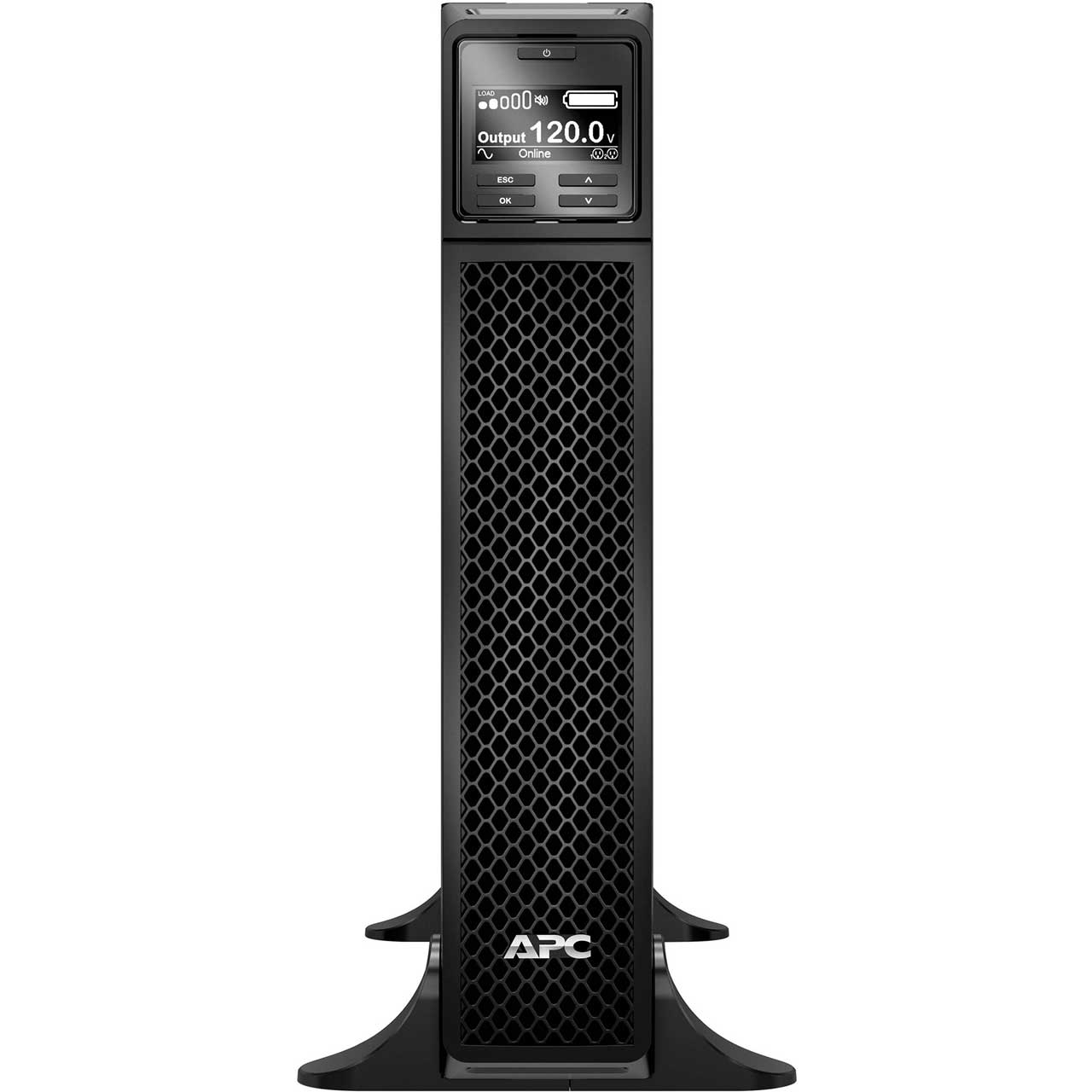

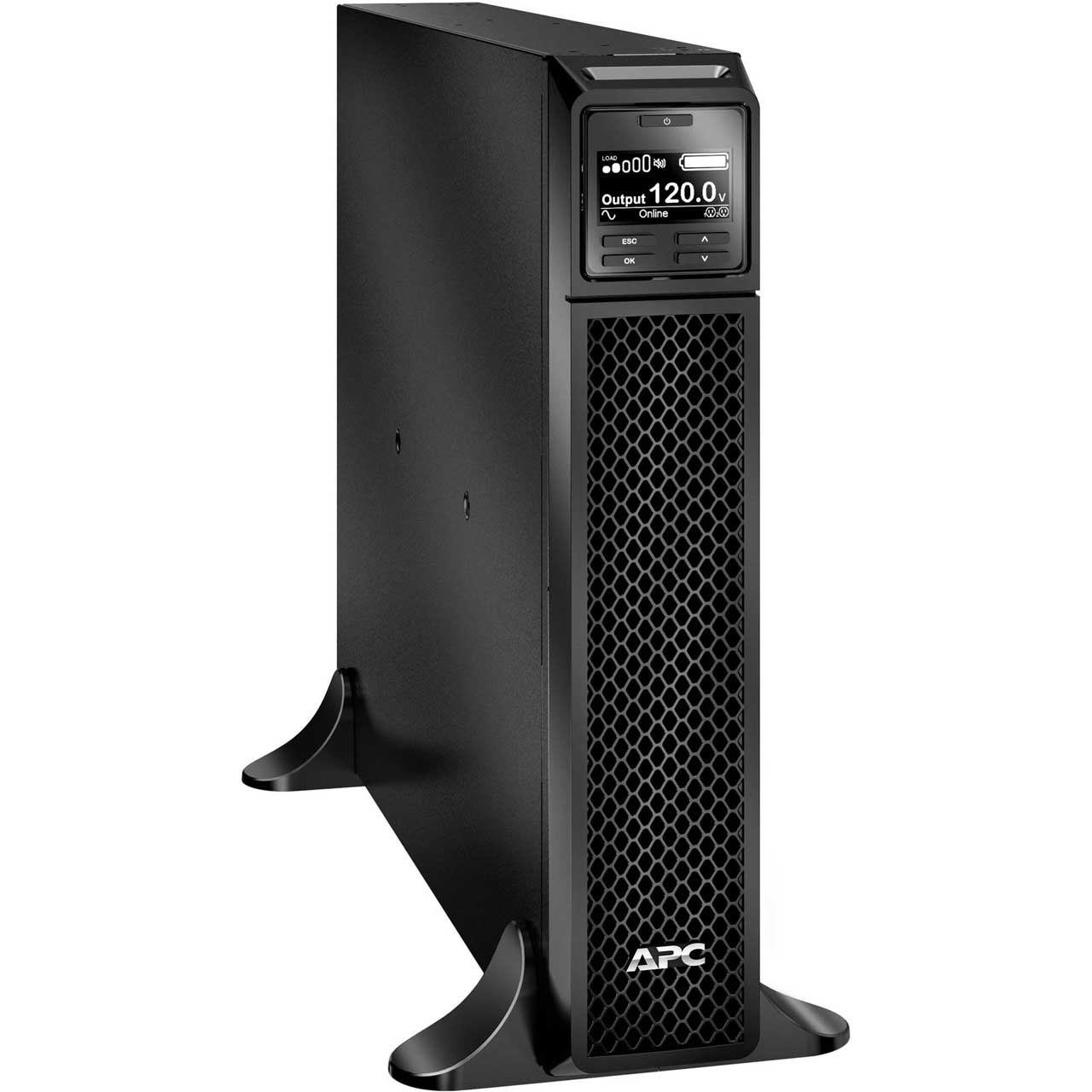

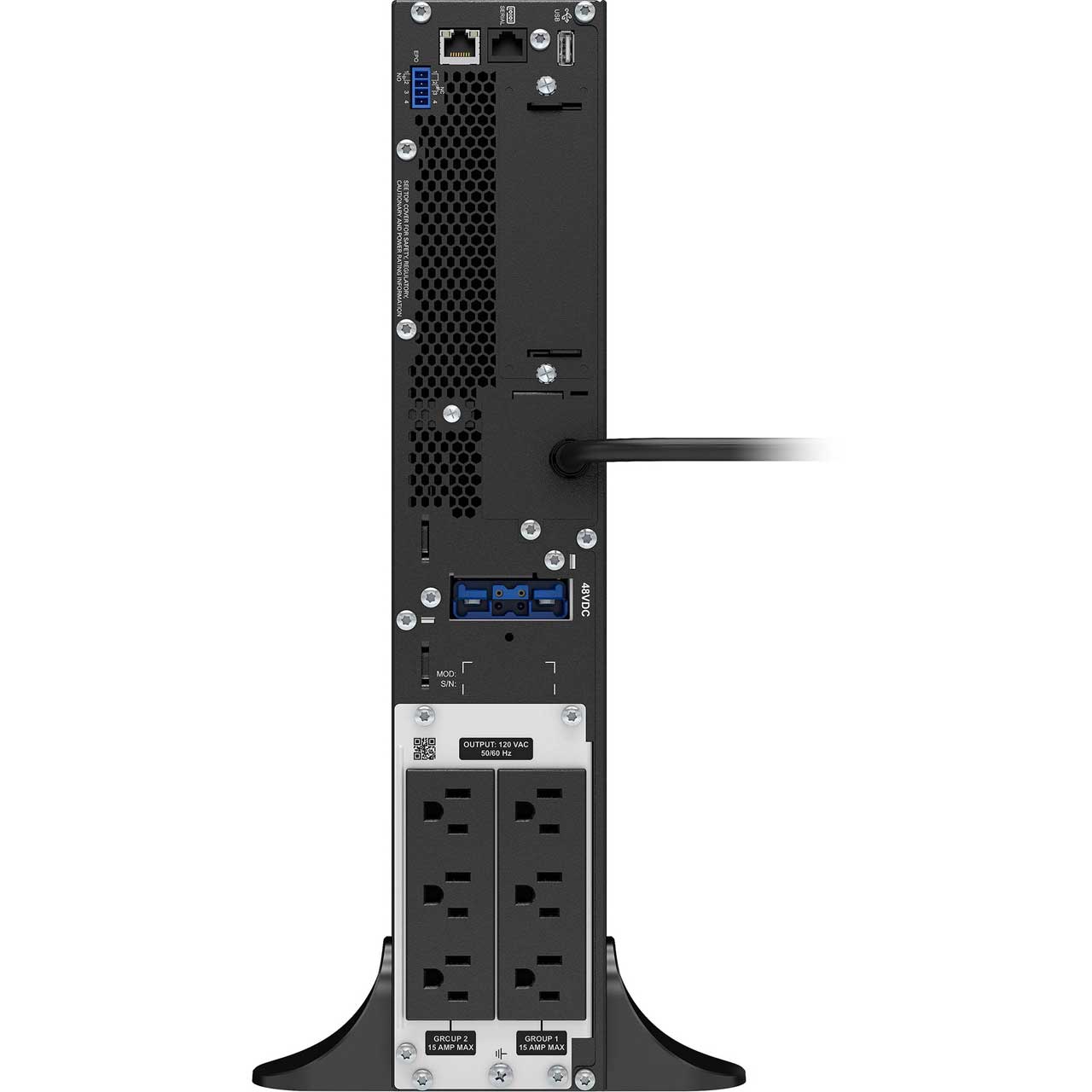

APC SRT1500XLA Smart UPS Battery Backup & Surge Protector

SRT1500XLA - Overview

• Features:

  • Provides tight voltage and frequency regulation
  • Hot-swap user replaceable batteries ensure continuous operation of the load
  • New LCD interface provides easy access for configuration and monitoring of your equipment
  • Smart Battery technology provides early notification about battery replacement. Information shown on LCD display.
  • Allows additional runtime to be quickly added as needed
  • 120 V


• Specifications:

  • Output
  • Max Configurable Power (Watts): 1.35kWatts / 1.5kVA
  • Output Voltage Distortion: Less than 2%
  • Output Frequency (sync to mains): 50/60Hz ±3 Hz
  • Load Crest Factor: 3:1
  • Topology: Double Conversion Online
  • Waveform Type: Sine wave
  • Bypass: Built-in Bypass

    Input
  • Input Frequency: 40 - 70 Hz (auto sensing)
  • Input Voltage Range for Main Operations: 108 -150 VAC, 50-150 (40% Load)V
  • Number of Power Cords: 1

    Batteries & Runtime
  • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Included Battery Modules: 1
  • Typical Recharge Time: 3 hour(s)
  • Nominal Battery Voltage: 48V
  • Replacement Battery: APCRBC155
  • Expected Battery Life (years): 3 - 5
  • RBC Quantity: 1
  • Battery Volt-Amp-Hour Capacity: 273
  • Extended Run Options: APC-Smart-UPS-SRT-1500VA-120V

    Communications & Management
  • Interface Port(s): RJ-45 Serial, Smart-Slot, USB
  • Control Panel: Multi-function LCD status and control console
  • Audible Alarm: Audible and visible alarms prioritized by severity
  • Emergency Power Off (EPO): Yes
  • Available SmartSlot™ Interface Quantity: 1

    Surge Protection and Filtering
  • Surge Energy Rating: 432Joules

    Physical
  • Maximum Height: 17" (432mm, 43.2cm)
  • Maximum Width: 3.35" (85mm, 8.5cm)
  • Maximum Depth: 20" (508mm, 50.8cm)
  • Net Weight: 48.5Lbs (22.0kg)
  • Shipping weight: 65.26Lbs (29.6kg)
  • Shipping Height: 9.7" (246mm, 24.6cm)
  • Shipping Width: 23.4" (594mm, 59.4cm)
  • Shipping Depth: 29.5" (749mm, 74.9cm)
  • Color: Black
  • Units per Pallet: 12

    Environmental
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Operating Relative Humidity: 0 to 95% (non-condensing)
  • Operating Elevation: 0-10000' (0-3000m)
  • Storage Temperature: -20° to 50°C
  • Storage Relative Humidity: 0 to 95% (non-condensing)
  • Storage Elevation: 0-50000' (0-15000m)
  • Audible noise at 1 meter from surface of unit: 50.0dBA
  • Online thermal dissipation: 463.0BTU/hr
  • Protection Class: IP 20

    Conformance
  • Approvals: CSA C22.2 No.107.3-05, ENERGY STAR V2.0 (USA), FCC Part 15 Class A, UL 1778
  • Standard warranty: 3 years repair or replace (excluding battery) and 2 years for battery

    Sustainable Offer Status
  • RoHS: Compliant
  • REACH: Contains SVHCs


• Item Includes:

  • 1x Smart-UPS Online SRT1500XLA
  • 1x User manual


• GTIN:

  0731304330097
