MVR-64 - Overview

The Audio Universe. Combined In One Device.

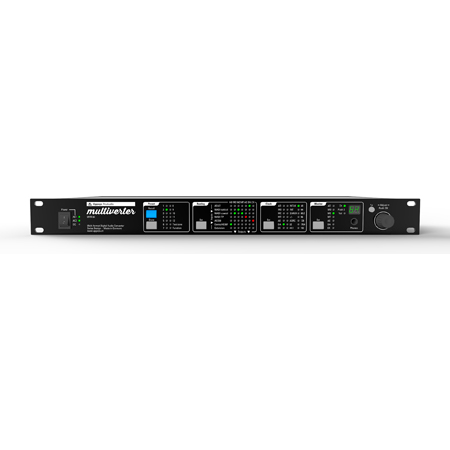

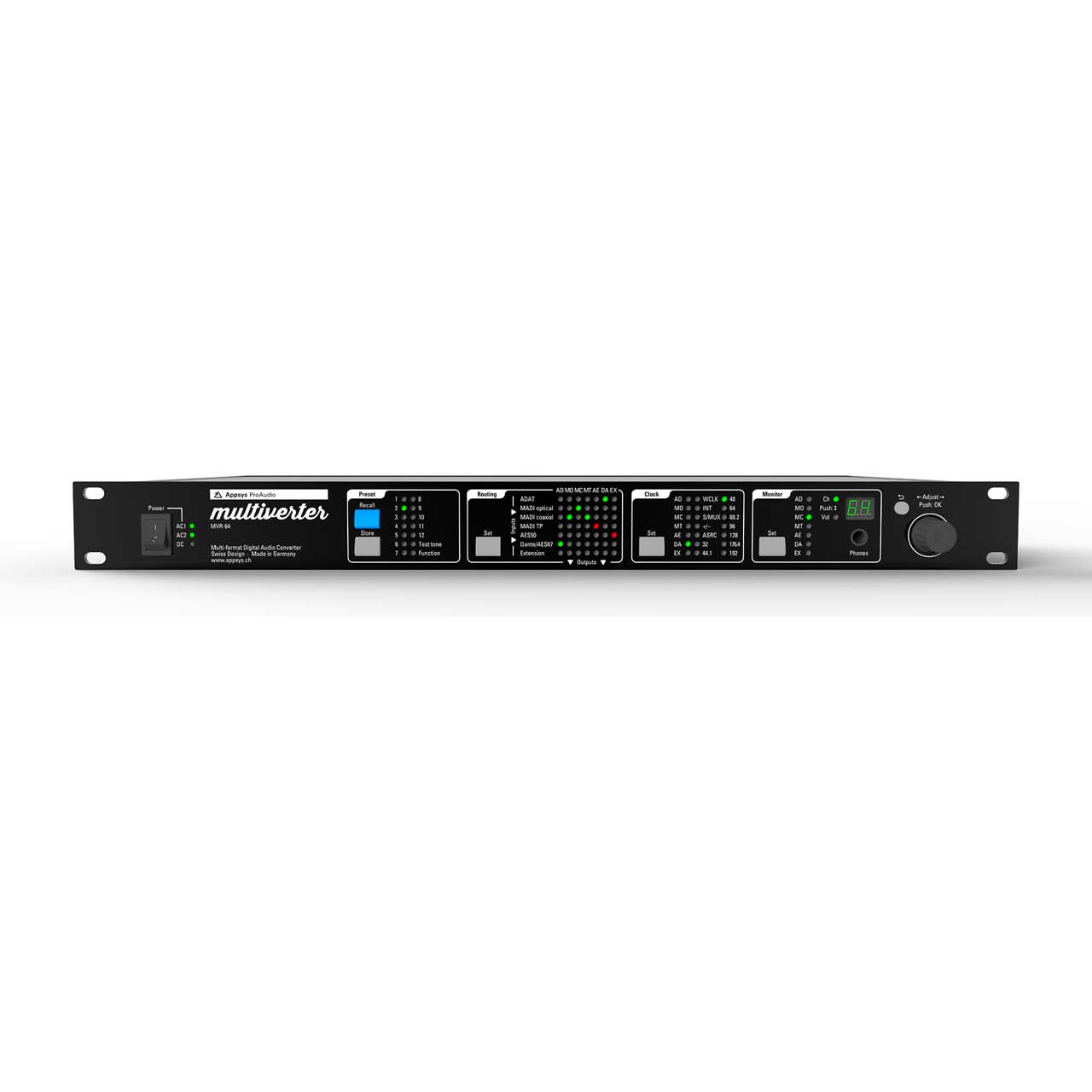

The Appsys Pro Audio MVR-64 is a 64 x 64 channel digital multi-format converter. This unique piece of hardware is able to convert between an impressive selection of digital interfaces - any to any, all at once. The MVR-64 multiverter is a versatile digital audio bridge, capable of translating between many digital audio formats. The device features matrixstyle any-to-any conversion with unmatched flexibility, including arbitrary channel-wise routing between all interfaces*.

The integrated headphone preamp allows you to monitor any incoming signal, while the integrated test tone generator helps you troubleshooting even the most complex setups. Twelve preset memories let you store or recall your desired setup in no time.

Applications
- Interface your recording gear to any signal source
- Make your production truck or OB van compatible to anything
- Use your ethernet port as 64x64 recording interface with the Dante® Virtual Soundcard technology
- Sample-rate convert between any interfaces using the SRC-64 plugin module
- Send and receive low-latency, 64x64 audio over your standard ethernet network
- Bring your legacy gear up to date

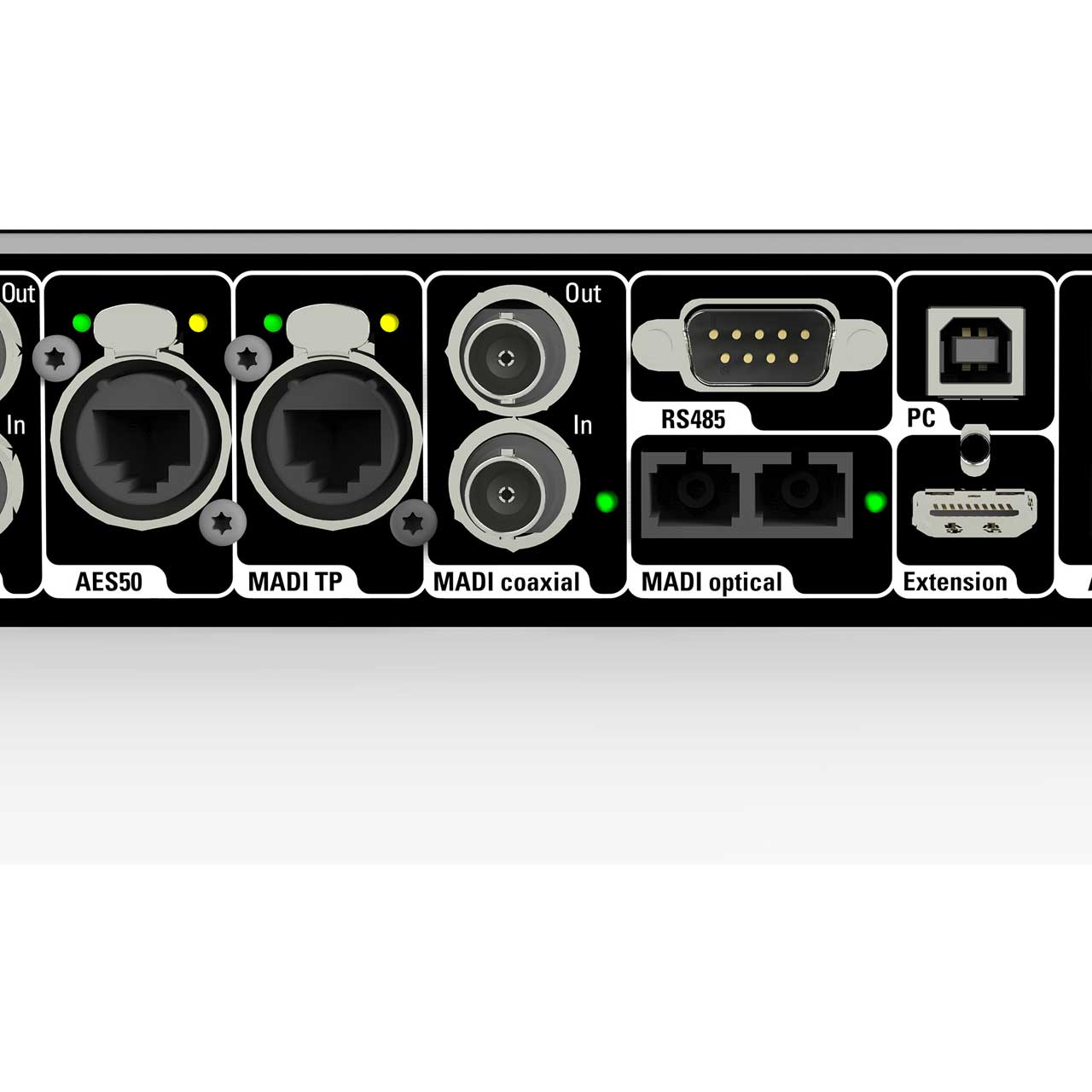

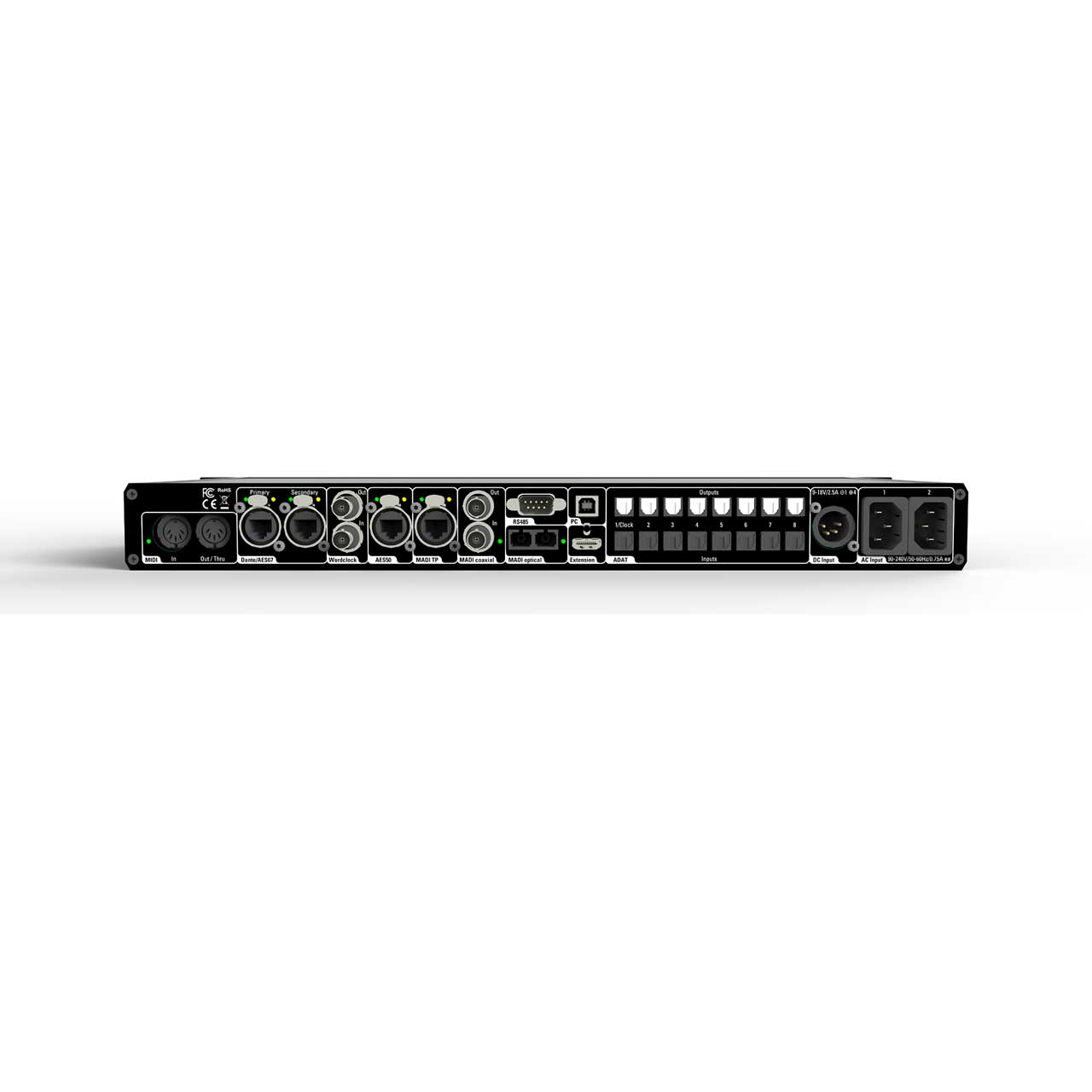

Supported Audio Interfaces
- ADAT (8x), SPDIF/AES3 optical
- MADI optical
- MADI coaxial
- MADI-TP (up to 2 ports)
- AES50 (up to 2 ports)
- Dante / AES67
- and many more via breakout boxes (currently planned: Waves Soundgrid, AVB, AES3)

FlexiLink port for breakout-box connection with Flexiverter boxes
- AVB (64 x 64 channels) – Q2 2022
- AES3 to All formats with optional SRC
- MADI to MADI bi-directional, 64 Ch. @ 96k MADI SRC
- Dante to Dante SRC
- Dante to MADI 128 Ch.
- AES50 to All formats with optional SRC

  • Features:

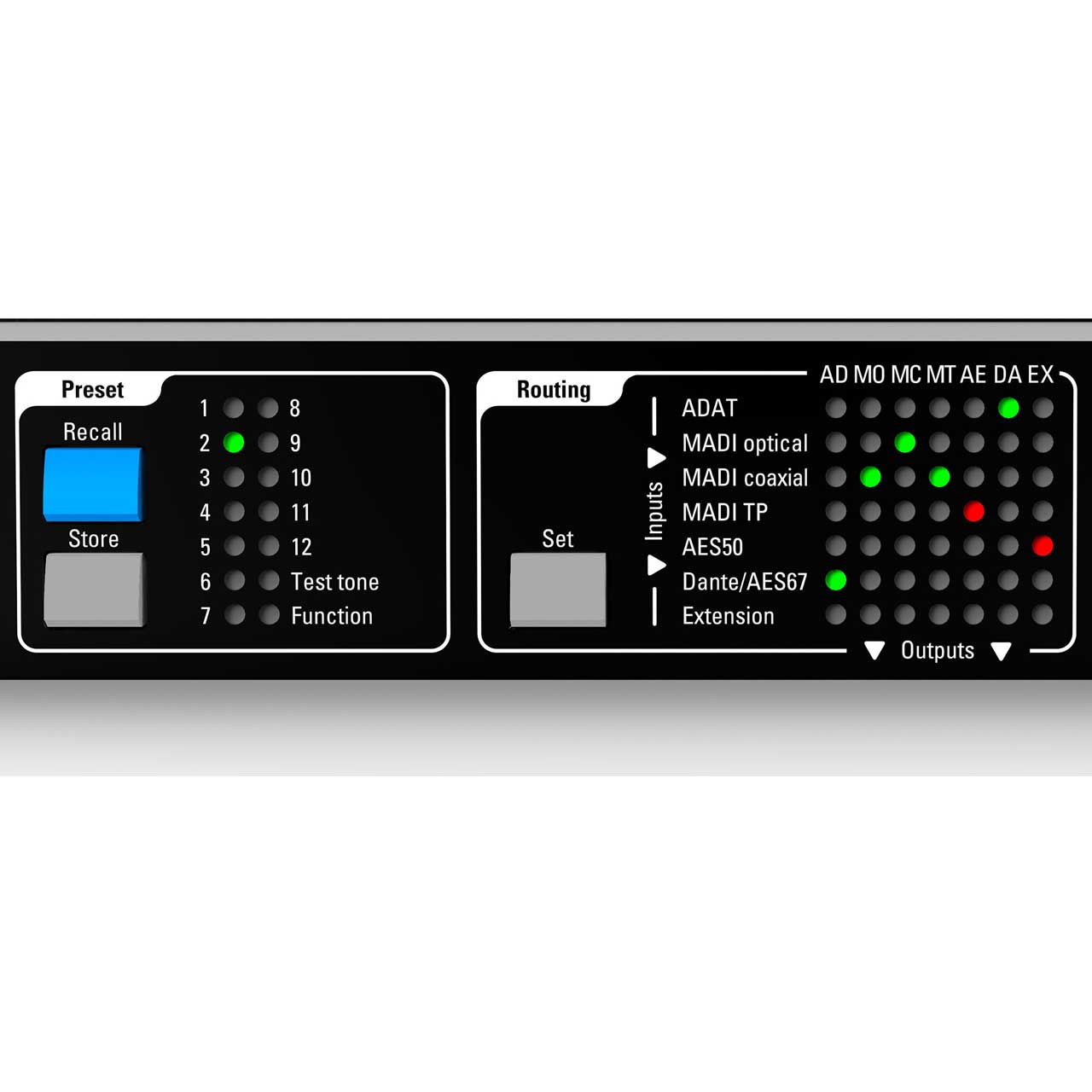

    • Preset store/recall (12 different setups)
    • Headphone amplifier to monitor any incoming signal
    • Asynchronous Sample Rate Conversion (64+64 channels) supported using the SRC-64 plugin module
    • Test tone generator simplifies troubleshooting of complex setups
    • Can be powered alone from industry standard 4-pin XLR plug battery packs
    • MIDI embedding/de-embedding from MIDI jacks into MADI streams (RME-compliant)
    • Transparent forwarding of MADI control data (i.e. headamp control, MIDI over MADI)
    • Prepared for Headamp remote control (Yamaha, Behringer, MIDAS)
    • AES50 AUX data (headamp control) passthru
    • RS485 over MADI (DirectOut(R) compatible)


  • Specifications:

    • Dimensions / Weight: 482x45x230mm (BxHxD) / 2.25 kg
    • Power Consumption:
      8W typ., 30W max.
      Each AC input: 85..264VAC, 50-60Hz,
      0.75A@115VAC / 0.5A@230VAC
      DC input: 9-18VDC (up to 30V tolerant), 2.5A peak
    • Channel Count:
      Up to 64 per interface in x1 modes
      Up to 32 per interface in x2 modes
      Up to 16 per interface in x4 modes
      Multiple conversions (i.e. Dante <> MADI and ADAT <> AES50) with each using the full channel count can run simultaneously.
    • Sample Rates: 32 / 44.1 / 48 / 64 / 88.2 / 96 / 128 / 176.4 / 192 kHz +/-100ppm, Varispeed operation is not supported

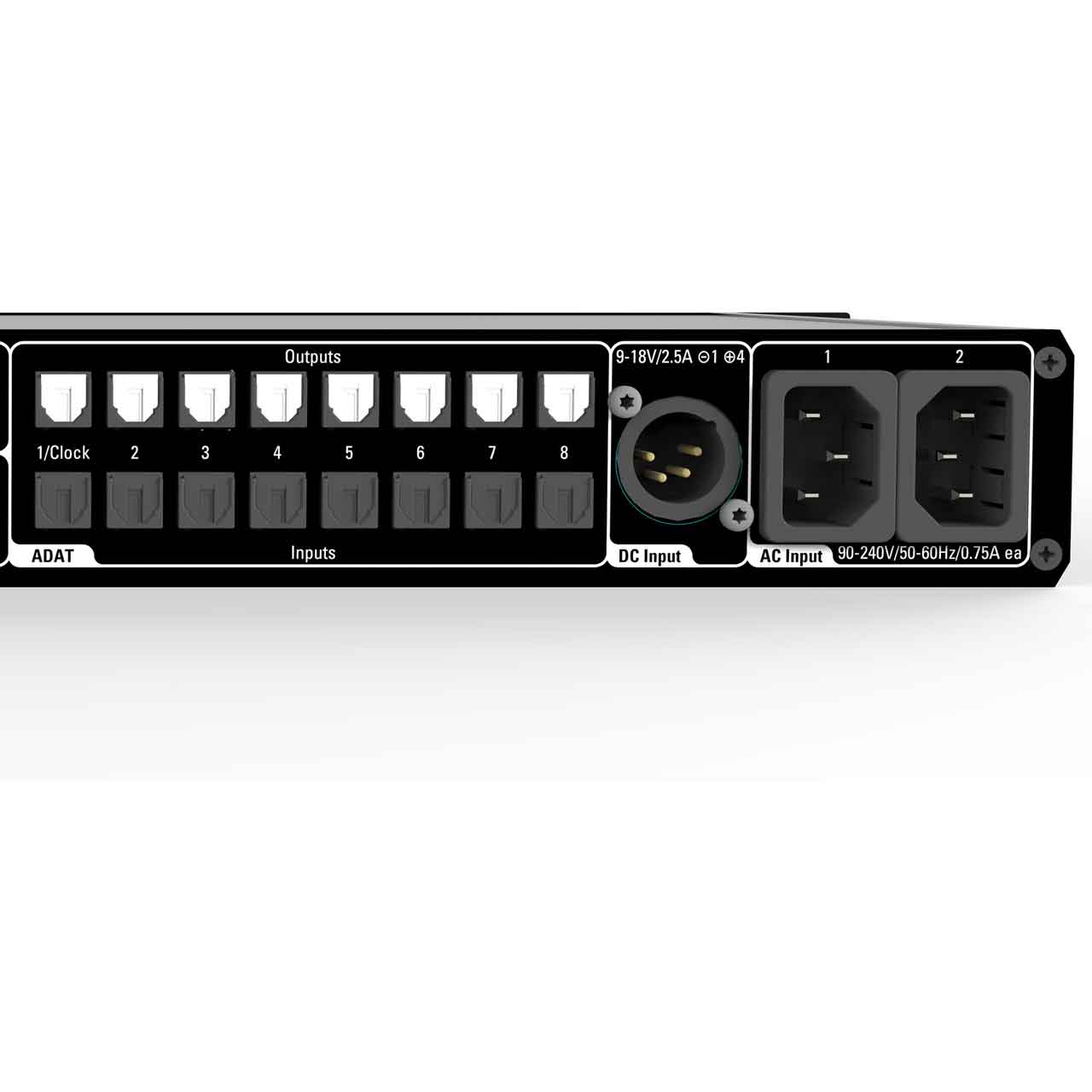

    • ADAT Ports: 8 input + 8 output ports 64ch @ 44.1/ 48kHz, 32ch @ 88.2 / 96kHz, Each port may be alternatively used as
      SPDIF or AES3 optical port with 2 channels @44.1/48kHz
    • RS485 Port: Male D-Sub 9pin, Yamaha AD8HR compatible; Pinout: 2=RX-, 3=TX-, 4=TX+, 5=GND, 6=RX+
    • Extension Port: HDMI connector type. 64 ch @ 32 / 44.1 / 48 kHz, 32ch @ 64 / 88.2 / 96 kHz, 16ch @ 128 / 176.4 / 192kHz
    • MADI Optical Port:
      SC connector, 50 / 125 µm or 62.5 / 125 µm multi-mode fibre (MM fibre), 1300nm, up to 2 km total length.
      Transceiver can be changed to Single mode (9/125µm) at the factory on request.
      64ch @ 32 / 44.1 / 48kHz, 32ch @ 64 / 88.2 / 96kHz, 16ch @ 128 / 176.4 / 192kHz
      MIDI-over-MADI; Transparent user bit forwarding
    • MADI BNC Port: Standard AES10 coaxial port. Use with up to 100meters of 75 ohm coaxial cable 64ch@32/44.1/48kHz,
      32ch@64/88.2/96kHz, 16ch@128/176.4/192kHz
    • MADI TP Port:
      AES-X 213 (upcoming MADI specification) compatible.
      64ch@32/44.1kHz, 56ch@48kHz, 32ch@64/88.2, 28ch@96kHz, 16ch@128/176.4kHz, 14ch@192kHz
      Pinout: MADI-TP on 4/5, 7/8 MIDI-over-MADI
      Transparent user bit forwarding
    • AES50 Port:
      AES50 3.1 compatible
      48ch @ 44.1 / 48 kHz, 24ch @ 88.2 / 96 kHz Pinout: Data on 1/2, 3/6; Sync on 4/5, 7/8
      Alternative use: Second MADI-TP with Pinout: 1/2, 3/6 (adapter cable required)
    • Wordclock Port: Output: 5.0Vpp nominal, able to drive two parallel 75 Ohm terminations; Input: 2.0Vpp…5.0Vpp
    • Dante/AES67 Port:
      2x Gigabit Ethernet, configurable either as Switch or as Redundant connection in the Dante controller.
      Device prefix: MVR64
      64ch@32/44.1/48kHz, 32ch@64/88.2/96kHz, 16ch@128/176.4/192kHz
    • MIDI Port: Standard isolated input, standard MIDI output
    • Headphones: 2x125mW into 32Ohm (@0.01% THD+N), Bandwidth: 22Hz to 22kHz


  • Item Includes:

    • 1x MVR-64 Multiverter Device
    • 1x AC Power Cord (country specific)
    • 1x User Manual


  • Warranty:

    • 2 Year Manufacturer's Warranty
