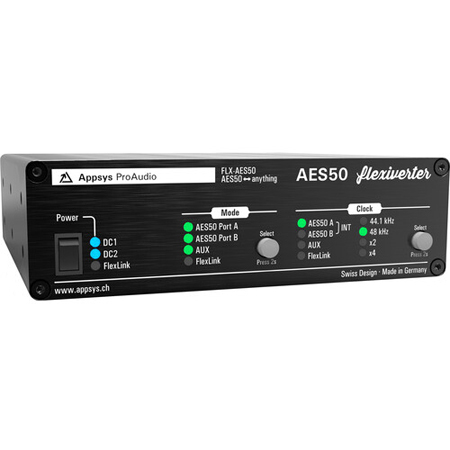

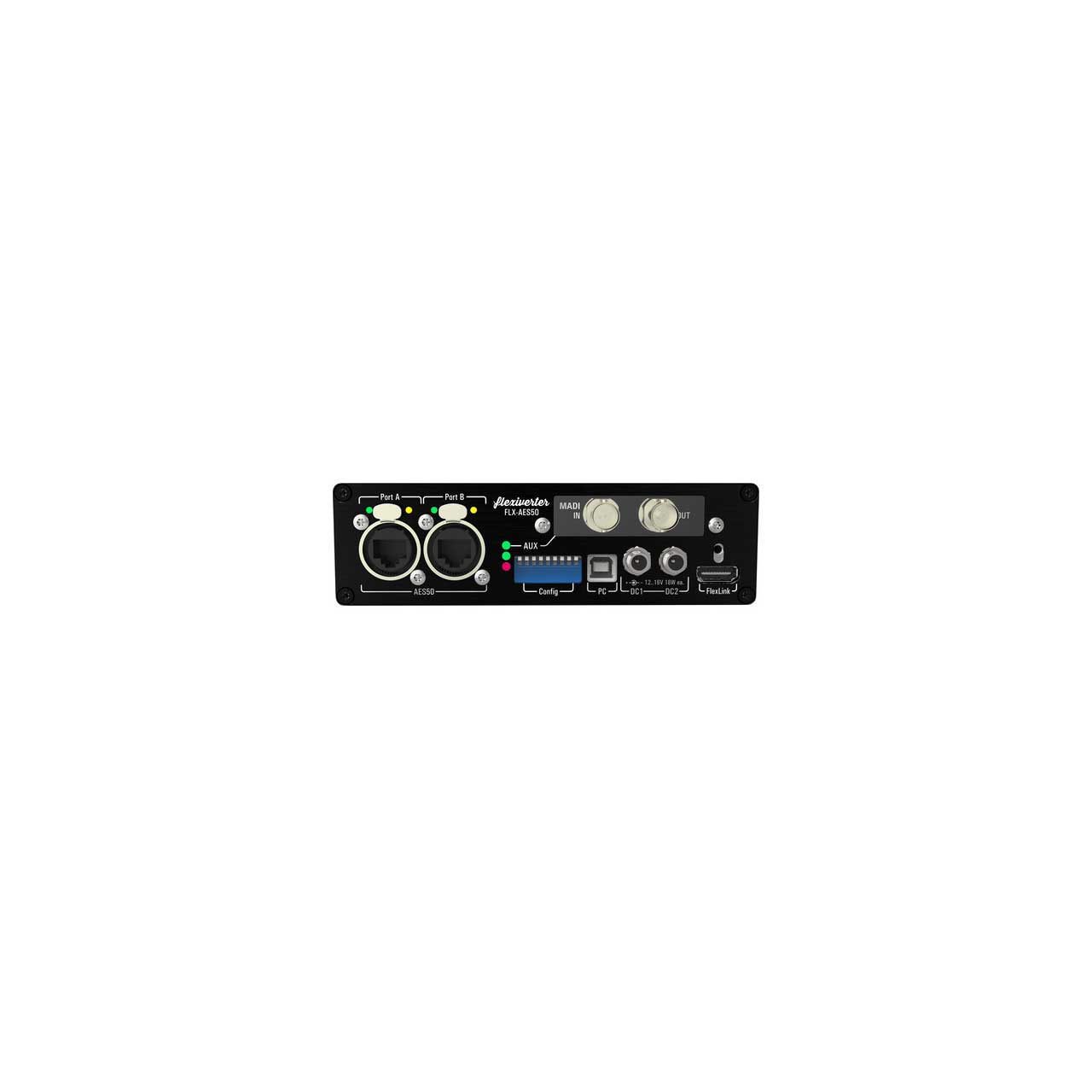

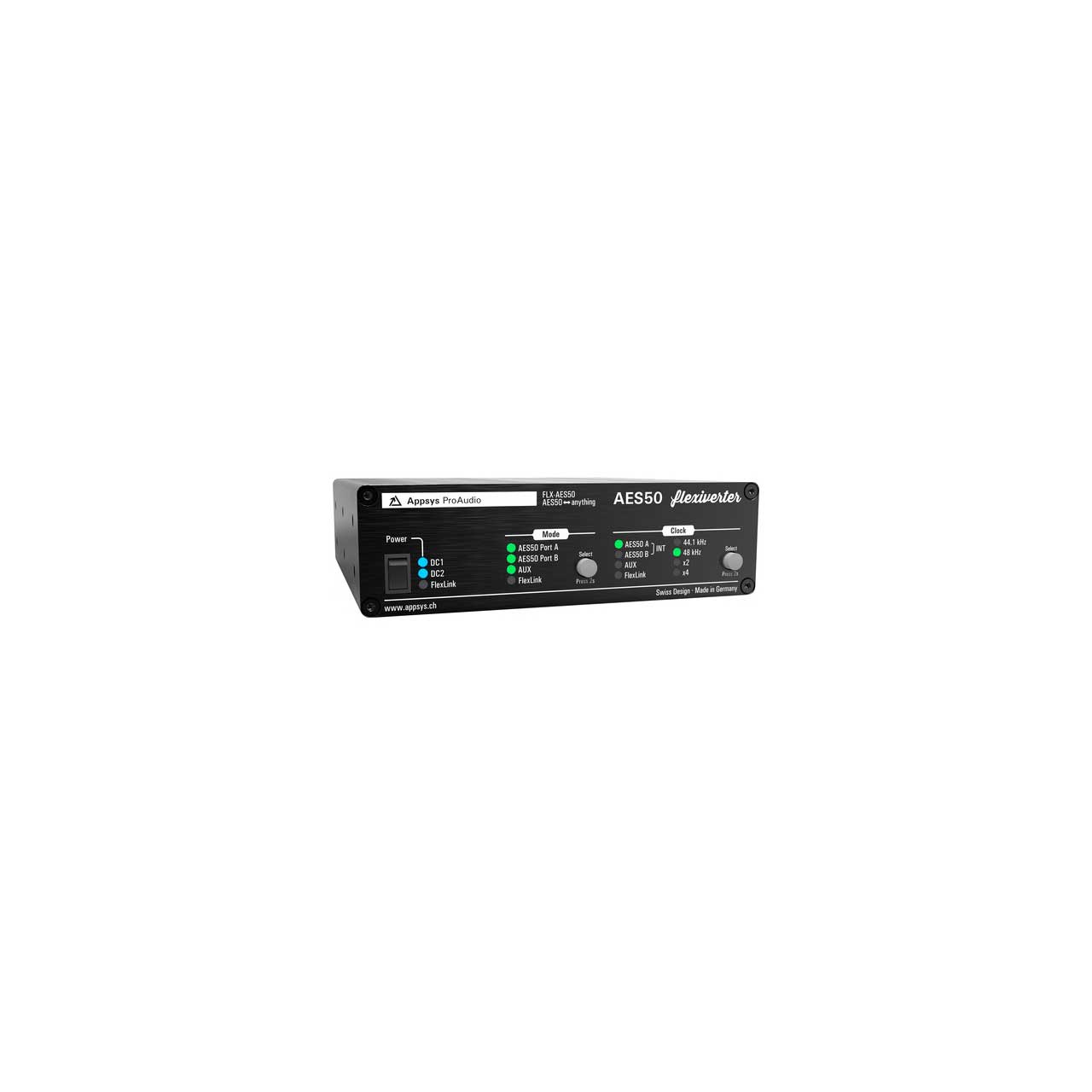

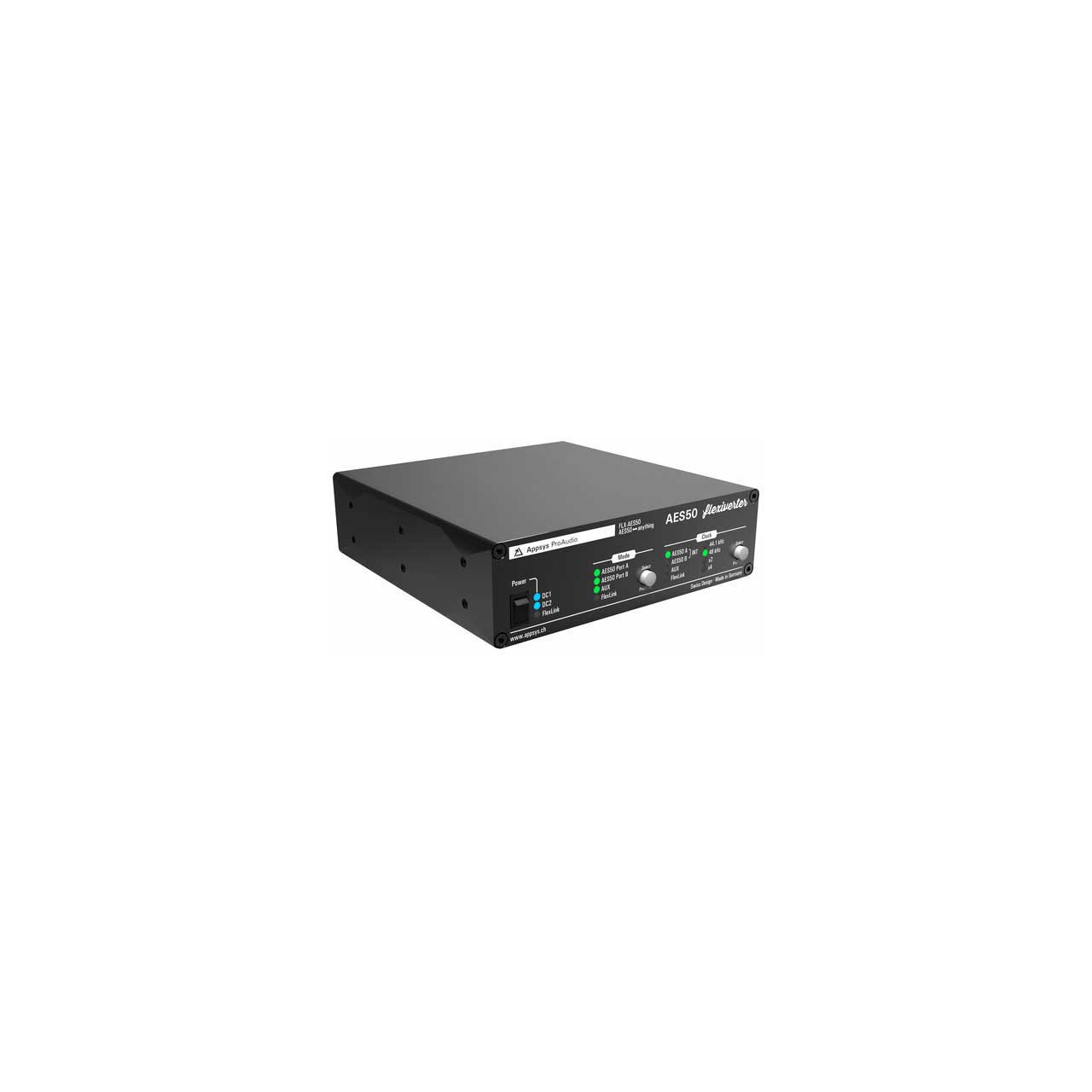

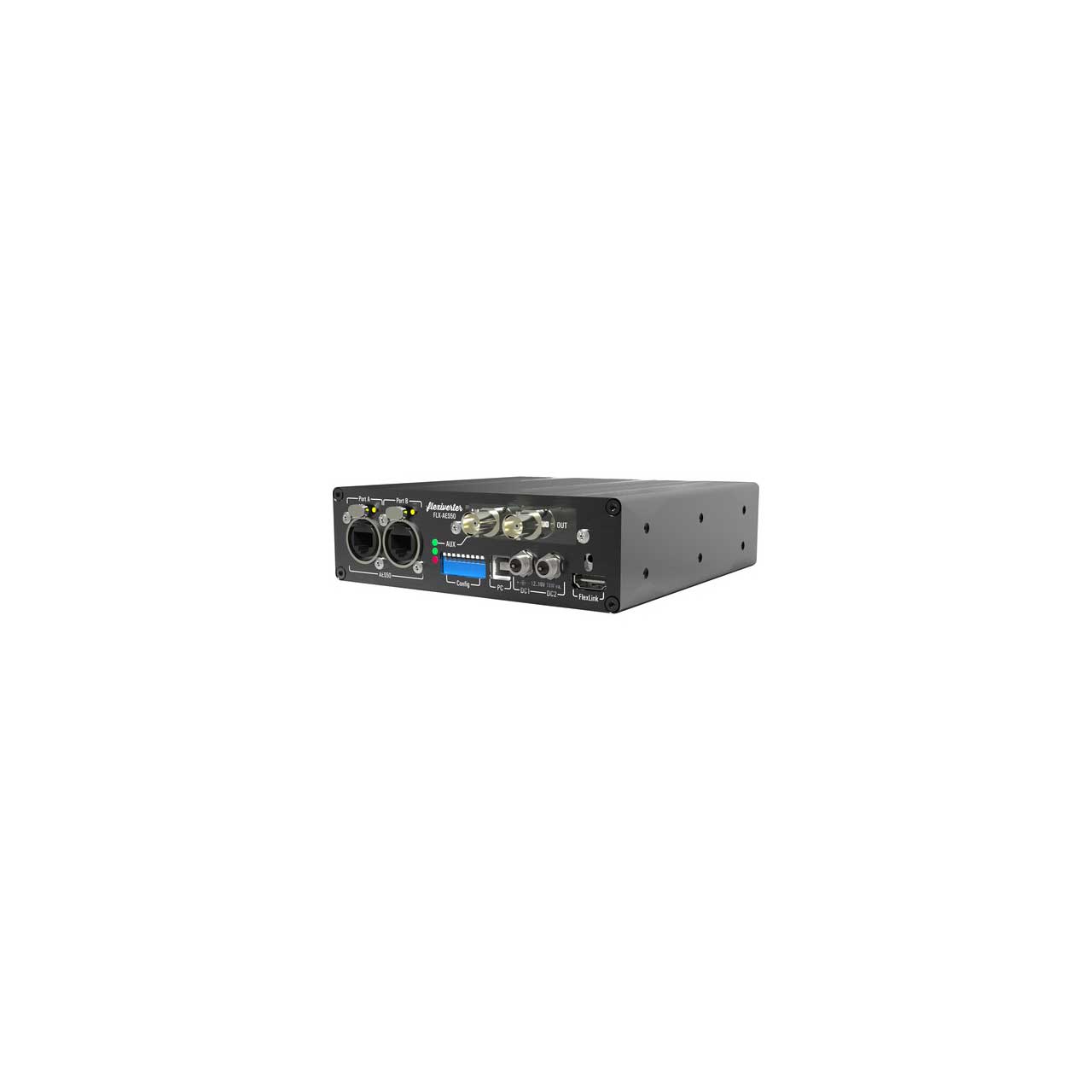

Appsys Pro Audio Flexiverter AES50 96 x 96 Channel Format Converter for AES50

ITEM #: APP-FLX-AES50 MFG #: FLX-AES50

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$999.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    FLX-AES50 - Overview

    A Flexiverter is an ultra-compact box with a main format, dual power supply and a slot for a switchable AUX board, which adds the conversion format to the FLX unit. At the moment 5 FLX units and 10 AUX boards are available.

    Format combinations provide the most common conversions with improved features and unique pairings
    (e. g. AES50 <> Dante, Dante <> Dante SRC, Dante <> AVB).

    The Flexlink Connection
    The FlexLink connection is designed to connect two Flexiverters, or one Flexiverter with the Multiverter. It provides:

    - 192x192 channels bi-directional transmission of 24-bit uncompressed audio (fully transparent to AES3 compatible metadata bits)
    - Super-low link latency of 4 samples
    - Dedicated, high-quality reference clock signal with automatic configuration
    - Power supply for connected devices (to reduce cabling), alternatively serves as redundancy scheme when both devices are powered: in case
    of power failure, both devices keep working from the remaining power supply.
    - Uses standard HDMI cables (with locking screws), to provide easy field replacement in case of defects.

    The Flexiverter FLX-AES50 is the main format 96 x 96 channel EAS/EBU converter that converts between the built-in AES50 interface and the Aux Card.

    • Features:

      • 3 Possible Flexiverter Applications - Stand Alone, Dual Mode and Multiverter Extension
      • Status LEDs For Each Port
      • DIP Switches for Advanced Configuration
      • USB for Firmware Updates
      • AUX Port for Optional Format Module

    • Specifications:

      • Stand Alone (Converts between built-in AES50 interface and the AUX card)
      • Channels (all can be used at the same time): 96x96 AES50 @ 48kHz 48×48 AES50 @ 96kHz or maximum capacity of the AUX card, whichever is less
      • Redundant Power Supply: up to 2x
      • Battery-powered Operation (DC 12-15V): Yes
      • Sample Rate Conversion: No
      • Signal Splitting: Yes (to AUX or FlexLink)
      • Channel-wise Routing: No
      • Remote Control: No

        Dual Flexiverter (Devices are connected via FlexLink cable)
      • Channels (all can be used at the same time): 96×96 AES50 @ 48kHz 96×96 AES50 @ 96 kHz 96x96 AES3 @ 192 kHz plus what the AUX card provides
      • Redundant Power Supply: up to 3x
      • Battery-powered Operation (DC 12-15V): Yes
      • Sample Rate Conversion: No
      • Signal Splitting: Yes (to AUX or FlexLink)
      • Channel-wise Routing: No
      • Remote Control: No

        Flexiverter + Multiverter (Flexiverter connected to multiverter via FlexLink cable)
      • Channels (all can be used at the same time): 448×448 from multiverter plus 96×96 AES50 plus what the AUX card provides
      • Redundant Power Supply: up to 3x
      • Battery-Powered Operation (DC 12-15V): Yes
      • Sample Rate Conversion: Yes (with SRC-64 card in Multiverter)
      • Signal Splitting: Yes, to everything
      • Channel-wise Routing: Yes, via MVR-64 (web, telnet or serial terminal)
      • Remote Control: Yes, via MVR-64 (web, telnet or serial terminal)

        General
      • Dimensions: 152x44x153mm (WxHxD) excluding connectors/buttons, 152x44x169mm (WxHxD) including device-side connectors/buttons
      • Weight: 560g
      • Power Consumption: +15V DC, 9W max (18W to power two devices via FlexLink)Triple-redundant input (2x DC, 1x via FlexLink)
      • Cable Length: FlexLink 1m / 3ft. max. recommended
      • Sample Rates: 32 / 44.1 / 48 / 64 / 88.2 / 96 / 128 / 176.4 / 192 kHz
      • Channel Count: 96×96 @ 48kHz, 32×32 @ 96kHz

    • Item Includes:

      • 1x FLX-AES50 Flexiverter Device
      • 1x AC Power Cord (country specific)
      • 1x User Manual

    • Warranty:

      • 2 Year Manufacturer's Warranty
