Appsys Pro Audio MTA-64 Box to Convert MADI Twisted Pair Port to DiGiCo/SoundCraft/Studer Format

ITEM #: APP-MTA-64 MFG #: MTA-64

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$249.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    MTA-64 - Overview

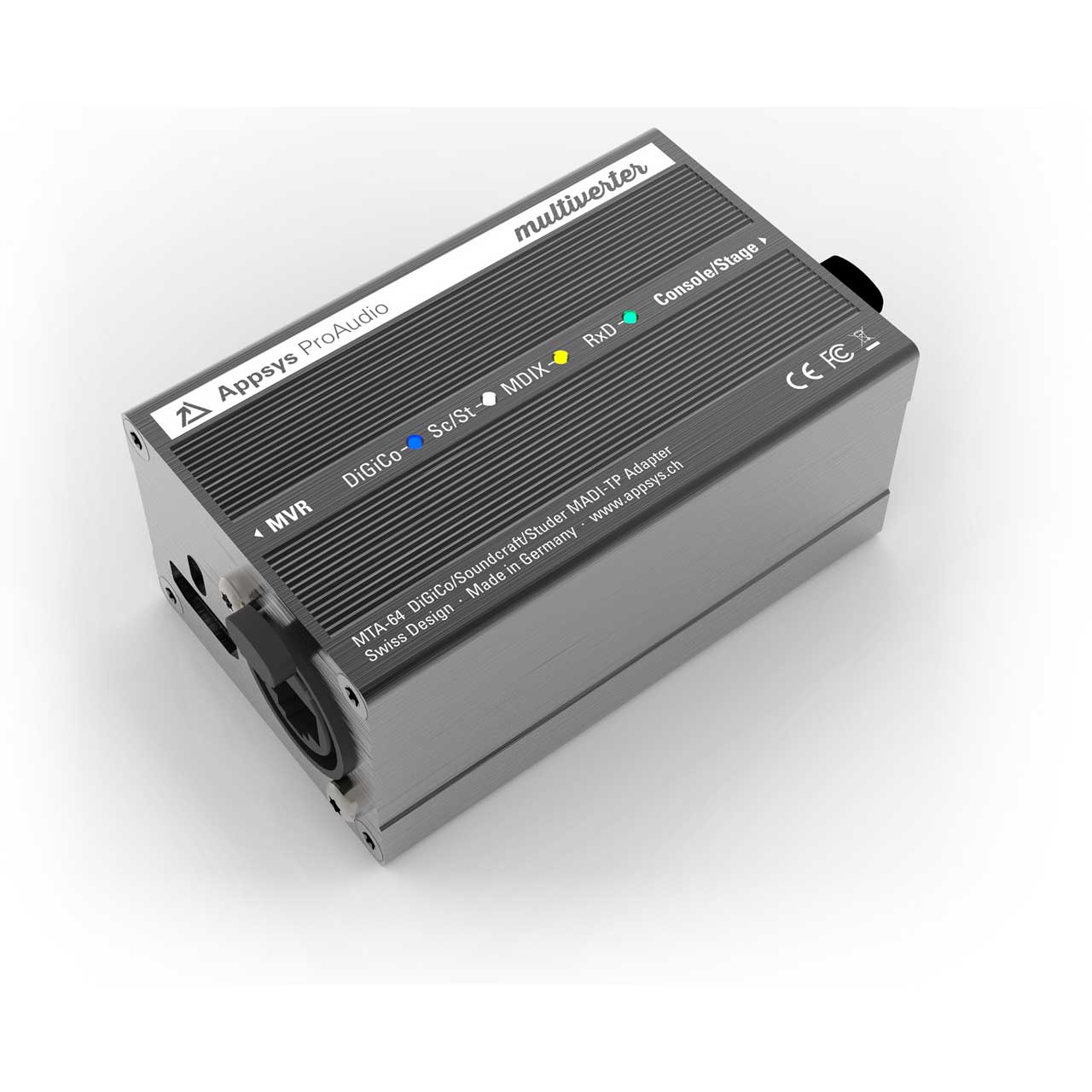

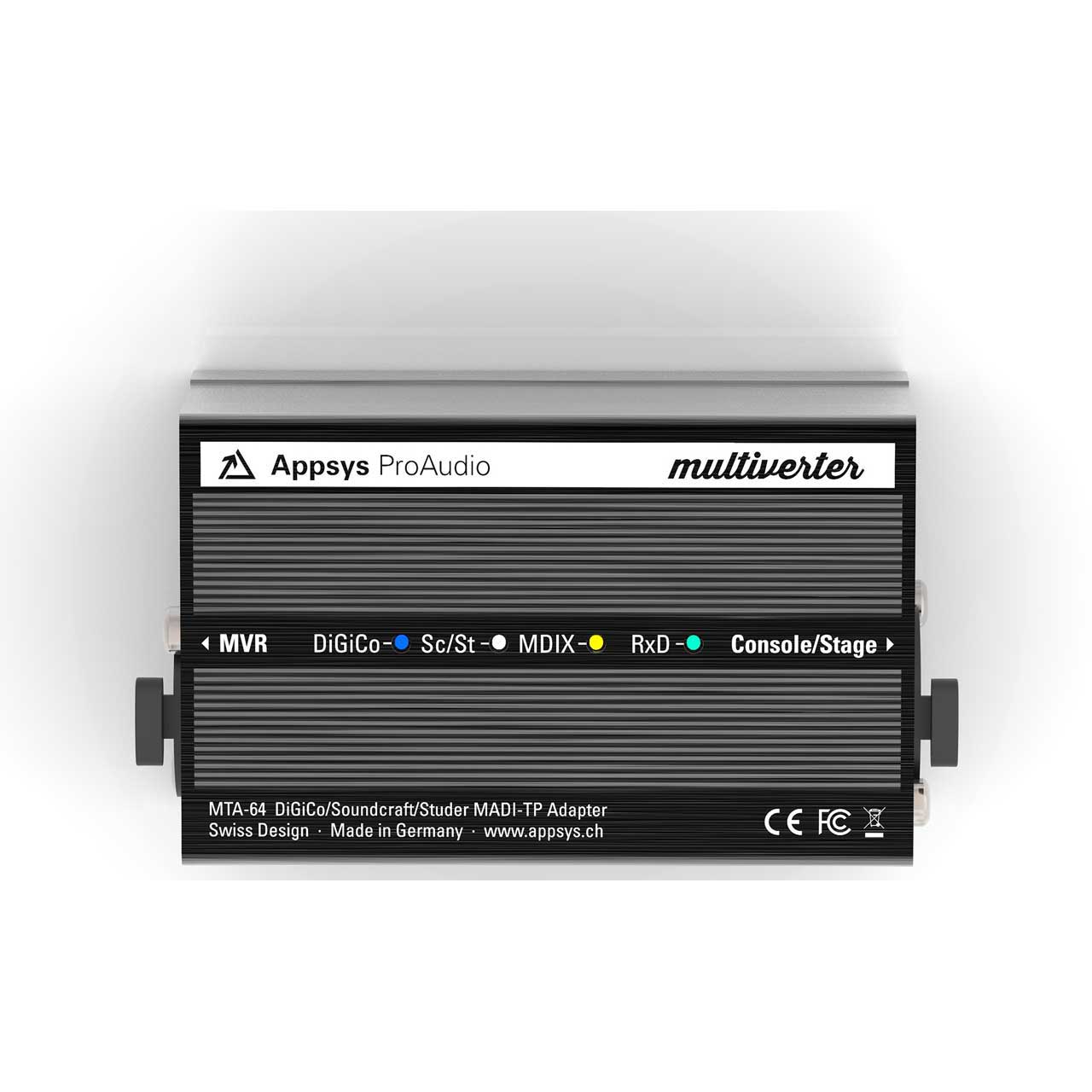

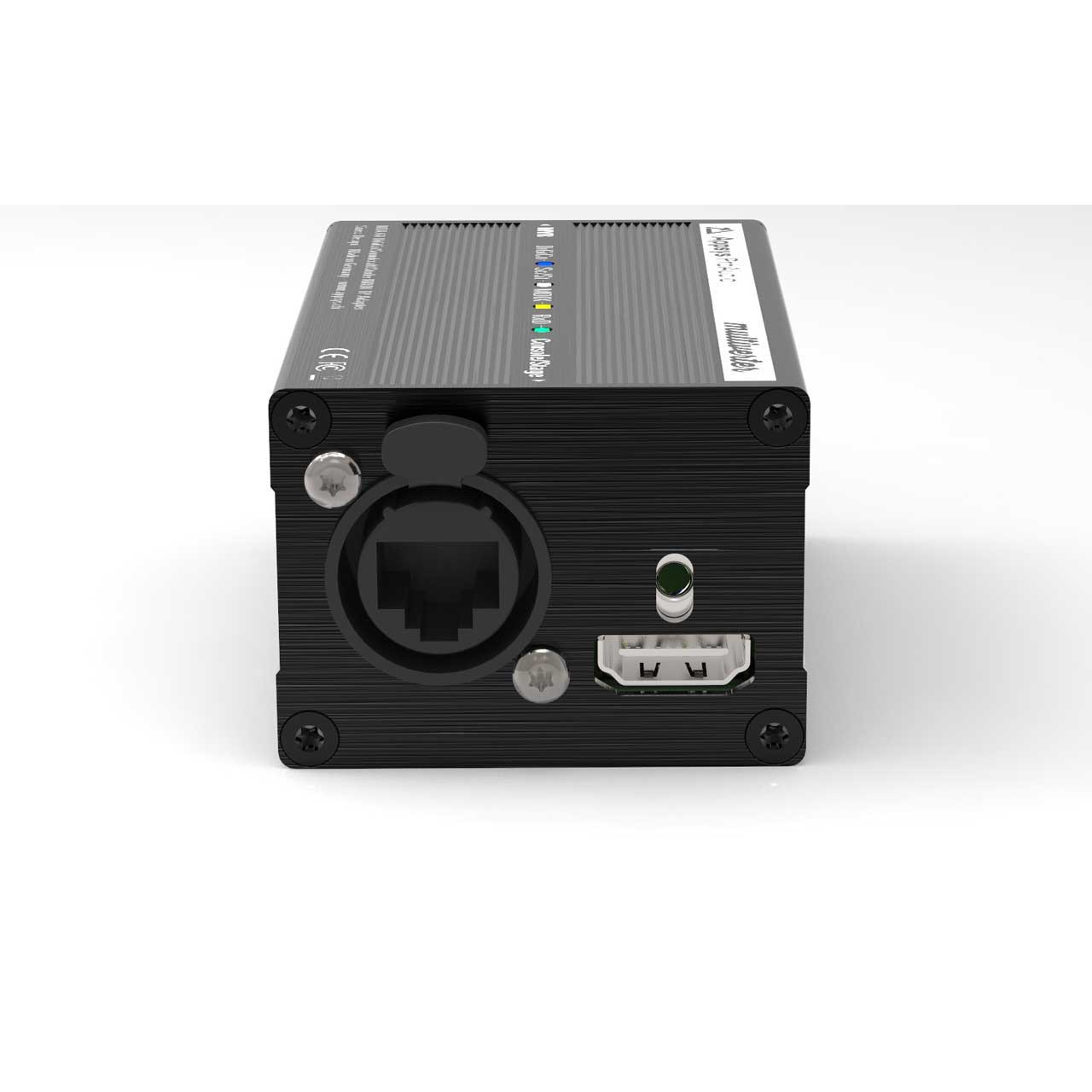

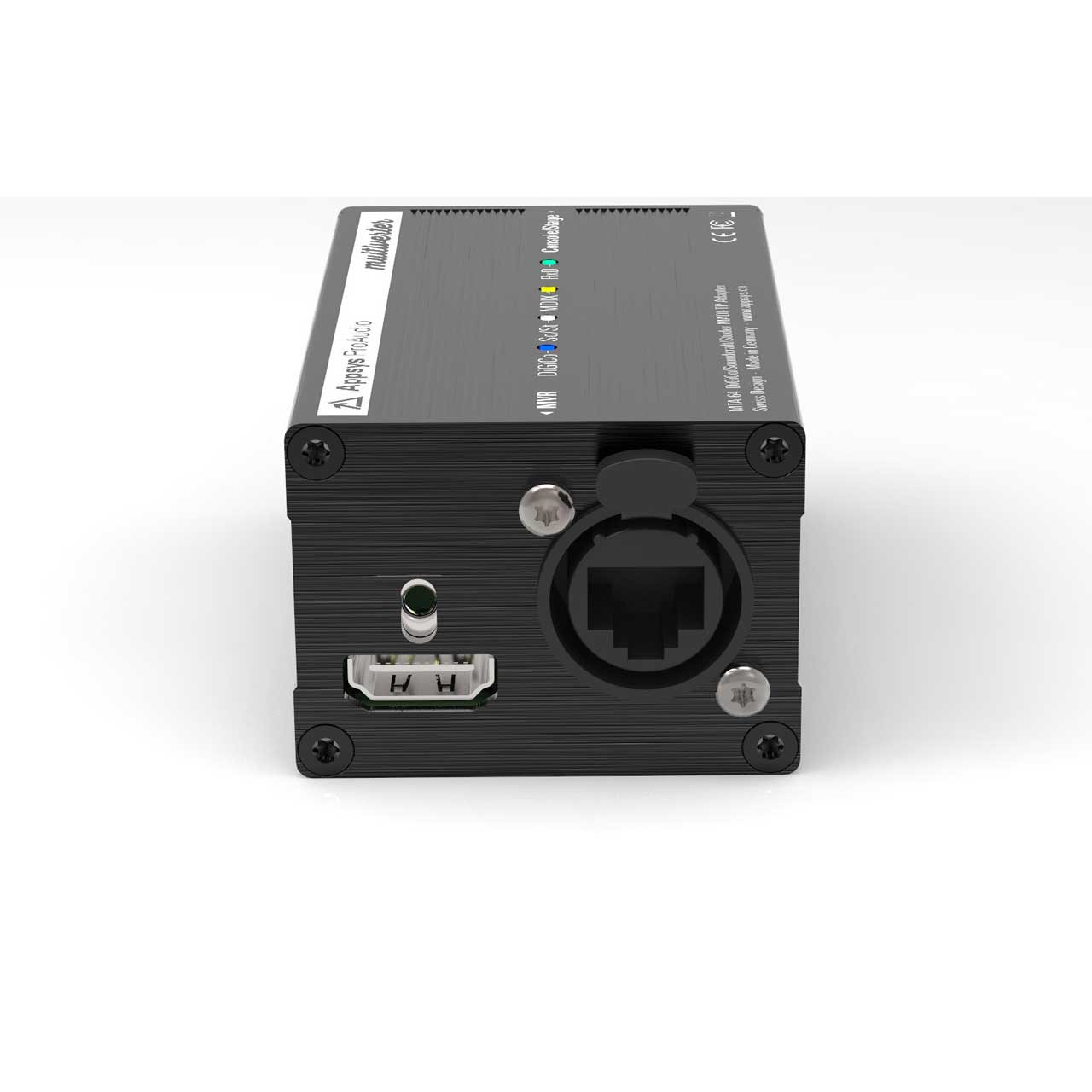

    The Appsys Pro Audio MTA-64 small Extender inline box enables the Multiverter to connect directly to DiGiCo and Soundcraft/Studer MADI-TP ports. On the Multiverter side, audio is connected to the MADI-TP port, while power and configuration is taken from the Extension port (which is still available because it´s fed thru).

    Supported are all known pin-outs as well as an built-in MDIX feature which allows you to use straight Cat5 cables where normally crossover cables were required.

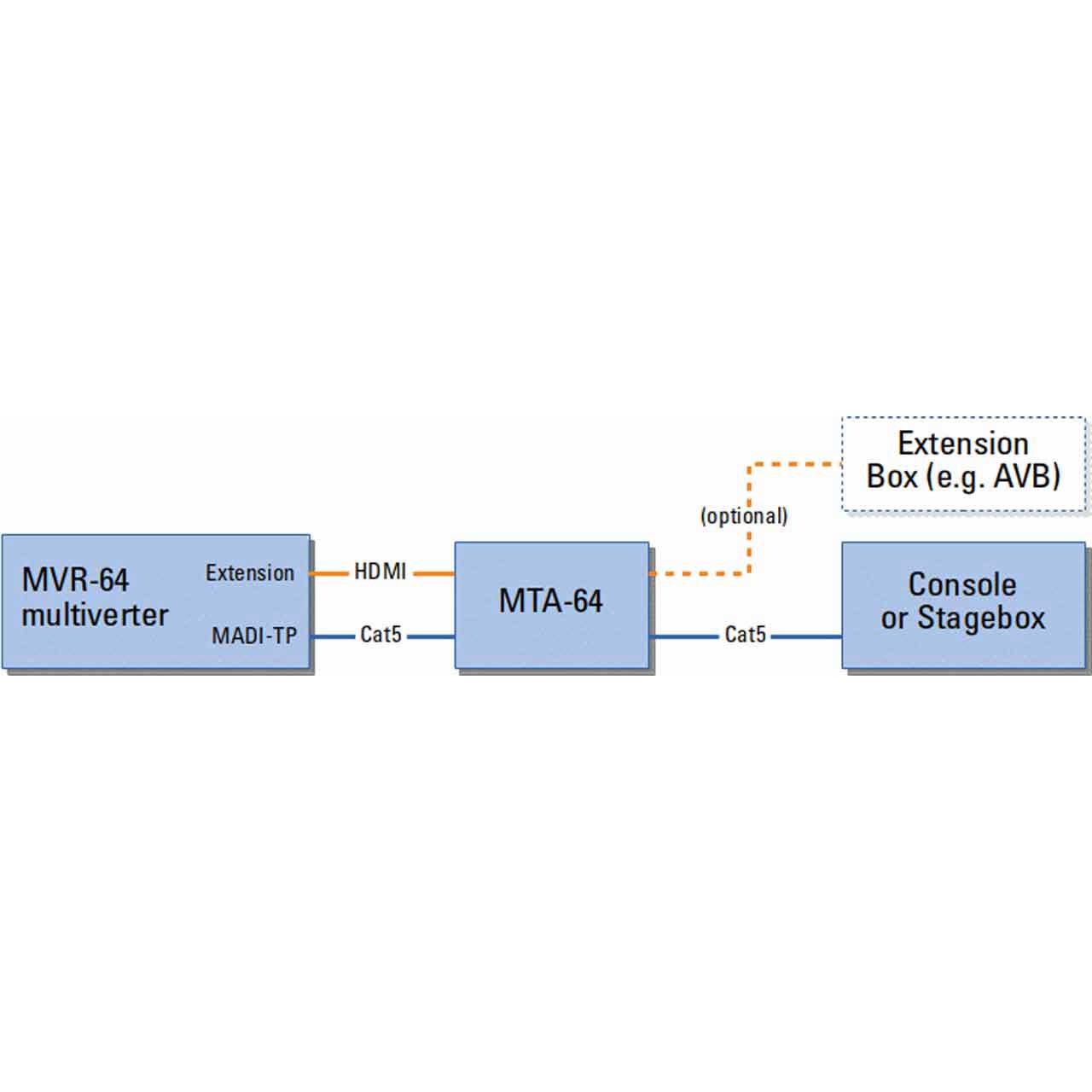

    With the MTA-64, the multiverter becomes capable of connecting to the MADI-TP (MADI over Twisted Pair) variants used in DiGiCo and Soundcraft/Studer/Harman desks. It's simply connected between the MVR-64's MADI-TP port and your console or stagebox and adapts signal levels and pinouts to your needs. What's more: you don't need any special crossover cables thanks to internal MDIX logic - any standard 1:1 Cat5 cable will do, no matter if you want to connect to your console or the stagebox.

    • Features:

      • Enables the multiverter's MADI-TP port to work with DiGiCo and Soundcraft/Studer/Harman variants of MADI-TP
      • Supports up to 100 meters of MADI-TP over Cat5/Cat6 cable
      • Transparent forwarding of stagebox remote control data
      • Pinout selectable by software
      • True bit-transparency allows any format and sample rate
      • Super low latency of a few nanoseconds only
      • Fully configurable via multiverter's menu, configuration saved in presets
      • Extension port remains available
      • Up to two MTA-64 can be connected to a multiverter, allowing two MADI-TP ports

    • Specifications:

      • Dimensions: 83x39x52mm (WxHxD)
      • Weight: 128g
      • Operating Temperature: 0 - 70°C, non-condensing
      • Storage Temperature: -40 - +85°C, non-condensing
      • Power Consumption: +15V DC from multiverter, 2W max.
      • Cable Lengths:
        MVR-64 to MTA-64 / Cat5: 5m max.
        MVR-64 to MTA-64 / HDMI: 5m max.
        MTA-64 to Console/Stagebox: 70 - 100m (depends on cable quality and counterpart)
      • Channel Count:
        Up to 64x64 in x1 modes (44.1 / 48 kHz)
        Up to 32x32 in x2 modes (88.2 / 96 kHz)
        Up to 16x16 in x4 modes (176.4 / 192 kHz)
      • Sample Rates: Arbitrary sample rates between 32kHz and 192kHz
      • Remote Control Data: Transparent forwarding of DiGiCo remoting data (contained in ch57), Soundcraft/Studer remoting data
        (userbits of ch1-10) and others
      • Latency: The latency added by the MTA-64 is negligible (in the nanoseconds range)

    • Item Includes:

      • 1x MTA-64 Adapter Box
      • 1x Cat5 Cable 0.5m / 1.7 ft
      • 1x HDMI Cable 0.5m / 1.7 ft with locking screws
      • 1x User Manual

    • Warranty:

      • 2 Year Manufacturer's Warranty
