ARRI SkyPanel X Modular All-Weather LED Lighting System with Soft & Hard Light Technology - X21 Dome Included

Name: ARRI SkyPanel X Modular All-Weather LED Lighting System with Soft & Hard Light Technology - X21 Dome Included
Brand: Arri
SKU: ARR-L1-0048487
Price: 5750.00 USD
Availability: PreOrder

ITEM #: ARR-L1-0048487 MFG #: L1.0048487

Arri

Our Price:

$5,750.00

Add to Wish List Leasing Options

Availability: Preorder

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Required Accessories

Recommended Accessories

L1.0048487 - Overview

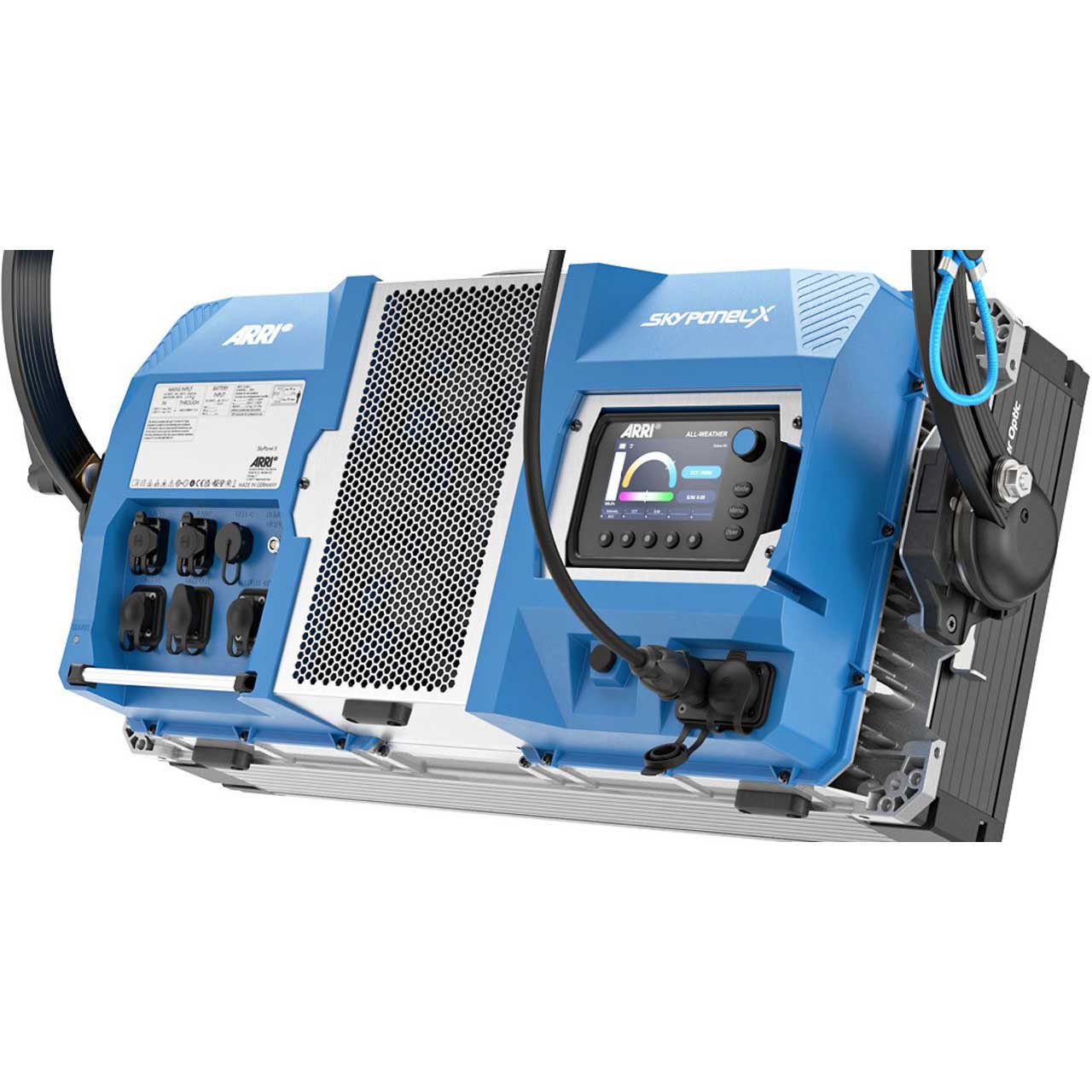

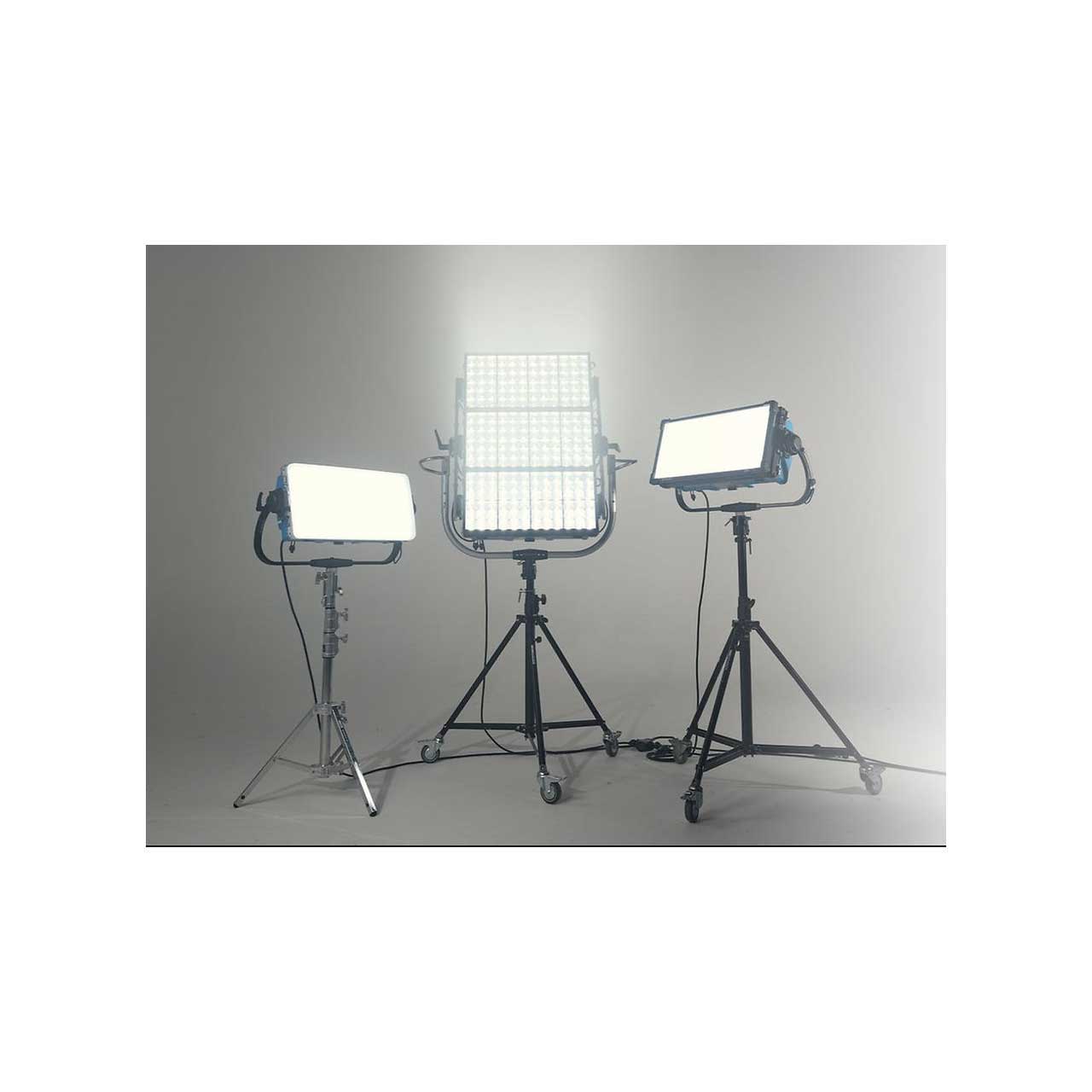

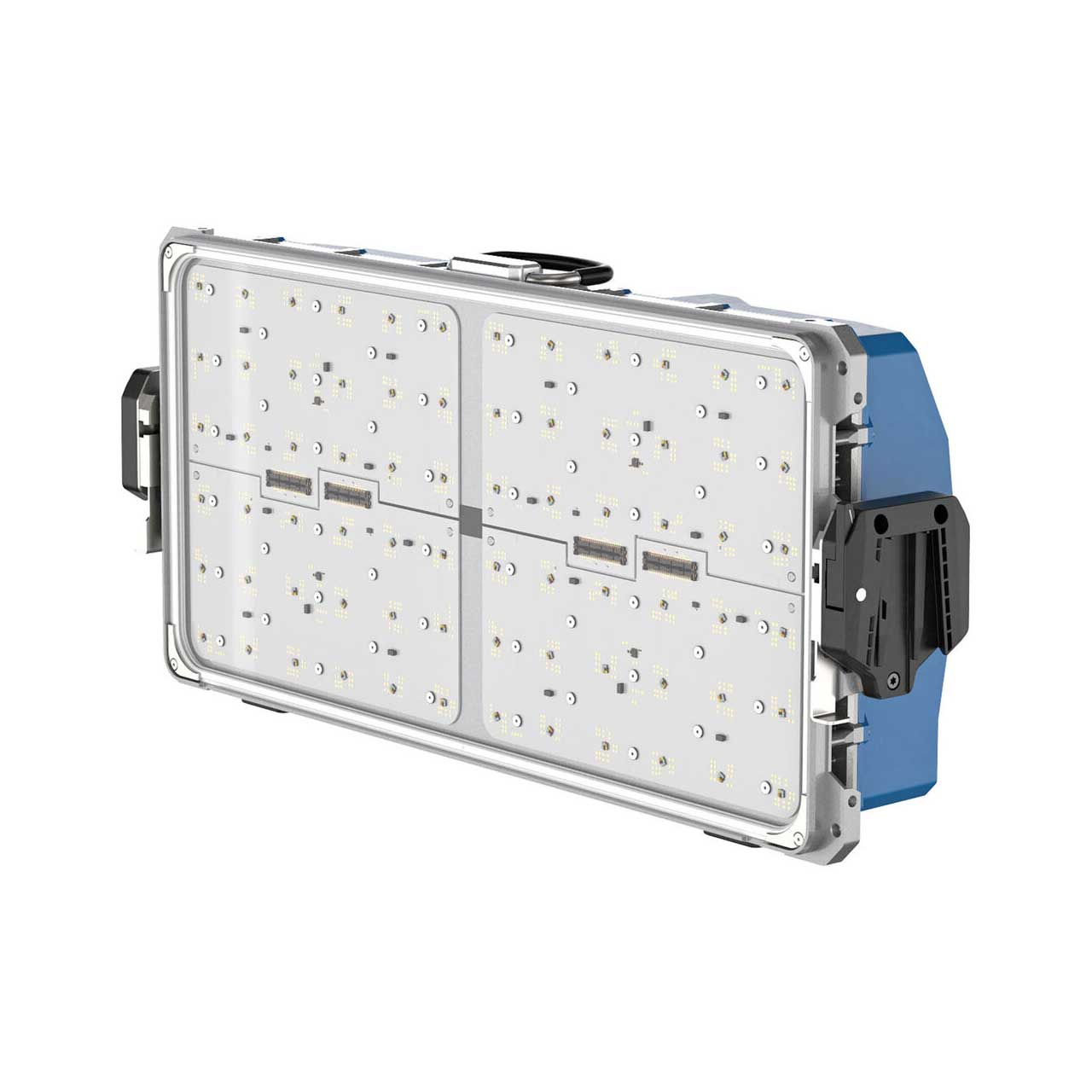

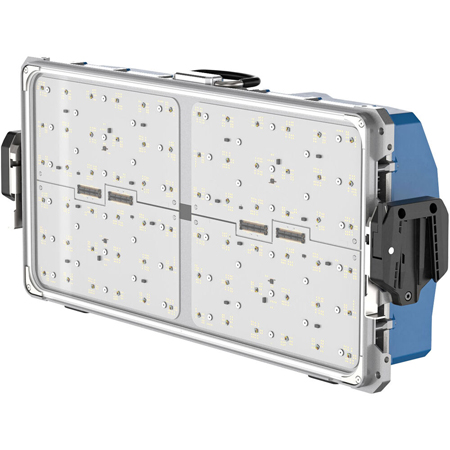

Introduced as a modular system and configurable into different sizes (X21, X22, X23), the ARRI SkyPanel X offers native soft and hard light technology, setting a new bar not only in terms of dimming and color science, but also in lux output and beam quality for medium to long throws. With up to 4,800 lux at 10 m / 32.8 ft and eight pixels per panel; dynamic CCT range of 1,500 K - 20,000 K; RGBACL full-spectrum color engine; wireless CRMX control; integrated power supply; advanced networking possibilities; and an IP66 rating, the SkyPanel X is an all-weather lighting solution tailored to existing workflows.

The all-weather SkyPanel X

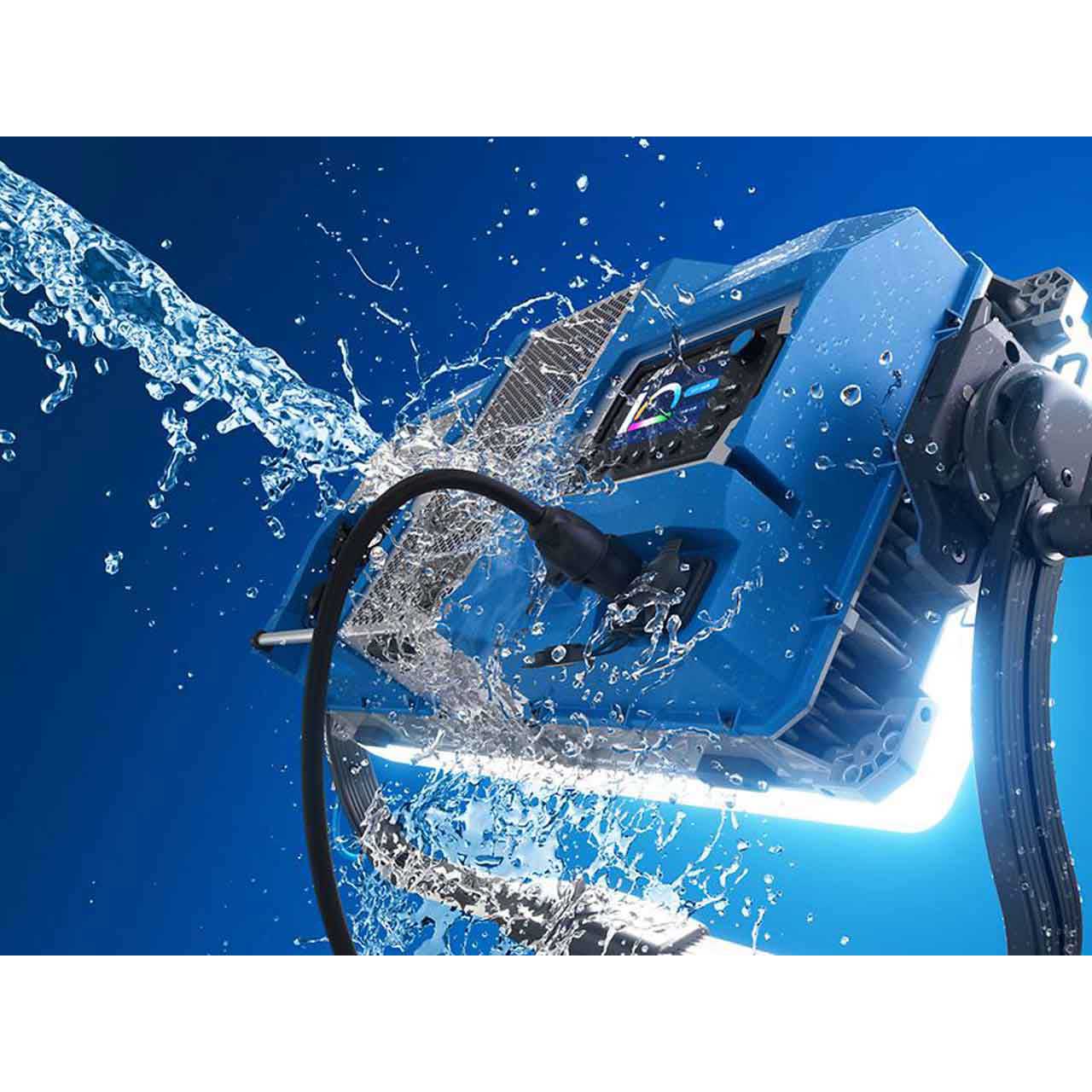

The SkyPanel X is your all-weather lighting solution. Engineered and IP66 certified for resilience against rain, storms, and cold water pressure washers, these lights embody innovation, reliability, and durability.

Please Note! The ARRI S60 Adapter is used with SkyPanel X to create an accurate S60-C front replication. It maintains accessory compatibility with lightbanks, honeycombs, SkyBenders and more.( Part# ARR-L2-0048578 )

Features:
- LED panel with native soft and native hard light, open-face lighting for bouncing purposes, and several modular configurations
- IP66 all-weather professional lighting solution
- Excelling in color rendition, dimming, and beam quality
- Dynamic CCT range of 1,500 K - 20,000 K
- RGBACL full-spectrum color engine
- Up to 24 pixels (8 for X21, 16 for X22, 24 for X23)
- Integrated PSU and built-in wireless control
Specifications:
- Power: 800W
- Format Size: 2:1 (Horizontal)
- Light Engines: 4
- Pixel Zones: 8 Max
- Max Output (Lux): 4,800 Lux @ 10m, 5600K (Native Hard)
- Max Output (Lumen): 51,809 Lumen (Native Open-Face)

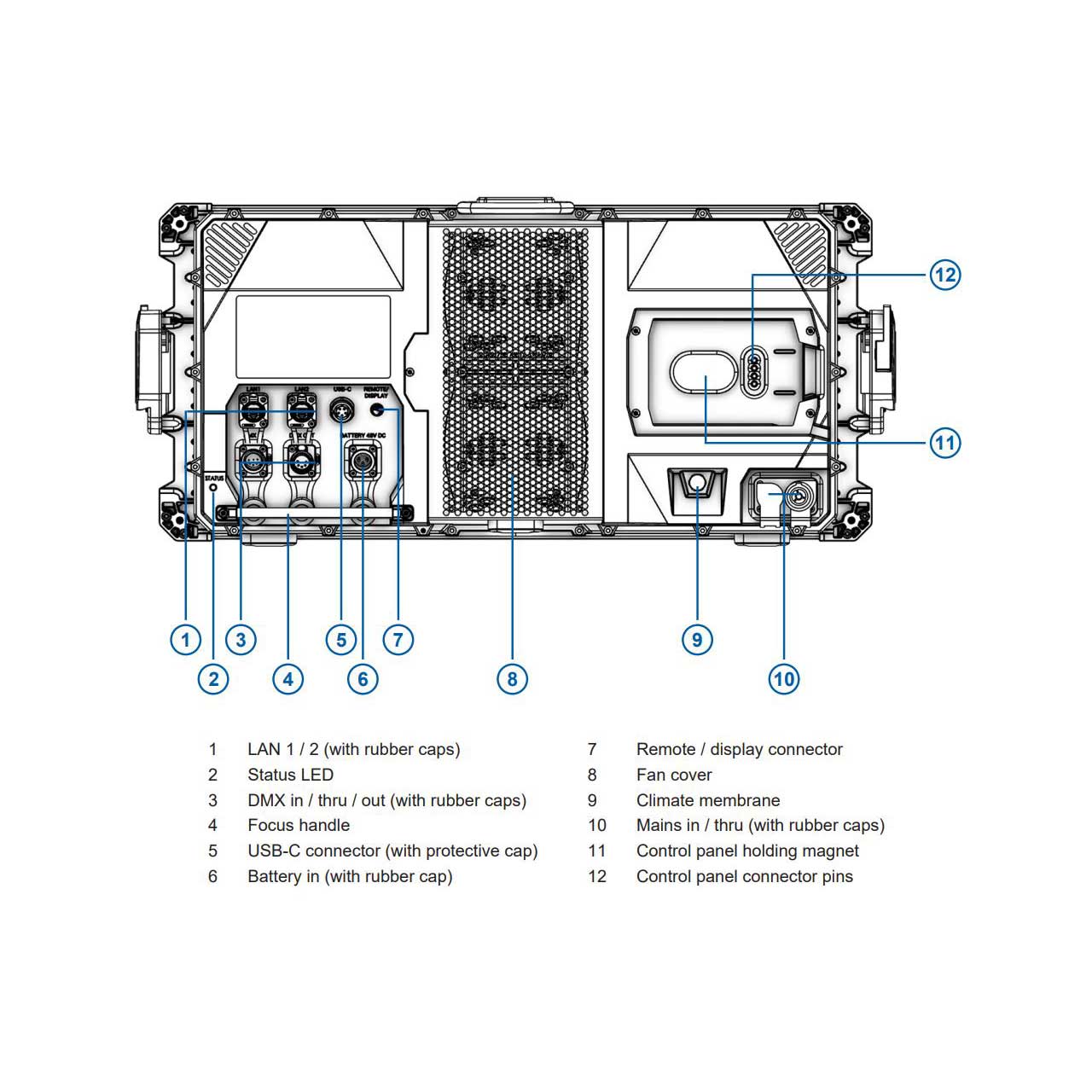

- Connectors:
  -2x AC (In and Through), max 20 A, TRUE1 TOP
  -1x DC(In) 48 V for battery use
  -2x DMX (In and Out), XLR-5pin
  -2x LAN / Ethernet, RJ45, EtherCON Compatible
  -1x USB Type C
  -1x LEMO for ALL-WEATHER Control Panel
- Rigging System:
  -Manual Yoke, bent, Quick Release, 28mm Spigot
  -Twin Quick-Lock Bracket for Multi-Unit Setups
- Dimensions:
  -Fixture Only: 29.1 x 13.3 x 6.1 in
  -With Yoke: 34.3 x 23.2 x 6.7 in
- Weight:
  Fixture Only: approx 33 lbs
  With Yoke: approx 39.7 lbs
- AC voltage: 100 -240 V~, 50/60Hz
- PSU: Integrated
- LED engine: Full Spectrum, 6-color RGBACL LED
- Native quality: Hard (HyPer Optic), soft (X21 Dome or S60 Adapter), open-face
- CCT range: 1,500 K - 20,000 K
- CRI: 90 min. / 99 max. (High CRI VariFan mode)
- TLCI: 93 typical (High CRI VariFan mode)
- Camera sensor matching: Yes, via ARRI ALEXA Mode
- Dimming performance: Flicker free, High-res low end dimming
- Native beam angle: 11° (hard), 106° (soft), 120° (open-face)
- Diffuser options: X21 Dome, Beam Enhancer filter, S60-C diffusers
- Accessory compatibility: All SkyPanel S60-C accessories via S60 Adapter
- Type of display: Removable ALL-WEATHER Control Panel with LiOS3
- Operational modes: Standard (low noise), High Output, VariFan, ARRI ALEXA
- Color modes: CCT, HSI, RGBW, RGBACL, Effects, XY, Gel, Source Matching
- DMX presets: Yes, via ALL-WEATHER Control Panel, RDM and DMX-512A
- Legacy DMX modes: Compatible with S60-C mode 1 and 6
- Multi-array setup: Yes (up to 3 units in just one single DMX profile)
- IP-rating: IP66 (High-pressure jet cleaning, rain, heavy storms, high humidity)
- Cooling system: Passive + Active cooling system with double heat sink
- Integrated wired control: DMX-512A, RDM, Art-Net 4, sACN, LAN (Web-control, ALSM, mDNS Bonjour, PTP, NTP)
- Integrated wireless control: CRMX Classic, CRMX2, W-DMX G3 / G4 / G4S / G5, BLE, Native Bluetooth 5.0
- Daisy-chain modularity: Yes, via TRUE1 TOP (power) and EtherCON / RJ45 (data)
- Pre-programmed effects: 15 Pixel Macros, 15 effects
- Max. ambient temperature: 40°C
- Certifications pending: CE, UKCA, CB, ENEC, cNRTLus, FCC, ICES, PSE, KC, SRRC and more
Item Includes:
- 1x SkyPanel X21 Modular LED Panel
- 1x X21 Dome
Warranty:
- 3 Year Warranty
