Elation Professional KLP001 KL Panel 295 Watt Full Spectrum RGBWLC LED Soft Light

ITEM #: ELAT-KLP001 MFG #: KLP001

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,800.00

Our Price:

$2,240.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    KLP001 - Overview

    The KL PANEL™ is a full-color-spectrum LED soft light that provides high output, precise color temperature control, full spectrum color rendering and even wash coverage. Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality.

    The KL PANEL incorporates a highly efficient 6-in-1 LED package that produces up to 24,000 field lumens at a 100° half-peak angle. Compact and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. A rugged housing with impact resistant surrounds and base plate ensures the KL PANEL can handle the rough handling on todays fast paced sets.

    It is fully self-contained without the need for an external power supply. It can also be remotely powered thru its integrated 4-pin XLR 24-36 VDC battery input. The KL PANEL can be operated through industry standard DMX, Art-NET or sACN protocols. In addition, it can also be adjusted manually using the included encoders and OLED display, providing instant control of Intensity, Color temperature, Green shift and other important settings. The display and encoders are conveniently positioned on the bottom of the fixture to ensure easy access while the KL PANEL is mounted on a stand. The integration of Elation's E-FLY™ wireless system allows for even more flexibility of use.

    • Features:

      • 295W RGBWLC (Red, Green, Blue, White, Lime, Cyan) LED Array
      • CRI 95, CCT Adjustment from 2,000 to 10,000K
      • 24,000 Total Lumen Fixture Output
      • Internal Power Supply with Power Pass-Through
      • 24-36 VDC Battery Operation (battery not included)
      • DMX/RDM, Art-Net and sACN Protocol Support
      • E-FLY™ Internal Extended Range Wireless DMX Transceiver

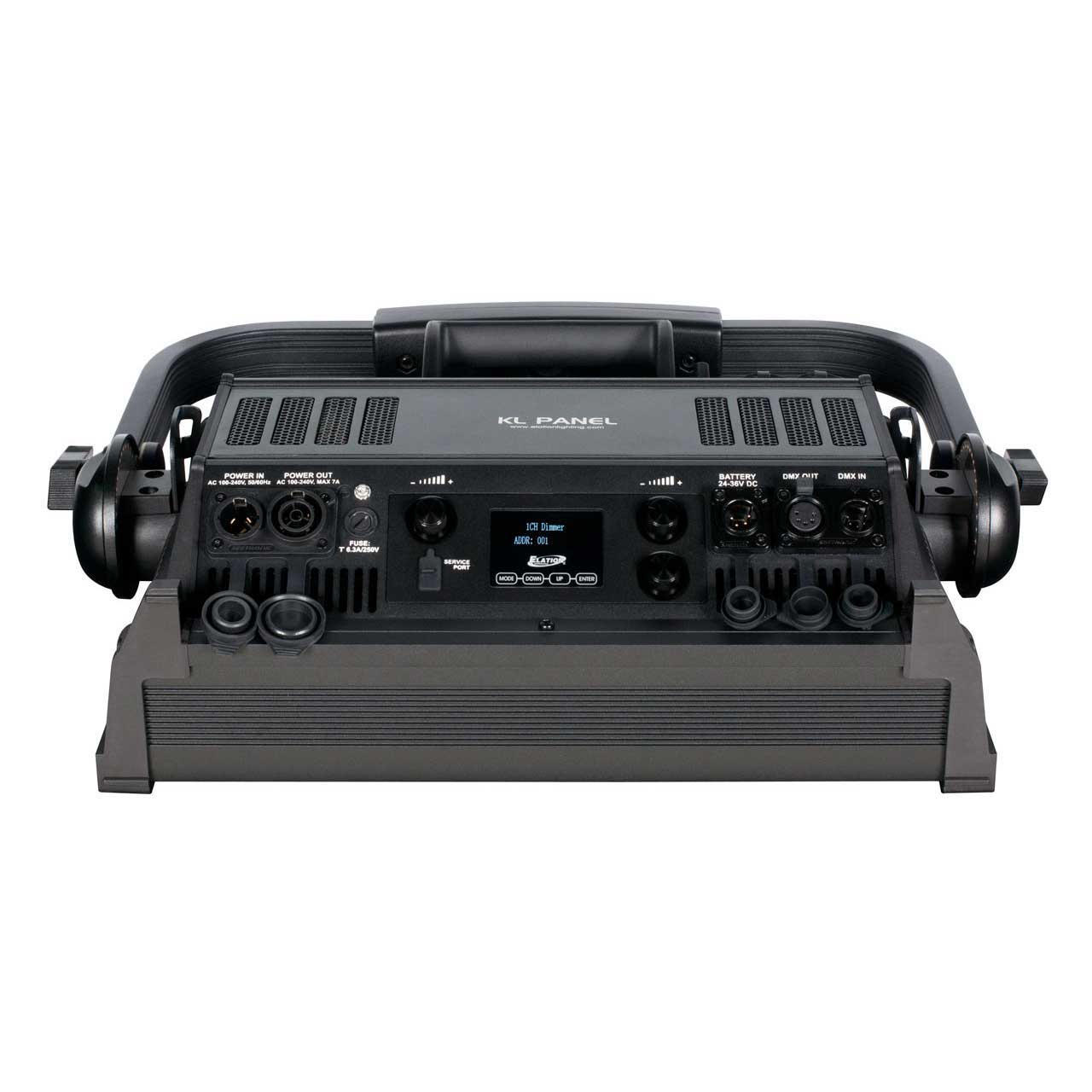

      • Stand-Alone Control with 3 Encoders and OLED Display
      • Barn Doors, Diffuser, and Junior Pin (1 1/8” - 28mm) included

    • Specifications:

      • Source
      • 6-in-1 (Red, Green, Blue, White, Lime, Cyan) Full Spectrum LED Array
      • 50,000 Hour Average LED Life*
      • *Test lab conditions. May vary depending on several factors including but not limited to:
      • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

        Photometric Data
      • up to 24,000 Total Lumen Output
      • 100° Half Peak Angle (with diffuser)

        Effects
      • Variable CCT 2,000K - 10,000K
      • Green-Shift Adjustment
      • Virtual Gel Library
      • Variable 16-bit Dimming Curve Modes
      • High Speed Electronic Shutter and Strobe
      • Remote Adjustable LED Refresh Rate Frequency
      • (900-25kHZ)

        Control/Connections:
      • 9 DMX Channel Modes
      • 3 Manual Adjustment Encoders
      • 4 Button Control Panel and OLED Menu Display
      • DMX, RDM, Art-NET, sACN Protocol Support
      • E-FLY™ Internal Extended Range Wireless DMX Transceiver
      • Locking 5pin XLR Connector In/Out
      • Locking IP65 Power Connector In/Out
      • USB Connection (Firmware Updates, External 5V power for accessories)
      • 4pin XLR External Battery Connection (battery not included)
      • With Wired Digital Communication Network

        Size/Weight:
      • Length: 20.8" (528mm)
      • Width: 5.5" (140mm)
      • Height: 12.2" (310mm)
      • Height (with yoke): 16.3" (415.2mm)
      • Weight: 28.6 lbs. (13 kg)
      • Weight: (without barn door) 23.2 lbs. (10.52 kg)
      • Weight: (Junior Pin) 1.02 lbs. (0.46 kg)

        Electrical/Thermal:
      • AC 100-240V - 50/60Hz
      • 24-36 VDC (battery operation - battery not included)
      • Max Power Consumption 295W
      • 14°F to 113°F (-10°C to 45°C)

        Approvals/Ratings:
      • CE
      • cETLus
      • IP20

    • Item Includes:

      • 1x KLP001 Panel LED Soft light
      • 1x Power Cable

    • Warranty:

      • 2 Year

    • GTIN:

      0810008261569
