ART PS8-II Eight Output Rack Mount Power Sequencer with Adjustable Sequence Delay and EMI/RFI Filtering

ITEM #: ART-PS8-II MFG #: PS8-II

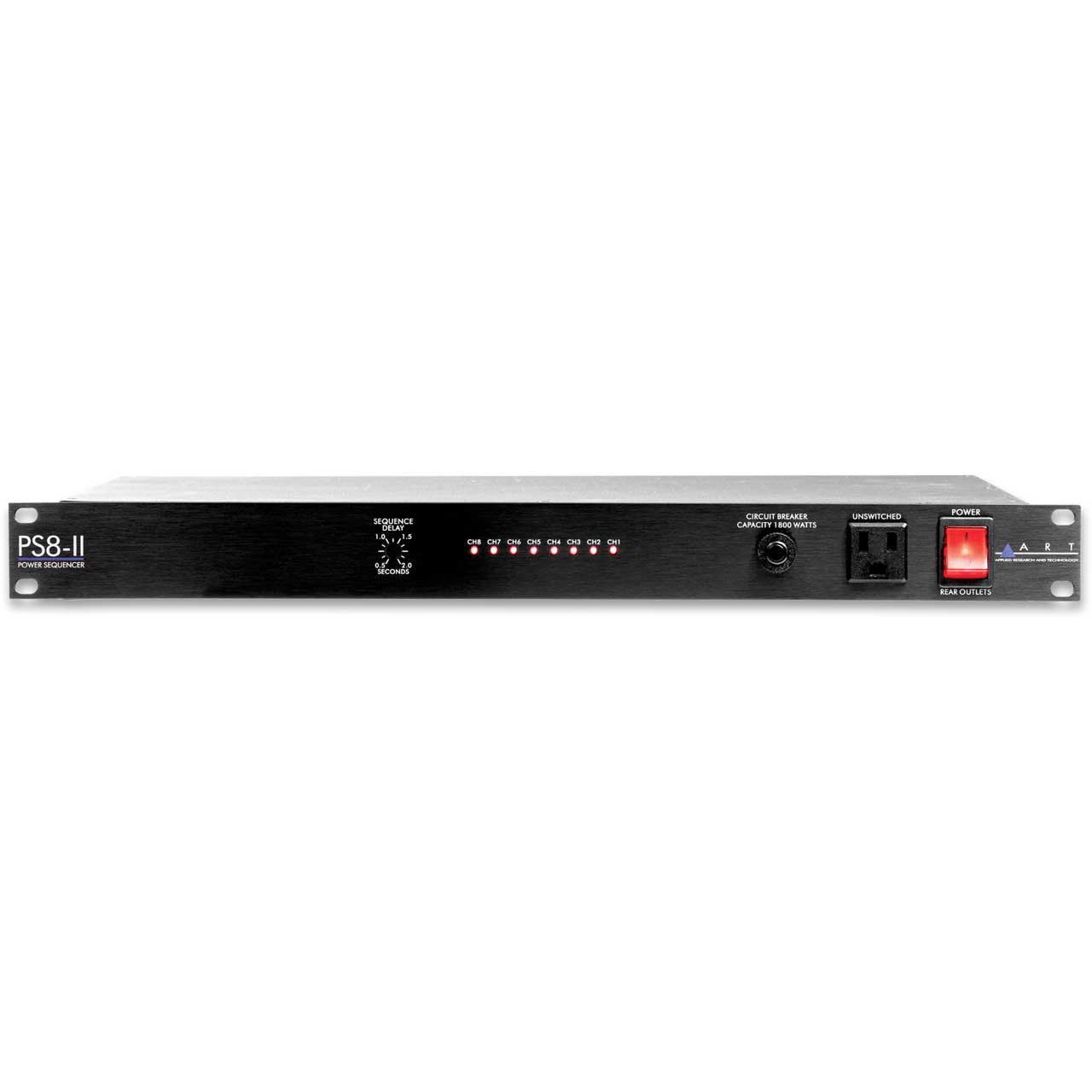

Primary Image

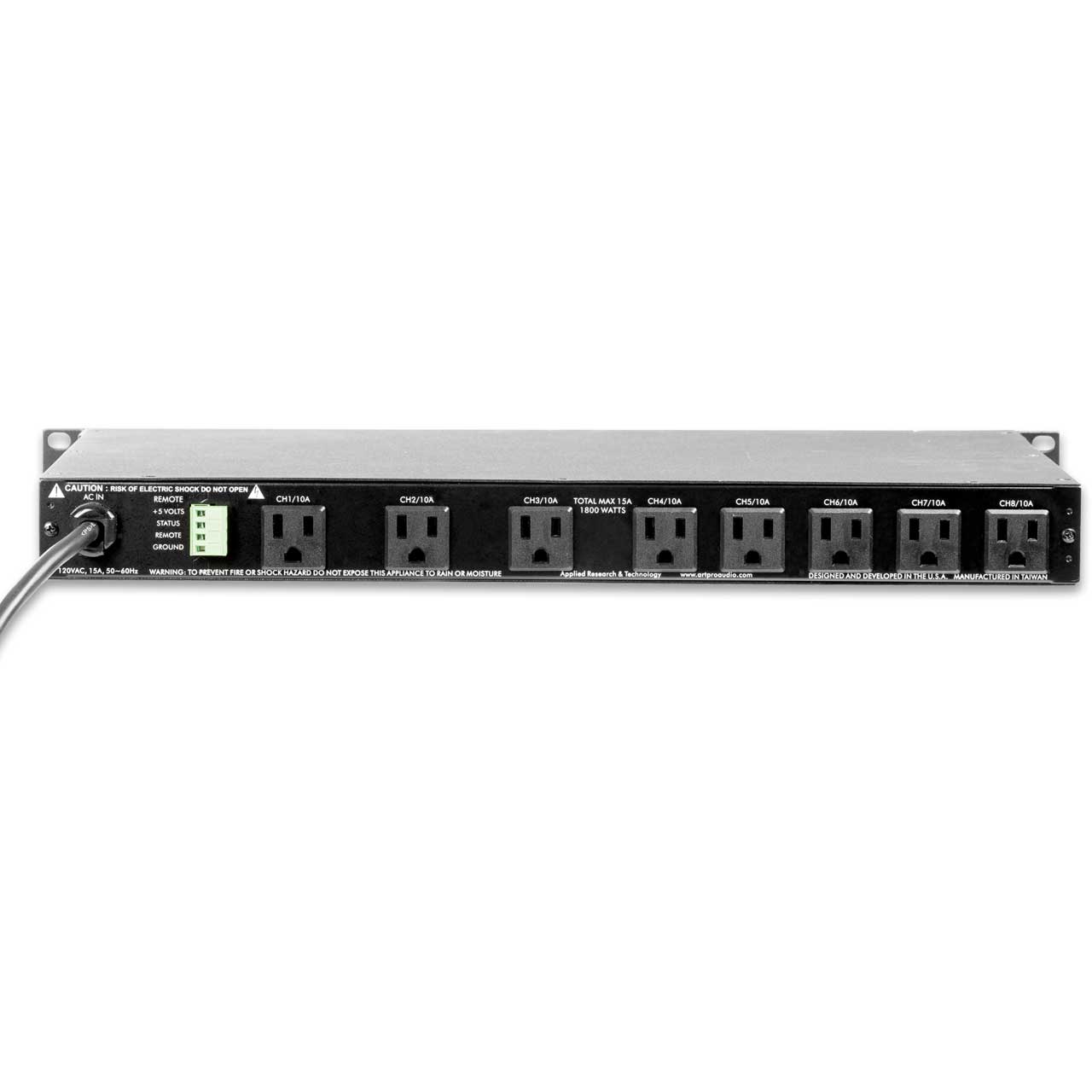

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$369.99

Our Price:

$249.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PS8-II - Overview

    The ART PS8-II provides controlled power sequencing to eight rear AC outlets. Each output's power up / power down is delayed by a fixed amount determined by the front panel, user definable, Sequence Delay control. This allows you to power up and down in a sequenced, controlled fashion to smooth out inrush currents and minimize turn-on transients that may damage sensitive equipment.

    PS8-11 Applications include....
    Full-featured power conditioner and fast acting breaker.
    EMI and RFI filter, as well as offer surge and spike protection to protect your system.

    The PS8-II is designed to protect a wide range of vital equipment including sensitive tube preamps, powered speakers, large displays, and digital systems.

    • Features:

      • Adjustable Sequence Delay Range from 0.5 to 2.0 Seconds per Output.
      • Eight Individually Sequenced Outputs with Front Panel LED Indicators for Each.
      • Rear Mount Remote Control Terminal Block for Remote Sequence Control.
      • Front Panel Unswitched and Unregulated Output.
      • 1800 Watt Total Power Capacity.
      • Front Panel Master Breaker and Power Switch.
      • EMI and RFI Filtering.
      • Surge and Spike Protection.

    • Specifications:

      • Power Capacity: 1800 W
      • Maximum Load: 15 Amps / 1800 W (@ 120 VAC)
      • Outlets: 8 x Rear Mounted Individually Sequenced Outlets, 1 x Front Mounted Unswitched
      • Delay Time: 0.5 to 2.0 Second Variable Pot
      • Remote Switch: On/Off Function
      • Remote Terminal: Rear Mounted 4-pin Euro Block Connector
      • Line Filtering: RFI / EMI
      • Power Requirements: USA - 105 to 125 VAC / 60 Hz (Export units configured for country of destination)
      • Dimensions: 1.75"H x 19.0"W x 11.5"D (165mm x 482mm x 292mm)
      • Weight: 9.2 lbs (4.2 kg)

    • GTIN:

      0840402042938
