Audio Technica AT898CH Subminiature Cardioid Condenser Lav Mic w/ cH-Style Screw-Down 4-Pin Connector

ITEM #: AT-AT898CH MFG #: AT898CH

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AT-AT898CH

AT898CH - Overview

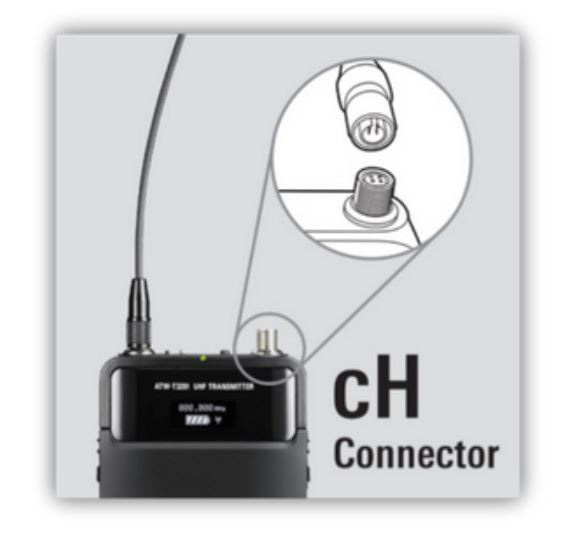

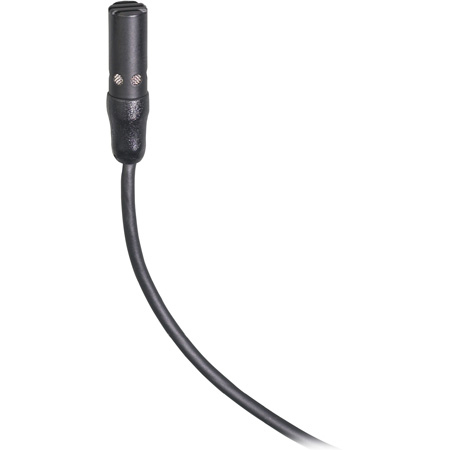

Designed to be worn as a lavalier or hidden in clothing, Audio-Technica’s discreet-design cardioid AT898CH offers maximum intelligibility, less power module; 55" (1.4 m) cable terminated with a screw-down 4-pin connector for use with Audio-Technica wireless systems featuring cH-style connector, accurate voice reproduction and unobtrusive appearance for use in houses of worship, broadcast studios, theaters, etc. Its switchable low-frequency roll-off reduces sensitivity to popping. Battery or phantom power.

  • Features:

    • Maximum intelligibility and clean, accurate reproduction for lecturers, stage and television talent, and houses of worship
    • Low-profile design (a mere 5 mm in diameter) is ideal for applications requiring minimum visibility
    • Operates on battery or phantom power
    • Extensive array of provided accessories includes a clothing clip, viper clip, magnet clip and lanyard (black models only), windscreens, interchangeable single and double mic holders
    • Accessories available separately
    • 9.8' (3.0 m) cable permanently attached to mic, TA3F connector at power module
    • RoHS compliant-free from all substances specified in the EU directive on hazardous substances

  • Specifications:

    • Element: Fixed-charge back plate, permanently polarized condenser
    • Polar pattern: Cardioid
    • Frequency response: 200-15,000 Hz
    • Low frequency roll-off: 80 Hz, 12 dB/octave
    • Open circuit sensity: Phantom: -43 dB (7.0 mV) re 1V at 1 Pa; Battery: -46 dB (5.0 mV) re 1V at 1 Pa
    • Impedance: Phantom: 200 ohms; Battery: 250 ohms
    • Maximum input sound level: Phantom: 131 dB SPL, 1 kHz at 1% T.H.D.; Battery: 115 dB SPL, 1 kHz at 1% T.H.D.
    • Dynamic range (typical): Phantom: 100 dB, 1 kHz at Max SPL; Battery: 84 dB, 1 kHz at Max SPL
    • Signal-to-noise ratio: 63 dB, 1 kHz at 1 Pa
    • Phantom power requirements: 11-52V DC, 2 mA typical
    • Battery type: 1.5V AA/UM3
    • Battery current / life: 0.4 mA / 1200 hours typical (alkaline)
    • Switch: Flat, roll-off (recessed)
    • Weight (mic): 0.03 oz (0.9 g)
    • Weight (power module): 3.6 oz (102 g)
    • Dimensions (mic): 0.91" (23.0 mm) long, 0.21" (5.3 mm) diameter
    • Dimensions (power module): 5.71" (145.0 mm) long, 0.83" (21.0 mm) diameter
    • Output connector (power module): Integral 3-pin XLRM-type
    • Cable: 9.8' (3.0 m) long (permanently attached to microphone), 0.08" (2.0 mm) diameter, 2-conductor, shielded cable with TA3F output connector that mates with TB3M jack on power module

  • Item Includes:

    • AT8537 power module
    • AT8439 cable clip
    • Clothing clip base
    • Viper clip base
    • Magnet clip base and plate with lanyard
    • Three single mic holders
    • Two double mic holders
    • Two windscreens
    • Battery
    • Protective carrying case

  • GTIN:

    0042005189748
