Audio-Technica ATCS-D60 Distributor Unit for ATCS-60 IR Conference System

ITEM #: AT-ATCS-D60 MFG #: ATCS-D60

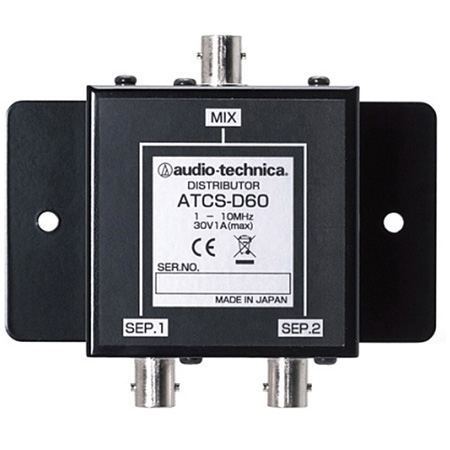

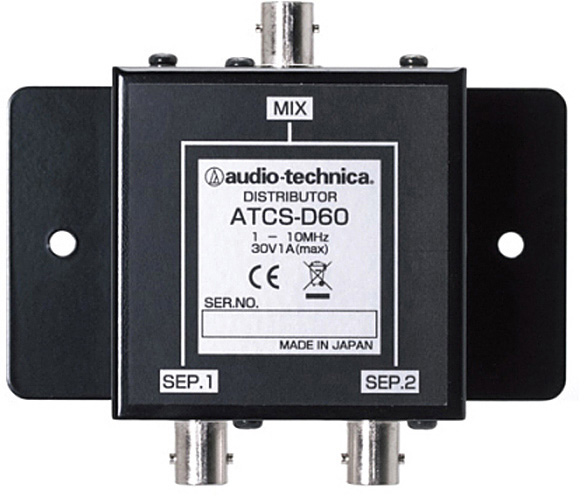

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AT-ATCS-D60

ATCS-D60 - Overview

The Audio-Technica ATCS-D60 Distributor for the ATCS-60 Infrared Discussion System.The 1 input / 2 output distributor doubles the number of BNC inputs into the master control unit from 4 inputs for up to 16 transmitter / receiver antenna connections in order to cover a larger transmitting area.

The ATCS-60 infrared discussion system offers all the advantages of infrared communication complete with wireless transceiver microphone units. Wireless infrared technology provides the user with greater flexibility while configuring the system and freedom of choice when placing microphones. From intimate meetings to large boardrooms and events, the ATCS-60 will adapt to meet your needs.

Additional features include four selectable channels for multi-language conferences and an automated camera function facilitating audio visual integration.

The option of software control is also available, with the user able to adjust camera position, facilitate audio recording and adjust microphone settings from “Conference Manager” software. Tabletop delegate microphone stations can be now augmented with handheld and lavalier microphones for greater flexibility.

Infrared technology keeps your information in your conference room!
In the 21st century, the control of information is a top priority. With the ATCS-60 conference system your wireless signal won't leave the room, let alone reach another building. While typical UHF wireless systems broadcast right through walls, the ATCS-60 keeps your signals safe & secure, with no information leakage.

Praised for flexible system configuration, intuitive operation, and selectable channels for multi-language groups, Audio-Technica's innovative ATCS-60 is a natural choice for everything from large-scale conferences to intimate gatherings. Wherever your communications lead you, experience more.

  • Features:

    • Antenna Distributor designed for the ATCS-60 infrared conferencing system
    • 1 BNC entry point
    • 2 BNC exit points
    • Up to 16 antenna transmitter / receiver connections
    • Extends the infrared transmission area

  • Specifications:

    • Number of Distributions: 2
    • Frequency Band: 1 - 10MHz
    • Mixing and Distributing Loss: 5dB or less
    • Input and Output Impedance: 75Ω
    • Connection Terminal: BNC jack (DC bypass: 30V 1A or less)
    • Operating Temperature Range: 14°F - 122°F
    • Dimensions (HxWxD): 1.18" x 3.94" x 3.25"
    • Weight: 16g

  • Warranty:

    • 5 Year Limited End-User

  • GTIN:

    4961310099466
