Audio-Technica ATW-1311/L System 10 Pro Rackmount Digital Wireless with 2 Bodypack TXs & 2 RXs & 2 Lav Mics

Manufacturer: Audio-Technica

Item #: AT-ATW-1311-L   •   MFG #: ATW-1311/L




Our Price:$999.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

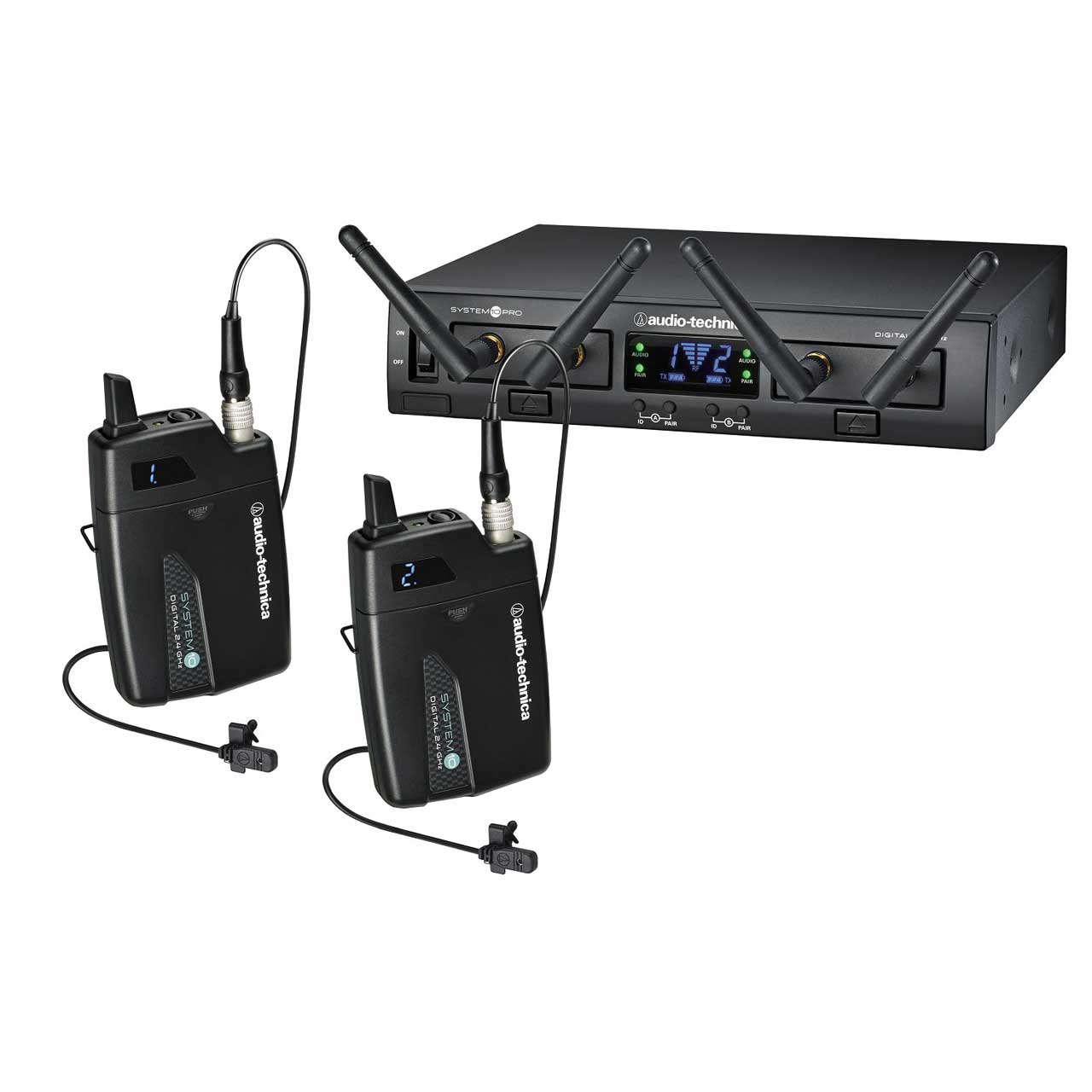

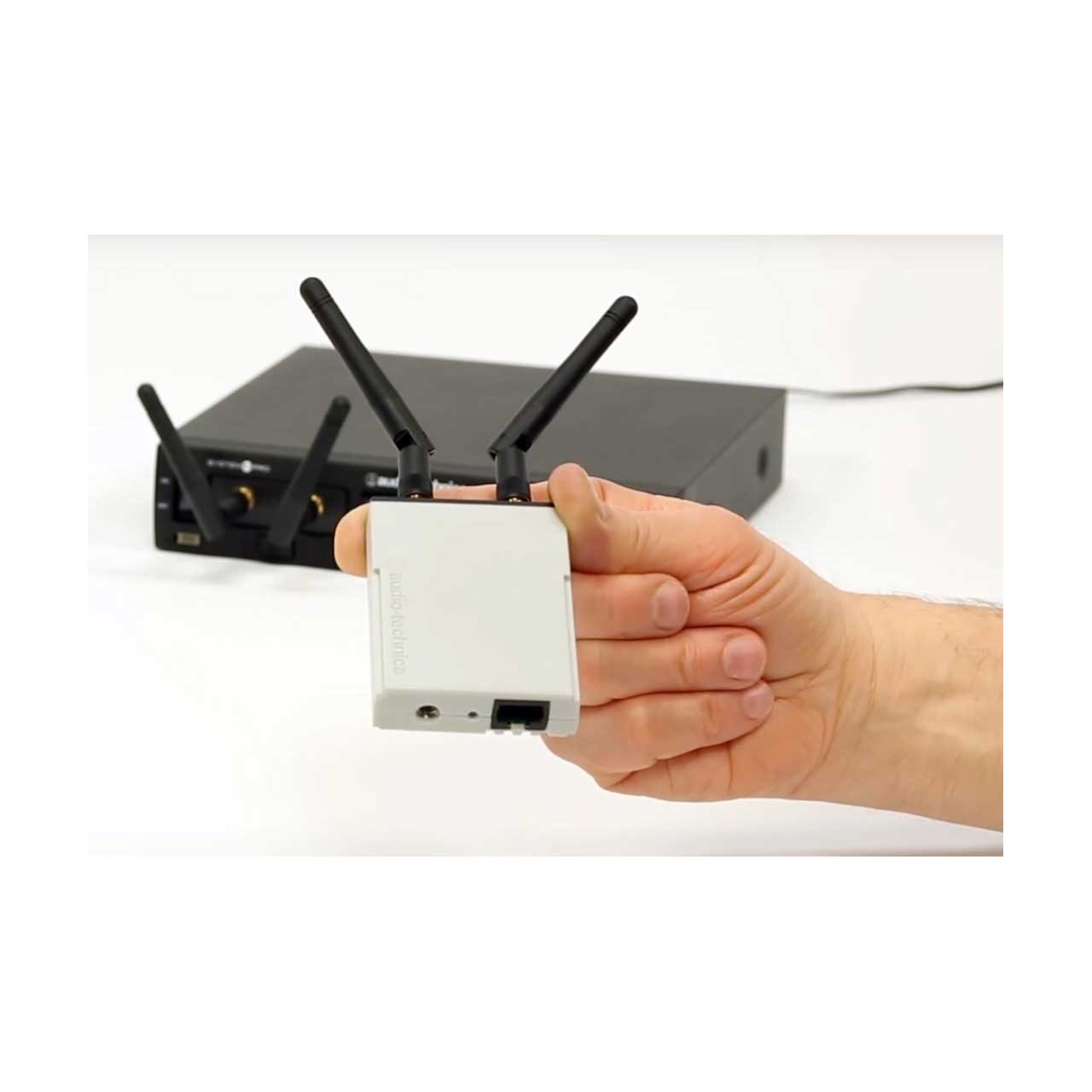

    Audio-Technica's ATW-1311/L System10 PRO Rack-Mount digital wireless system provides the same interference-free operation in the 2.4GHz range (outside TV bands) as the original System 10 but with expanded features and versatility. The durable half-rack receiver chassis is equipped to house two receivers. Receivers can also be released and remotely connected to the chassis via Ethernet cable up to 100 meters away for extended reception in multi-room, stadium or larger venues. Up to five chassis (10 receiver units) can be linked using the RJ12 cable included with each system, creating a stable, multichannel system with the simultaneous use of up to 10 channels.

    Like all the products in the System 10 wireless family, the PRO Rack-Mount features 24-bit operation, easy setup, clear, natural sound quality, and three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Space Diversity uses two antennas on each transmitter and receiver unit to maximize signal integrity.


    • Features

      • Digital 24-bit/48kHz wireless operation for ultimate sound quality and dependable performance
      • Operates in the 2.4 GHz range - completely free from TV interference
      • Receiver units can be docked in the chassis or mounted remotely (up to 328ft away) via Ethernet cable for added versatility
      • Up to five chassis (ten receiver units) can be linked and used simultaneously
      • Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
      • Chassis' System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
      • Automatic frequency selection for seamless, interference-free operation
      • Extremely easy operation with instantaneous channel selection, sync, and setup
      • Three levels of diversity assurance: frequency, time & space
      • Ground-lift switch helps eliminate audible hum caused by ground loops

    • Specifications

      • Overall System Specifications
      • Operating Frequencies: 2.4GHz ISM band
      • Dynamic Range: >109dB (A-weighted), typical
      • Total Harmonic Distortion: <0.05% typical
      • Operating Range: 200ft Open range env. with no interfering signals
      • Operating Temperature Range: 32°F - 104°F) Battery performance may be reduced at very low temperatures
      • Frequency Response: 20Hz - 20kHz Depending on microphone type

        Receiver Specifications
      • Receiving System: Diversity (frequency/time/space)
      • Output Connectors: Remote Receiver Connector: RJ45; Link Connector: RJ12
      • Maximum Output Level: XLR, balanced: 0dBV 1/4", unbalanced: +6dBV
      • Power Supply: 100 - 240V AC (50/60Hz) to 12V DC 0.5A power supply switched mode external
      • Dimensions (HxWxD): 1.73" x 8.26" x 6.67"
      • Net Weight: 33.2oz
      • Accessory Included: Power supply
      • Accessories Included: AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet

        Body-Pack Transmitter Specifications
      • RF Power Output: 10mW
      • Spurious Emissions: Following federal and national regulations
      • Input Connections: Four-pin Locking Connector; Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
      • Batteries: Two 1.5V AA not included
      • Battery Life: >7 hours (alkaline) Depending on battery type and use pattern
      • Dimensions (HxWxD): 4.21" x 2.76" x 0.98"
      • Net Weight: 3.5oz without batteries

        Lavalier Microphone Specifications
      • Element: Fixed-charge back plate, permanently polarized condenser
      • Polar Pattern: Omnidirectional
      • Frequency Response: 30 - 20,000Hz
      • Low Frequency Roll-Off: 80Hz, 18dB/octave
      • Open Circuit Sensitivity: -37dB (14.1mV) re 1V @ 1Pa
      • Impedance: 200Ω
      • Maximum Input Sound Level: 135dB SPL, 1kHz @ 1% T.H.D.
      • Dynamic Range (typical): 108dB, 1kHz @ Max SPL
      • Signal-To-Noise Ratio: 67dB, 1kHz @ 1Pa
      • Phantom Power Requirements: 11 - 52V DC, 2 mA typical
      • Switch: Flat, roll-off
      • Weight (Microphone): 0.05oz
      • Dimensions (Microphone): 0.62" long, 0.33" wide, 0.19" thick
      • Output Connector: Integral 3-pin XLRM-type
      • Cable: 55" cable terminated with locking 4-pin connector for A-T UniPak™ wireless systems
      • Audio-Technica Case Style: M7

    • Item Includes

      • ATW-RC13 Rack-mount receiver chassis
      • ATW-RU13x2 receiver unit
      • ATW-T1001 x2 UniPak transmitter
      • MT830cW x2 lavalier microphone

    • Warranty

      • 2 Year Limited End-User

    • GTIN:

      4961310130824
