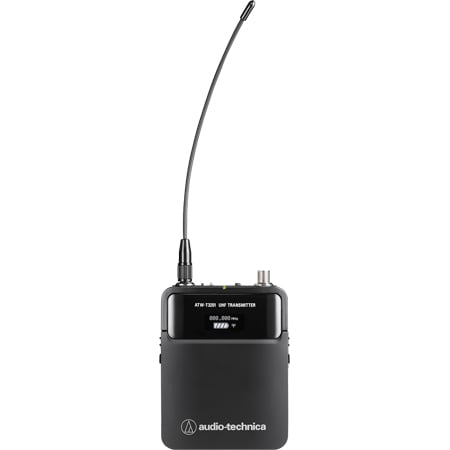

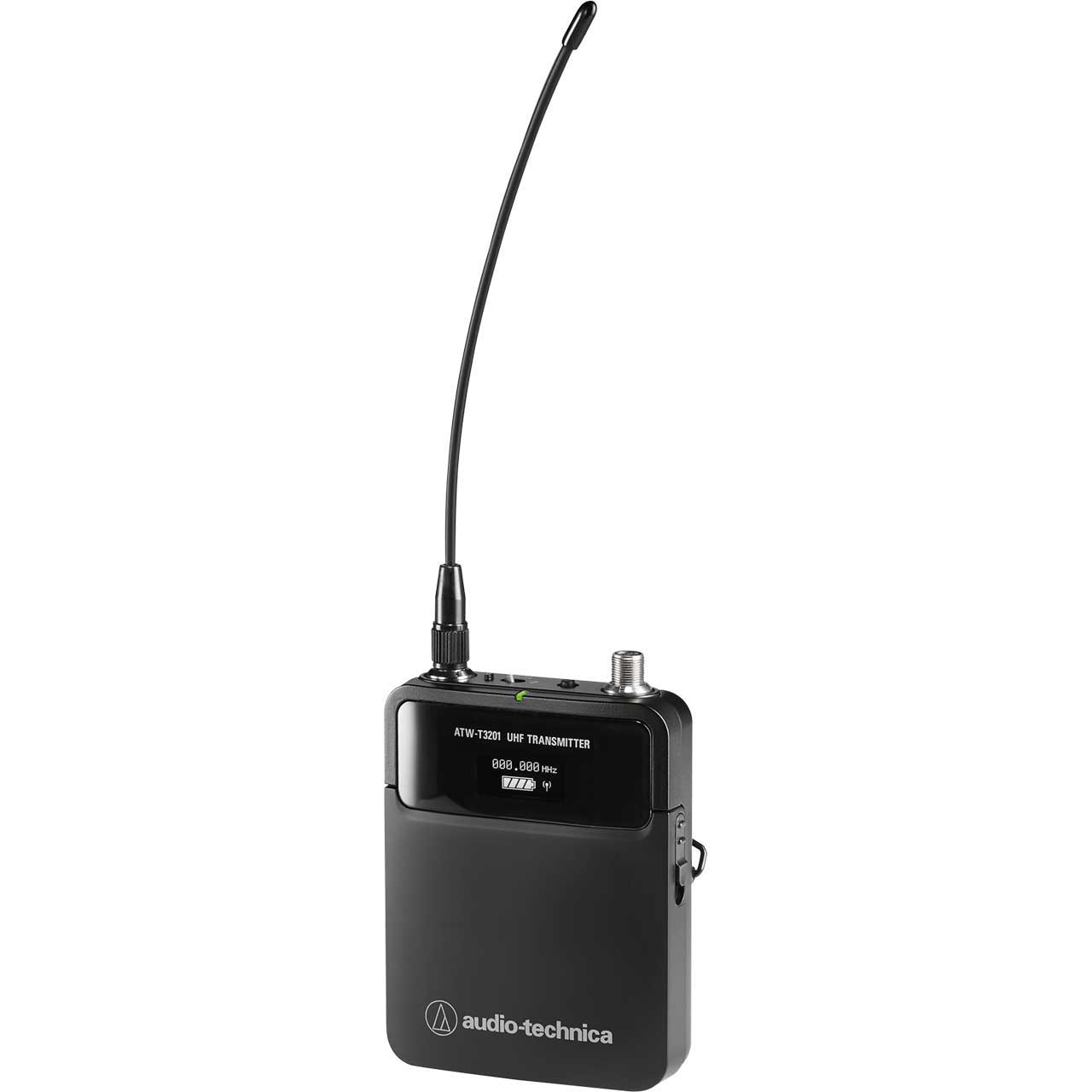

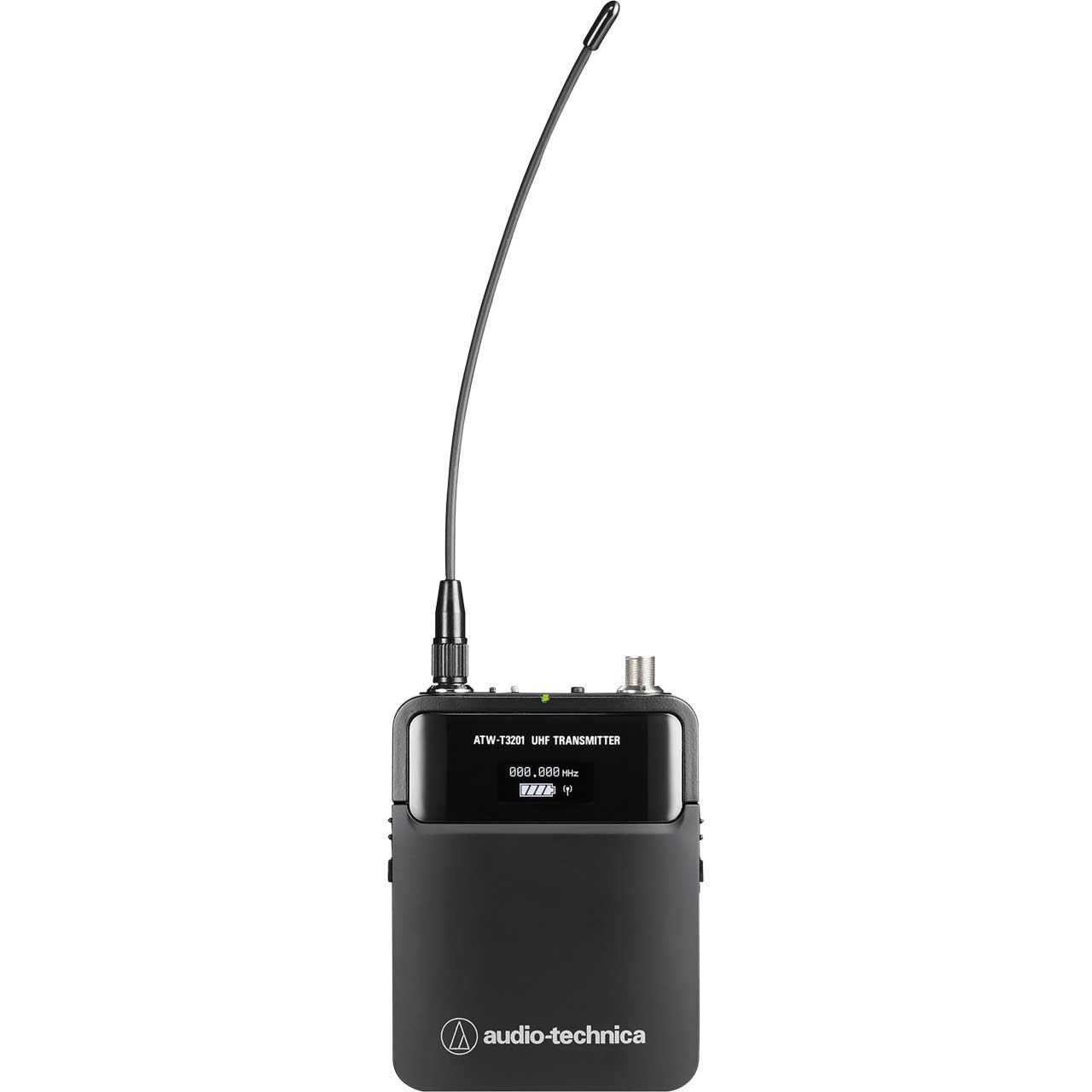

Audio-Technica ATW-T3201AEE1 3000 Series Body-Pack Transmitter with CH-Style Screw-Down 4-Pin Connector - 530-590MHz

ITEM #: AT-ATW-T3201AEE1 MFG #: ATW-T3201AEE1

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$299.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    ATW-T3201AEE1 - Overview

    The Audio Technica ATW-T3201 body-pack transmitter features a tactile mute toggle switch (defeatable) for physical confirmation of the mute status when the transmitter display is not visible. It also has a multifunction button that can be programmed to perform one of two functions when pressed and held: turn off RF transmission or switch to a preselected backup frequency to avoid interference. (The multifunction button can also be disabled.) An input is available on the transmitter for lowimpedance microphone, and high-impedance musical instrument or line input. The transmitter supplies 5V DC bias to power condenser microphones. The rugged cH-style screw-down 4-pin input connector provides secure connection to cH-style lavalier mics, headworn mics, and cables. The durable metal body-pack transmitter features a field replaceable whip antenna, OLED screen, and a secure, locking battery compartment door.

    Please note! Mic sold separately.

    • Features:

      • Unique multifunction button can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
      • Rugged cH-style connector provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
      • Tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
      • Charging terminals work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
      • OLED screens for optimal readout of key settings and alerts

    • Specifications:

      • RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 Ω
      • Battery Life: High: 8.0 hours / Low: 9.0 hours (alkaline); High: 9.0 hours / Low: 9.5 hours (Ni-MH 1900mAh) (Depending on battery type, usage and environmental conditions.)
      • Battery Type: Two 1.5V AA, not included
      • Dimensions: 64 mm x 82 mm x 23 mm (W x D x H)

        Input Connections: 4-Pin screw down cH-Style Connector
      • Pin 1: GND
      • Pin 2: INST INPUT
      • Pin 3: MIC INPUT
      • Pin 4: DC BIAS +5V

      • Net Weight: 102 g
      • Spurious Emissions: Following Federal and National Regulations
