Audio-Technica BP350ST-UL MS Cardioid Stereo Microphone with TA5F- Includes 5-Inch Gooseneck with Clip-On Mount - Black

ITEM #: AT-BP350ST-UL MFG #: BP350ST-UL

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$749.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


BP350ST-UL - Overview

Innovative Small-Format Stereo Microphone with MS (mid-side) Capsule Configuration Engineered for Broadcast, Production and Field Recording

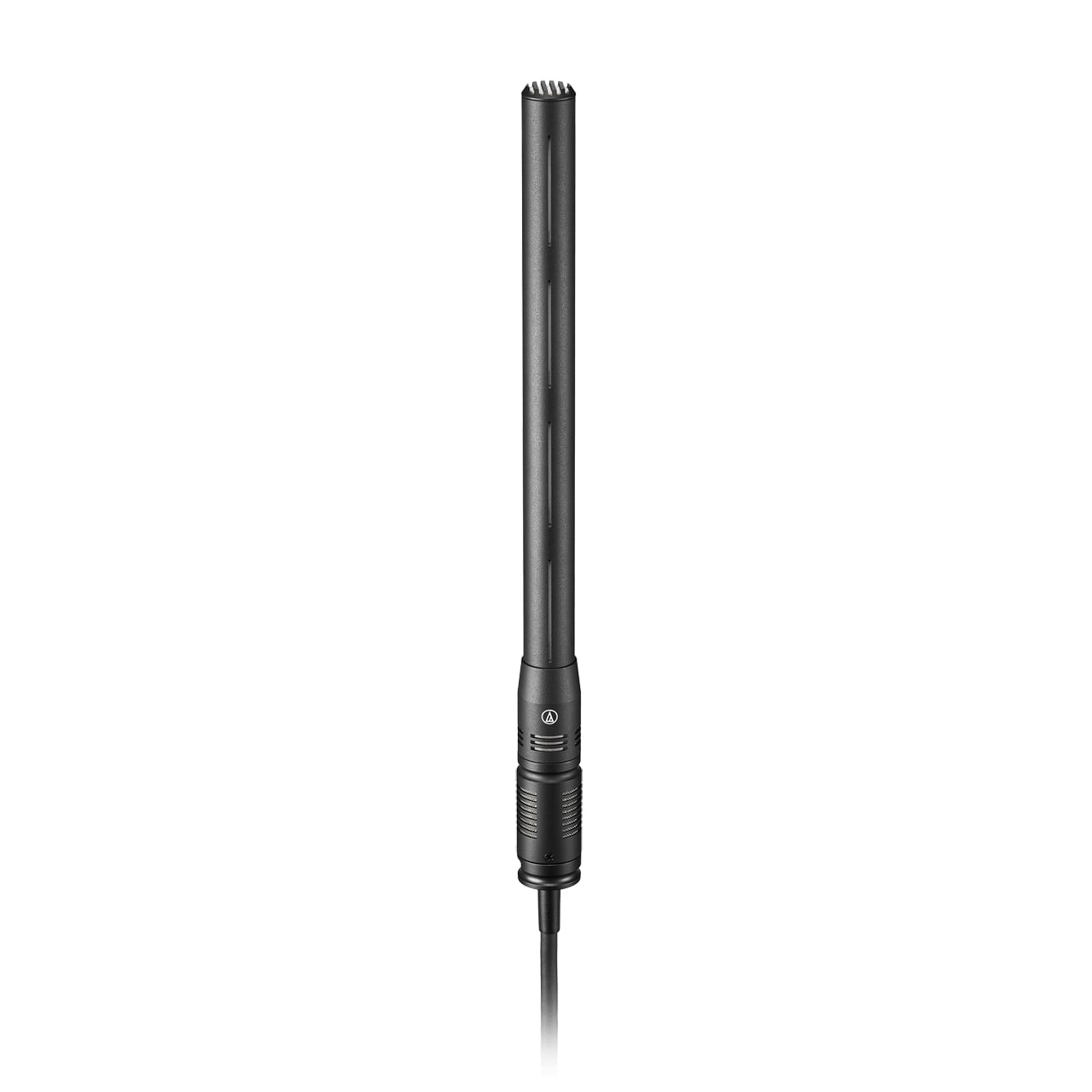

Engineered for professional broadcast, production, and field recording, the Audio-Technica BP350ST-UL camera-mount microphone is perfect for ENG and other on-the-move applications. The mic features a 6.3" (16cm) interference tube that rejects off-axis noise to focus on distant sounds. It is also equipped with independent line-cardioid and figure-of-eight elements configured in an MS (mid-side) arrangement with switch-selectable internal matrixing. The mic is designed to mount securely to video cameras or support rigs, delivering lifelike stereo sound capture in dynamic recording situations. The BP350ST-UL mid-side capsule arrangement provides crisp, clear, well-balanced stereo response, even at high SPLs.

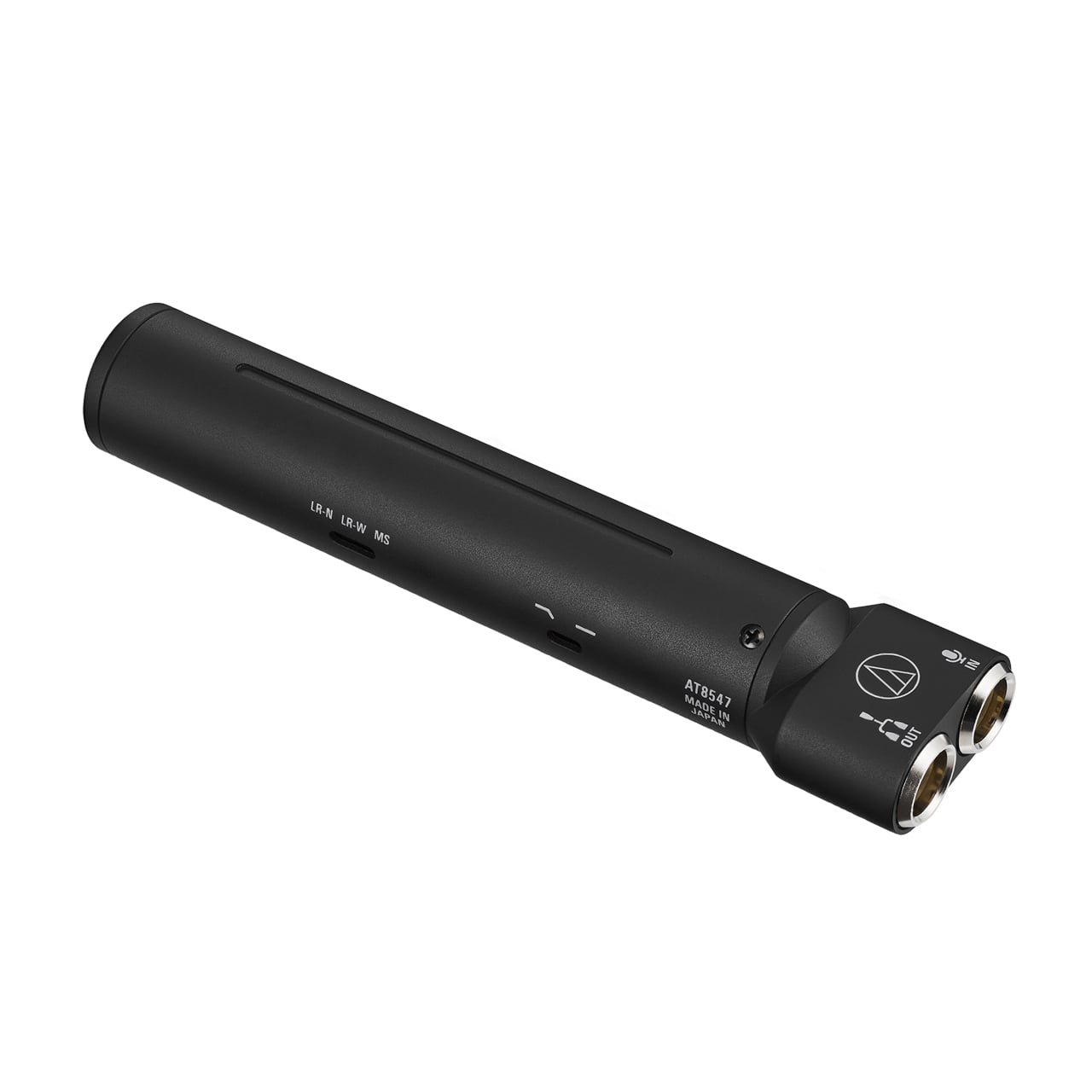

A switch on the included AT8547 power module allows users to choose between left-right stereo output (wide or narrow) and discrete mid-side signals for later manipulation. Mid-side operation offers many advantages for postproduction editing, making it easier to place voices naturally in a mix, for example, and providing audio that won't lose its depth when stereo channels are combined into a mono track. The two-mics-in-one configuration also helps reduce common problems with stereo miking, such as time alignment and comb filtering.

The mic's permanently attached 12" (30cm) cable is terminated with a TA5F connector that plugs into the power module. The included AT8495 mount clip secures the mic to the power module and attaches at any angle to accommodate placement around other peripherals. The power module can be mounted into a camera's microphone mount or secured using third-party mounts. It comes with a 14.2" (36cm) TA5F to dual-XLR3-M stereo cable that's suitable for connecting to a camera's stereo inputs or to any traditional mic preamplifier with phantom power. A switch on the power module allows users to select an 80Hz high-pass filter to suppress unwanted ambient noise.

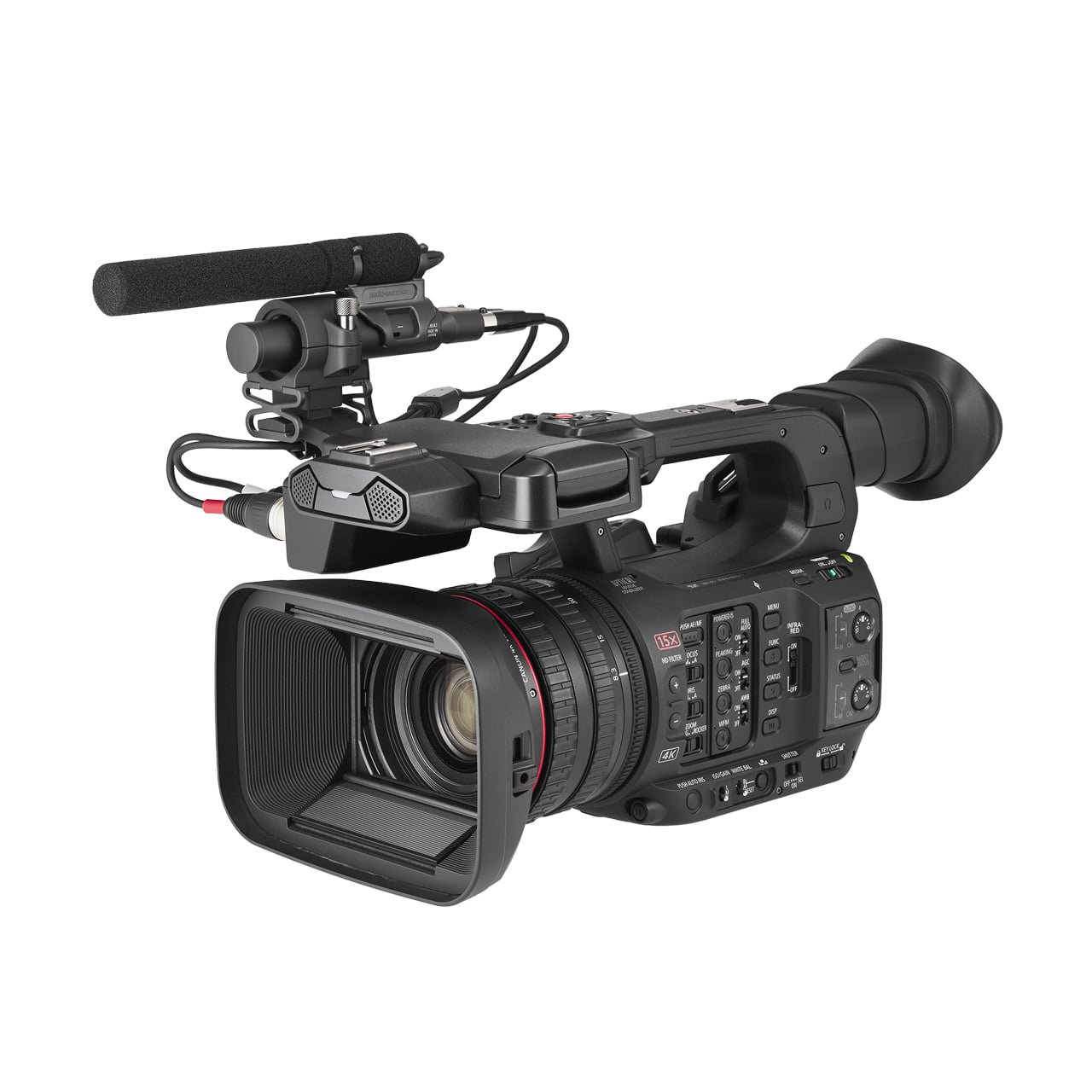

  • Features:

    • 6.3" (16cm) camera-mount shotgun mic is perfect for professional journalists and vloggers who favor a run-and-gun style of filmmaking
    • Independent line-cardioid and figure-of-eight condenser elements
    • Excellent channel separation and a natural response, even at high SPLs
    • Switch-selectable internally matrixed stereo modes (wide and narrow) and mid-side mode
    • Compact lightweight design
    • In-line AT8547 power module is equipped with a switchable 80Hz high-pass filter
    • Compatible with most ATM350a mounts and mounting systems (sold separately)

  • Specifications:

    • Element: Fixed-charge back plate, permanently polarized condenser
    • Polar Pattern: Line + gradient, Figure-of-eight
    • Frequency Response: 40Hz - 20kHz
    • Low Cut: 80Hz, 18dB/octave
    • Open Circuit Sensitivity:
      - Mid: -29.5dB (33.5mV)(0dB = 1V/Pa, 1kHz)
      - Side: -35dB (17.8mV)(0dB = 1V/Pa, 1kHz)
      - L/R: -36dB (15.9mV)(0dB = 1V/Pa, 1kHz)
    • Impedance: 50Ω
    • Maximum Input Sound Level:
      - Mid: 144dB SPL (1kHz at 1% THD)
      - Side: 149.5dB SPL (1kHz at 1% THD)
    • Dynamic Range:
      - Mid: 126dB (1kHz at Max SPL)
      Side: 125.5dB (1kHz at Max SPL)
    • Signal-to-Noise Ratio:
      - Mid: 76dB (1kHz at 1Pa, A-weighted)
      - Side: 70dB (1kHz at 1Pa, A-weighted)
      - L/R: 72dB (1kHz at 1Pa, A-weighted
    • Phantom Power Requirements: 48V DC, 8.2mA (both channels total)
    • Switches: Stereo mode selection (MS, LR-W, LR-N), Flat, Low cut
    • Operating Temperature Range: 14°F - 140°F (-10°C - 60°C)
    • Weight:
      - Microphone: 1.5oz (43g)
      - Power Module: 1.7oz (49g)
    • Dimensions:
      - Microphone: 6.3" (159.7mm) long, 0.5" (12.7mm) maximum body diameter
      - Power Module: 4.9" (125mm) long, 0.83" (21mm) diameter, 1.1" (28mm) maximum width
    • Cable Length:
      - Main Unit Cable: 0.98ft (0.3m)
      - Microphone Cable (included): 1.2ft (0.36m)
    • Output Connector:
      - Power Module: 5-pin mini XLR-M type
      - Microphone: 5-pin mini XLR-F type

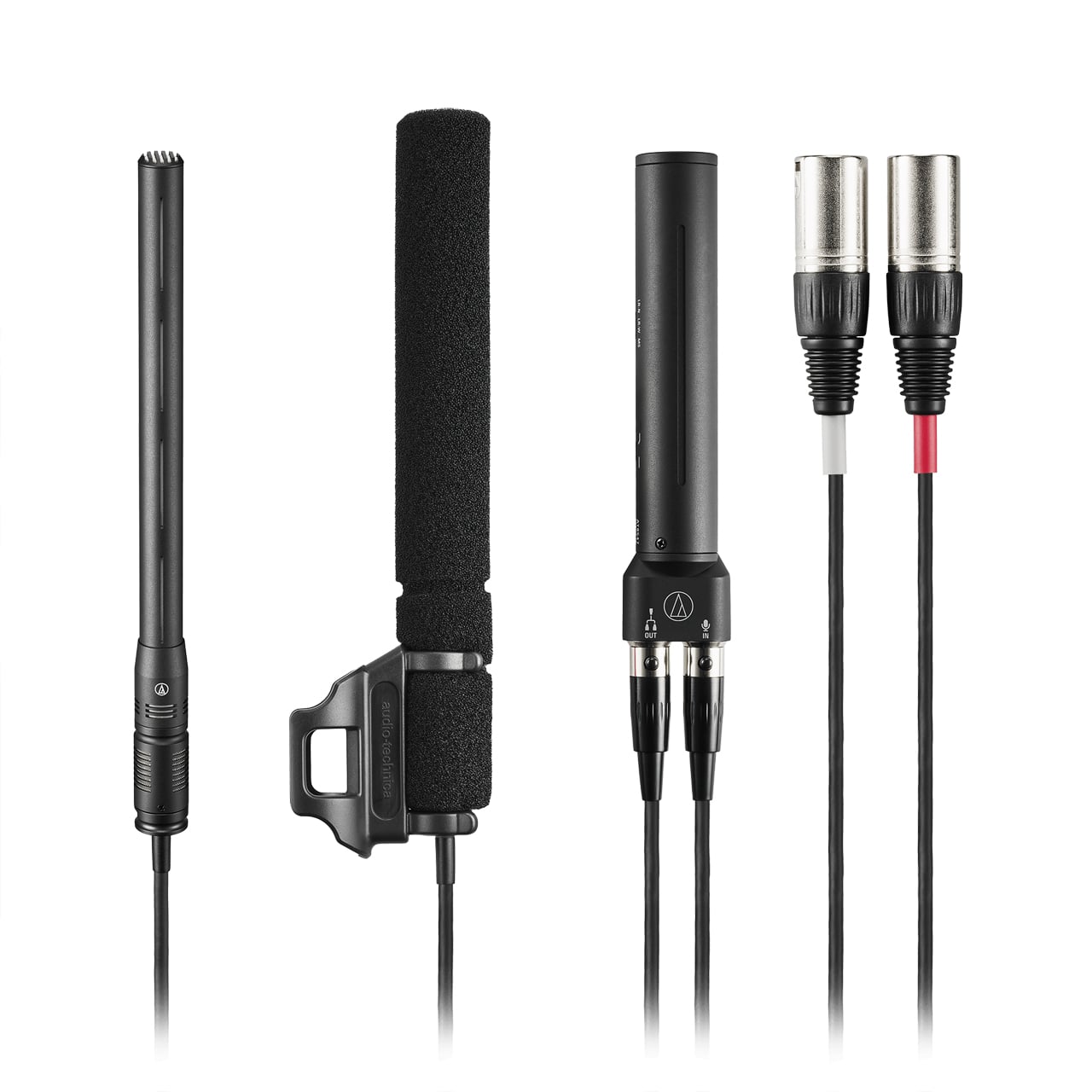

  • Item Includes:

    • 1x 14.2" (36m) TA5F to dual-XLR3-M stereo output cable
    • 1x Power module (AT8547)

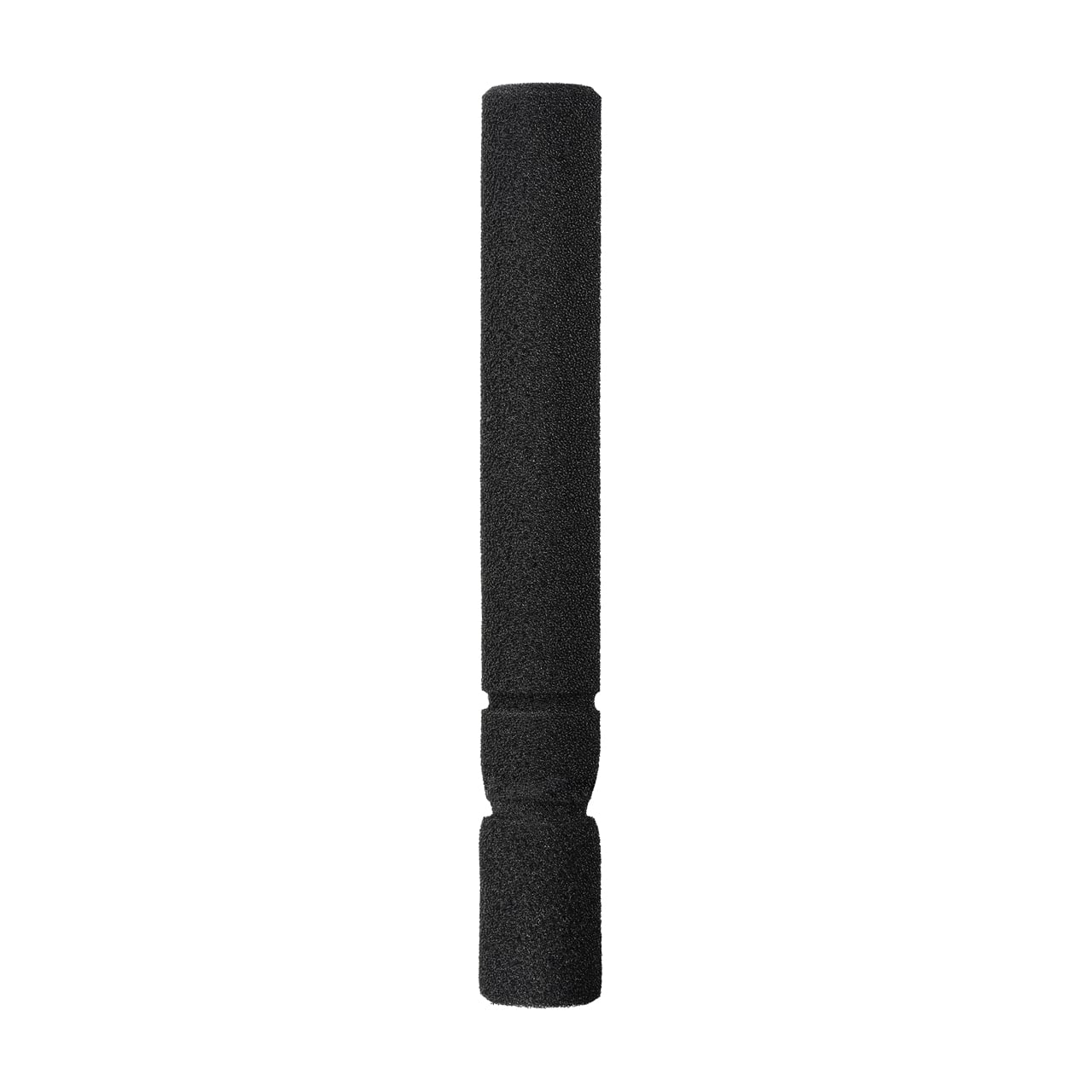

    • 1x Windscreen (AT8180)
    • 1x Mount clip (AT8495)
    • 2x O-ring
    • 1x Hard shell carry case
