Audio-Technica BP40 Large Diaphragm Dynamic Vocal Microphone

ITEM #: AT-BP40 MFG #: BP40

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$349.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    BP40 - Overview

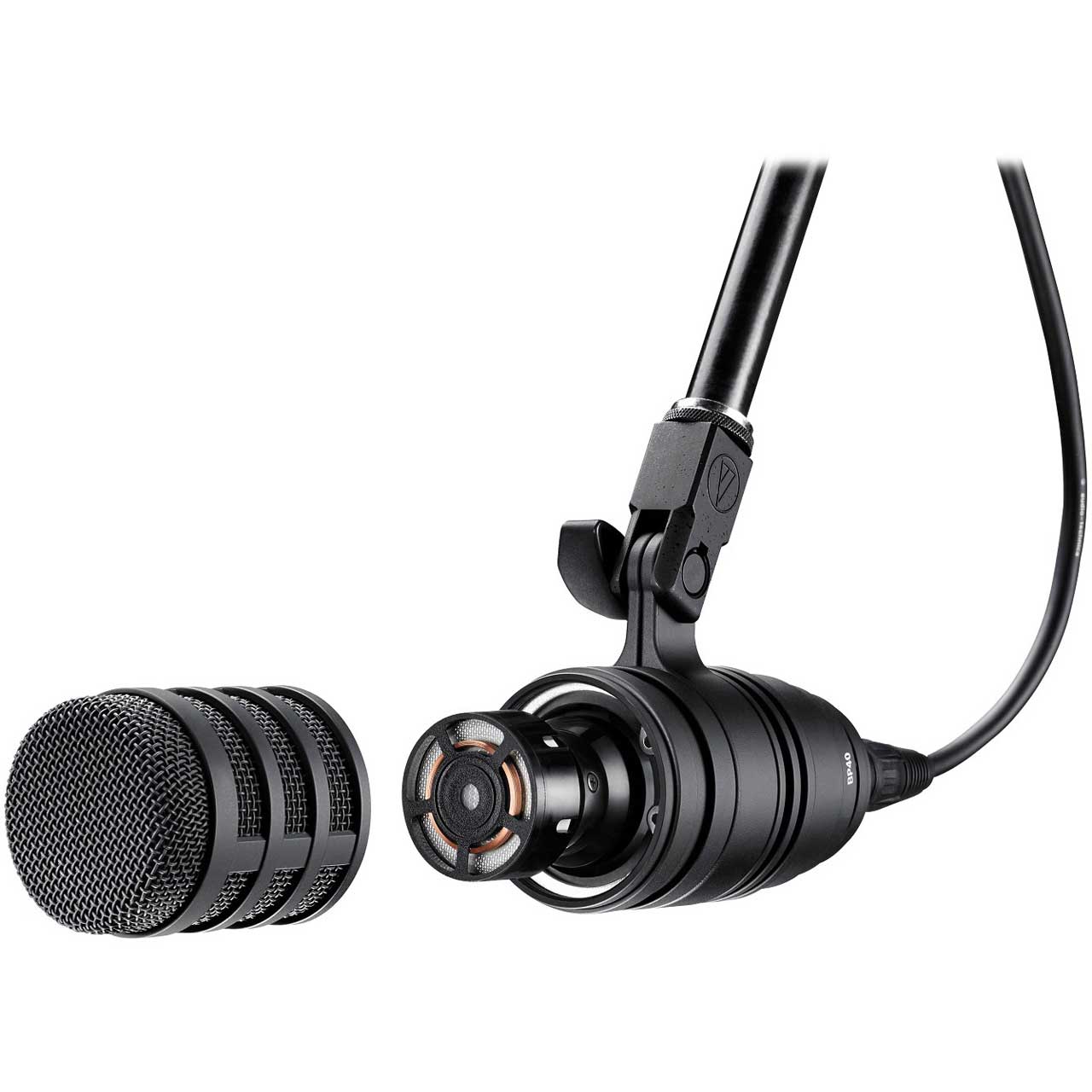

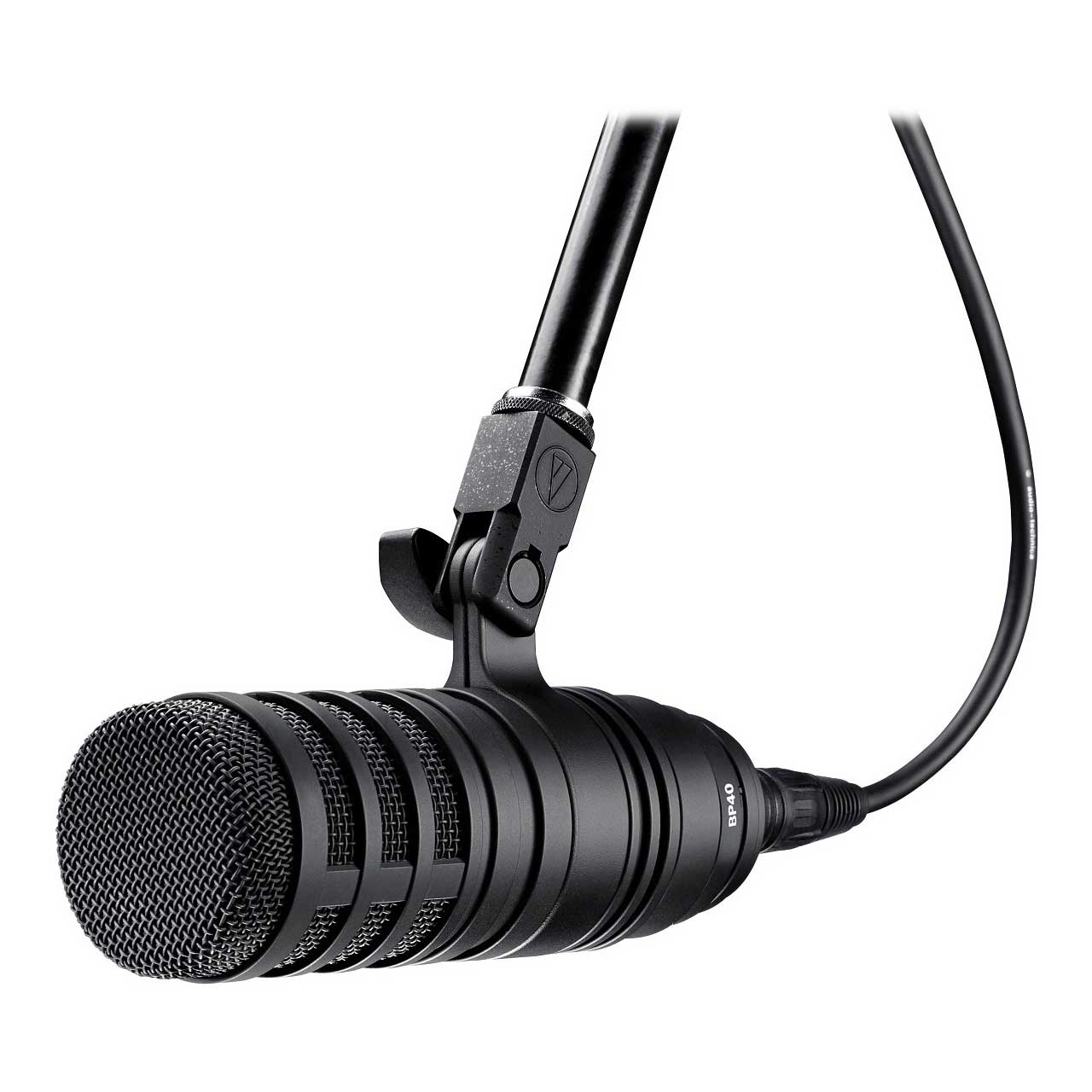

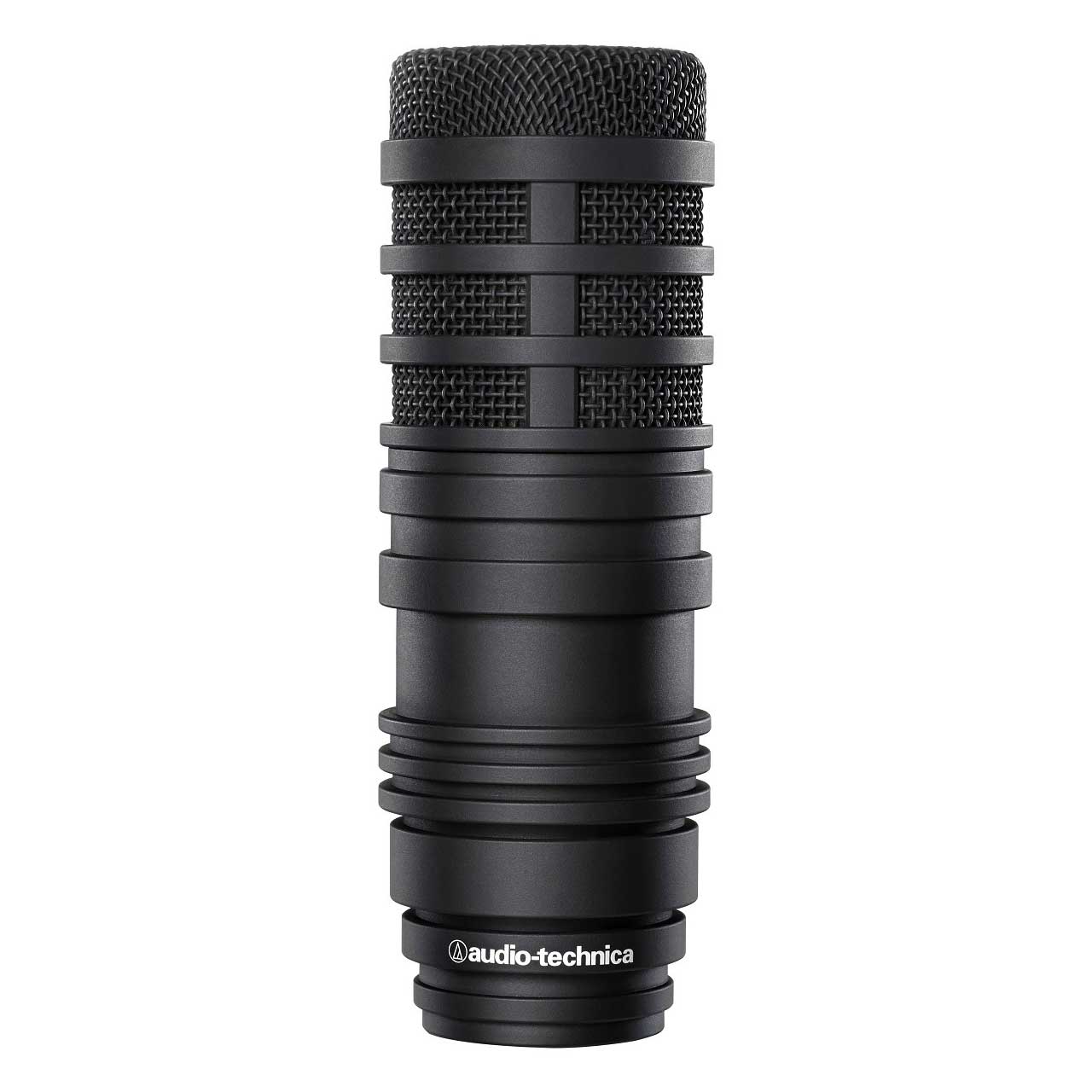

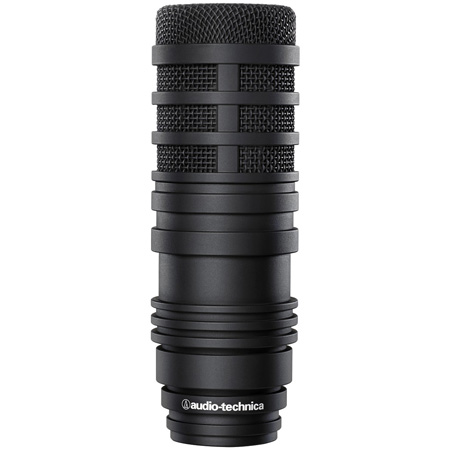

    The Audio-Technica BP40 broadcast vocal microphone offers a rich, natural, condenser-like sound from a large-diaphragm dynamic design. The large diaphragm features patented floating-edge construction that maximizes diaphragm surface area and optimizes overall diaphragm performance, while the humbucking voice coil prevents electromagnetic interference (EMI).

    With rugged construction and stylish, waveform-inspired design, the BP40 delivers clear and articulate reproduction. Optimized capsule placement helps maintain a commanding vocal presence even at a distance, while the multistage windscreen provides superior internal pop filtering. Mic also includes a switchable 100Hz high-pass filter to provide even more pop protection.

    Audio-Technica's BP40 Large-Diaphragm Dynamic Microphone features a hypercardioid polar pattern and is primarily built for broadcast applications, though sources at A-T confirm that it is useful on a wide range of sound sources, specifically kick drum. The BP40 comes standard with the AT8483 mounting clamp, and for additional protection from noise, shock and vibration, the optional AT8484 shock mount is available separately.

    Other BP40 characteristics include a 50Hz to 16kHz frequency response, 100Hz low-frequency roll-off (6dB/octave), and dimensions of 6.45 x 2.2 inches (length x diameter). The mic's design, said to be inspired by the visual representation of a waveform, features an all-metal housing. The BP40's large diaphragm features patented floating-edge construction that A-T says "maximizes diaphragm surface area and optimizes overall diaphragm performance, while the humbucking voice coil prevents electromagnetic interference (EMI).

    • Features:

      • Rich, natural, condenser-like sound
      • Large diameter diaphragm with patented floating-edge construction for optimal diaphragm performance
      • Humbucking coil prevents electromagnetic interference (EMI)
      • Hypercardioid polar pattern improves isolation
      • Switchable 100Hz high-pass filter
      • Superior off-axis rejection for maximum gain before feedback
      • Optimized capsule placement for commanding vocal presence even at a distance
      • Multistage windscreen provides superior internal pop filtering
      • Rugged, all-metal construction for dependable use in professional broadcast environments

    • Specifications:

      • Element: Dynamic
      • Polar Pattern: Hypercardioid
      • Frequency Response: 50 - 16,000Hz
      • Open Circuit Sensitivity: -48dB (3.9mV) re 1V @ 1Pa
      • Impedance: 450Ω
      • Switches: Flat, roll-off
      • Weight: 22.3oz
      • Dimensions: 6.45" long, 2.20" diameter
      • Output Connector: Integral 3-pin XLRM-type
      • Audio-Technica Case Style: R12

    • Item Includes:

      • AT8483 mounting clamp for 5/8"-27 threaded stands
      • 5/8"-27 to 3/8"-16 threaded adapter
      • Soft protective pouch

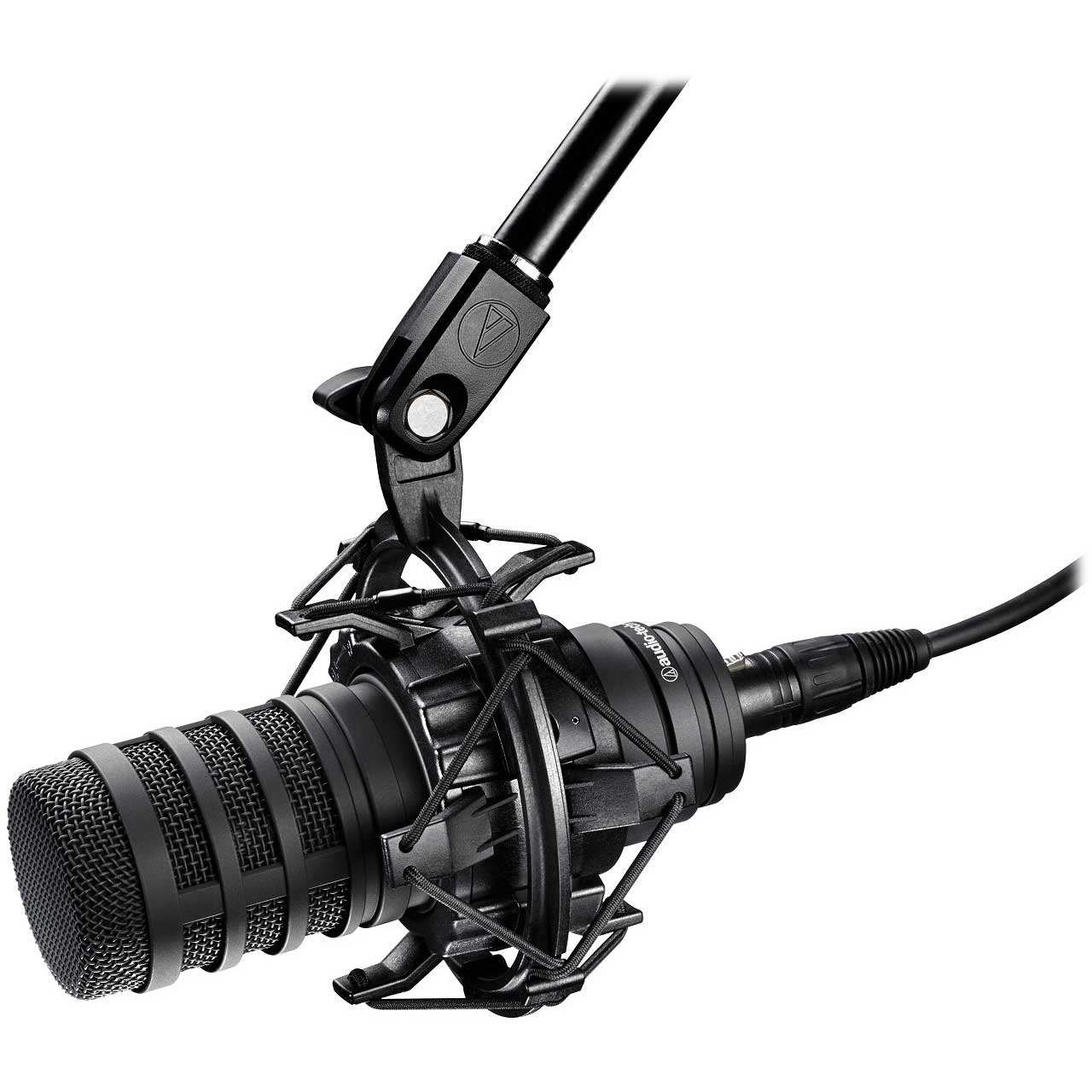

      • Optional Accessory: AT8484 shock mount for 5/8"-27 threaded stands

    • Warranty:

      • 5 Year Limited End-User

    • GTIN:

      4961310130473
