Audio Technica ES925ML24/FM3 Microline Condenser Gooseneck Microphone with 3-Pin Flush-Mount XLR Power Module - 24-Inch

ITEM #: AT-ES925ML24-FM3 MFG #: ES925ML24/FM3

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ES925ML24/FM3 - Overview

Designed for professional sound reinforcement and other commercial sound applications

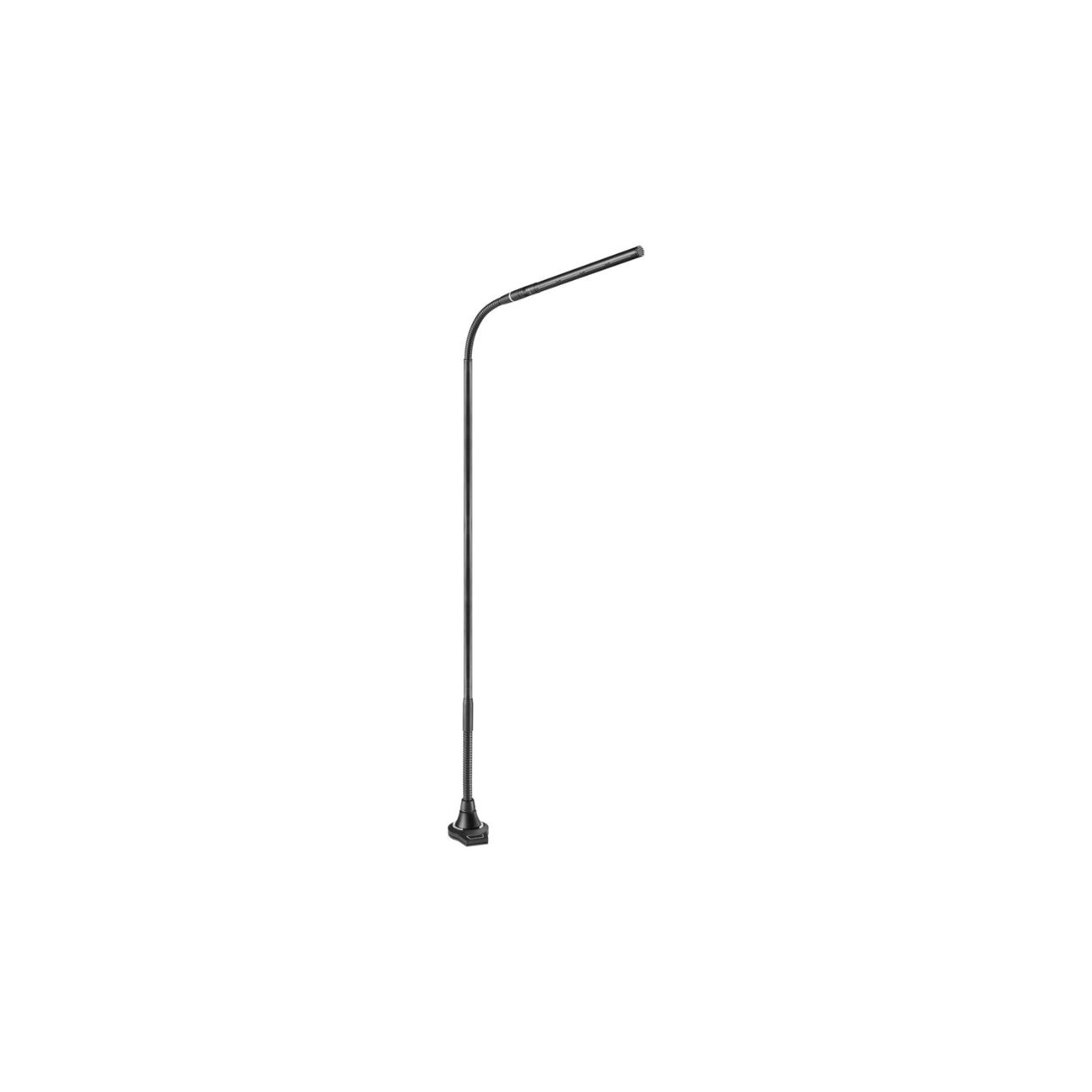

The Audio Technica ES925ML24/FM3 is a 24 Inch Modular microphone system including a MicroLine (90° acceptance angle) Condenser Gooseneck Microphone Element, a 21.08 inch gooseneck and an FM3 3-pin flush-mount power module. The ES925/FM3 is designed for professional sound reinforcement and other commercial sound applications. Each component is interchangeable with other ES modular microphone components, allowing you to mix and match power module types (XLR, FM3, FM5, DS5), gooseneck lengths (4.85", 9.08", 12.08", 15.08", 18.08", 21.08"), and microphone polar patterns (MicroLine®, hypercardioid, cardioid, omnidirectional).

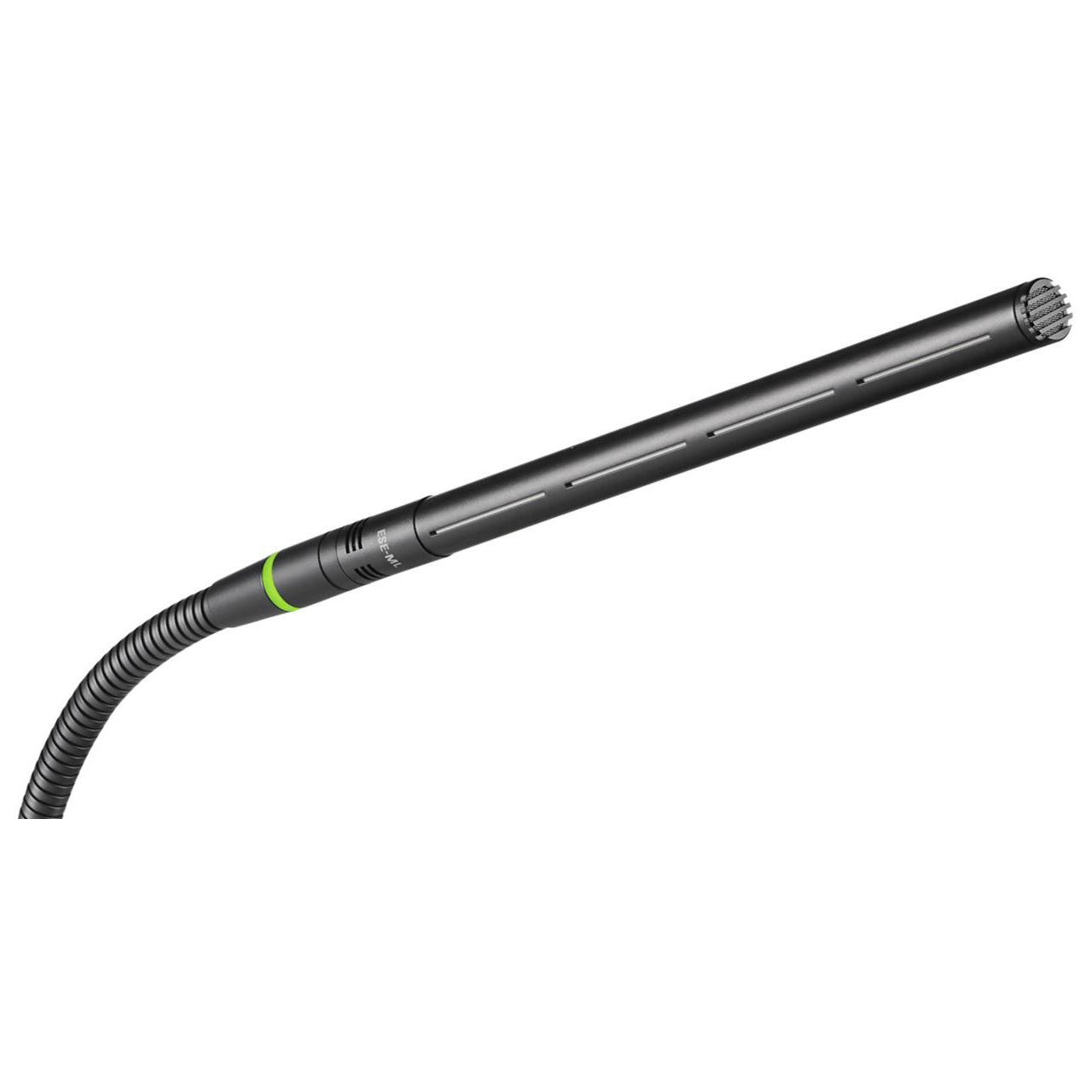

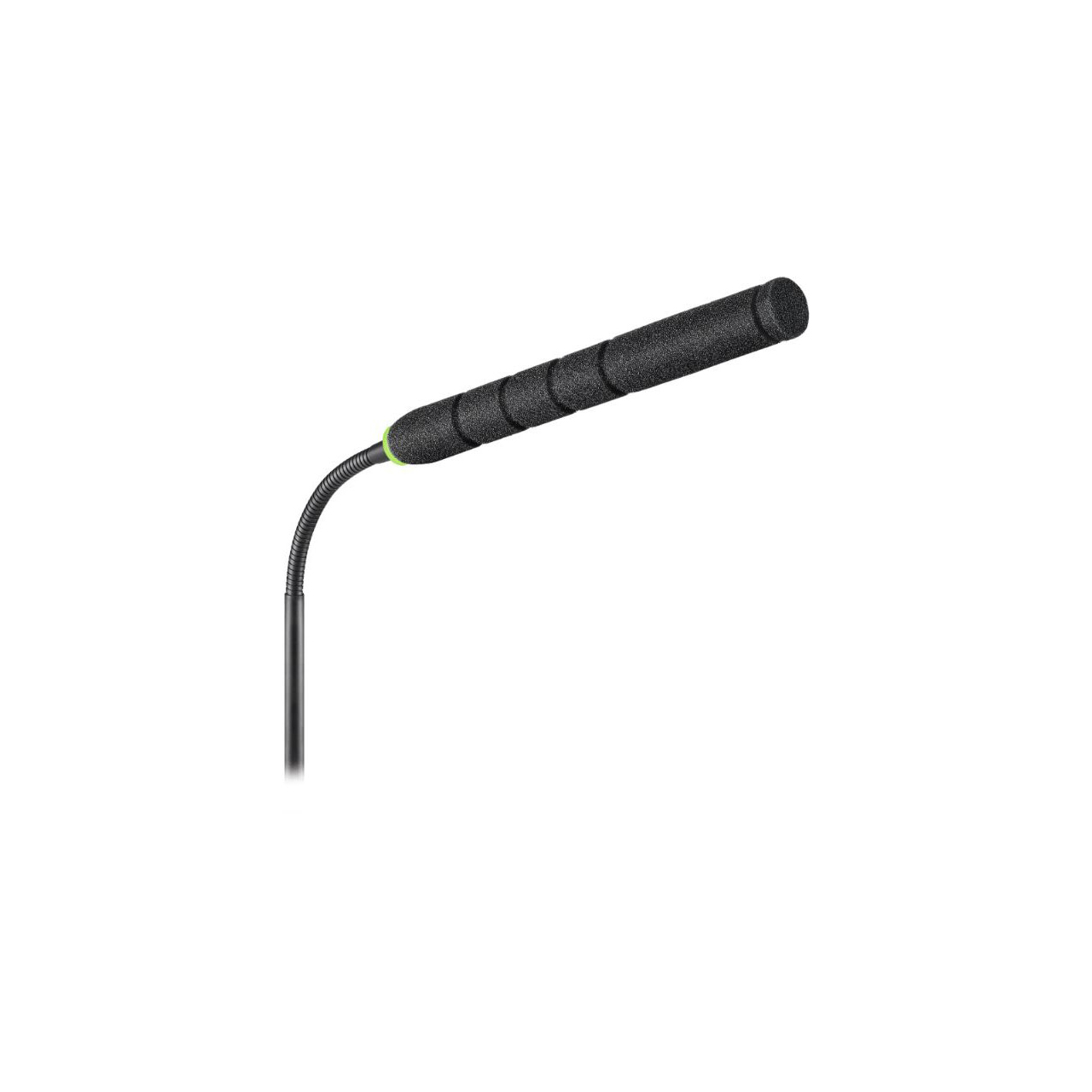

The ES925/FM3 microphone's low-profile element attaches to the small-diameter gooseneck, which offers highly flexible positioning while maintaining a well-contoured appearance. The included foam windscreen protects against plosives. The 3-pin flush-mount power module is equipped with a capacitive touch switch that enables local muting of the microphone. The power module mounts unobtrusively in tabletops and comes with isolators that provide mechanical dampening of the mounting surface. Both the power module and the microphone element housing feature a highly visible, two-state RGB LED status indicator. UniGuard® innovations offer unsurpassed immunity from radio frequency interference.

  • Features:

    • Modular microphone system includes a microphone element, gooseneck and power module each interchangeable with components from other ES Modular Microphones
    • RGB LEDs built into both the flush-mount power module and gooseneck assembly indicate the on/off status of the microphone
    • Capacitive touch switch enables local muting of the microphone

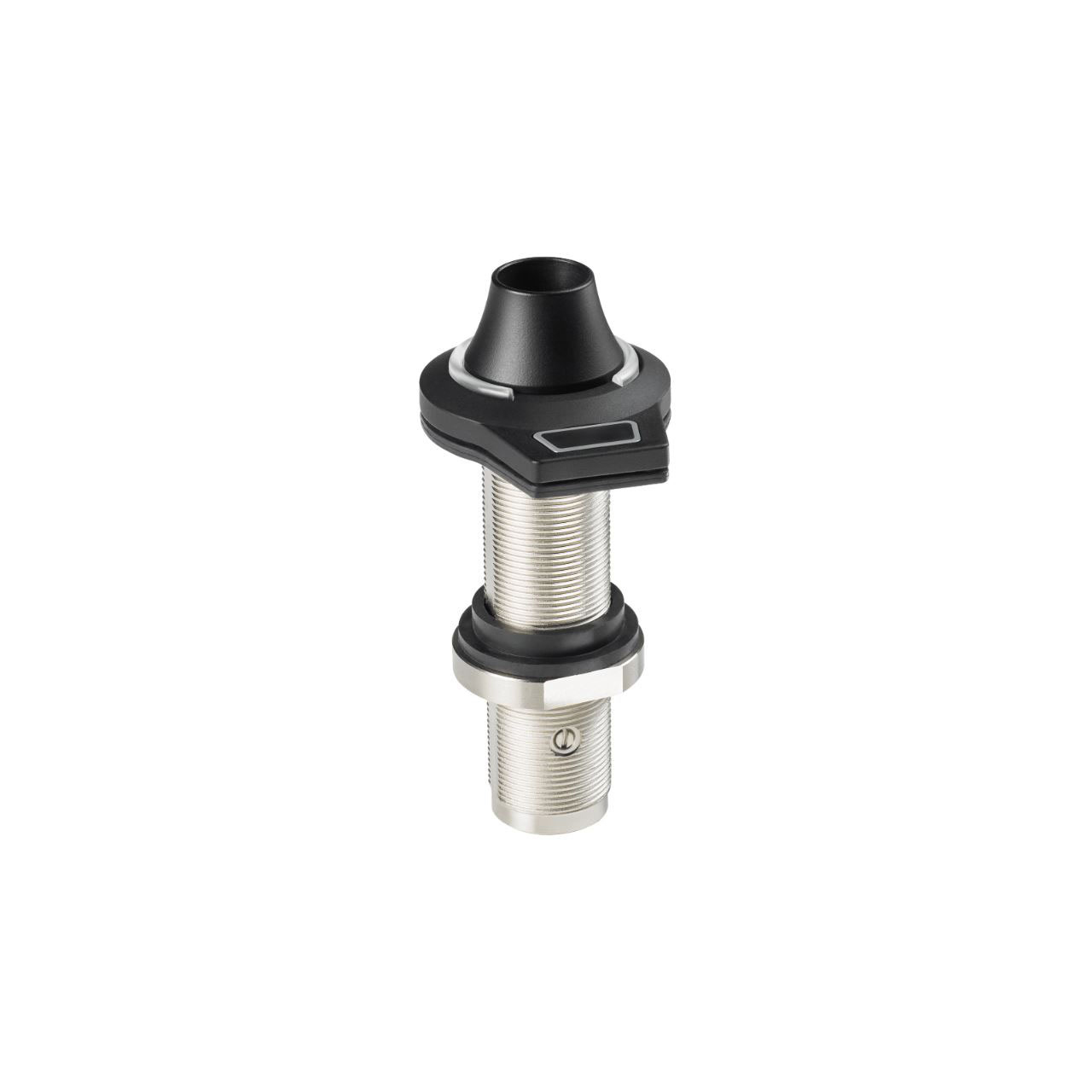

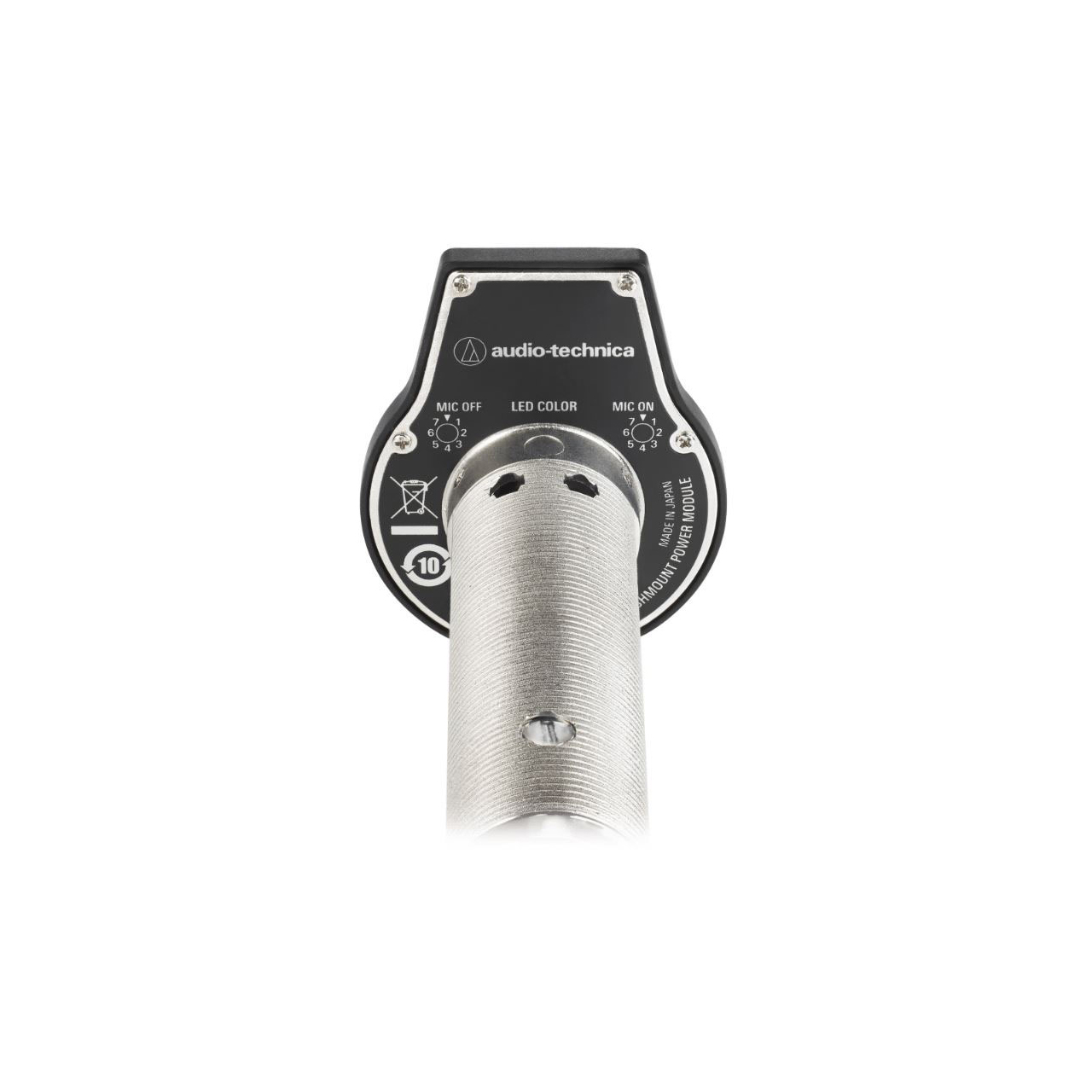

    • Power module with 3-pin XLR output mounts unobtrusively in tabletops
    • Designed for professional sound reinforcement and other commercial sound applications
    • Interchangeable condenser microphone elements provide full-range, natural sound
    • Included isolators provide mechanical dampening of mounting surface vibration
    • Available interchangeable elements permit angle of acceptance from 90° to 360°
    • Small-diameter gooseneck design permits highly flexible positioning
    • Superior off-axis rejection for maximum gain before feedback
    • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI

  • Specifications:

    • Element: Fixed-charge back plate, permanently polarized condenser
    • Polar Pattern: Line + Gradient
    • Frequency Response: 30Hz - 20kHz
    • Open Circuit Sensitivity: -35dB (17.7mV)(0dB=1V/Pa, 1kHz)
    • Impedance: 180Ω
    • Maximum Input Sound Level: 137dB SPL (1kHz at 1% THD)
    • Dynamic Range: 114dB (1kHz at Max SPL)
    • Signal-to-Noise Ratio: 71dB (1kHz at 1Pa, A-weighted)
    • Phantom Power Requirements: 22V - 52V DC, 8 mA
    • Weight: ES925ML24/FM3 158.2 g (5.6 oz)
    • Dimensions (HxWxD): 29.1" x 1.5" x 1.9" (738.8mm x 38 mm x 48 mm)
    • Output Connector: 3-Pin XLRM-type
    • Optional Interchangeable Elements: ESE-Ca (120°), ESE-Ha (100°), ESE-Oa (360°)

  • Item Includes:

    • 1x ES925ML24/FM3 Gooseneck Microphone with 3-Pin Flush-Mount Power Module - 24 Inch
    • 1 pair Isolators
    • 1x Nut
    • 1x Foam windscreen
    • 1x Set screw (M2 x 2)
    • 1x Hex wrench

  • Warranty:

    • 5 Year Limited Warranty
