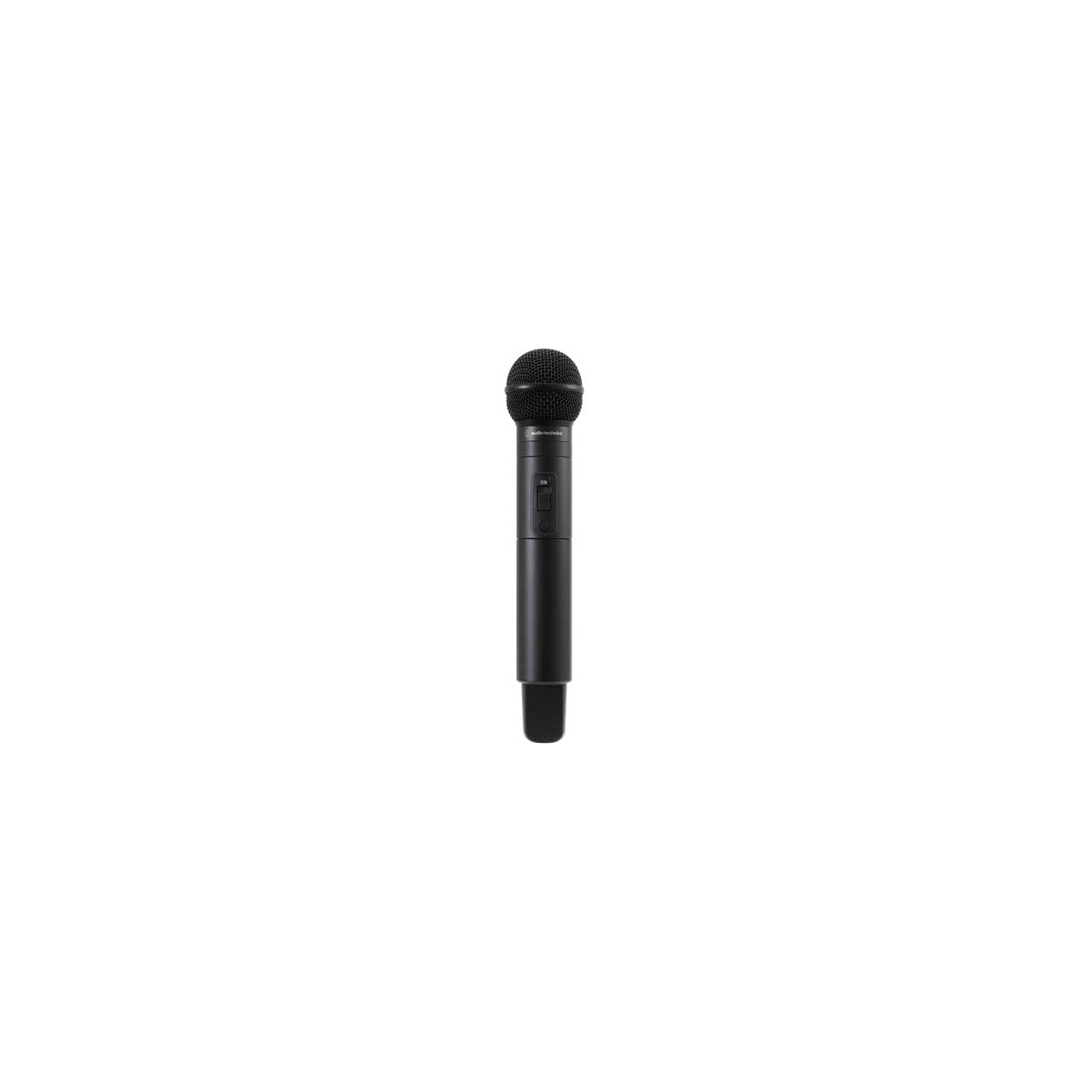

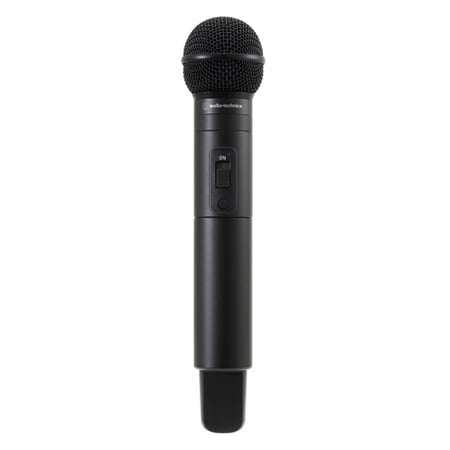

Audio-Technica ESW-T4102/C510 Engineered Sound Wireless Handheld Transmitter with AEW-C510 Capsule

ITEM #: AT-ESWT4102C510 MFG #: ESW-T4102/C510

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ESW-T4102/C510 - Overview

    The demand for wireless microphones has grown as a result of the increasing prevalence of videoconferencing and web conferencing. Audio-Technica’s ESW-T4102/C510 Engineered Sound Wireless Systems is a DECT wireless system that offers simple, smart, and scalable high-quality audio. This system overcomes many challenges of conventional wireless microphones, such as frequency coordination and the limited number of simultaneous microphones.

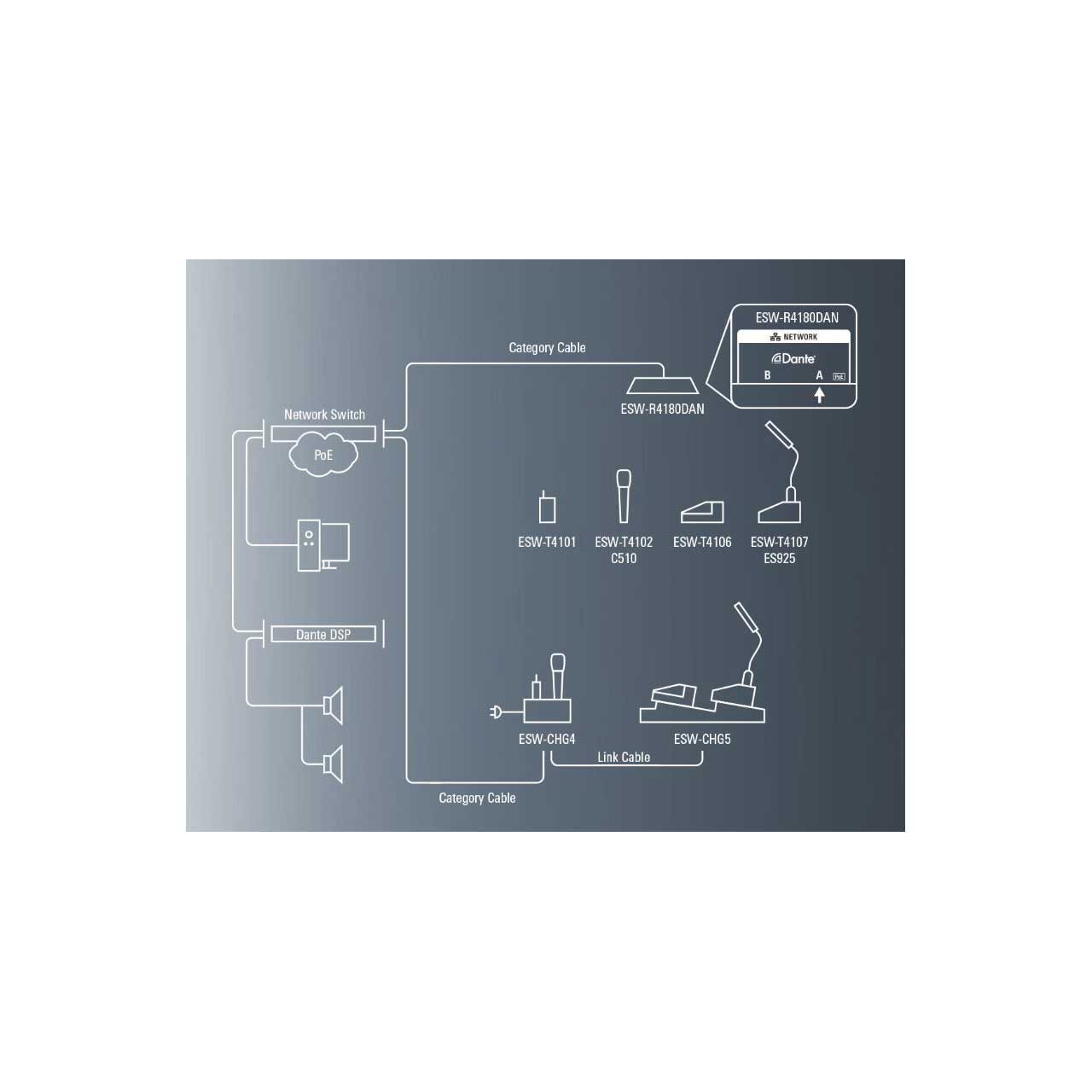

    Operation is incredibly easy for end users, with microphones ready to use by simply removing them from the charging station. At full charge, the batteries offer all-day operation. Installation is also made easy using PoE to power the receiver and Dante audio output capabilities. Wiring is as simple as connecting a single Cat 5e cable to a PoE switch. This helps streamline the installation process, with no need to worry about having to install multiple antennas. System integrators are able to configure detailed settings to meet a wide variety of end-user needs.

    Seamless setup and management are controlled via Audio-Technica’s Wireless Manager software, which is capable of managing multiple wireless systems, including UHF wireless systems, from a single screen. In addition, AES256 encryption support comes standard, providing superior security and reliable operation.

    • Features:

      • Comes equipped with cardioid dynamic capsule (ATW-C510)
      • Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
      • Rare-earth magnet for improved output and transient response
      • Excellent off-axis rejection for minimum feedback
      • Slide-to-mute switch

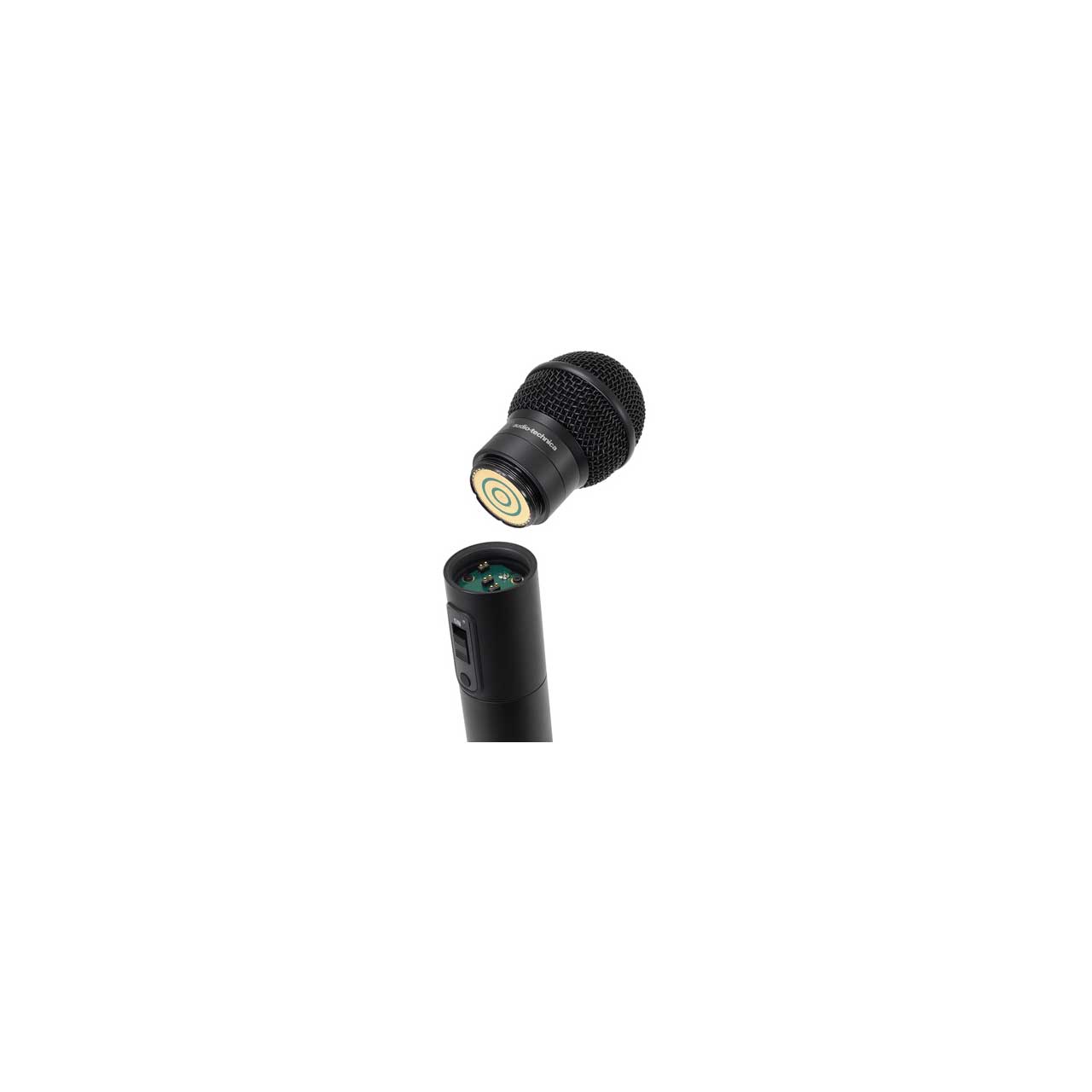

      • Compatible with a wide array of interchangeable Audio-Technica wireless microphone capsules
      • Robust metal design

    • Specifications:

      • Modulation Mode:
      • A-field: Π / 2-BPSK
      • B-field: Π / 4-QPSK

        Battery:

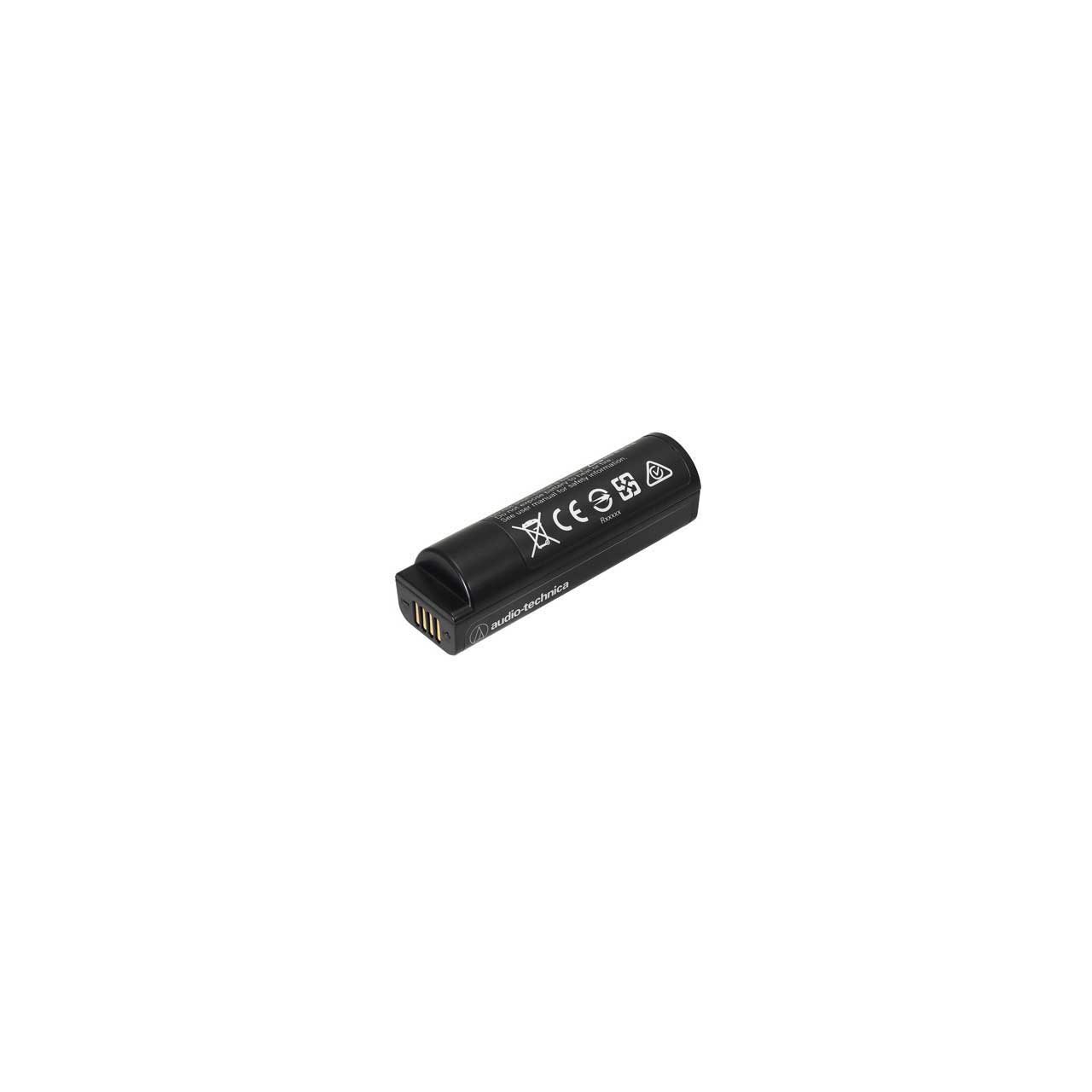

      • Lithium-ion battery LI-320 (included)

        Battery Life:
      • 35 hours, This varies depending on usage conditions.

        Operating Temperature Range:
      • -5° C to +45° C (23° F to 113° F)

        Dimensions:
      • ESW-T4102 (without capsule): 188.5 mm (7.4") long x 37 mm (1.5") max diameter
      • ESW-T4102/C510: 259.5 mm (10") long x 53.7 mm (2.1") max diameter
