Audio-Technica U891RCb Cardioid Condenser Boundary Mic with Local or Remote Switching - RGB Led & Integral Power Module

ITEM #: AT-U891RCB MFG #: U891RCB

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:

$349.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    U891RCB - Overview

    A wide-range condenser microphone with a cardioid polar pattern, the Audio-Technica U891RCb is equipped with local and remote switching options. Locally, the microphone's touch-sensitive capacitive-type user switch can be set to three operating modes: touch-on/touch-off, press to talk, and press to mute. For enhanced control in conference and boardroom installations, the unit's external contact closure capability allows a user to trigger an external device - a camera, for instance - from the microphone's user switch. The phantom-powered mic is also equipped with an 80 Hz low-cut UniSteep® filter to reduce pickup of low-frequency ambient noise. Its two-state RGB LED status indicator can be controlled remotely. UniGuard® innovations offer unsurpassed immunity from radio frequency interference; additional interchangeable elements are available separately in hypercardioid and omnidirectional polar patterns; a unique PivotPoint® rotating connector changes the cable exit point - no tools required. The microphone's heavy die-cast case and silicon foam bottom pads minimize coupling of surface vibration to the microphone, while threaded inserts on the bottom of the microphone allow it to be mounted with screws for increased security. The unit's self-contained electronics eliminate the need for an external power module.

    • Features:

      • Cardioid condenser boundary microphone with touch-sensitive capacitive-type user switch
      • Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
      • Logic I/O capability permits control of remote devices from the microphone's touch-sensitive capacitive-type user switch
      • The capacitive touch switch can be set to any of three operating modes: touch on/off, touch to talk and touch to mute

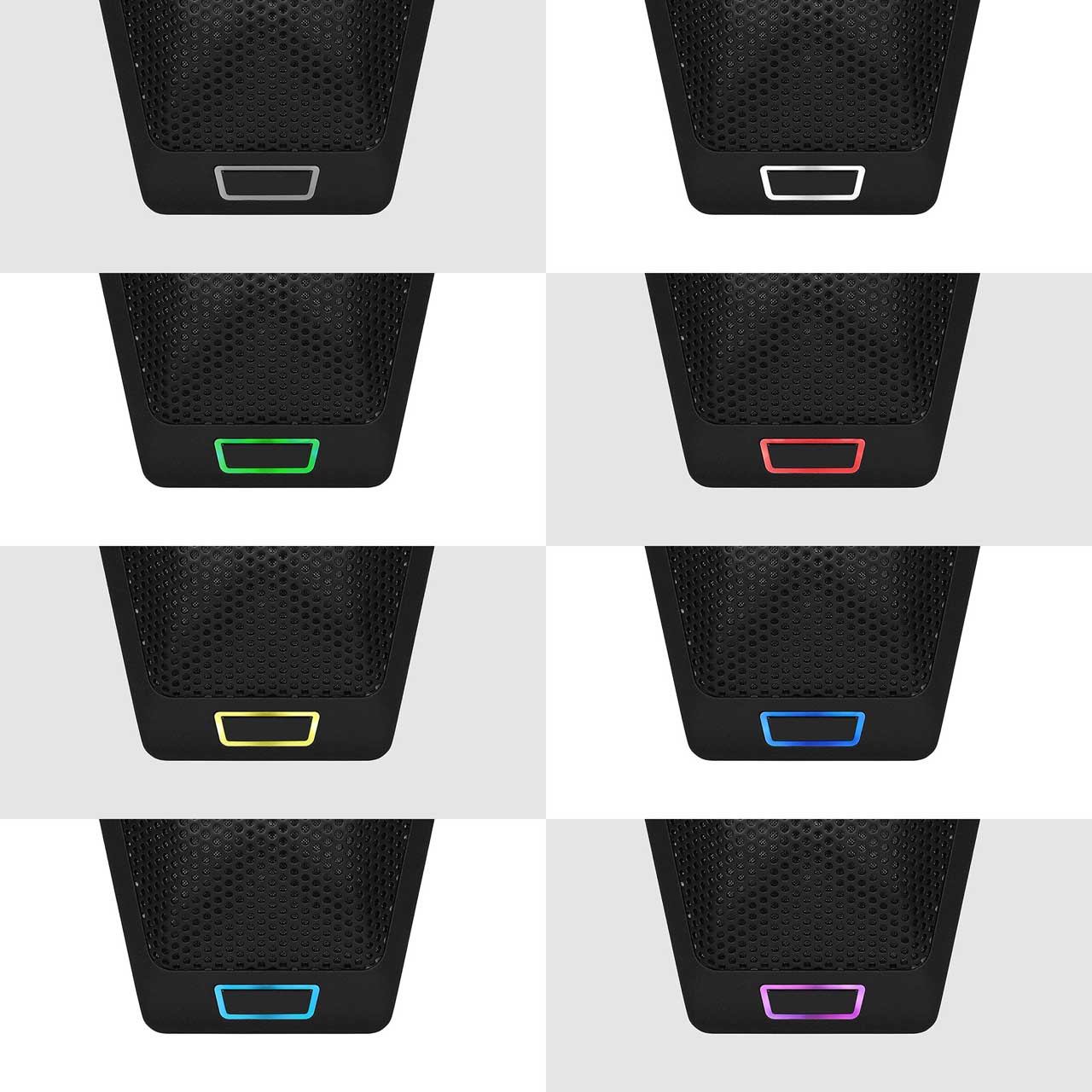

      • Integral, phantom-powered, two-state RGB LED indicator, which can be controlled locally or remotely, displays on/off status of microphone
      • Superior off-axis rejection for maximum gain before feedback
      • PivotPoint® rotating output connector allows cable to exit from either the rear or the bottom of the microphone
      • Small-diameter UniPoint® element near boundary eliminates phase distortion and delivers clear, high-output performance
      • Available interchangeable elements permit angle of acceptance from 100° to 360°
      • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
      • Self-contained electronics eliminate need for external power module
      • Heavy die-cast case and non-slip silicone foam bottom pads minimize coupling of surface vibration to the microphone
      • Low-profile design with low-reflectance finish for minimum visibilityThreaded inserts on bottom of microphone allow it to be mounted with screws for increased security

    • Specifications:

      • Element: Fixed-charge back plate, permanently polarized condenser
      • Polar Pattern: Cardioid
      • Frequency Response: 20 - 20,000Hz
      • Low Frequency Roll-Off: 80Hz, 18dB/octave
      • Open Circuit Sensitivity: -34dB (19.9mV) re 1V @ 1 Pa
      • Impedance: 50Ω
      • Maximum Input Sound Level: 130dB SPL, 1kHz @ 1% T.H.D.
      • Dynamic Range (Typical): 104dB, 1kHz @ Max SPL
      • Signal-To-Noise Ratio: 68dB, 1kHz @ 1 Pa, A-weighted
      • Phantom Power Requirements: 11 - 52V DC, 9.3mA

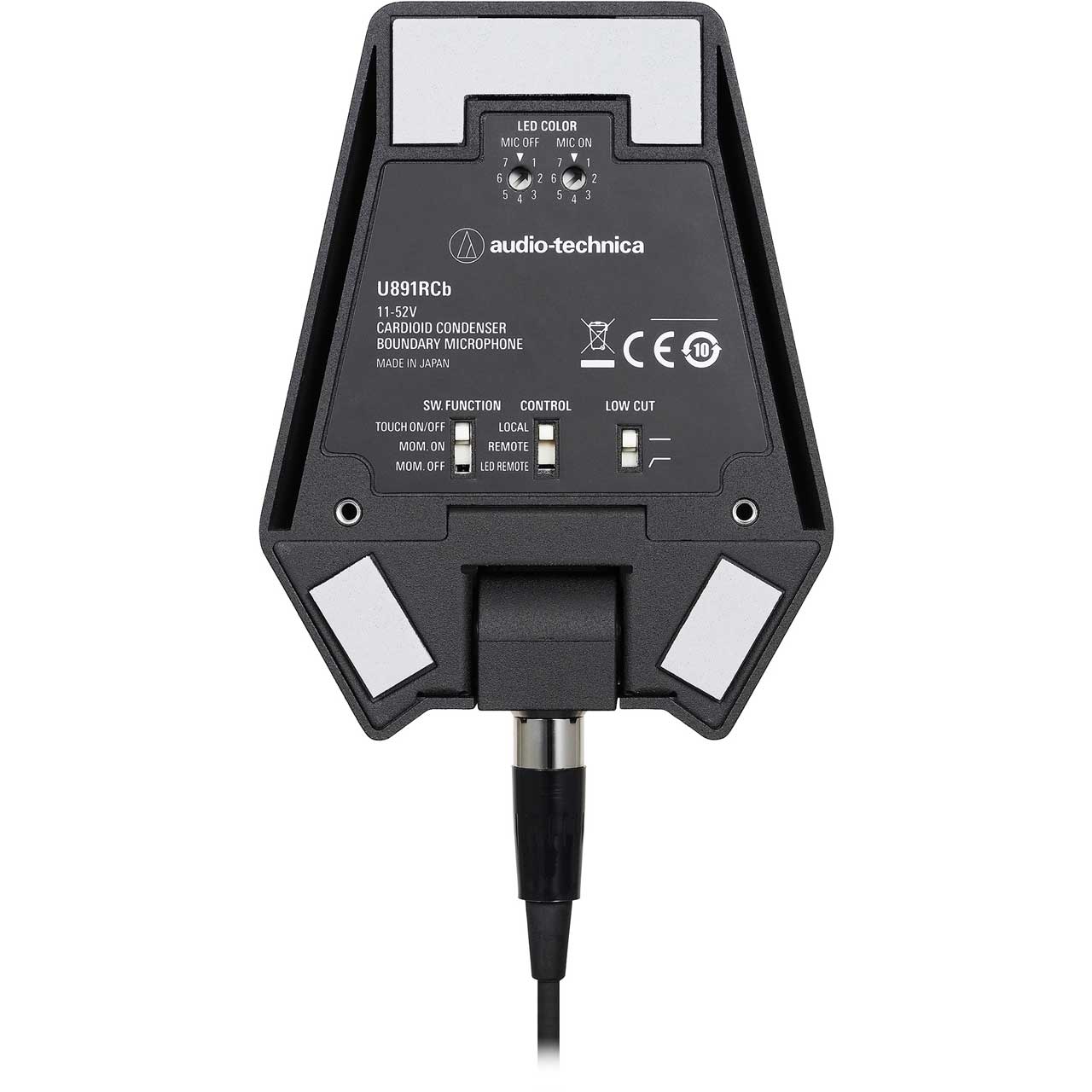

      • Switches:
        Activation: On/Off
        Switch function: Touch On/Off, Momentary On, Momentary Off
        Control: Local, Remote, LED Remote
        LED Color: Mic On, Mic Off
        Flat, roll-off
      • Weight: 8.9oz (253g)
      • Dimensions (HxWxD): 0.91" x 3.30" x 4.25" (23.0mm x 83.9mm x 108.0mm)
      • Output Connector:
        Microphone: TB3M-type
        Cable: Unterminated
      • Cable: 25' (7.6m) long, 0.13" (3.2mm) diameter, 5-conductor shielded cable (2 conductors under shield; 3 control wires outside shield); TA5F-type connector at microphone end, output end stripped and tinned for connection to electronic device
      • Optional Interchangeable Elements:
        UE-H Hypercardioid (100°)
        UE-O Omnidirectional (360°)

    • Item Includes:

      • 1x U891RCb Boundary Microphone
      • 1x 25' (7.6m) Microphone cable (TA5F, unterminated)
      • 1x Soft pouch

    • Warranty:

      • U.S. Two-Year Limited End-User Warranty

    • GTIN:

      4961310146641
