Attero Tech UNDIO2X2-C Dante Networked Audio Interface - 2x2 Mic/Line I/O

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

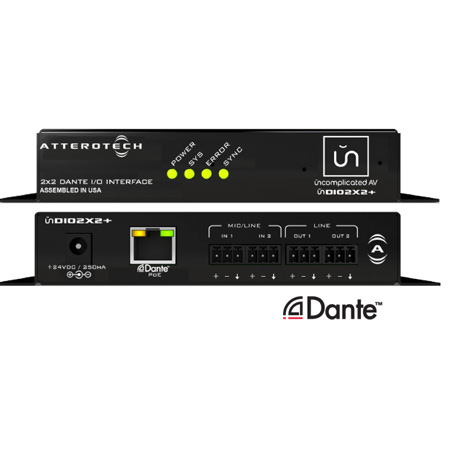

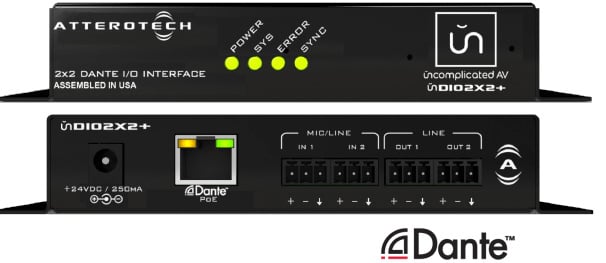

    Attero Tech UNDIO2X2-C Dante Networked Audio Interface - 2x2 Mic/Line I/O

    Manufacturer: Attero Tech, LLC

    Item #: ATEC-UNDIO2X2-C   •   MFG #: 900-00199-C



    List Price:$569.00
    Our Price:$455.00

    free ship


    Availability: In Stock
    i
    Item is Available for immediate shipping from our warehouse.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The unDIO2x2+ I/O Interface is a 2in/2out, cost-effective way to add up to two channels (in and out) of DanteTM audio to any Dantebased networked audio system. The unDIO2x2+'s small form factor and PoE power capability make it easy to put Dante connectivity wherever it’s needed - near the audio source or sink thereby eliminating costly and interference prone analog wiring. The unDIO2x2+ is an upgrade of the earlier unDIO2x2, and adds several features including true +48V phantom power, maximum input and output levels of +20dBu, added input gain settings, and full output level control.


      • Features

        • Small form factor, can be unobtrusively located near analog sources or sinks
        • Dual power (DC or PoE) means the unDIO2x2+ will work in systems with either standard or PoE Ethernet switches
        • Five input gains to accommodate common line levels, phantom power and dynamic mics
        • +48V phantom power per channel - powers virtually all types of phantom powered microphones typically used in installed AV systems
        • Analog output gains software adjustable between 0dB and -60dB plus mute to accommodate all types of line input audio equipment-both consumer and pro levels
        • Industry standard +20dBu maximum input levels (at 0dB input gain) and +20dBu maximum output levels
        • Full Dante system status LEDs on the front panel

      • Specifications

        • Mic/Line Input Type: Balanced and RF filtered 3-pin depluggable
        • Phantom Power: +48V, software selectable
        • Mic/Line Gain: -12dB (pad active), 0dB, +15dB, +30dB, +45dB, software selectable
        • Input Impedance: >1.8K ohms at any gain setting
        • Equivalent Input Noise: -119dBu (+45dB gain)
        • Maximum Input Levels: +20dBu @ 0dB gain (with pad active), +8dBu @ 0dB, -7dBu @ +15dB gain, -22dBu @ +30dB gain, -37dBu @ +45dB gain
        • Output Type: Balanced line level with automatic muting on loss of Dante signal
        • Output Gain: 0dB to -60dB plus mute, software selectable
        • Output Noise: <-85dBu @ 0dB gain
        • Maximum Output Level: +20dBu (@ 0dB output gain)
        • System THD: <.05% at any gain, input signal 3dB below maximum
        • PoE Class: Class 0 802.3af PoE PD compliant
        • Certifications: FCC 47CFR Parts 15B and 18 (Class A), EN 55011, ICES-003, CE (EN55022 Class A and EN55024 Class A)
        • Dimensions (H x W x D): 1.06" x 6.45" x 3.45"
        • Operating Temperature: 0°C - 40°C
