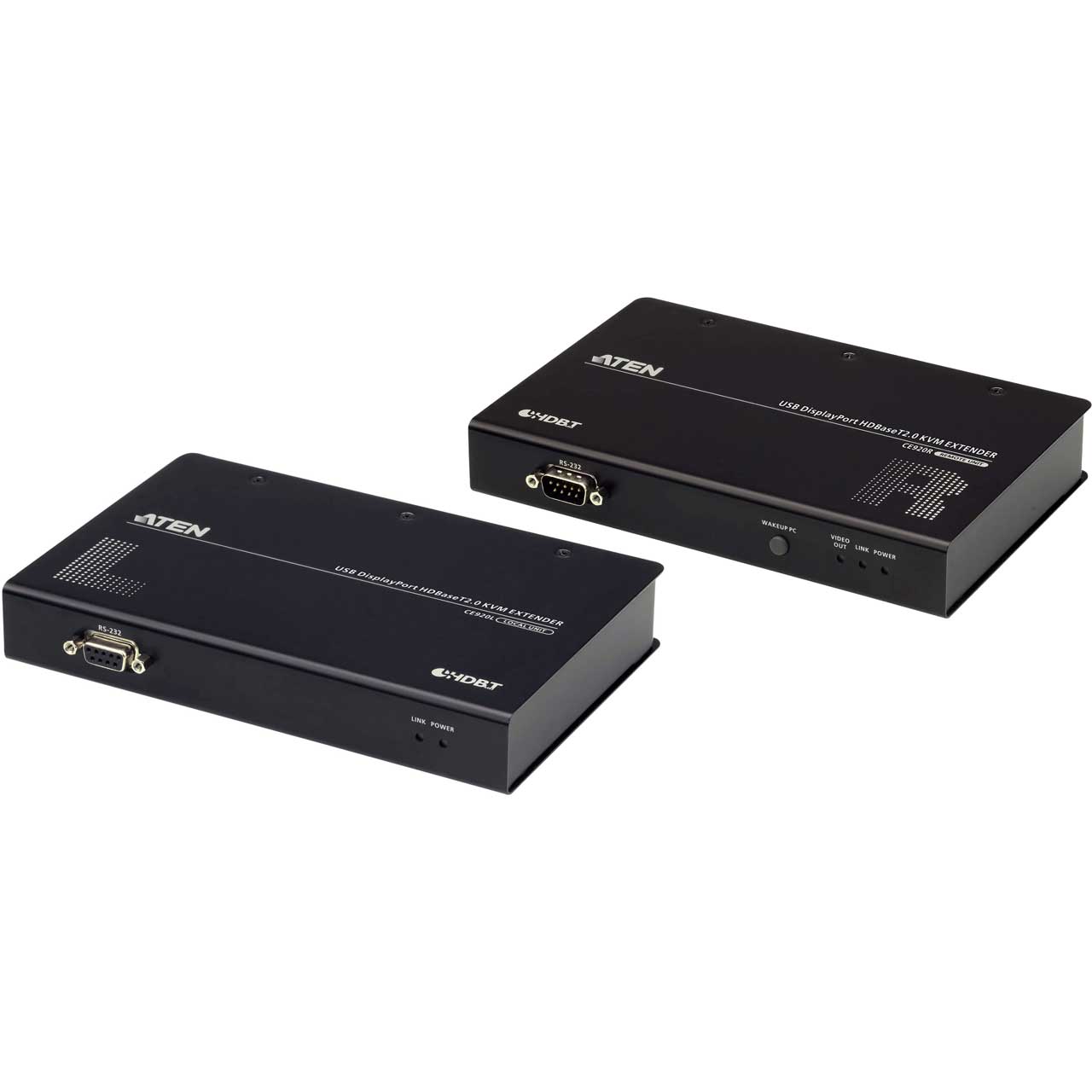

ATEN CE920 USB DisplayPort HDBaseT 20 KVM Extender 4K at 330 Foot

5TH792 - Overview

• Features:

  • Supports HDBaseT 2.0 technology
  • EDID Buffer for smooth power-up and the highest quality display
  • Long distance with superior video quality
  • Long Reach mode switch - switches between HDBaseT Standard and Long Reach modes in a snap
  • HDCP Compatible
  • Supports individual 2-channel stereo audio for high-quality audio applications
  • Supports PC wakeup function via single pushbutton through RS-232 channel
  • Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)


• Specifications:

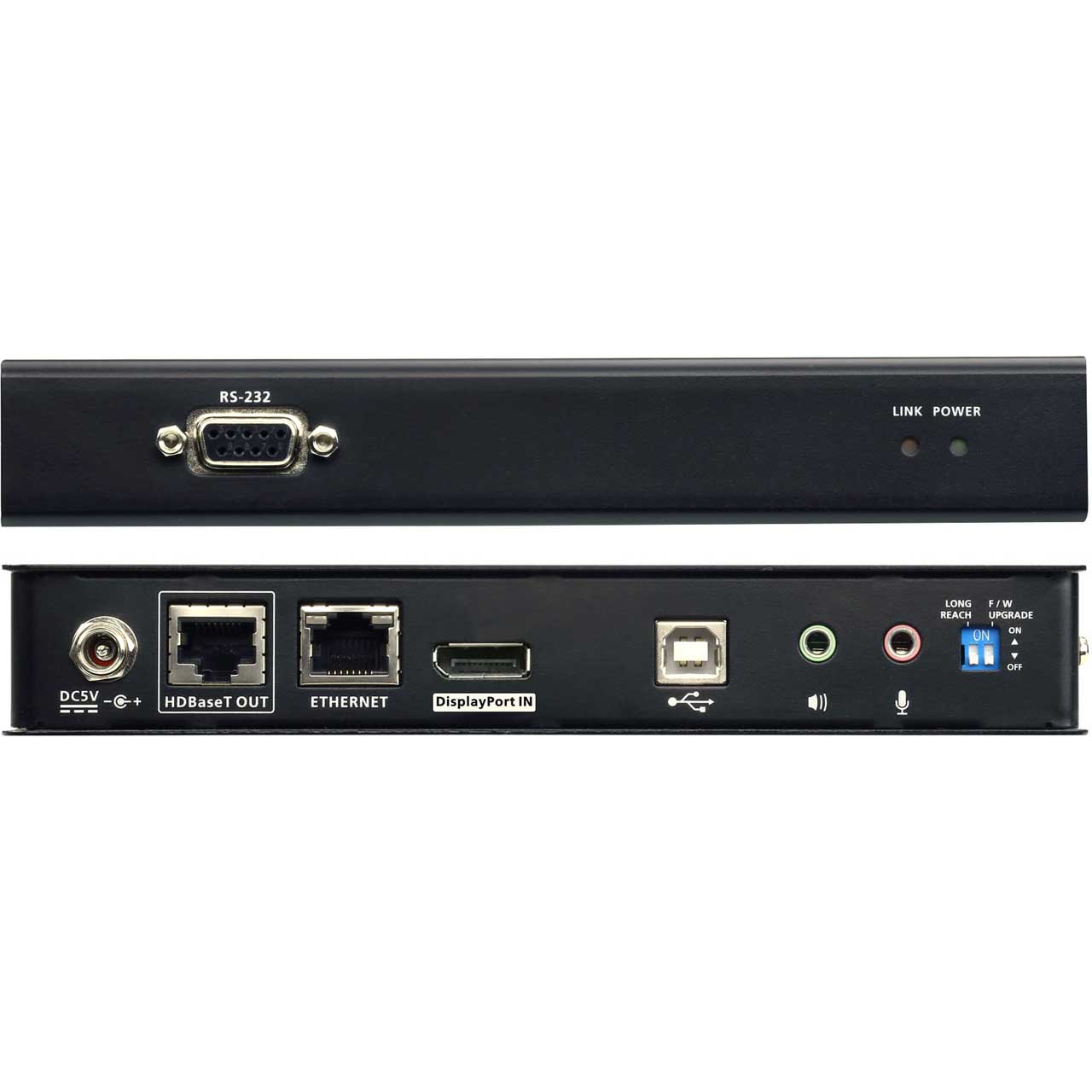

  • CE920L
  • Connectors:
  • KVM Ports:
    1 x DisplayPort Female (Black)
    1 x USB Type B Female (White)
    1 x Mini Stereo Jack Female (Green)
    1 x Mini Stereo Jack Female (Pink)
    1 x RJ-45 Female (Black)
  • RS-232: 1 x DB-9 Female (Black)
  • Power: 1 x DC Jack with locking
  • Unit To Unit: 1 x RJ-45 Female (Black)

    LEDs:
  • Power: 1 x Green
  • Link: 1 x Orange
  • Video Output: N/A

    Switches:
  • Long Reach Mode Switch: 1 x Slide Switch
  • Firmware Upgrade: 1 x Slide Switch

    Pushbuttons
  • Wakeup button: N/A
  • Video: Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 1080P@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160
    @ 30Hz (4:4:4)
  • Power Consumption: DC5V:3.99W:19BTU

    Environmental
  • Operating Temperature: 0-40°C
  • Storage Temperature: -20-60°C
  • Humidity: 0-80% RH, Non-condensing

    Physical Properties
  • Housing: Metal
  • Weight: 0.63 kg ( 1.39 lb )
  • Dimensions (L x W x H): 7.17 x 4.8 x 1.13 Inches

    CE920R
  • Connectors:
  • Console Ports:
    1 x DisplayPort Female (Black)
    3 x USB Type A Female
    1 x Mini Stereo Jack Female (Green)
    1 x Mini Stereo Jack Female (Pink)
    1 x RJ-45 Female (Black)
  • RS-232: 1 x DB-9 Male (Black)
  • Power: 1 x DC Jack with locking
  • Unit To Unit: 1 x RJ-45 Female (Black)

    LEDs
  • Power: 1 x Green
  • Link: 1 x Orange
  • Video Output: 1 x Orange

    Switches
  • Long Reach Mode Switch: 1 x Slide Switch
  • Firmware Upgrade: 1 x Slide Switch

    Pushbuttons
  • Wakeup button: 1 x Push button
  • Video: Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 1080P@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160
    @ 30Hz (4:4:4)
  • Power Consumption: DC5V:6.74W:47BTU

    Environmental
  • Operating Temperature: 0-40°C
  • Storage Temperature: -20-60°C
  • Humidity: 0-80% RH, Non-condensing

    Physical Properties
  • Housing: Metal
  • Weight: 0.64 kg ( 1.41 lb )
  • Dimensions (L x W x H): 7.17 x 4.8 x 1.13 Inches


• Item Includes:

  • 1x CE920L USB DisplayPort HDBaseT 2.0 KVM Extender (Local Unit)
  • 1x CE920R USB DisplayPort HDBaseT 2.0 KVM Extender (Remote Unit)
  • 1x Microphone Cable
  • 1x Speaker Cable
  • 1x USB Type-A to Type-B Cable
  • 1x DisplayPort Cable
  • 1x Mounting Kits
  • 2x Power Adapters
  • 1x User Instructions


• GTIN:

  0672792008726
