Tripp Lite B020-U08-19-K NetDirector 19in Console KVM with 8 USB/PS2 Combo Cable Kits - 8Port
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Tripp Lite B020-U08-19-K NetDirector 19in Console KVM with 8 USB/PS2 Combo Cable Kits - 8Port

    Manufacturer: Tripp Lite

    Item #: TRL-B020U0819K   •   MFG #: B020-U08-19-K


    List Price:$2,160.00
    Our Price:$1,328.40

    free ship
    Availability: Usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


      California Residents:
      Cancer and Reproductive Harm -

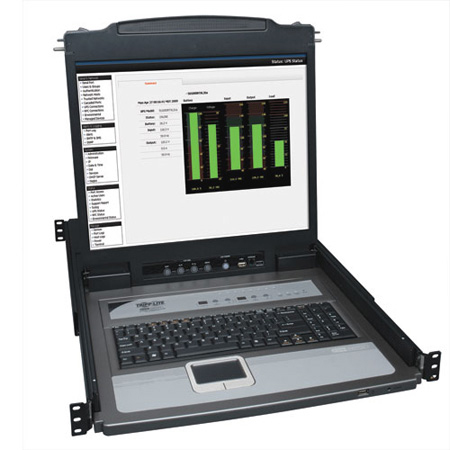

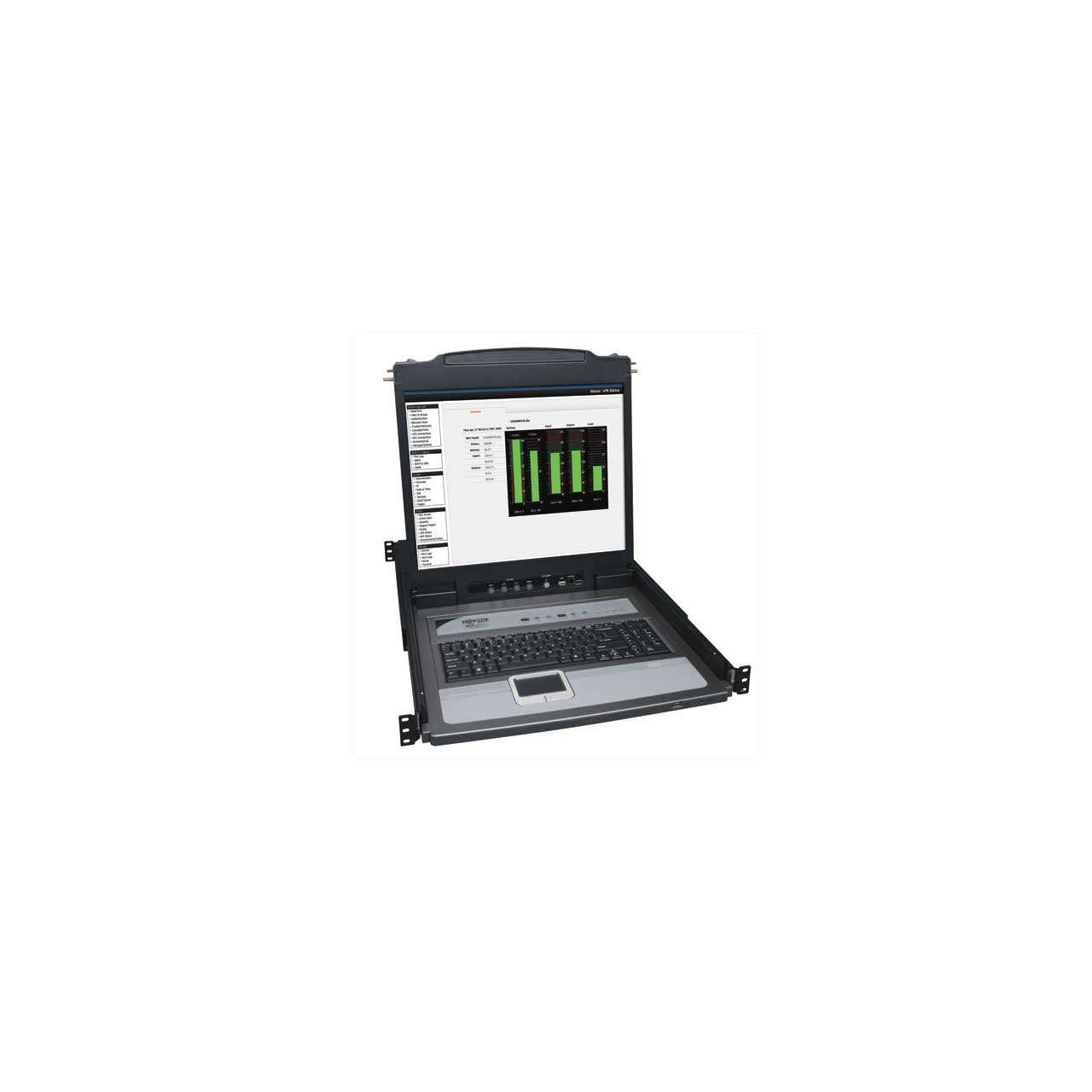

      Tripp Lite's 8-port Console KVM Switch with 19" LCD is the optimal solution for controlling multiple computers from one keyboard, mouse and monitor. This single unit combines an 8 port KVM switch, keyboard, 19" LCD monitor and touchpad; all in a mere 1U of rack space. Stores neatly in the rack, pulls out when needed. Control up to 504 computers from this single console by daisy-chaining additional 16 port KVM switches (model B022-U16). Easily switch ports using the On-Console push buttons, On Screen Display (OSD) or keyboard hot key commands. Includes eight, six foot Combo cable kits, which allow connection to either PS/2 or USB adapters needed. Includes a console cable kit that plugs into the port on the back of the unit, providing an extra HD15, (2) USB and (2) PS/2 ports that can be used to connect a Tripp Lite B051-000 IP Remote Access Unit or an external console. Two USB ports are provided on the front of the unit: One for attachment of a separate USB mouse, and the other for attachment of USB peripherals, such as a flash drive, external hard drive, etc. to be shared between connected servers. Compatible with all major operating systems. Constructed of heavy-duty steel housing.

      • Features

        • 1U rackmount console with built-in 8-Port KVM switch, 19" LCD screen, keyboard, and touchpad
        • Includes (x8) P778-Series USB/PS2 Combo KVM Cable Kits - A $240 Savings in Cable Costs! (based on $29.99 MSRP)
        • Additional ports are provided for the connection of an external console (PS/2 or USB) or IP remote access unit (model B051-000)
        • Features a USB 1.1 port on the LCD panel for the sharing of USB peripherals amongst the connected computers
        • Features a USB 1.1 port on the keyboard panel for the convenient connection of an external mouse
        • USB/PS2 combo KVM cable kits allow you to connect to a USB or PS/2 computer without having to purchase separate cables or adapters
        • Control up to 504 computers by daisychaining up to 31 additional B022-U16 KVM switches
        • Daisychain station position is automatically sensed; no need for manual DIP switch settings
        • OSD available in English, Spanish, French, German, and Japanese
        • Switch ports via on-console pushbuttons, hotkey keyboard commands, or the OSD
        • Auto scan feature allows for continuous scanning of connected computers
        • Two level password security (up to four Users and one Administrator)
        • Supports video resolutions up to 1280 x 1024
        • Firmware upgradeable
        • Input Power: 100-240VAC, 50/60Hz, 1A
        • Power Consumption: 120V, 28.5W / 230V, 29.1W\
        • Compatible with all major operating systems
        • Constructed of heavy-duty steel housing
      • Specifications

        • Unit Dimensions (HWD/cm): 4.45 x 43.18 x 68.58
        • Unit Weight: 30.6 lbs.
        • Relative Humidity 0 to 80% RH, Non-condensing
        • Operating Temperature 32 Degrees F to 120 Degrees F (0 to 50 C)
        • Storage Temperature -4 Degrees F to 140 degrees F (-20 to +60 C)
      • Item Includes

        • B020-U08-19-K 1U rackmount console with built-in 8-Port KVM switch, 19" LCD, keyboard, and touchpad
        • (x8) P778-006 6 ft. USB/PS2 combo KVM cable kits
        • USB/PS2 combo console cable kit
        • RJ11 to DB9 firmware upgrade cable
        • C13 to 5-15P power cord
        • CD with owner's manual
        • Quick start guide
        • Grounding wire
        • Rackmount hardware
      • System Requirements

        • Computer with a HD15 port, and a USB port or PS/2 keyboard/mouse ports
        • P778-006 USB/PS2 combo KVM cable kit is required for each connected computer/server
        • Compatible with all major operating systems
