ATEN CS1642A 2-Port USB DVI Dual Link Dual Display/Audio KVMP Switch

ITEM #: ATEN-CS1642A MFG #: CS1642A

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$499.00

Our Price:

$474.05

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CS1642A - Overview

The CS1642A 2-Port USB DVI Dual View KVMP Switch is a multi-application device that integrates a 2-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.

The new CS1642A features multi-view capabilities, which allow two switches to be daisy chained for a dual, triple, or quadview display across multi-monitor installations. The CS1642A supports advanced nVidia 3D Vision ready 120Hz 3D displaying, allowing you to manage various 3D visual effects. It allows you to manipulate all connected computers from a single console to save resources and work space. It enables each computer to access connected peripherals on a one-computer-at-a-time basis, making it ideal for users who need delicate visual effects and multi-tasking on several computers. The CS1642A is perfect for graphic designers, banking and financial consultants, gamers and medical professionals-demanding a high quality switch that provides stunning color, clarity and functionality.

  • Features:

    • One dual-screen USB console controls two/four dual-screen computers and two additional USB devices
    • Multi-View Display - Easily connect two CS1642A/1644A's units for a second dual-screen setup controlled through a single connection
    • Superior video quality - 2560 x 1600 at 60Hz (DVI Dual link); and 3D displays up to 1920 x 1200 at 120Hz (DVI Single link)
    • Supports widescreen resolutions
    • Independent switching of KVM, USB, and Audio focus
    • DVI digital and analog monitor support - fully compliant with DVI specifi cations; and HDCP compliant
    • Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, Sun,and FreeBSD
    • Sun/Mac keyboard support and emulation
    • Video DynaSync, exclusive ATEN technology, to eliminate boot-up display problems and optimizes resolution when switching between ports

  • Specifications:

    • Computer Connections: 2
    • Port Selection: Hotkey, Pushbutton, Mouse

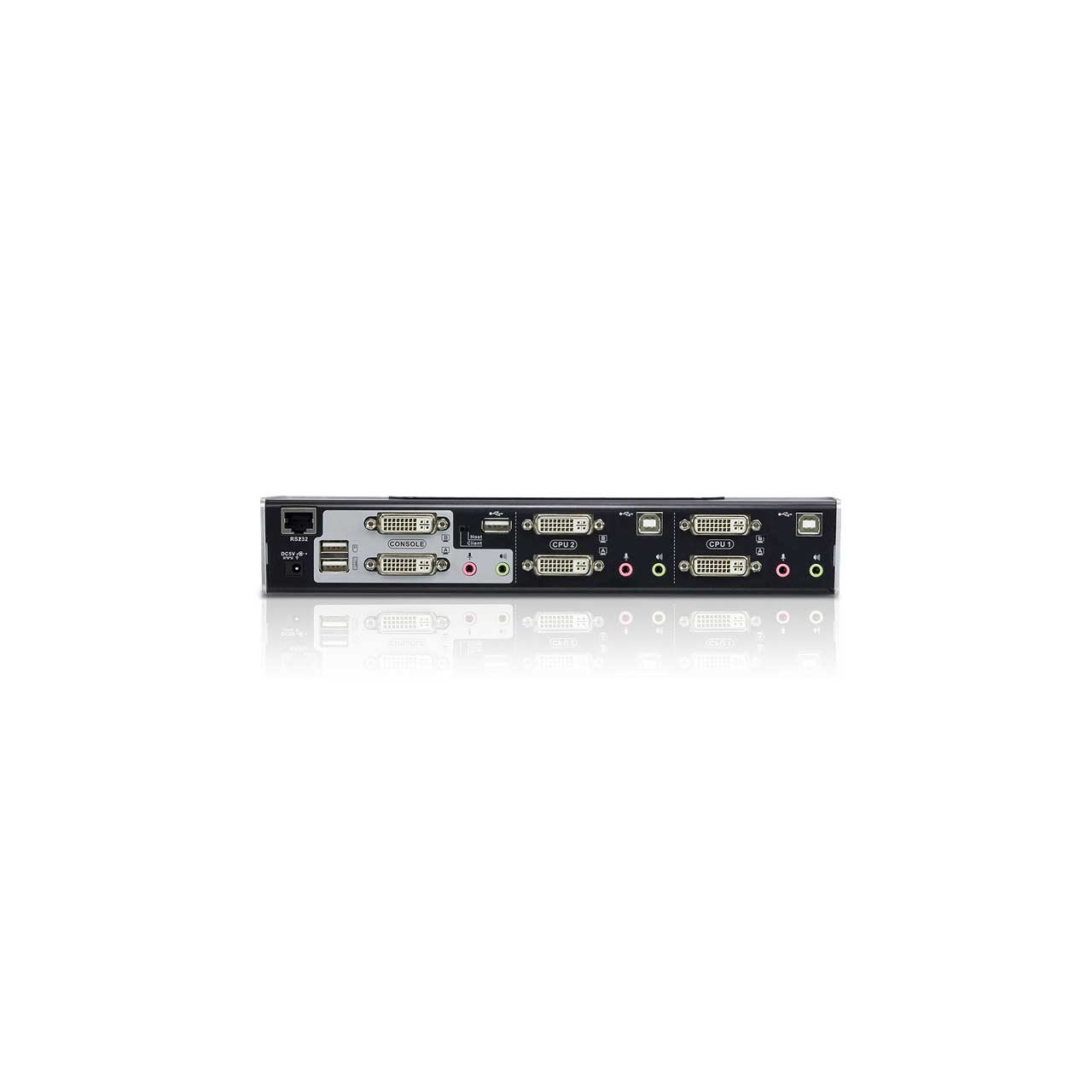

    • Console Ports: 2 x USB Type A Female (White, rear panel); 2 x DVI-I Female (White); 1 x Mini Stereo Jack Female (Green); 1 x Mini Stereo Jack Female (Pink)
    • KVM Ports: 2 x USB Type B Female (white); 4 x DVI-I Female (white); 2 x Mini Stereo Jack Female (Green); 2 x Mini Stereo Jack Female (Pink)
    • Daisy Chain Ports: 1 x RJ-45 Female (rear panel)
    • Power Jack: 1 x DC Jack
    • USB Hub: 2 x USB Type A Female (Black; 1 x front panel; 1 x rear panel)
    • Switches: Selected - 3 x Pushbutton
    • Emulation: Keyboard/Mouse - USB
    • Video: DVI Dual Link: 2560 x 1600 at 60Hz; 1920 x 1200 at 120Hz (3D Display)
    • Scan Interval: 1-99 secs. (5 secs. default)
    • Power Consumption: DC 5.3 V, 10.6 W
    • Operating Temperature: 0-50°C
    • Storage Temperature: -20-60°C
    • Humidity: 0-80% RH, Non-condensing
    • Housing: Plastic + Metal
    • Weight: 1.23 lb
    • Dimensions (L x W x H): 10.33 x 3.02 x 1.73 in.

  • Item Includes:

    • 1x CS1642A 2-Port USB DVI Dual View KVMP Switch
    • 4x Custom DVI-D Dual Link Cable Sets
    • 1x Power Adapter
    • 1x User Instructions

  • GTIN:

    0672792004261
