ATEN KH2516A 16-Port 2 Users Cat5 Matrix KVM
  • ATEN KH2516A 16-Port 2 Users Cat5 Matrix KVM
  • ATEN KH2516A 16-Port 2 Users Cat5 Matrix KVM
  • ATEN KH2516A 16-Port 2 Users Cat5 Matrix KVM
Questions? Ask a Markertek Expert:
800-522-2025 Email

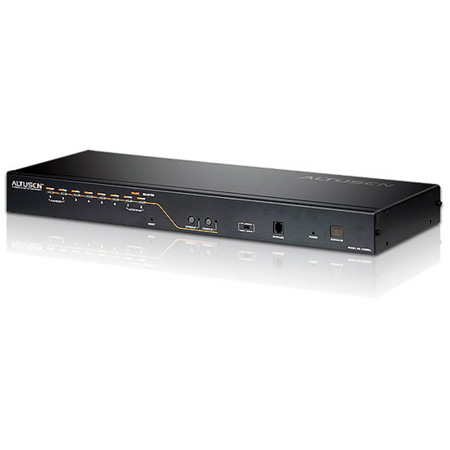

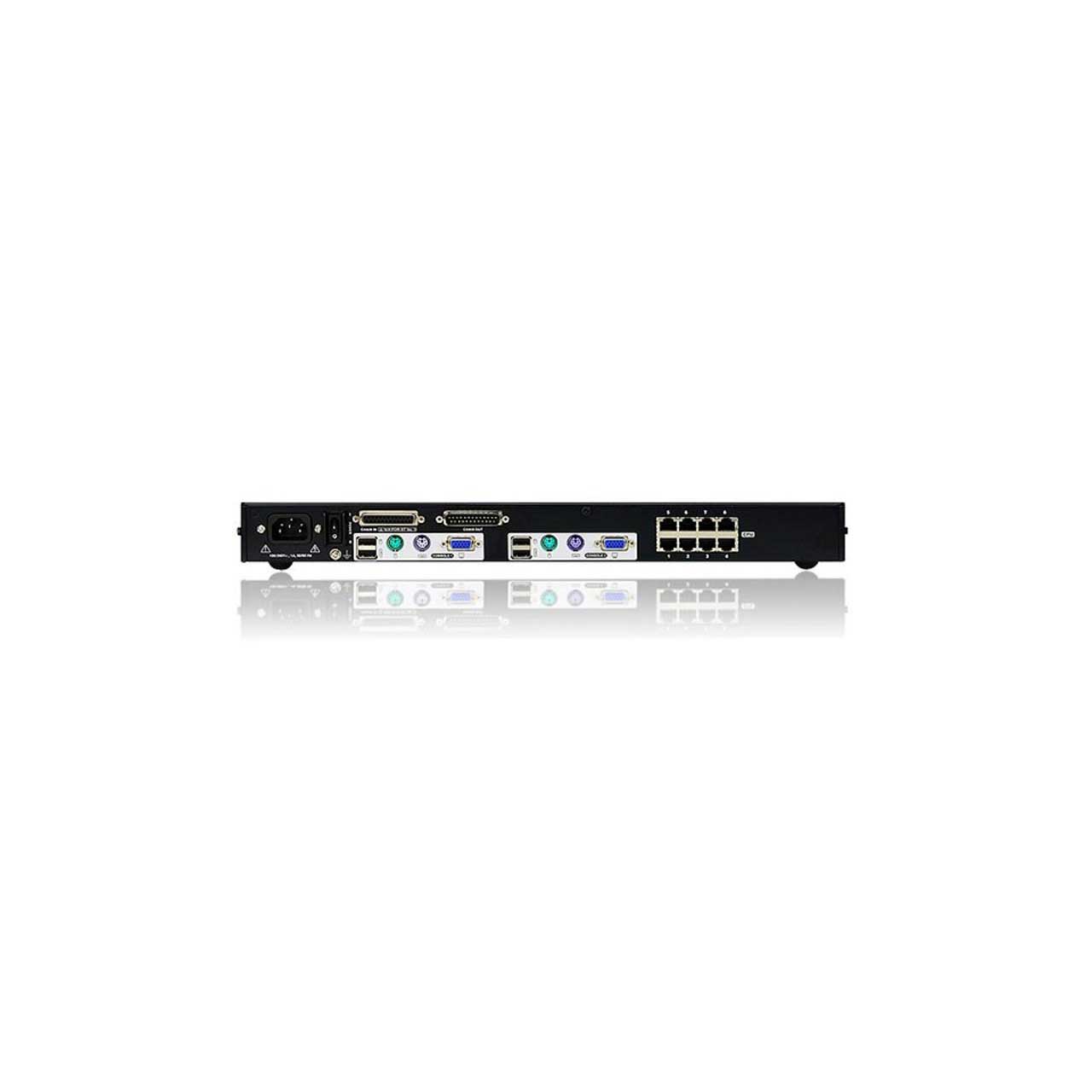

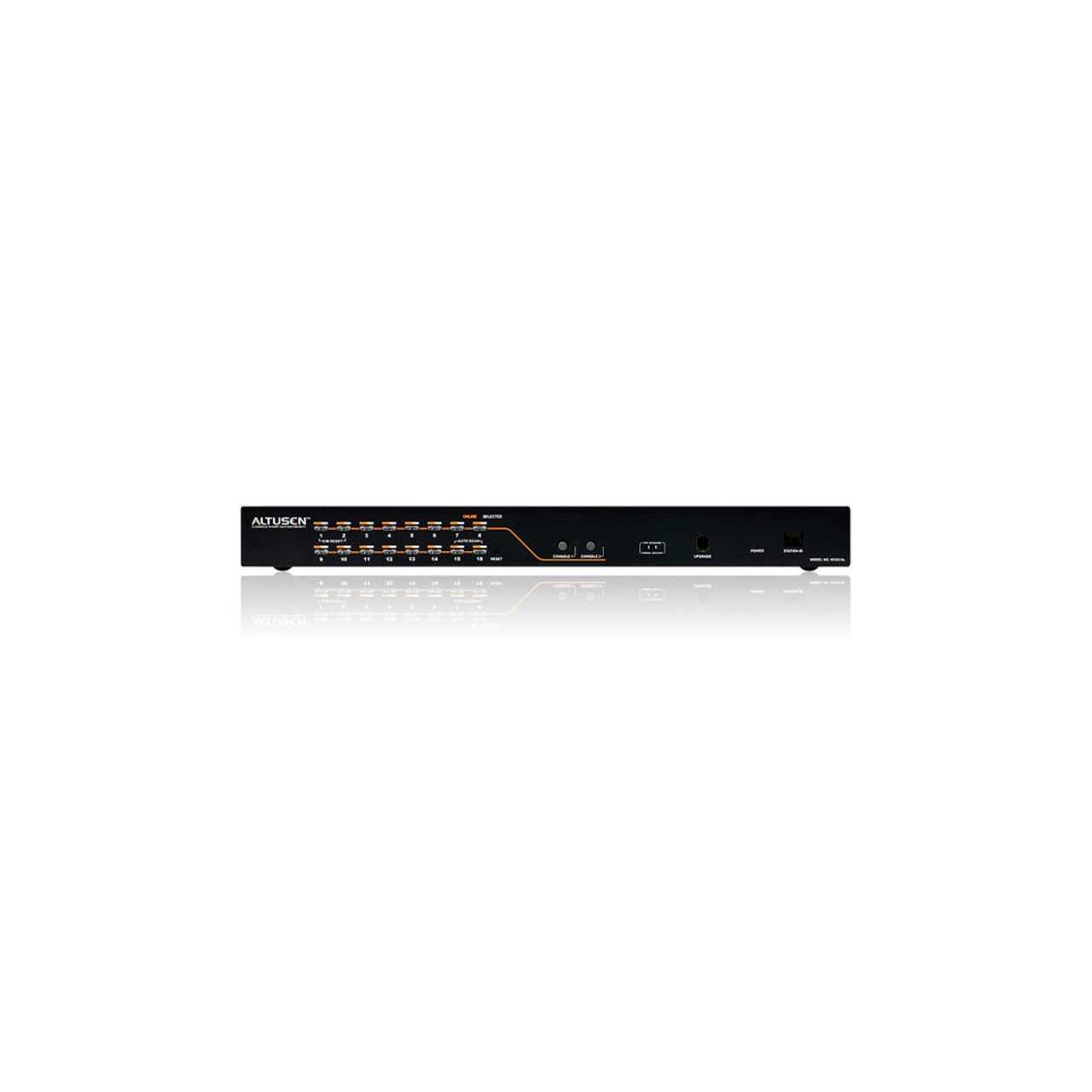

ATEN KH2516A 16-Port 2 Users Cat5 Matrix KVM

Manufacturer: ATEN

Item #: ATEN-KH2516A   •   MFG #: KH2516A


List Price:$725.00
Our Price:$639.95

free ship
Availability: Direct Ship From Manufacturer
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



The KH2516A KVM switch is a control unit that allows IT administrators to access and control multiple computers from two PS/2 or USB KVM consoles (one bus). Operators working at up to two consoles can independently and simultaneously take control of up to 16 computers. By daisy chaining up to 31 additional switches, as many as 512 computers can be controlled from the original KVM consoles.

This switch has been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently.

For example, the advanced Adapter ID feature stores the Adapter Cable's configuration information - such as its ID, port name, OS, keyboard language, etc. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters. Other advances found with these switches includes enhanced video quality - extending the distance to the servers to up to 165 feet (50 m) at a resolution of 1280 x 1024.*With KVM Adapter Cable KA7000 series

A KH2516A installation provides one of the best, and most economical, solutions ATEN offers to the SMB market. There is no better way to save time, space, and money than with a KH2516A KVM switch.

  • Features

    • Two KVM consoles independently and simultaneously control up to 16 directly connected computers
    • By daisy chaining up to 31 additional KH2516A switches, as many as 512 computers can be controlled from the original KVM console
    • Console conversion - any type of KVM console can control any type of computer; mixed combinations (PS/2&USB)
    • supported on both the KVM console and computer sides
    • Superior Video Quality- Supports the video resolutions up to [email protected] for up to 130 feet (40 m), and [email protected] Hz for up to 165 feet (50 m) *With KVM Adapter Cable KA7000 series
    • Configue port access rights for users on a port - by - port basis
    • Diversified port operation mode enables flexible computer management - Occupy, Exclusive and share modes
    • Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
    • Multiplatform support - PC, Mac, Sun, and serial
    • Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
    • Two-Level Password Security- Supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation
    • Auto Scan mode enables continuous monitoring of user-selected computers
    • Broadcast Mode sends commands from the console to administrator-selected computers - allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
    • Adapter ID
    • Firmware Upgradeable
  • Specifications

    • Computer Connections:
    • Direct: 8
    • Daisy Chain or Cascading: 504 maximum [Daisy Chain]
    • Port Selection OSD (On Screen Display); Hotkey; Push button
    • Keyboard: 2x USB Type A F/ 2 x 6-pin Mini-DIN F
    • Mouse: 2x USB Type A F/ 2 x 6-pin Mini-DIN F
    • Monitor: 2 x HDB-15 F
    • Flash ROM Upgrade: 1 x RJ-11
    • Keyboard, Mouse, and Monitor: 8 x RJ-45
    • Daisy Chain: [in] 1 x DB-25 F / [out] 1 x DB-25 M
    • Power: 3-Prong AC socket
    • Port Selection: 8 x Pushbutton
    • F/W Upgrade: 1 x Slide
    • Power: 1 x Rocker
    • Console Selection: 2 x Pushbutton
    • Reset Switch: 1 x Recessed pushbutton
    • LEDs
    • On Line: 8 (Green)
    • Selected: 8 (Orange)
    • Manual select: 2 (Orange)
    • Power On: 1 (Blue)
    • Station ID: 1 x 2 Digit 7-segment (Orange)
    • Keyboard: PS/2; USB
    • Mouse: PS/2; USB
    • Video Resolution: 1600 x 1200 @ 60 Hz [130ft] 1280 x 1024 @ 75 Hz (165 ft)
    • Voltage: [input] 100-240 VAC; 50/60 Hz; 1A
    • Power Consumption: 60mA - 7.2 W -- 24.5 BTU / hr.
    • Operation Temperature: 32 - 122 F
    • Storage Temperature: -4 - 140 F
    • Humidity: 0 - 80% RH
    • Width: 17.2 in
    • Height: 1.7 in
    • Depth: 6.4 in
    • Unit Package Dimensions
    • Width: 24.75 in
    • Height: 4.375 in
    • Depth: 15.5 in
