ATEN VB552 VGA Over Cat 5 Repeater & Audio
  • ATEN VB552 VGA Over Cat 5 Repeater & Audio
  • ATEN VB552 VGA Over Cat 5 Repeater & Audio
  • ATEN VB552 VGA Over Cat 5 Repeater & Audio
Questions? Ask a Markertek Expert:
800-522-2025 Email

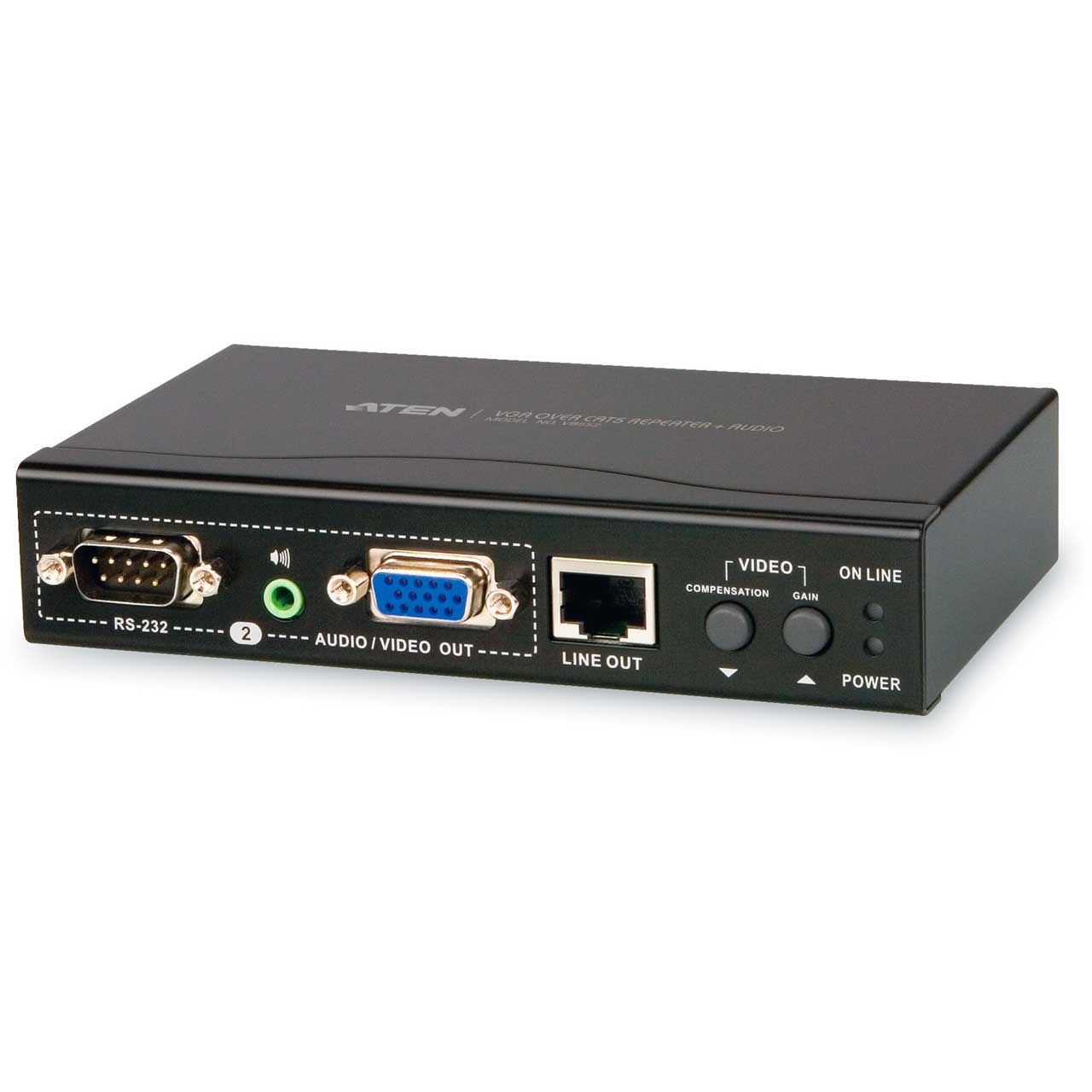

ATEN VB552 VGA Over Cat 5 Repeater & Audio

Manufacturer: ATEN

Item #: ATEN-VB552   •   MFG #: VB552


List Price:$330.00
Our Price:$259.99

free ship
Availability: Direct Ship From Manufacturer
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.

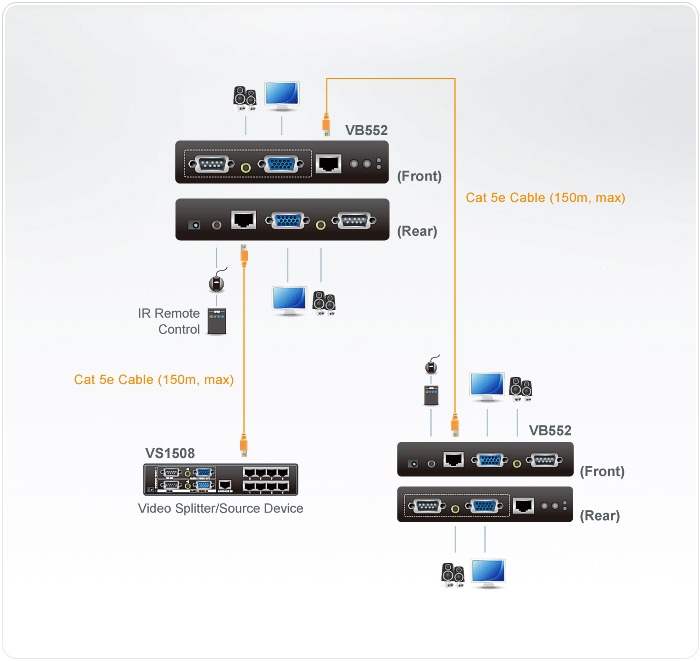

The VB552 VGA Over Cat 5 Repeater +Audio is an audio/video signal extension device which is compatible with ATEN Cat 5 Audio/Video splitters. The VB552 extends the audio/video transmission range an extra 150m over Cat 5e (or higher) cables. The use of an additional repeater means the audio/video signals can be transmitted over even longer distances, up to 450m.

Furthermore, for longer distance installations where video signals may degrade, the VB552 has adjustable video gain and compensation controls to provide the sharpest video quality possible. An IR remote control also provides picture control at the remote site.

Rack-mountable, with two RS-232 channels on the unit for selection, and support for high video resolutions, the VB552 is the perfect solution to extend the range of your A/V and serial transmissions in any installation environment requiring VESA FDMI mount standards.

  • Features

    • Uses Cat 5e cable to extend audio/video signal
    • Extends the transmission range an extra 150m
    • High-quality video - up to [email protected] at 30m, [email protected] at 150m, [email protected] at 200m
    • Audio and serial enabled
    • Two gain control modes for sharpest picture quality
    • Video gain and compensation adjustable via OSD
    • IR receiver for quick and easy video quality adjustment
    • IR remote control for screen on/off and video adjustment at remote site
    • Provide a RS-232 channel for selection*
    • Follows VESA FDMI mount standard
    • Supports DDC for the local monitor
    • Supports VGA, SVGA, XGA, SXGA, UXGA and multisync monitors
    • For use in combination with VS1504/VS1508 Audio/ Video splitter
    • *Only one RS-232 channel can be selected at a time
  • Item Includes

    • 1x VB552 VGA Over Cat 5 Repeater + Audio
    • 1x Power Adapter
    • 1x Infrared Remote Control Handset
    • 1x Infrared Receiver
    • 1x IR Receiver Holder
    • 1x Mounting Kit
    • 1x User Instructions
