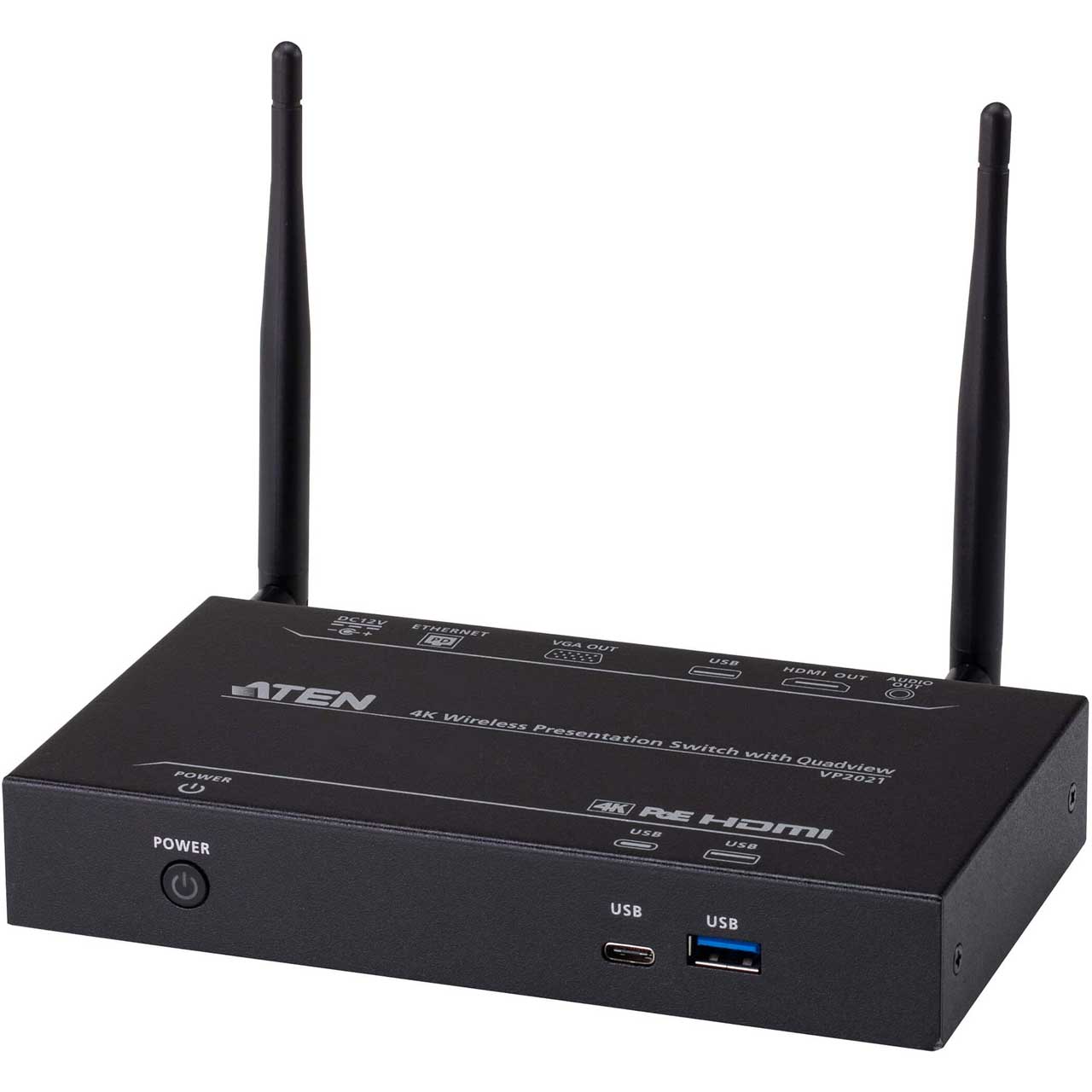

ATEN VP2021 PresentON 4K Wireless BYOD Quad View Presentation Switch w/USB Touch Panel - HDMI/VGA - TAA Compliant

ITEM #: ATEN-VP2021 MFG #: VP2021

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$865.87

Our Price:

$822.58

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    VP2021 - Overview

    ATEN PresentON™ VP2021 is a wireless BYOD solution that enables anyone, including visitors, to easily share content from a laptop or mobile device so that participants can actively collaborate for enhanced, efficient workflows.

    The VP2021 features Multi-view and audio out, which are designed to increase content-sharing flexibility. Moreover, it is equipped with USB touch back and moderation mode functions, allowing presenters to easily control meetings. The VP2021 also has innovative collaboration tools that allow teams to enhance their productivity. This solution also features remote view for all participants to immerse themselves in the presentation. In addition, its PoE connectivity makes installation easy. It's perfectly suited for both huddle spaces and large meeting spaces and is flexible enough for corporate or education use.

    Quad view presentations make it feasible for cross-departmental collaboration to rapidly focus on key points and cross-reference information for discussion, helping to improve workflows and efficiency.

    Wirelessly share BYOD presentation content with ATEN software on PC, mobile apps, and web browsers; compatible with Airplay and Google Cast for unlimited sharing and collaboration.

    USB Touch Back can control remote laptops with a mouse or touchscreen, allowing the speaker to take the lead in meetings and be more efficient without having to move about just to access devices.

    Moderation Mode allows presenters to easily control and manage the content shared by other participants, including muting, stopping all sharing, and disconnecting a participant.

    With 3.5 mm audio output to increase the flexibility of use, not only is meeting audio crystal clear, but also it can be integrated with the audio system to enhance the audio-visual experience.

    Collaboration tools allow team discussions to illustrate ideas directly on the main screen, annotate, or quickly screen capture for record-keeping to enhance team productivity.

    Remote View on the ATEN Presentation App lets remote participants view presentations from their own screens, save or copy the main screen, allowing them to be more immersed in the presentation.

    With PoE, only one network cable is needed for power and information transmission, eliminating complicated wiring and offering flexibility in space deployment and speedy installation.

    • Features:

      • A BYOD presentation switch with wireless presentation capability
      • Up to 4K content can be output to 1 HDMI-enabled display and 1 VGA-enabled display at the same time
      • Allows native content sharing from users' laptop screens though the ATEN Wireless Presentation Switch App available on Windows, macOS, and Android
      • Compatible with popular operating systems, including AirPlay, Google Cast, and Chrome, for wireless content sharing
      • Multi-view presentation - up to four sources can be shared wirelessly in full screen / side-by-side / quad view layout
      • Auto layout projection - presentation layout can be switched automatically whenever a new signal is detected
      • Multiple simultaneous connections - enables up to 8 attendees to join the meeting remotely through its wireless connection or up to 20 attendees via LAN connection in the same network environment
      • Moderation Mode - the moderator can manage and control team members' connection status and the AV content being displayed
      • Multiple collaboration tools - annotation, whiteboard on screen, and screen capturing
      • USB touch back - allows for seamless operation of a presentation directly from a connected touchscreen or mouse
      • Web GUI for control and configuration of the presentation switch
      • Supports Power over Ethernet (PoE) connectivity for easier installation, eliminating the need for an additional power adapter
      • HDMI audio de-embedding - enables easy integration with audio amplifiers or mixing systems
      • A perfect collaboration terminal that suits any wireless video conference and digital learning application

    • Specifications:

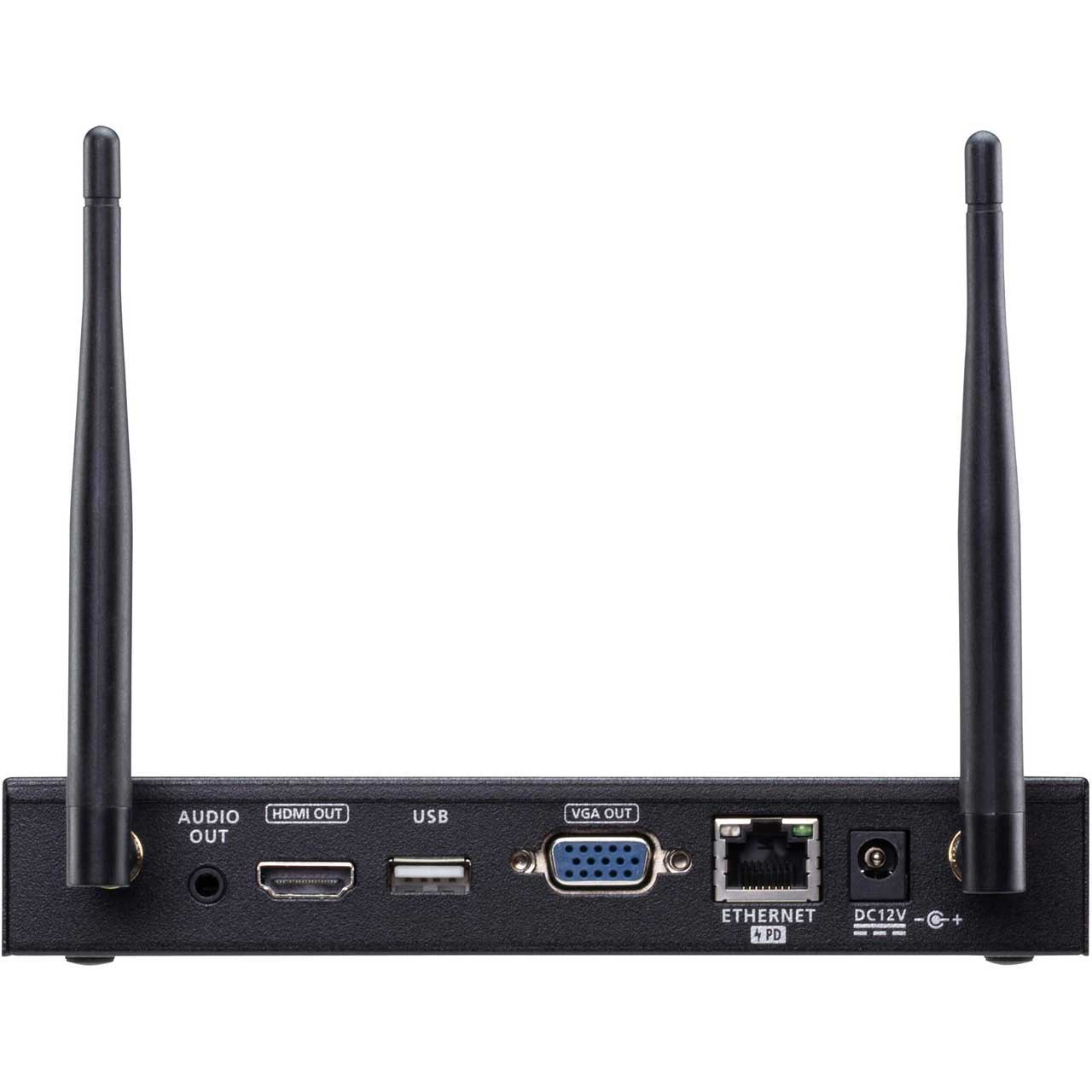

      • Video Output:
      • Interfaces: 1 x HDMI Type A female (Black); 1 x VGA (HDB-15) Female
      • Max. Distance: HDMI: Up to 5m; VGA: Up to 15m

        Video:
      • Max. Resolution: HDMI: Up to 4K@30Hz; VGA: Up to 1080p

        Audio:
      • Output: Stereo Audio: 1 x mini stereo Jack female (Black)

        Wireless:
      • Authentication Protocol: AP mode: WPA2-PSK; Station mode: WEP, WPA, WPA2, 802.1x EAP;
      • Wireless Transmission Protocol: IEEE 802.11ac
      • Frequency Band: Switchable dual band 2.4GHz and 5GHz (DFS channels not supported)
      • Reach: 20m Transmission in 5GHz; 30m Transmission in 2.4GHz

        Connectors:

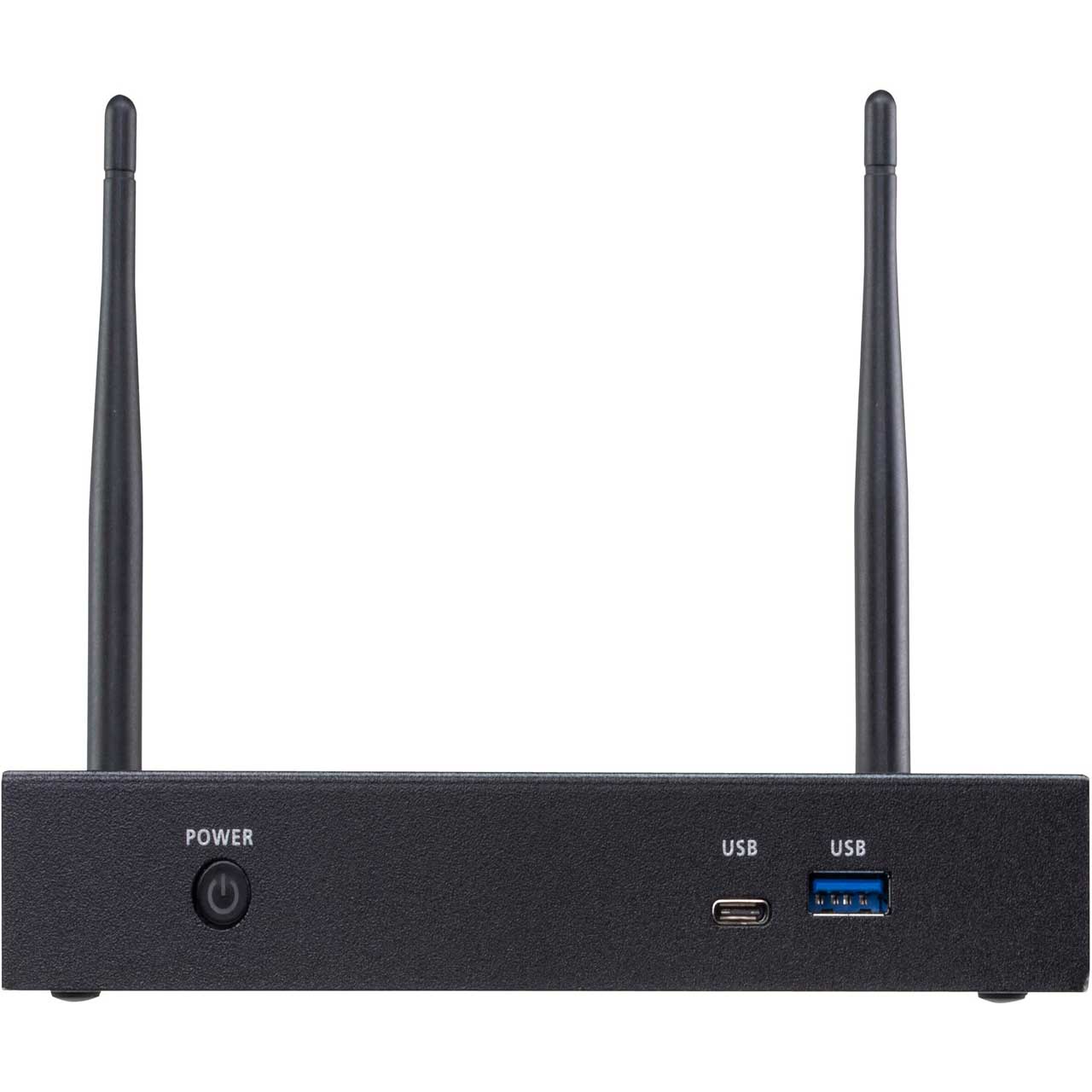

      • Console Ports: USB 3.0: 1 x USB Type A Female (Blue); USB 2.0: 1 x USB Type A Female; USB-C: 1 x USB Type C Female
      • Power: 1 x DC Jack (Black)

        Switches:
      • Power: 1 x Pushbutton (LED: Blue)

        Control:
      • Ethernet: 1 x RJ-45 Female (Silver)

        Power Consumption: DC12V: 12WBTU

        Environmental:
      • Operating Temperature: 0-40°C
      • Storage Temperature: -20 - 60°C
      • Humidity: 0 - 80% RH, Non-Condensing

        Physical Properties:
      • Housing: Metal
      • Weight: 0.47 kg ( 1.04 lb )
      • Dimensions (L x W x H): 17.00 x 10.40 x 2.83 cm (6.69 x 4.09 x 1.11 in.)
      • Carton Lot: 5 pc
      • Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

        Input Resolutions: 640 x 480 @ 60/67/72/75 Hz; 1600 x 1200 @ 60 Hz; 800 x 600 @ 56/60/72/75 Hz; 1680 x 1050 @ 60 Hz; 1024 x 768 @ 60/70/75 Hz; 1920 x 1080 @ 50/60 Hz; 1280 x 720 @ 50/60 Hz; 1920 x 1200 @ 60 Hz; 1280 x 800 @ 60 Hz; 3840 x 2160p @ 30 Hz (RGB); 1280 x 1024 @ 60/75 Hz; 1440 x 900 @ 60 Hz

    • Item Includes:

      • 1x VP2021 4K Wireless Presentation Switch with Quad View
      • 1x power adapter and power cord
      • 2x WiFi antennas
      • 1x user instructions
