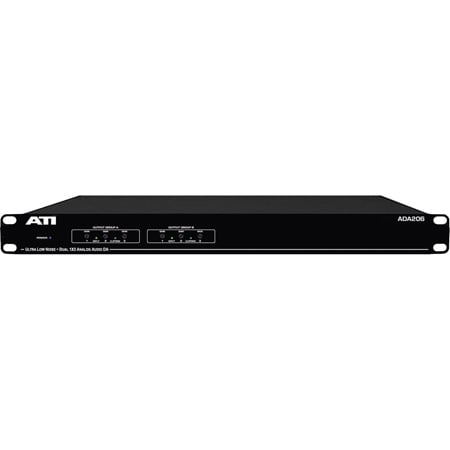

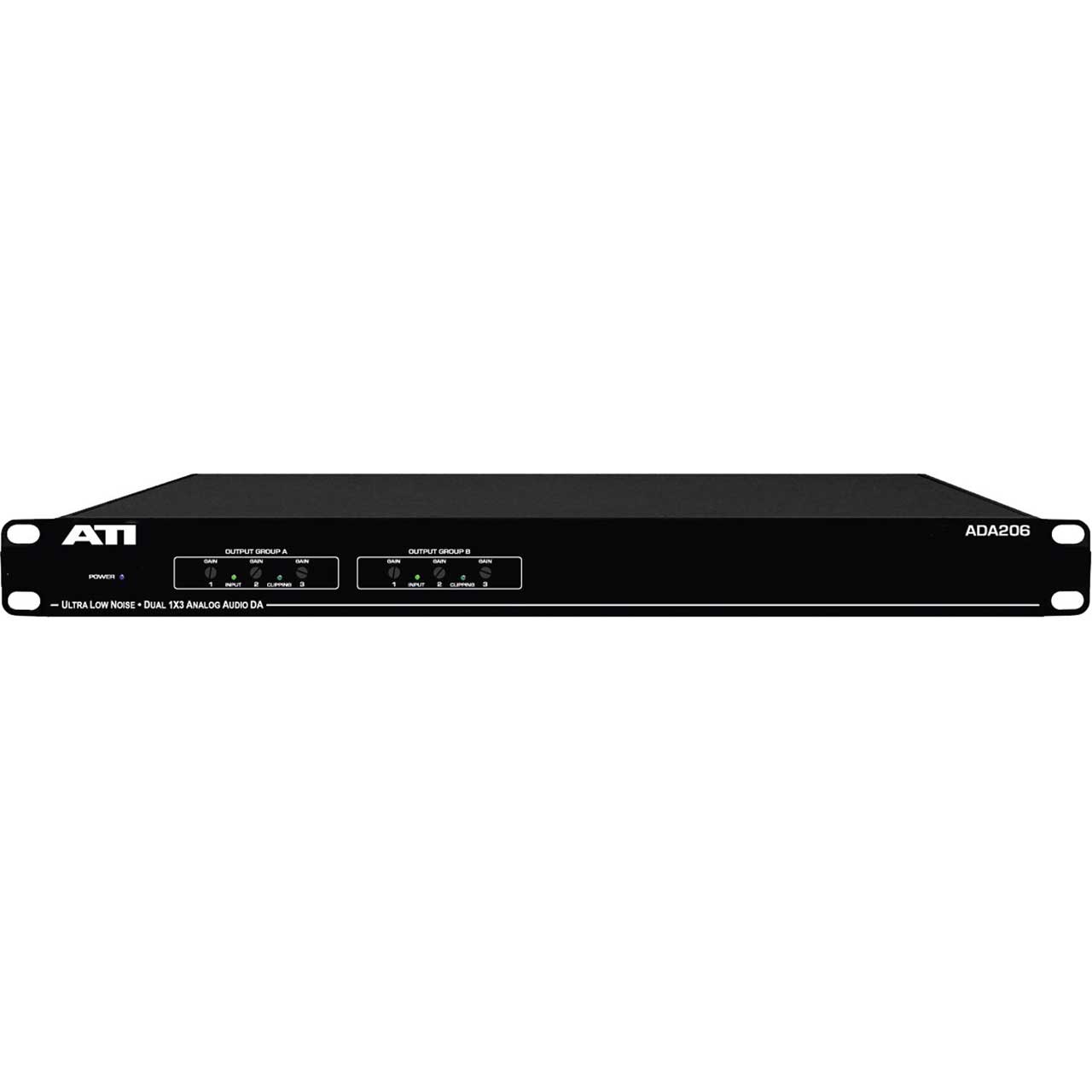

ATI ADA 206-XLR Dual 1x3 Low Noise Analog Audio Distribution Amplifier - XLR Connectors
  • ATI ADA 206-XLR Dual 1x3 Low Noise Analog Audio Distribution Amplifier - XLR Connectors
  • ATI ADA 206-XLR Dual 1x3 Low Noise Analog Audio Distribution Amplifier - XLR Connectors

Questions? Ask a Markertek Expert:
800-522-2025 Email

ATI ADA 206-XLR Dual 1x3 Low Noise Analog Audio Distribution Amplifier - XLR Connectors

Manufacturer: DaySequerra

Item #: ATI-ADA-206-XLR   •   MFG #: ADA 206-XLR




Our Price:$1,099.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.






    The DA206 is ideal for every application and every budget. Avoid RF and hum pick-up problems from noisy, lossy splitters. Prevent hard-to-find shorts from multiple taps on critical lines. Boost console outputs. Drive long lines. Eliminate rolloffs and distortion from mismatched load impedances and enjoy the maximum versatility that this unit provides. The DA206 gives you two inputs, each driving a master input gain adjustment and three individual output level trimmers. All outputs are ground sensing and active balanced. You can parallel the inputs with internal jumper plugs for up to 1 x 6 operation. Drive everything from balanced 600-ohm lines to HI-Z IHF phono jack inputs without matching pads or noise compromises. You get transparent performance, RF protected.

    The DA206 is fully RFI protected with double ground plane PC boards, a shielded enclosure, split and bypassed input and output networks, ferrite suppressors with double line bypassing and non-concentric wound, semi-toroidal power transformers, and has active balanced outputs.


    • Features

      • Six balanced outputs divided among two independent 1 in to 3 out channels; an internal jumper plug parallels inputs for 1X6 operation

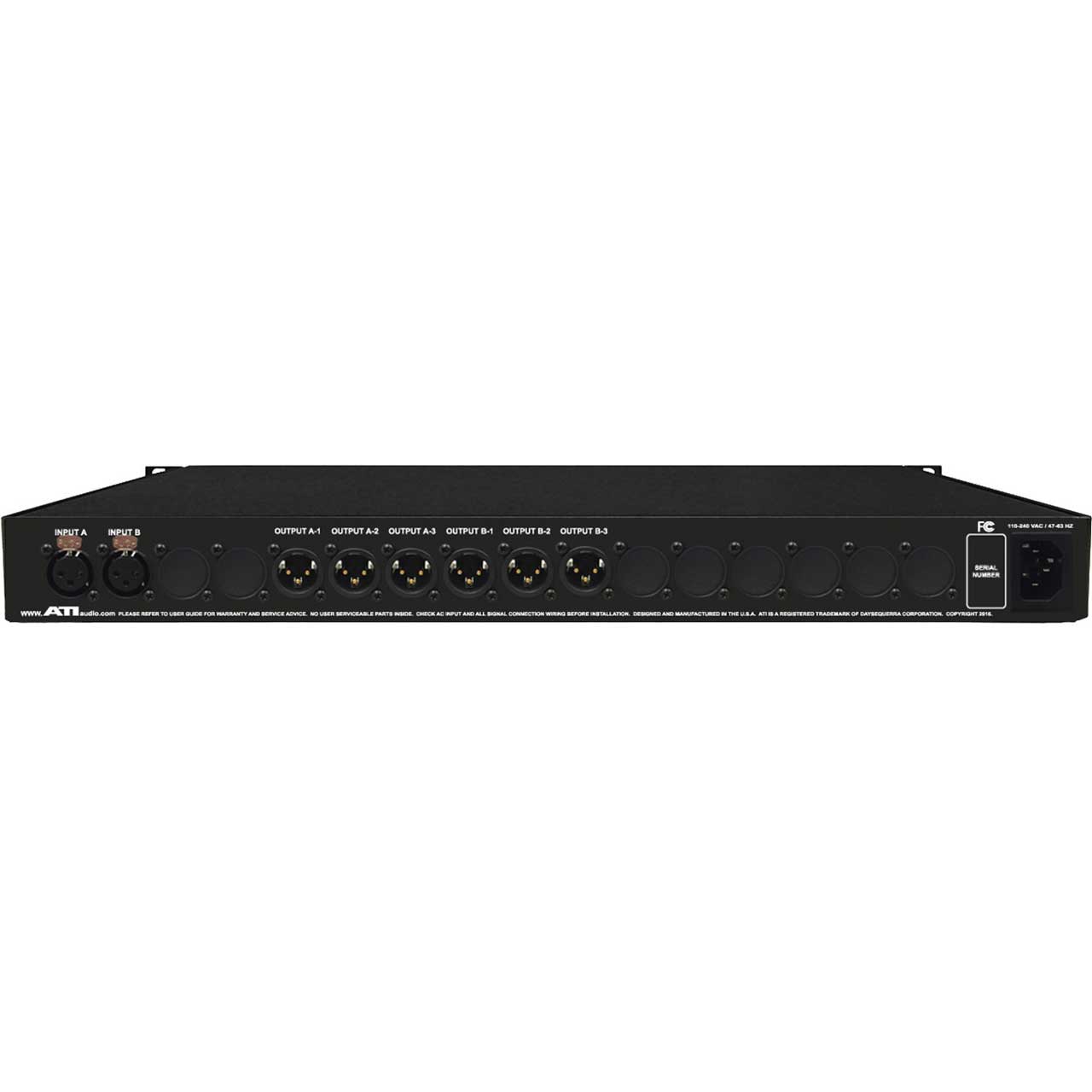

      • XLR input and output connectors
      • Master input level controls plus plug programmable input gain accepts nominal inputs of -20, -10 or +4dBu; individual audio taper output controls adjust outputs from +8 to -10dBm
      • Ground sensing active balanced outputs drive balanced or grounded loads with extremely low distortion and low noise

    • Specifications

      • Gain: 40dB Max
      • Nominal Levels: +4dBm out , +4 to-20dBu in.
      • Peak Levels: +22dBu in., +22dBm out.
      • Distortion THD: .10% at peak levels; .005 at nominal levels; 20Hz to 20kHz
      • IMD: .05% maximum
      • SMPTE Response: +/-.25dB 20 to 20,000 Hz
      • Crosstalk & Output Isolation: 70dB min at 10kHz, a shorted output does not affect any other outputs.
      • Noise: 20kHz bandwidth, -75dBm out at full gain.
      • Inputs: 20k ohm active balanced, split and RF bypassed, 60dB
      • CMR: at 60Hz

    • Warranty

      • Limited One Year
