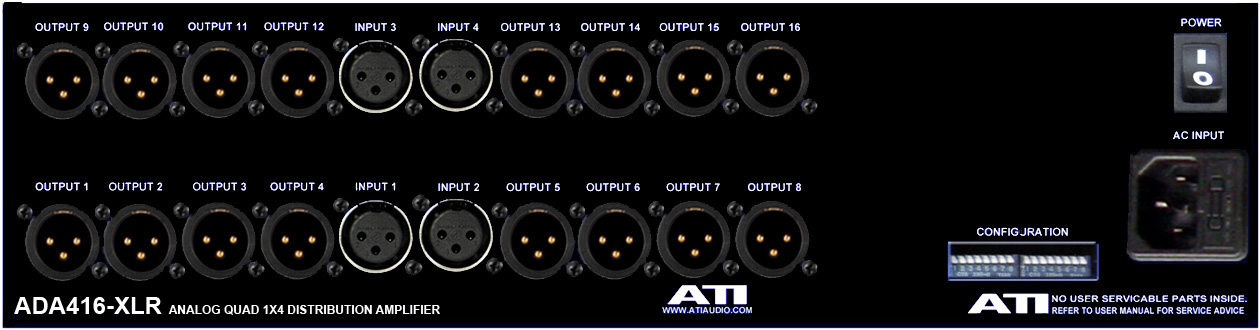

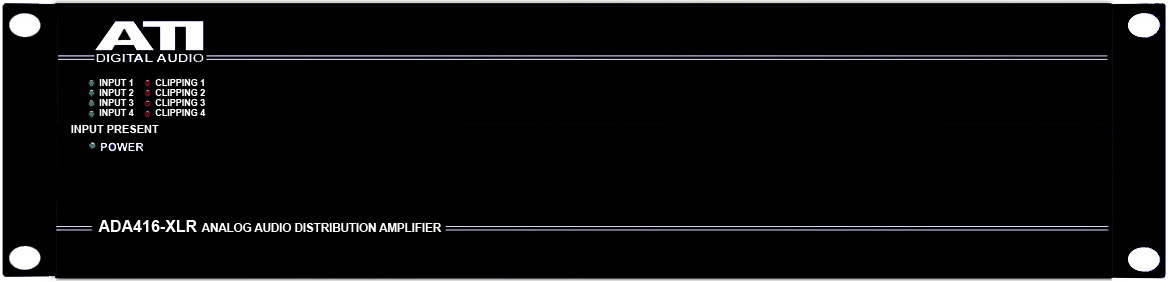

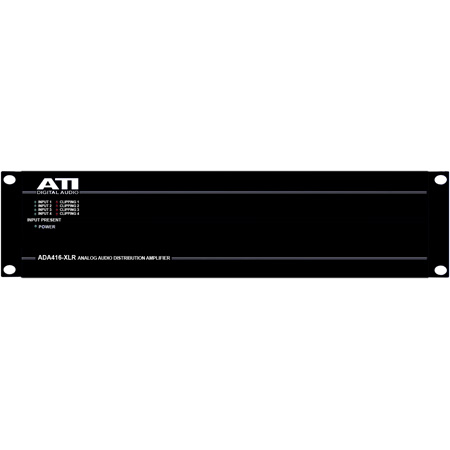

ATI ADA416 Ultra Low Noise - Quad 1x4 Analog Audio DA

Manufacturer: DaySequerra

Item #: ATI-ADA416   •   MFG #: ADA416



List Price:$1,695.00
Our Price:$1,679.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.






    Exceptional performance and unfaltering dependability are the hallmark traits of the ADA416. Available exclusively with Phoenix connectors, the ADA416 is RF protected and eliminates noise from lossy splitters while driving long lines.


    • Features

      • Sixteen balanced outputs divided among four independent channels
      • Individual wide range audio output level controls
      • Separate input and clipping LED’s for each 1x4 group
      • Active balanced outputs with automatic ground sensing for connecting to balanced or unbalanced loads

    • Specifications

      • Number of inputs: 4
      • Input type: Active balanced with RFI filtering
      • Input audio level: Adjustable - 10 dBu to +4 dBu
      • Max input level: + 26 dBu
      • Input impedance: >10K Ohms (balanced)
      • Input CCMR: 60 dB at 60 Hz
      • Gain: 20 dB Max
      • Nominal level: + 4 dBu input/output
      • Peak Levels: + 26 dBu input and + 26 dBu output
      • Number of outputs: 16
      • Output level: + 4 dBu
      • Max output level: + 26 dBu
      • Output impedance: < 40 Ohms
      • Output gain adjust: + 8 dB to - 10 dB for each output
      • Output protection: Short circuit protection on each output
      • Frequency response: +/- 0.1 20 Hz to 20 kHz
      • THD distortion at + 4 DB: 0.01% 20 Hz to 20 kHz
      • THD distortion at max level: 0.1% 20 Hz to 20 kHz
      • IMD distortion SMPTE: 0.05%
      • Signal to noise ratio: > 90 dB 20 Hz to 22 kHz
      • Inter channel level difference: > 0.5db 20 Hz to 20KHz
      • Inter channel phase difference: < 0.5 degrees 20 Hz to 20 kHz
      • Inter chanel crosstalk: > 90 db 20Hz to 20KHz
      • Slew rate: 13 volts per microsecond
      • IO connectors: Phoenix
      • Electro magentic interference(EMI): Unit is intrinsically EMI proof
      • Power: Auto-sensing 110-240 VAC +/- 10% 47 to 63 Hz, 20 VA
      • Size(W x D x H): 19 inch x 1.75 inch x 7.5 inch (48.3 cm x 4.4 cm x 19cm)
      • Weight: 5 lbs. (2.3 kg) net shipping weight
