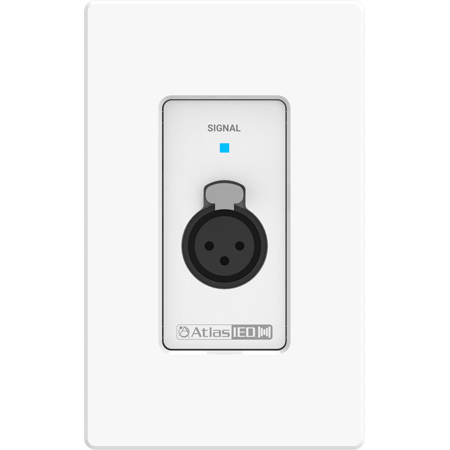

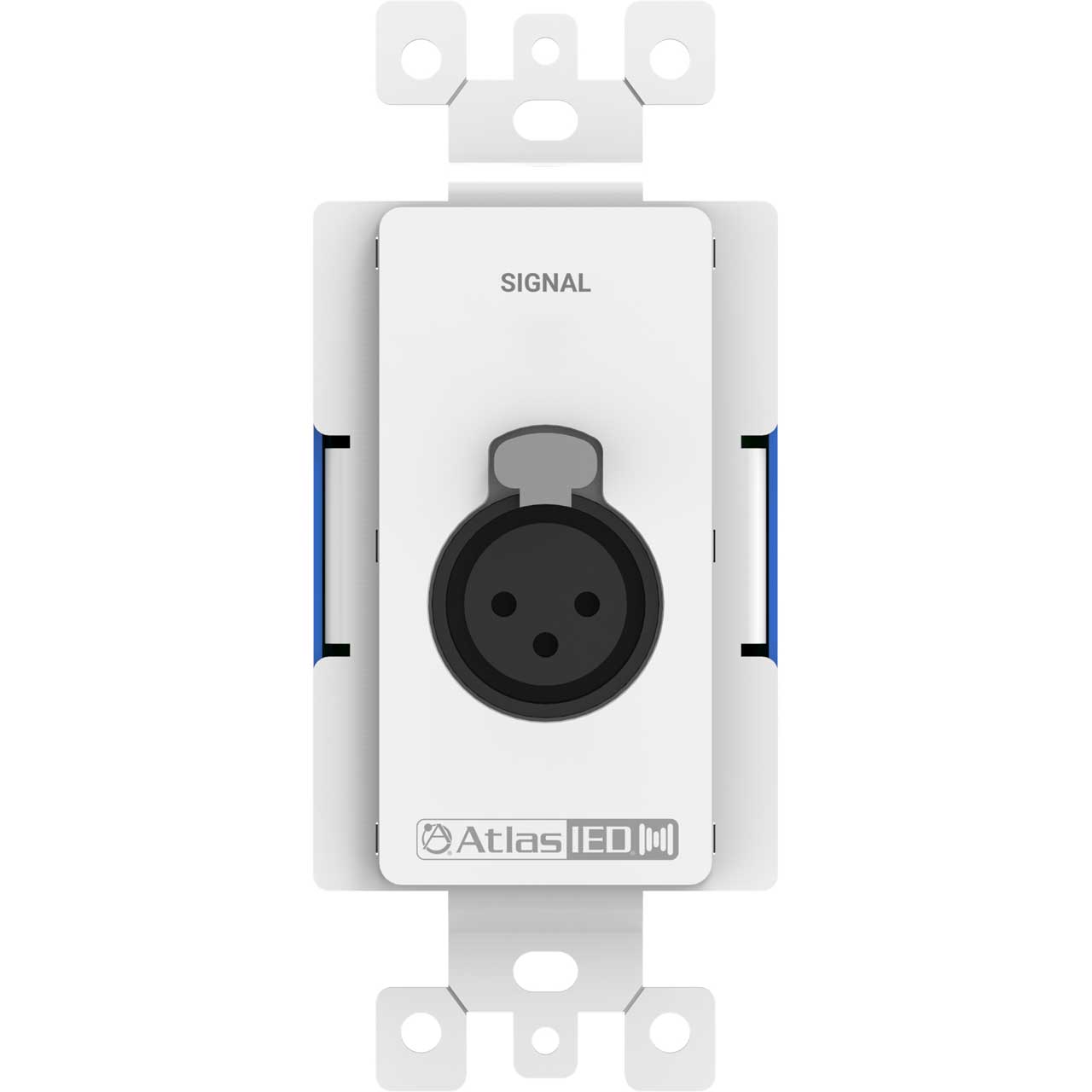

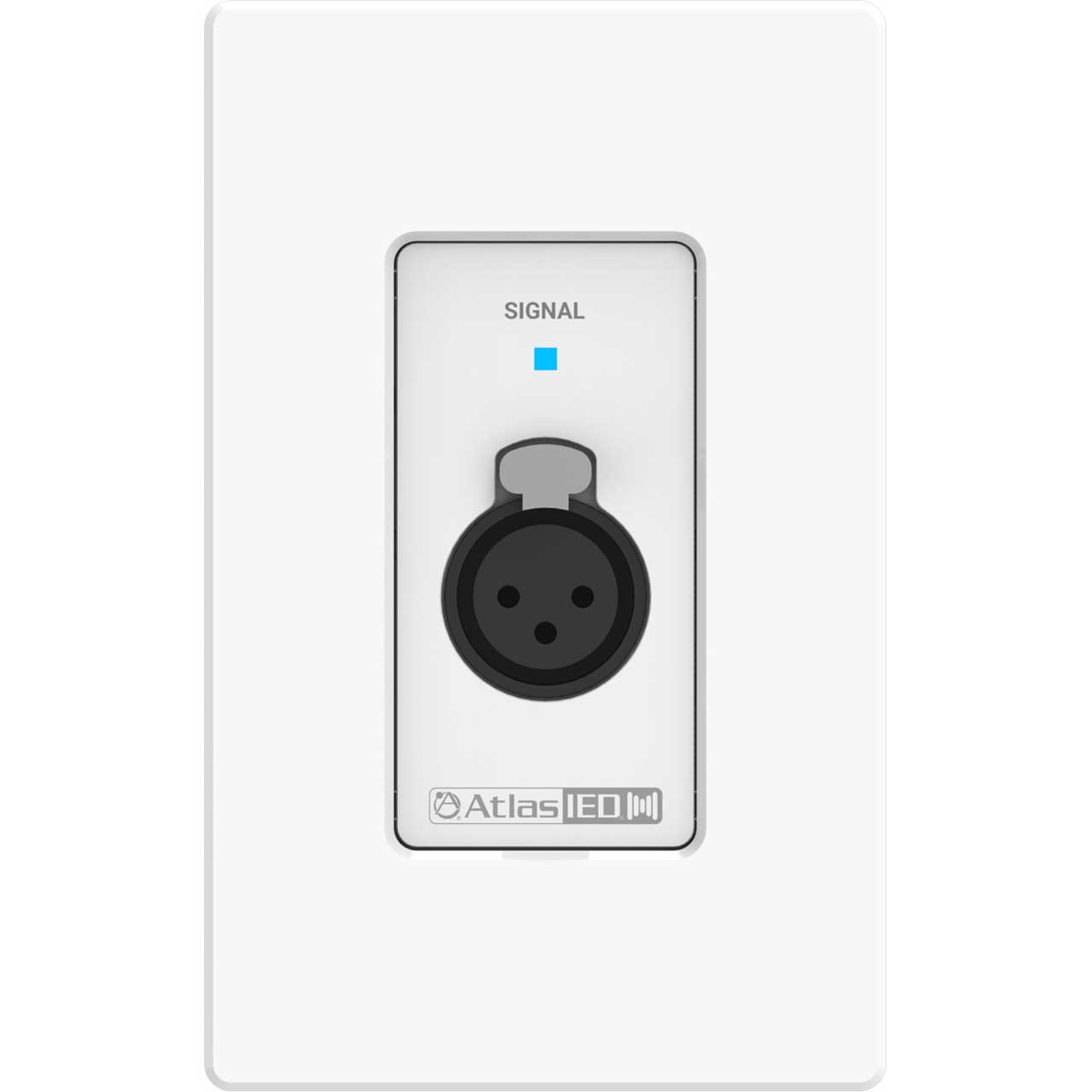

Atlas IED Atmosphere A-XLR Remote XLR Audio Input

ITEM #: ATL-A-XLR MFG #: A-XLR

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:

$234.00

Our Price:

$222.00

Availability: In Stock
iAvailability Description Popup


    A-XLR - Overview

    AtlasIED's Atmosphere 2.0 Audio Control System sets a new standard for digital audio with multi-zone processors, amplifiers, and a variety of accessories. Touchless control, easy-to-program automation, and artificial intelligence offer integrators and users an effortless way to create the perfect Atmosphere for any business!

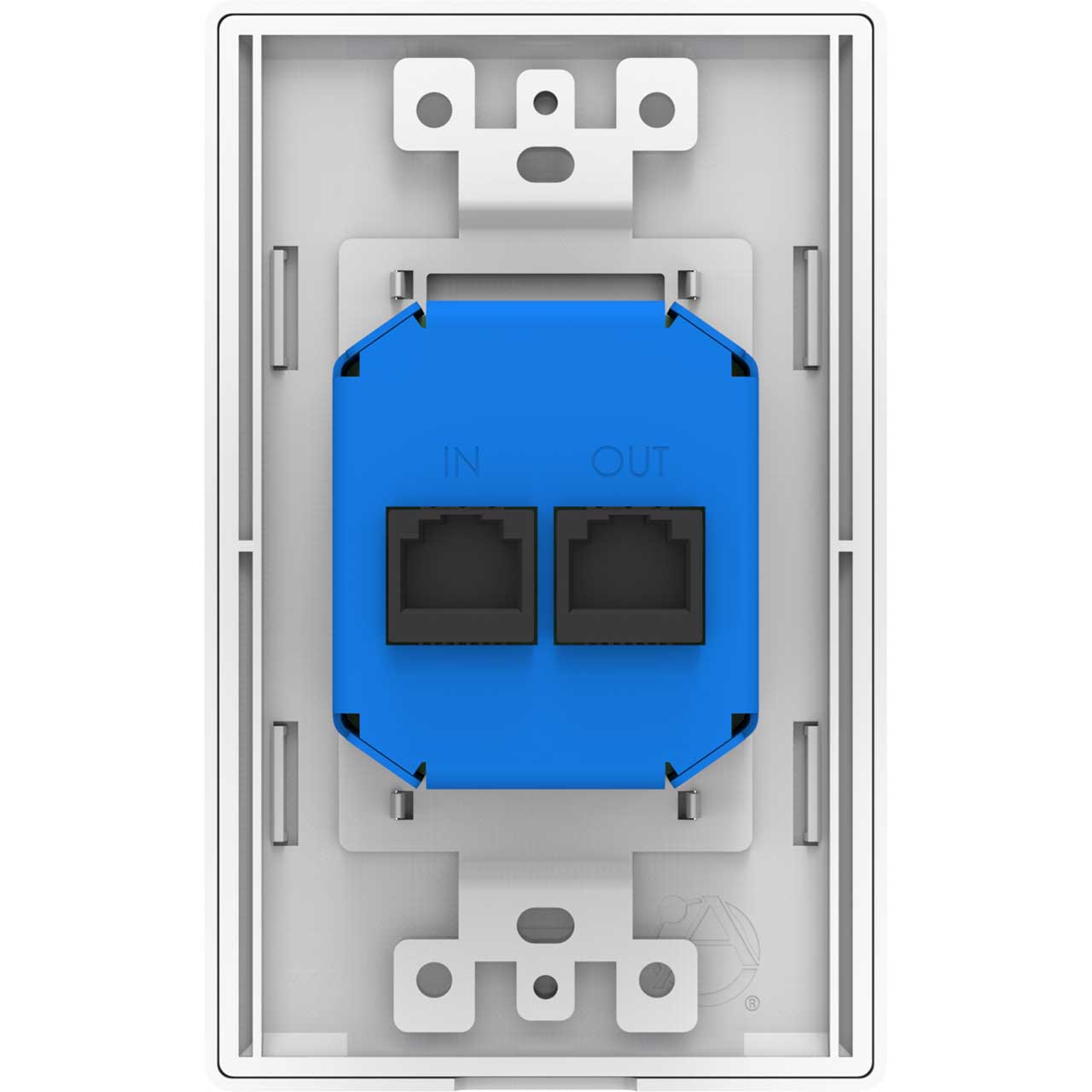

    The Atlas IED Atmosphere A-XLR is a remote XLR audio input for the Atmosphere AZM audio processor. This expansion acts identically to the on-board mic/line inputs. The AZM will automatically detect the A-XLR and dynamically assign appropriate audio settings, such as dynamics, EQ, auto gain control, and phantom power, to that input . Each Atmosphere accessory is a plug-and-play, intelligent device, specifically designed to be approachable and intuitive. The Atmosphere accessory bus allows for up to 8 devices to be connected to a single accessory port, reliably sending audio and data over 1000ft per port. Up to 1x audio input accessory can be added to each accessory port.

    New Atmosphere 2.0 firmware adds:
    Fully Updated Intuitive GUI!
    Automated Message Player adds Bell Scheduler for schools!
    Accessory Self Heal-No Re-programming!
    Room Combiner Source Sharing!
    Stereo AND Sub-woofer capability!

    • Features:

      • Plus 48V phantom power (software configurable)
      • Digital audio return to host processor
      • Signal presence indicator
      • Neutrik brand™ connector with latch

    • Specifications:

      • System Type: Signal Processor
      • Output Power: (Note 1) AZM4 AZM8 Mic / Line Inputs 4 (Euroblock) 6 (Euroblock) RCA 2 (mono-summed) 4
      • (mono-summed) Line Outputs: 4 (Euroblock)
      • General Purpose Inputs: 6 (Euroblock)
      • High Priority Inputs: 1 (Euroblock)
      • General Purpose Outputs: 2 (Euroblock)
      • Accessory Ports: 4 (RJ45) Network Port 1 (RJ45)
      • Power Requirements: Main Requirements 100 - 240 VAC, 50 - 60 Hz (C14 Mains Inlet Connector)
      • Audio Inputs: Balanced Mic / Line Inputs
      • Connector Type: 3.5mm Pitch Euroblock
      • Color: Green Sensitivity: +4dBu with Gain Set to 0dB Input Gain: 0 - 60dB in 6dB Steps
      • Phantom Power Voltage: +48VDC 10mA
      • Accepts Unbalanced Inputs: Yes
      • Maximum Input Level: +20dBu (7.72 Vrms) with Gain Set to 0dB
      • Input Impedance: 3.9kΩ EIN: -125dBu with 150Ω Source Impedance and 20kHz BW CMRR: Typically 65dB at 1kHz
      • Maximum Cable Size: 18AWG
      • Minimum Cable Size: 24AWG
      • RCA Right Channel Color: Red
      • Left Channel Color: White
      • Type: Mono-summed Pairs
      • Sensitivity: -10dBV Maximum Input: 2.4 Vrms (7.6dBV / 9.8dBu) for Both Inputs Driven and 4.78 Vrms (13.6dBV / 15.8dBu)
      • Audio Outputs: Balanced Line Outputs
      • Connector Type: 3.5mm Pitch Euroblock
      • Color: Orange
      • Maximum Output Level: +20dBu (7.75 Vrms)
      • Maximum Cable Size: 18AWG
      • Minimum Cable Size: 24AWG
      • Audio Performance: THD+N 108dB Unweighted 20Hz - 20kHz, > 110dB ""A"" Weighted Crosstalk >-78dB
      • Output: 5.38msec Accessory
      • Input B/D to Euroblock Output: 6.71msec
      • Maximum Hardware Gain: 60dB
      • Voltage: 24VDC Accessory Ports Maximum Accessories per Port: 8 Maximum Accessories per AZM: 12 (10 for
      • AZM4) Maximum Bus Length: 1000ft Maximum Audio Wall Plates per Port: 1 Ethernet 10/100mB... Mechanical
      • Airflow Front to Back Operating Ambient Temperature Range: 0° - 40°C Cooling System Forced Air with Side and Back Panel Venting Energy Consumption AZM4 AZM8
      • Dimensions - Shipping: W 13.5"" x H 4.75"" x D 14"" (343mm x 121mm x 356mm) W 22"" x H 4.75"" x D 14"
      • Weight - Unit: 4.735 lbs (2.148kg) 8.330 lbs (3.778kg)
      • Weight - Shipping:7.3 lbs (3.3kg) 10.67 lbs (4.8kg) Agency Approvals Safety Conforms to: ANSI / UL 62368-1
