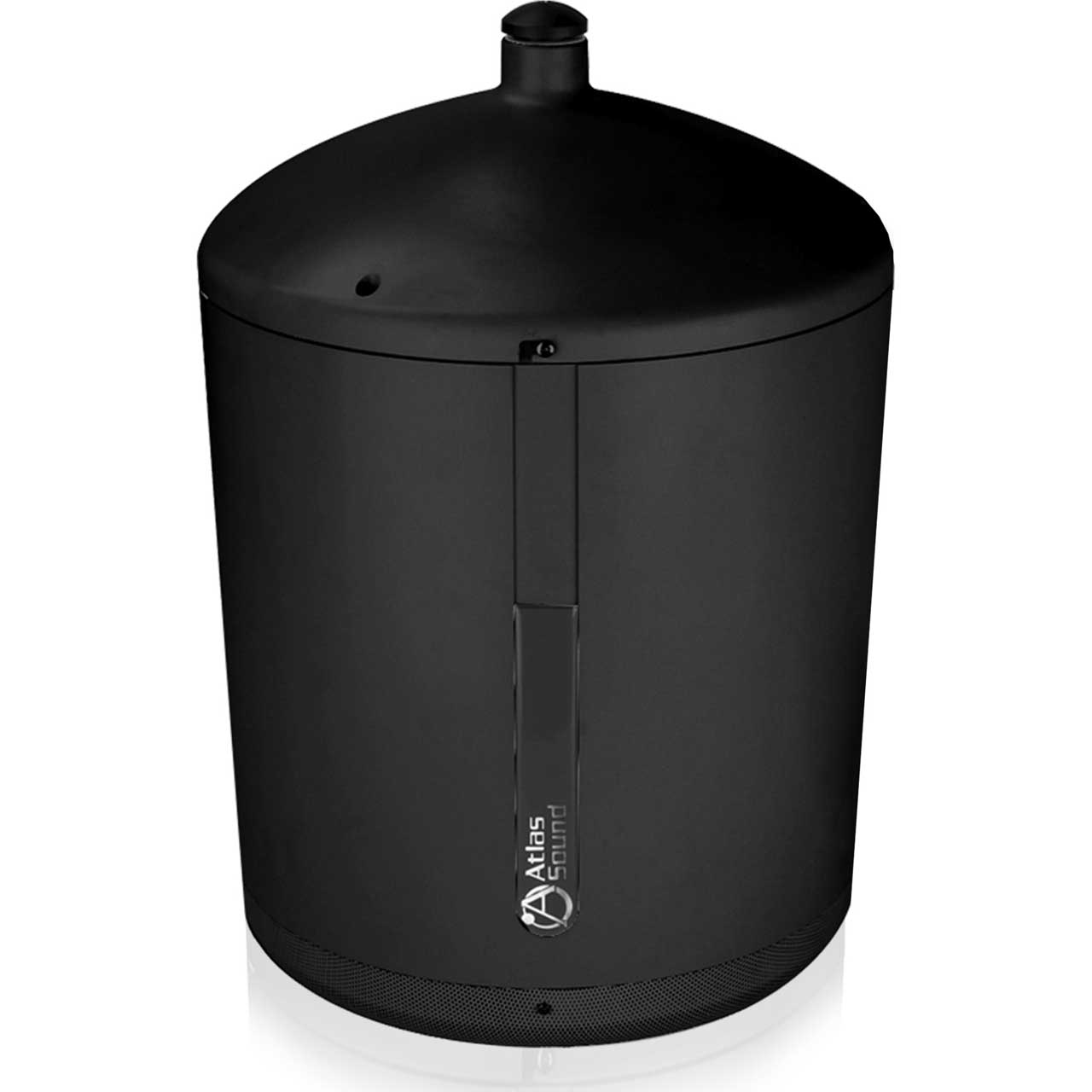

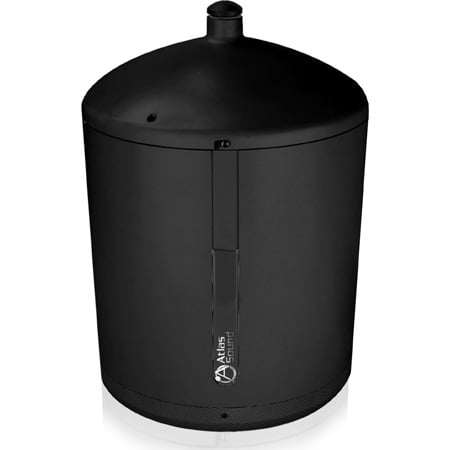

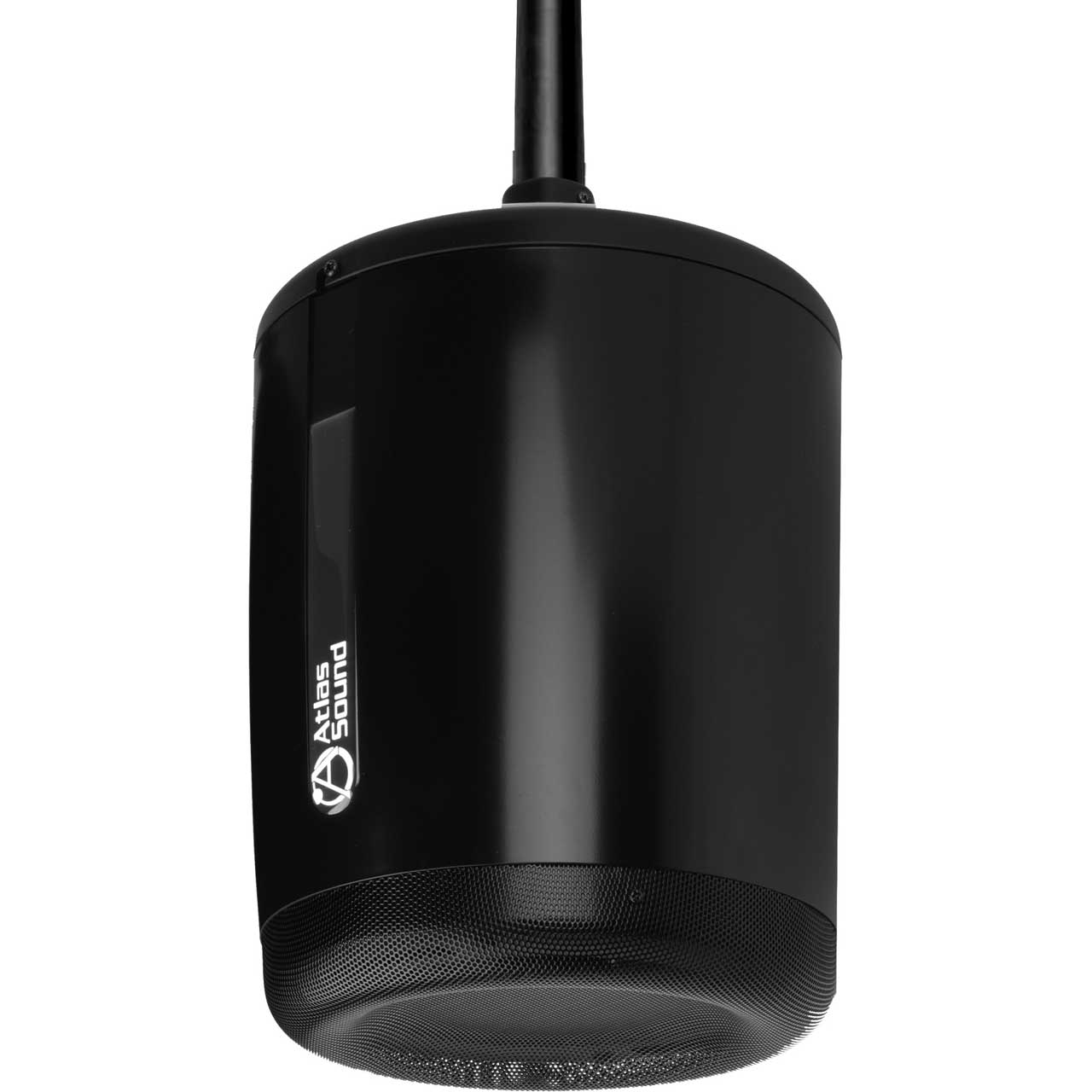

Atlas PM8GD-B 8 Inch 2-Way High Efficiency Pendant Mount Speaker Black

ITEM #: PM8GD-B MFG #: PM8GD-B

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
AtlasIED
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$345.99

Our Price:

$278.99

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    PM8GD-B - Overview

    Model PM8GD-B uses the popular Atlas Sound GD series coaxial driver to provide familiar response and high efficiency while retaining economy when high density speaker counts are required in page only applications.

    • Features:

      • 70.7V taps @ 1, 2, 4 and 8 watts plus 8-ohm direct input via concealed terminal block
      • 8" GD87 driver provides 120 degree (60 degree off-axis) coverage in the 2kHz octave band
      • 3 Meter Cable & Mounting Hardware Included
      • Compatible with standard 3/4" ceiling fan hardware
      • Extreme high efficiency (96dB 1W/1M) allows for lower tap settings and more loudspeakers per amp channel in many installations


    • Specifications:

      • Height 16 5/8" (42.2148 cm)
      • Diameter 12 1/4" (31.115 cm)
      • Shipping Weight 14.00 lbs (6.35 kgs)
      • Power Taps 1, 2, 4, 8, and 8 ohms
      • Speaker Type Coaxial (Treated Paper)
      • Dispersion 105° (2kHz Octave Band, -6dB Points)
      • Power Rating 25 Watts
      • Sensitivity 96dB Average


    • GTIN:

      0612079183975
