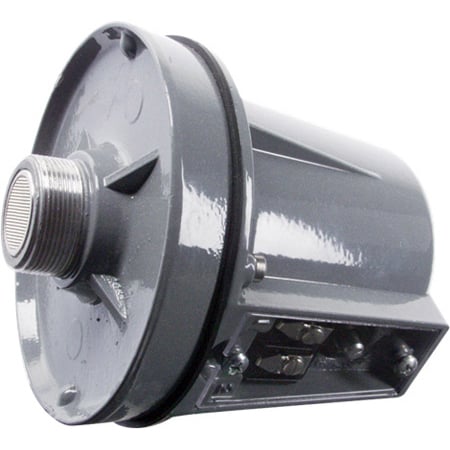

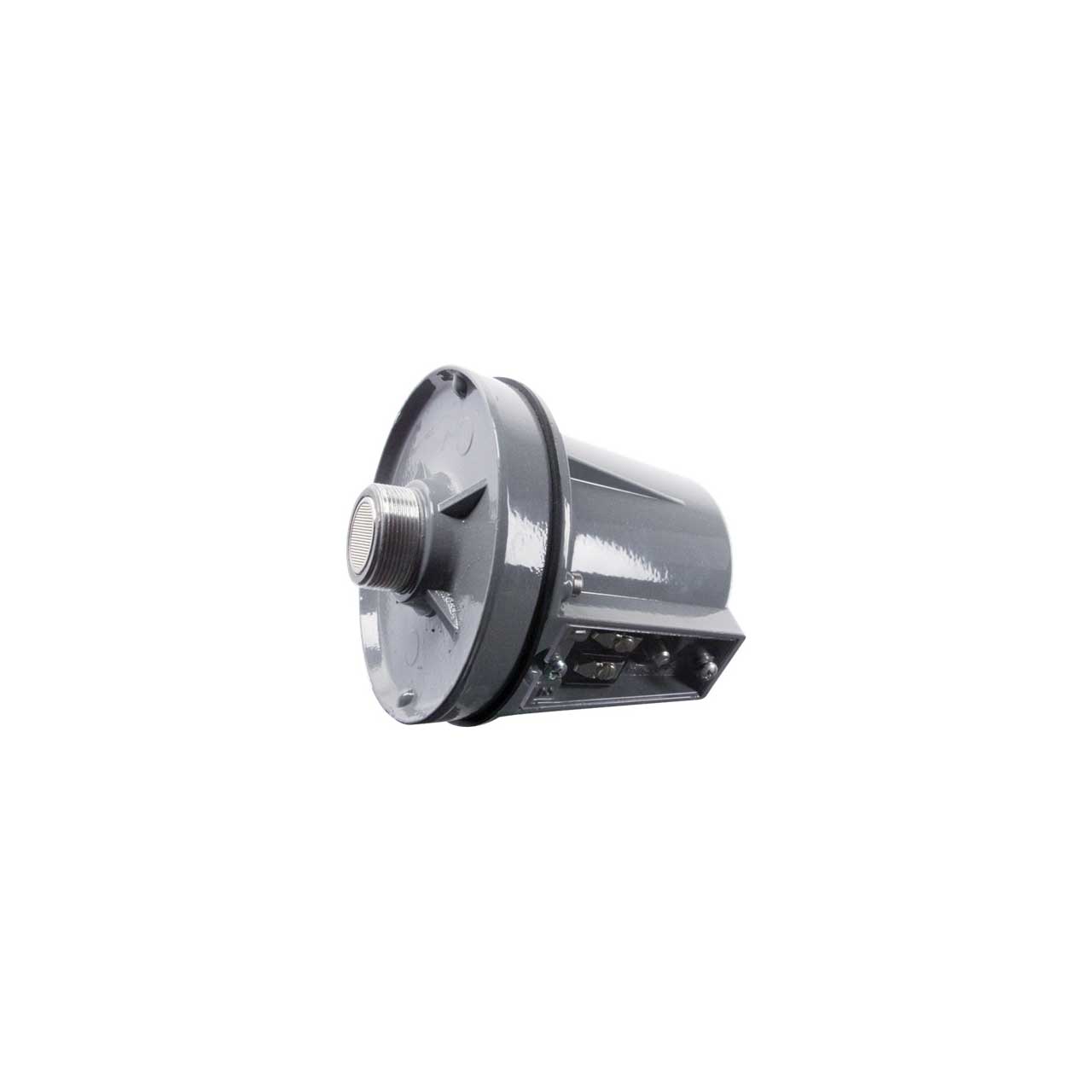

Atlas Sound PD-30T 30 Watt Compression Driver with Xfmr


Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    PD-30T - Overview

    The PD-30T is a fully environment-resistant compression driver for indoor or outdoor applications recommended for use in expansive and/or high-ambient sound-level areas.

    The unit has a power rating of 30 watts, a 1.5" voice coil and a plane wave frequency response of 300 - 3,900 Hz (+5dB).

    Transformer-equipped Model PD-30T incorporates the exclusive Atlas Sound Vari-Tap® Control/Connect Center with a screwdriver selectable ohms/watts switch.

    The integral 70V line matching transformer is varnish impregnated for maximum environment resistance and life expectancy. It also includes a protective terminal cover with built-in strain relief to assure secure cable connection.

    The PD-30T is terminated in standard 1-3/8"-18" thread male couplings for use with screw-on horns.

    • Features:

      • 30-Watt Power Rating
      • Environment-Resistant Construction for Indoor/Outdoor Use
      • Extended Frequency Response Range for Optimum Intelligibility
      • Outstanding Sound Reproduction and Power-Handling For Signaling, Music and Public Address Systems
    • GTIN:
