Atlona AT-OMNI-111-WP Wall Plate Single Channel OmniStream AVoIP Encoder

ITEM #: ATNO-ATOMNI111WP MFG #: ATOMNI111WP

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:

$2,194.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    ATOMNI111WP - Overview

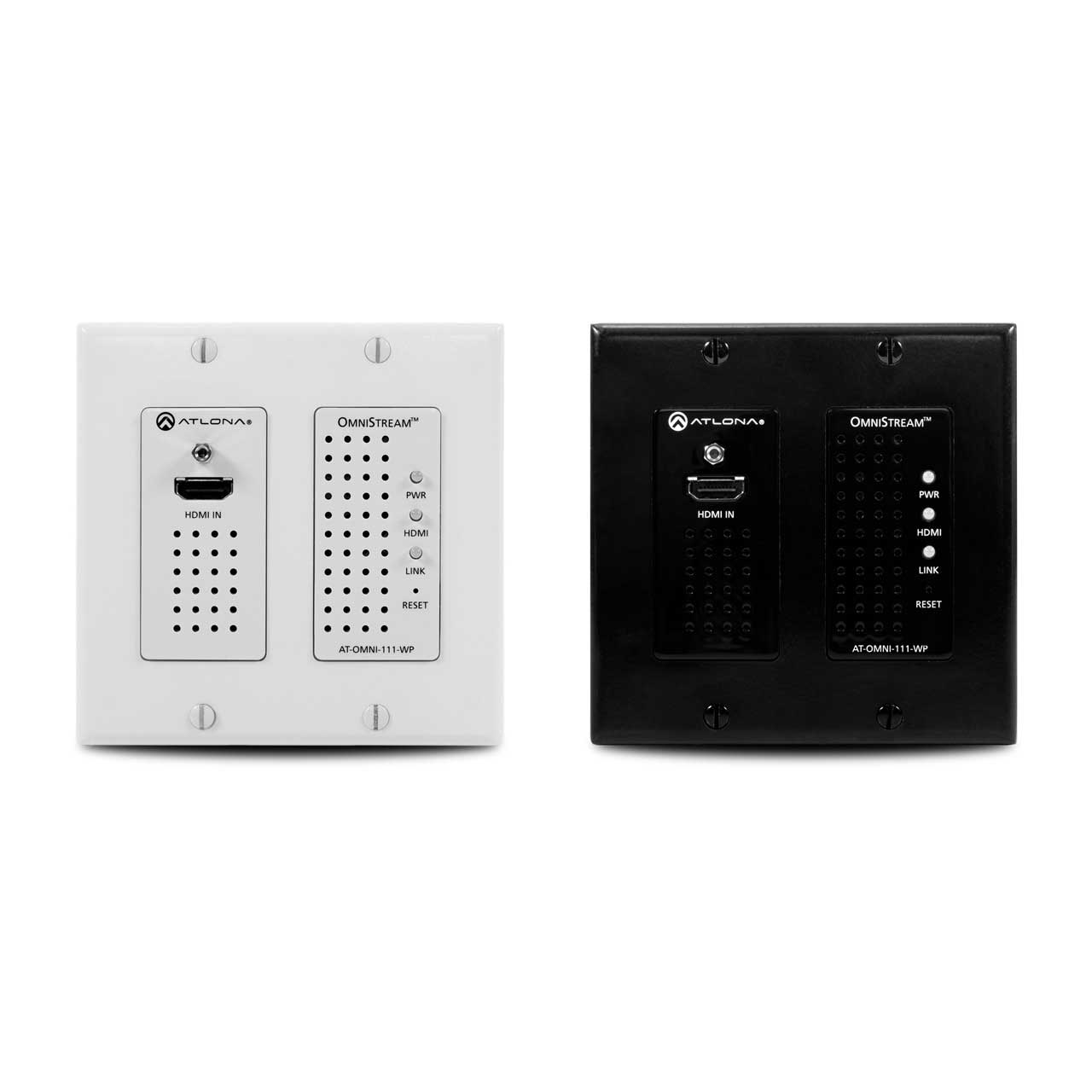

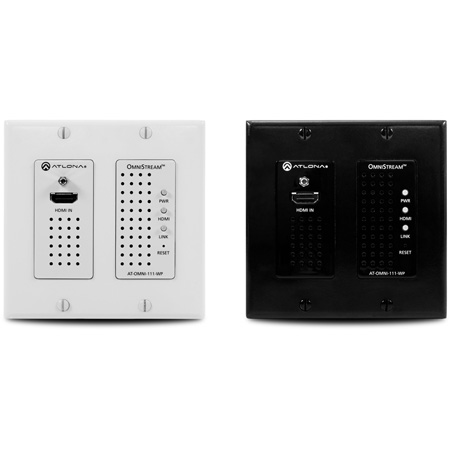

    The Atlona OmniStream™ 111 Wallplate (AT-OMNI-111-WP) is a single-channel networked AV encoder for HDMI 2.0 sources up to 4K @ 60 Hz and HDR (High Dynamic Range), plus embedded audio. It features a US two-gang, Decora-style wallplate form factor, and includes interchangeable black and white wallplates and faceplates. The OmniStream 111 WP is part of the OmniStream Pro Series, designed for high performance, flexible distribution of AV over standard, off-the-shelf Gigabit Ethernet switches in commercial audiovisual applications. It is HDCP 2.2 compliant and ideal for the latest Ultra High-Definition and HDR sources. This networked AV encoder features advanced high-quality, VC-2 visually lossless video compression technology with user-selectable, video quality optimization engines designed for computer-generated imaging, or motion video content. The Atlona OmniStream 111 WP achieves extremely low, sub-frame latency when paired with OmniStream AV decoders.

    With its wallplate form factor, the OmniStream 111 WP enables convenient installation wherever an aesthetically appealing or discreet AV source connection is required.

    Applications:
    Enterprises and other large organizations
    Corporate and university campuses with the need to distribute AV between buildings
    Applications in which any AV content or resource can be shared anywhere in the system
    Meeting rooms and conference rooms

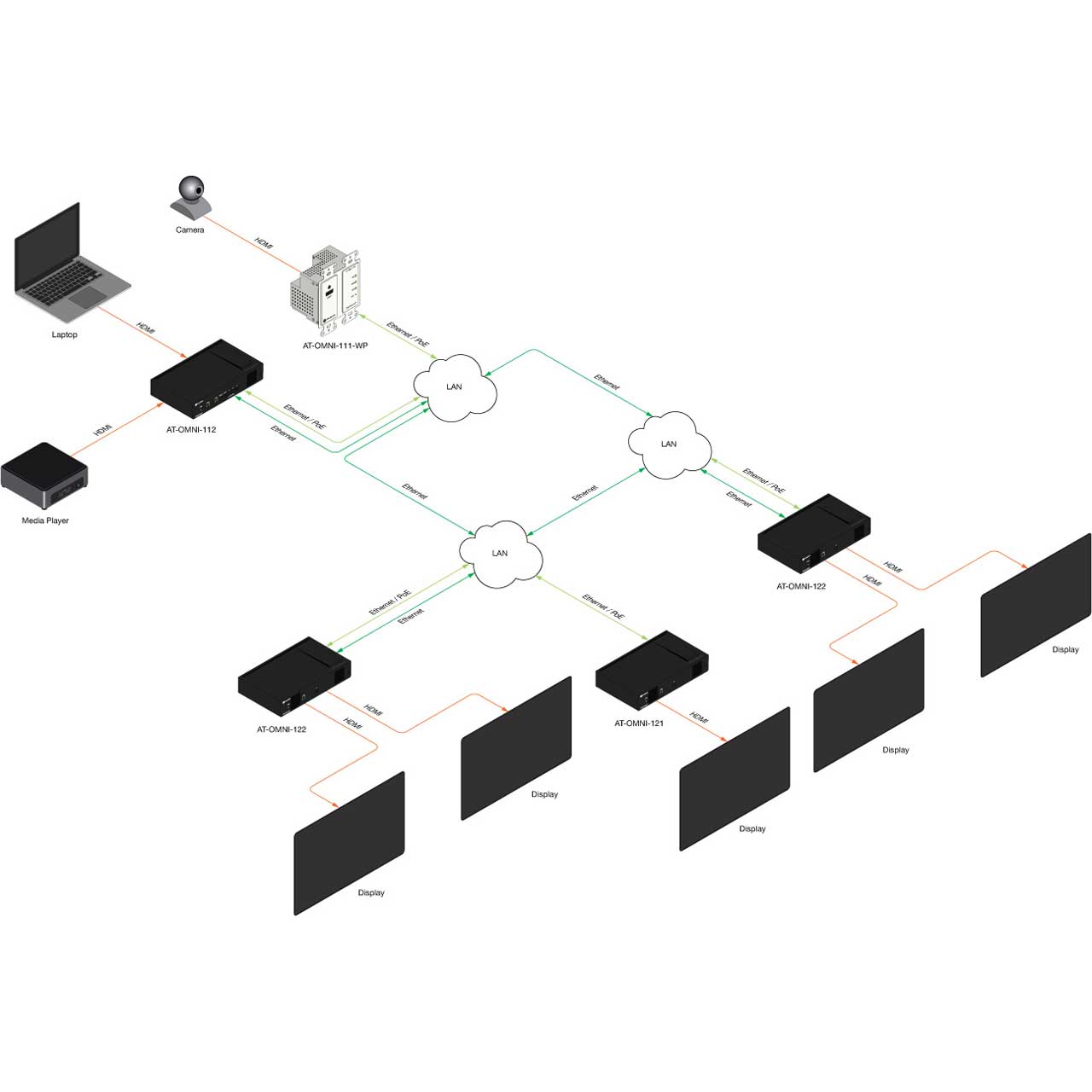

    Please Note: The OmniStream 111 WP is compatible with the OmniStream 121, OmniStream 122, and OmniStream 521 decoders.

    • Features:

      • Best-in-class AV over IP performance and reliability over Gigabit Ethernet
      • US two-gang enclosure for Decora-style wallplate openings - interchangeable black or white trim kits
      • AV encoder for HDMI up to 4K/UHD, plus embedded audio
      • Networked AV redundancy
      • Supports UHD @ 60 Hz plus HDR formats
      • High performance, visually lossless video compression
      • HDCP compliance
      • Network error resilience with FEC (forward error correction)
      • Simplify integration with plug-and-play network switch compatibility
      • Remote PoE (Power over Ethernet) powering
      • Secure content distribution with AES-128 encryption
      • Supports industry-standard, network security features and protocols
      • AES67-compatible audio over IP streaming
      • Simultaneous OmniStream and AES67 audio streaming
      • Enhance AV presentations with visual enhancements
      • EDID management
      • Encoder grouping
      • Audio processing and pass-through
      • System management

    • Specifications:

      • Video
      • HDMI: HDMI 2.0b, HDCP 2.2
      • UHD/HD/SD: 4096x2160 (DCI) @60/30/24 Hz, 3840x2160 (UHD) @60(1)/50/24/25/30Hz, 1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60Hz, 1920x1080i(2) @ 25/29.97/30Hz, 1280x720p @30/50/59.94/60Hz
      • VESA(3): 1920x1200 @60Hz, 1680x1050 @60Hz, 1600x1200 @60Hz, 1600x900 @60Hz, 1440x900 @60Hz, 1400x1050 @60Hz, 1366x768 @60Hz, 1360x768 @60Hz, 1280x1024 @60Hz, 1280x800 @60Hz, 1280x768 @60Hz, 1152x768 @60Hz, 1024x768 @60Hz
      • Virtual Reality: [email protected] (HTC Vive)
      • Color Space: YUV, RGB

        Encoding
      • Density: One encoding engine
      • Compression Format: VC-2 (SMPTE-2042)
      • Chroma Sub-Sampling: 4:4:4, 4:2:2, 4:2:0
      • Video Quality Optimization: User-selectable: Computer Graphics or Motion Video
      • Color Depth: 8-bit, 10-bit, 12-bit
      • HDR: HDR10, HLG, Dolby® Vision™
      • Bit Rate: Configurable up to 900 Mbps
      • Latency: 0.5 frame (e.g. 1080p @ 60 Hz latency is <8ms between encoder and decoder) 1.5 frames in Fast Switching mode (e.g. 1080p @ 60Hz latency is <24ms between encoder and decoder)
      • Note: Unusual network configurations may increase overall latency

        Audio
      • Pass-through: PCM 2.0, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS®, DTS-HD Master Audio™
      • Down-mixing: Multichannel LPCM to two-channel LPCM
      • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
      • Bit Depth: Up to 24-bit

        Protocols
      • Streaming: RTP
      • Addressing: DHCP, static
      • Encryption: AES-128
      • QoS Tagging: RFC 2475
      • Management: HTTPS, SSH, Telnet, and WebSockets with TLS
      • Authentication: IEEE 802.1x: PEAP/MSCHAPv2 or EAP-TLS

        Graphics Features
      • Text Insertion: Adjustable height/width, scrolling (speed, direction, or static), iterations (up to infinite), positioning, and adjustable color and alpha (transparency) channels.
      • Slate/Logo Insertion: PNG file format, adjustable aspect ratio (keep or stretch), horizontal/vertical size, screen position; slate mode can be set to off, manual (image always displayed, superimposed on the source signal, and will remain if source signal is lost), auto (image will only be displayed when source signal is lost)

        Connectors
      • HDMI IN: (1) Type A, 19-pin, female, locking
      • ETHERNET(4): (1) RJ45, 10/100/1000 Mbps

        Indicators and Controls
      • PWR: (1) LED, tricolor (red, amber, green)
      • HDMI: (1) LED, bicolor (red, green)
      • LINK: (1) LED, bicolor (red, green)
      • RESET: (1) momentary, tact-type

        Power
      • PoE: IEEE 802.3af
      • Consumption: Up to 12.5W
      • Safety: CE, FCC, cULus, RoHS, RCM

        General
      • Operating Temp: 14° to 122°F (-10° to 40°C)
      • Storage Temp: 14° to 140°F (-10° to 60°C)
      • Humidity (RH): 20 to 95% (non-condensing)
      • Dimensions (HxWxD): 4.19 x 3.46 x 1.72" (106.5 x 88 x 43.65mm)
      • Weight: 0.46Lbs (0.21kg)
      • Safety: CE, RoHS, FCC

    • Item Includes:

      • 1x AT-OMNI-111-WP
      • 1x Installation guide
      • 1x Interchangeable black and white wallplates and faceplates

    • Warranty:

      • Award-Winning 10 Year Limited Product Warranty

    • GTIN:

      0846352006426
