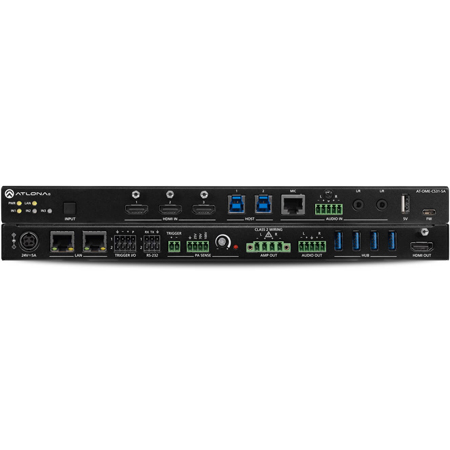

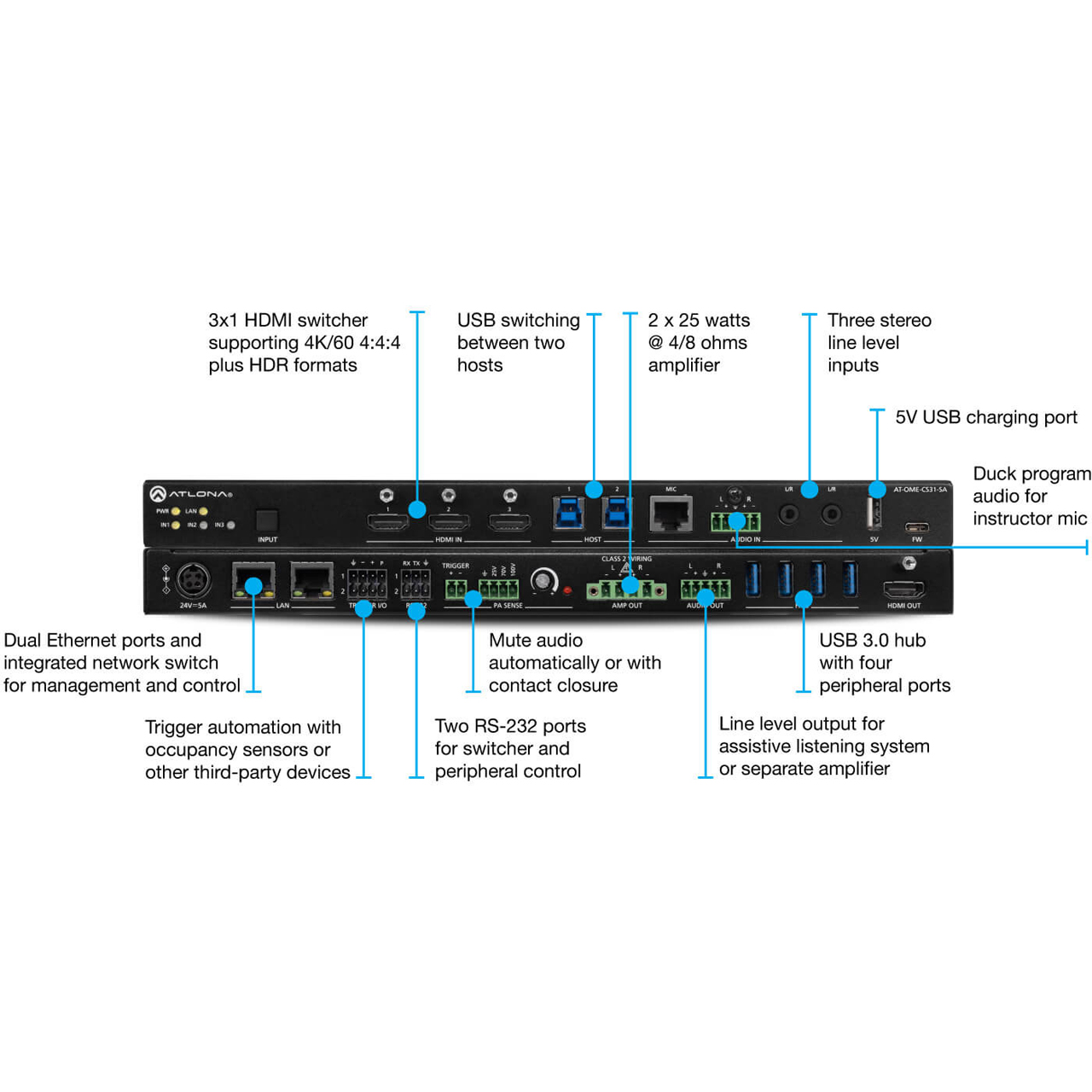

The Atlona AT-OME-CS31-SA is an AV presentation and collaboration system featuring a 3x1 HDMI switcher, 50W mixer amplifier, and USB 3.0 hub.
Specialized Classroom Capabilities
Ducking lowers program audio levels when the teacher speaks into their microphone connected to the balanced line input. Mute audio when a PA message is detected or with a contact closure. Both features ensure important lesson material and announcements are heard clearly.
Flexible Control
Automate system operation based on switcher activity, integration with occupancy sensors, or use with a Velocity control system.
AV Switching
The OME-CS31-SA includes a 3x1 HDMI switcher supporting common inputs such as laptops, computers, media players, and document cameras routed to the output connected to a projector or display. It is HDCP 2.2 compliant and supports 4K HDR and 4K/60 4:4:4 at HDMI data rates up to 18Gbps.
USB Routing
The system features a four port USB hub for connecting cameras, speakerphones, interactive displays, and other devices as well the ability to switch them between two host devices. Making OME-CS31-SA ideal for use with popular video conferencing and UC (unified communications) platforms.
Audio Mixing and Amplification
The OME-CS31-SA offers three line inputs for connecting a variety of audio devices. Its onboard mixer supports individual level adjustments of the line inputs, de-embedded HDMI audio, and USB audio. The integrated amplifier delivers either two channels of 25W or a single channel of 50W into 4Ω or 8Ω.
Applications:

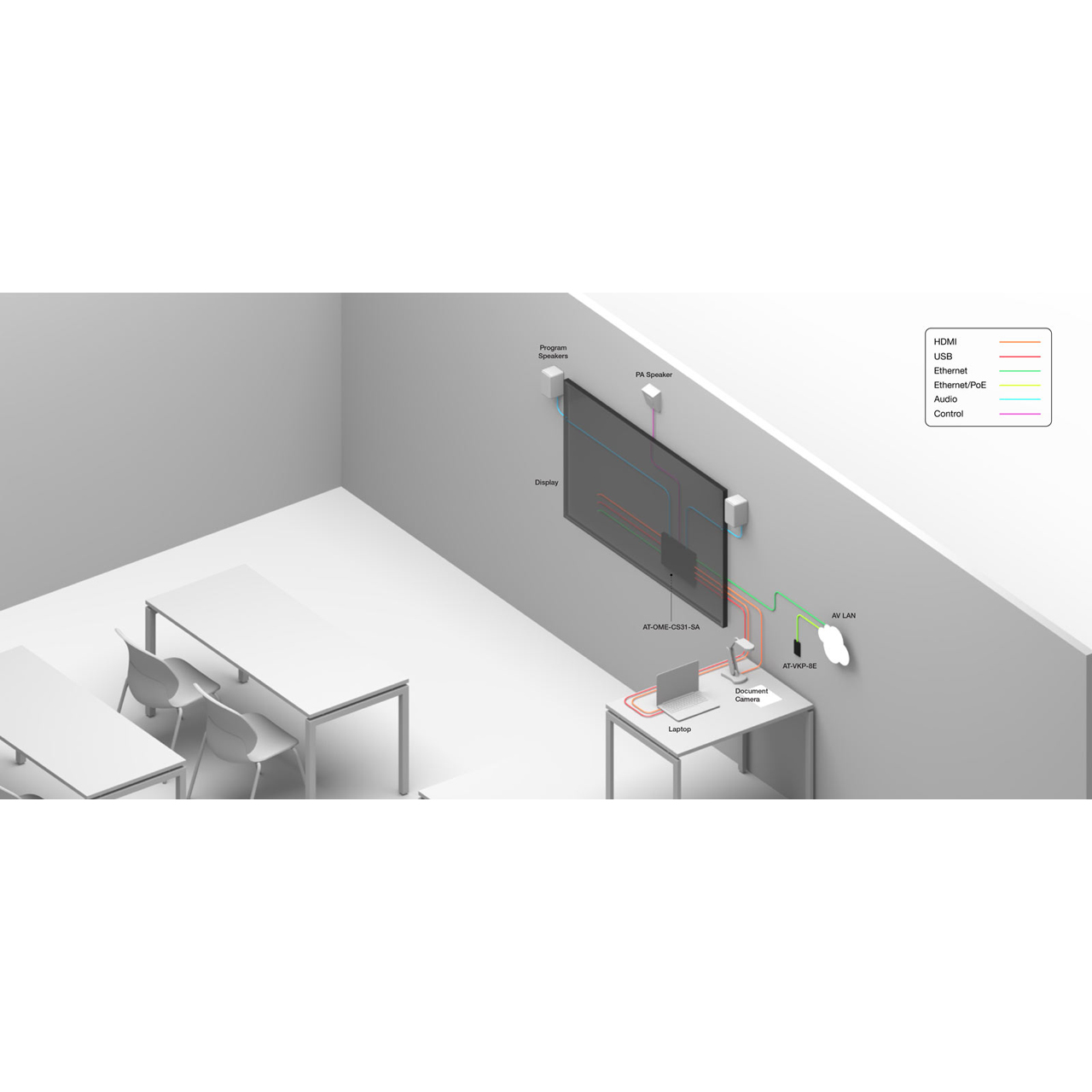

• Classrooms - In addition to the AV switching, audio amplification, USB routing, and control needed by modern classrooms, the OME-CS31-SA provides additional features for education environments including ducking program audio for an instructor microphone and muting the system for public address messages.

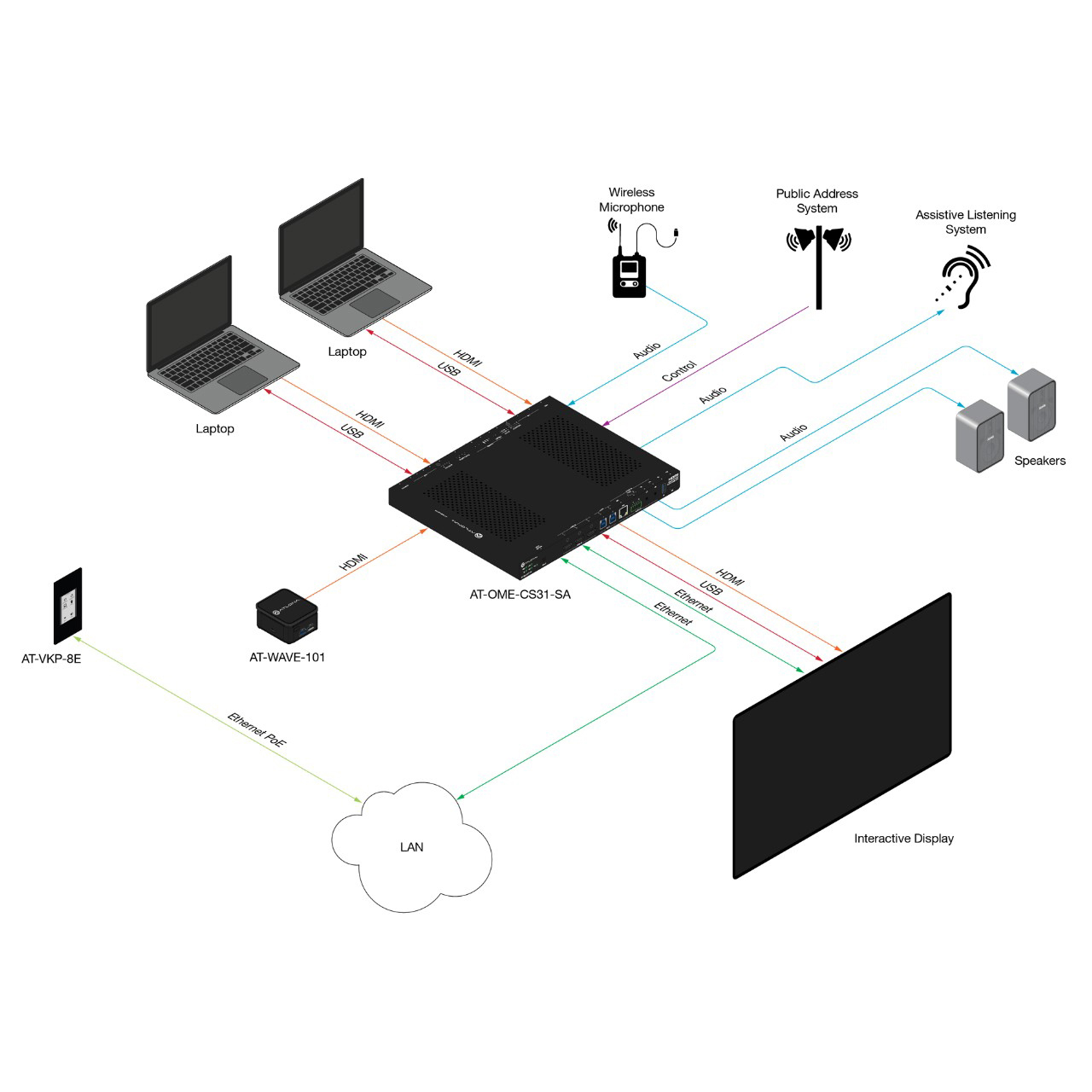

• Conference Rooms - The OME-CS31-SA is an all-in-one solution for hybrid meeting spaces that need AV switching, audio amplification, USB routing, and display control.
