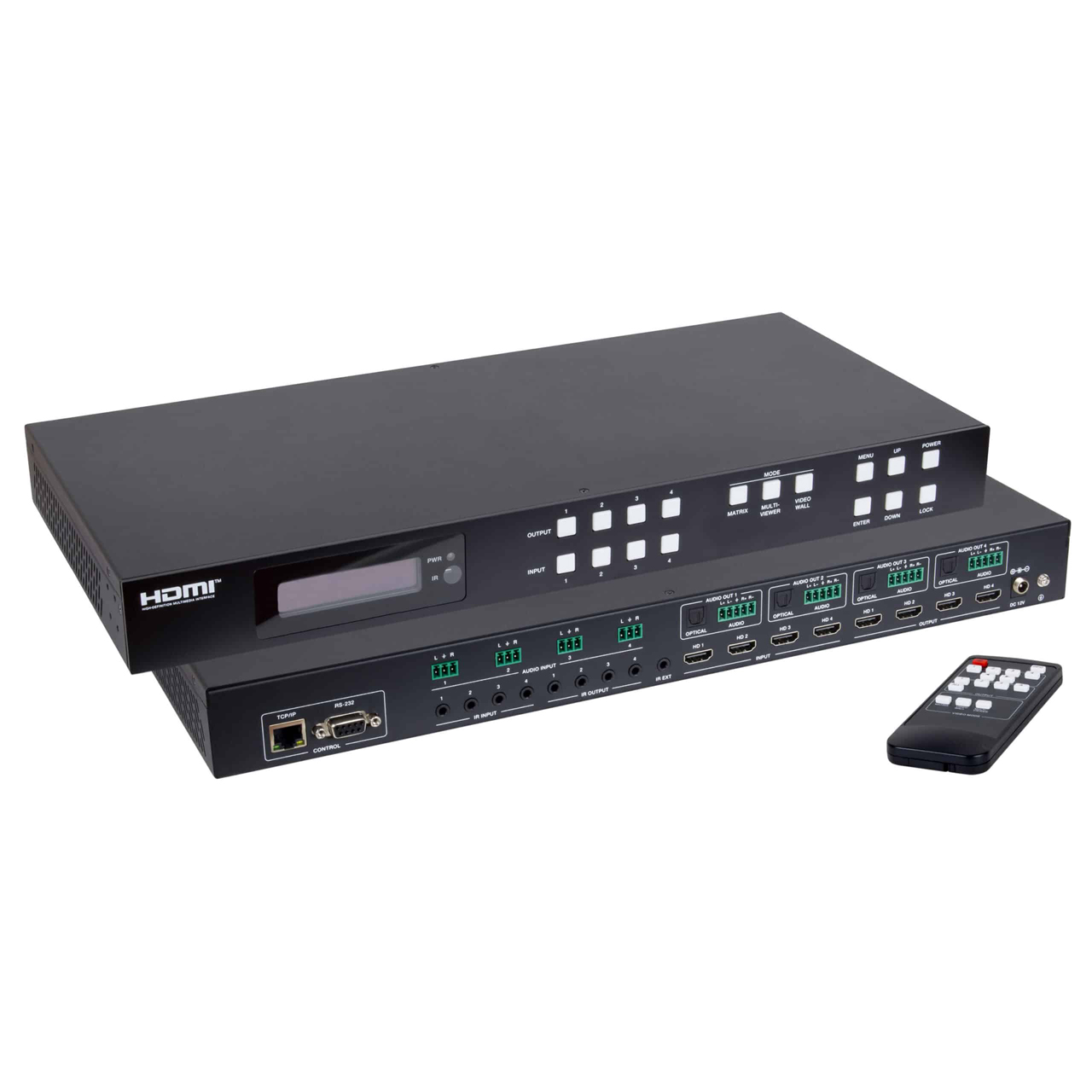

MuxLab 500428 4K60 HDMI 2.0 4x4 Seamless Matrix with Video Wall and Multiview

500428 - Overview

• Features:

  • Supports HDMI 2.0 (4K/60 4:4:4) & HDCP 2.2
  • Supports 12 display categories in Multiview mode and 9 splicing modes in Video Wall mode
  • Output scaler supports multiple video resolution
  • HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HDMaster Audio)
  • Analog audio insertion and extraction for input and output ports
  • Supports an IR matrix
  • Powerful EDID management and CEC control are supported
  • Built-in GUI web interface


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0
  • HDCP Compliance: HDCP 2.2 and HDCP 1.x
  • Video Bandwidth: 594Mhz/18Gbps
  • Video Resolution: Up to 4K/60Hz (4:4:4)
  • Video System: RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
  • Color Depth:
    - 8-bit, 10-bit, 12-bit (1080p@60Hz)
    - 8-bit (4K@60Hz YUV4:4:4)
    - 8-bit, 10-bit,12-bit (4K@60Hz YCbCr 4:2:2/4:2:0)
  • Infrared Frequency Range: Wideband 20kHz to 60kHz
  • Optical Audio Formats: PCM 2.0, Dolby Digital/Plus, DTS 2.0/5.1
  • HDMI Audio Formats:
    - LPCM 2.0/2.1/5.1/6.1/7.1 Dolby Digital
    - Dolby TrueHD
    - Dolby Digital Plus (DD+)
    - DTS-EX
    - DTS HD Master Audio
  • Vmax: 2Vrms
  • SNR: > 90dB
  • THD+N Ratio: < 0.1%(V_max) 0.001%~0.01%(V_best)
  • Crosstalk: >80dB
  • Frequency Response: 20Hz - 20kHz ±0.5dB
  • ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

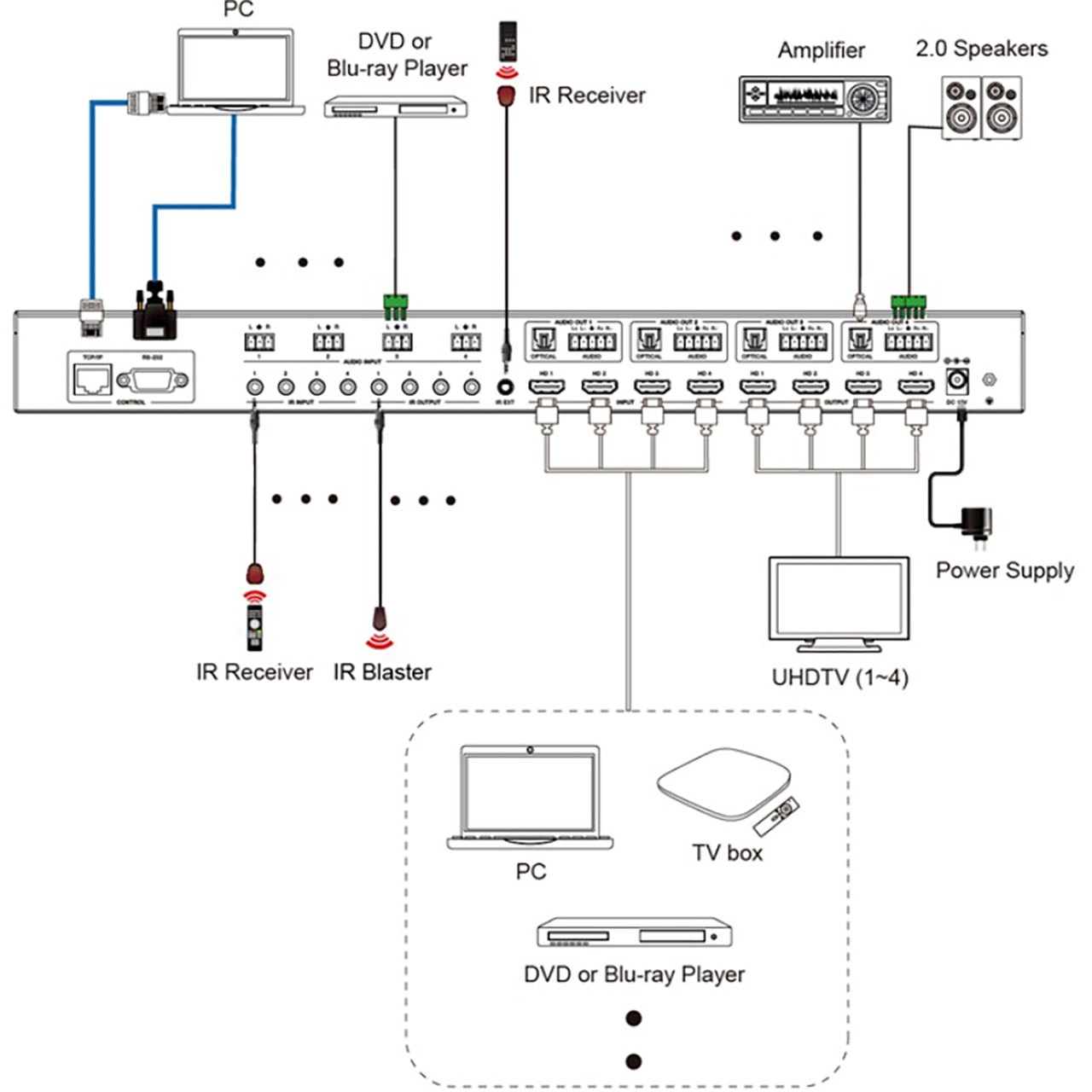

    Matrix
  • Inputs:
    - 4x HDMI Type A (19-pin female)
    - 4x Stereo Audio Input (3.81mm, 3pin Phoenix Connector)
  • Outputs:
    - 4x HDMI Type A (19-pin female)
    - 4x Optical Audio Output (S/PDIF)
    - 4x Stereo Balanced Audio Output (3.81mm, 5pin Phoenix Connector)
  • Controls:
    - 4x IR Input (3.5mm Stereo Mini-jack)
    - 4x IR Output (3.5mm Stereo Mini-jack)
    - 1x IR Extender (3.5mm Stereo Mini-jack)
    - 1x TCP/IP (RJ45)
    - 1x RS-232 (D-Sub 9)

    Mechanical
  • Dimensions (WxDxH): 17" x 8" x 1.7" (440mm x 203mm x 44.5mm)
  • Weight: 5.6lbs (2.55kg)
  • Power Supply: 100V - 240V AC 50/60Hz, Output: 12V DC/2.5A
  • Power Consumption: 25W (Max)
  • Relative Humidity: 20% - 90% RH (non-condensing)


• Item Includes:

  • 1x 4K60 HDMI 2.0 4x4 Seamless Matrix


• Warranty:

  • 2 Year Limited Warranty
