Atlona AT-UHD-EX-70-2PS 4K/UHD HDMI Over HDBaseT Transmitter/Receiver Kit
  • Atlona AT-UHD-EX-70-2PS 4K/UHD HDMI Over HDBaseT Transmitter/Receiver Kit
  • Atlona AT-UHD-EX-70-2PS 4K/UHD HDMI Over HDBaseT Transmitter/Receiver Kit
Questions? Ask a Markertek Expert:
800-522-2025 Email

Atlona AT-UHD-EX-70-2PS 4K/UHD HDMI Over HDBaseT Transmitter/Receiver Kit

Manufacturer: Atlona Technologies

Item #: ATNO-UHDEX702PS   •   MFG #: AT-UHD-EX-70-2PS


Our Price:$310.00

free ship
In Stock
Item is Available for immediate shipping from our warehouse.

    California Residents:
    Cancer and Reproductive Harm -

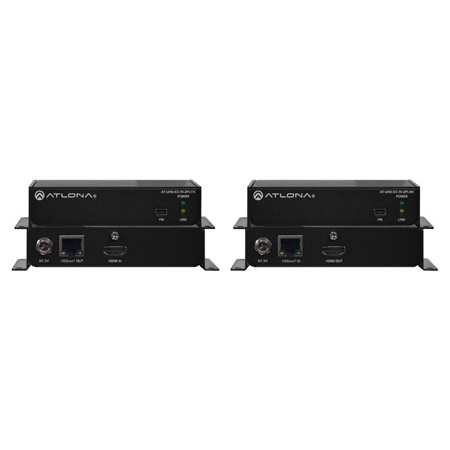

    The Atlona AT-UHD-EX-70-2PS is an HDBaseT transmitter/receiver kit for HDMI transmission up to 230 feet (70 meters) over category cable using locally-powered endpoints. The kit provides an economical means of transmitting video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio. The kit is HDCP 2.2 compliant and supports EDID communication. Both transmitter and receiver feature quarter rack width metal enclosures for easy rack mounting with rear panel I/O ports for uncluttered wire management.

    This product was designed with the latest extender technology including long distance HDBaseT signal transmission, 4K/UHD capability, configuration-free set-up, and field-updateable firmware while maintaining an affordable price point. The AT-UHD EX-70-2PS offers these capabilities and more with the latest content protection for guaranteed pass-through of encrypted high definition content.

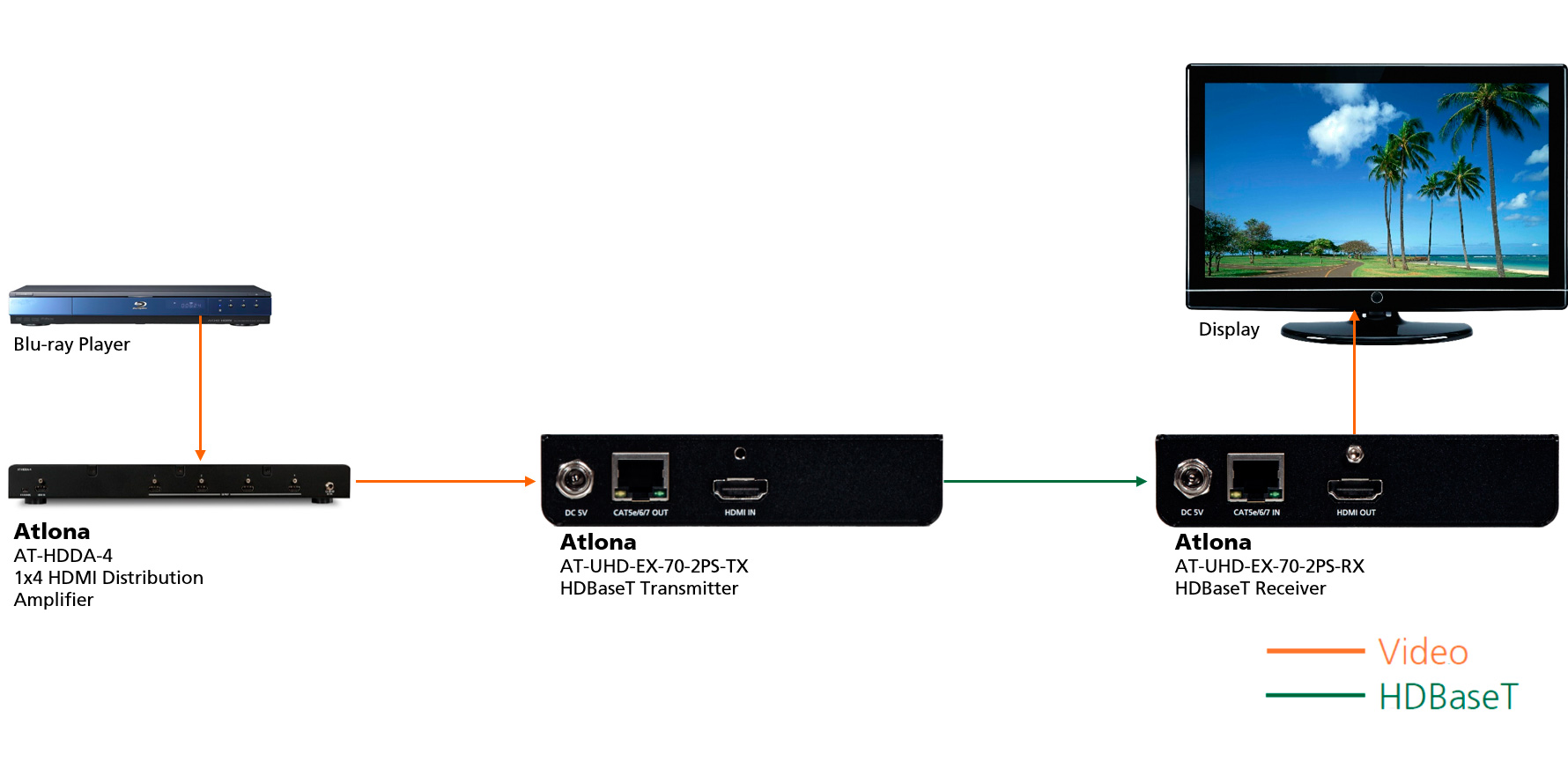

    The AT-UHD-EX-70-2PS is ideal for use in residential or commercial point to point applications that require HDBaseT signal transmission over greater distances than HDMI can support. The kit can be used with the H2H matrix switcher series or HDDA distribution amplifier series for economical, long distance AV signal extension without PoE capability or control signal extension requirements.

    • Features

      • Long Distance HDMI Extension
      • Transmits HDMI signals up to 230 feet (70 meters) @ 1080P and 130 feet (40 meters) @ 4K/UHD using CAT6a/7 cable
      • Uses easy-to-integrate category cable for low-cost, reliable system installation

        4K/UHD Capability
      • Compatible with Ultra High Definition sources and displays
      • Future proofs AV systems in preparation for technology improvements, 4K/UHD streaming services and playback devices

        HDCP 2.2 Compliant
      • Adheres to latest specification for High-bandwidth Content Protection
      • Ensures long term system return on investment

        Field updatable Firmware
      • Front panel USB port provides an easy means for kit upgrades
      • Ensures long term system return on investment

        Rear Panel I/O Connectors
      • Placement of ports on rear panel simplifies wire management
      • Saves installation time and eliminates clutter

        Front Panel Power and Status LEDs
      • LED indicators provide power and status information
      • Provides easy setup and troubleshooting

        Low-profile, 1 inch (2.5 cm) High Quarter Rack-Width Enclosure
      • Easy installation into racks and confined spaces behind displays
      • Keeps devices out-of-sight when placed in public spaces
    • Specifications

      • Resolution
      • Video: [email protected]/25/30Hz*, [email protected]/25/30Hz*, [email protected]/24/25/29.97/30Hz, [email protected]/59.94/60Hz, [email protected]/59.94/60Hz, 576p, 576i, 480p, 480i
      • VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 800x600, 640x480
      • Colorspace: YCbCr, RGB
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 (UHD/4K only)
      • Color depth: 8-bit, 10-bit, 12-bit

      • Audio
      • Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
      • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
      • Bit Rate: up to 24-bit

      • Distance (per port)
      • CAT5e/6 @ 4K up to 35 meters up to 115 feet
      • CAT6a/7 @ 4K up to 40 meters up to 130 feet
      • CAT5e/6 @ 1080p up to 60 meters up to 197 feet
      • CAT6a/7 @ 1080p up to 70 meters up to 230 feet
      • HDMI @ 4K up to 5 meters up to 15 feet
      • HDMI @ 1080p up to 10 meters up to 30 feet

      • Signal
      • Bandwidth 10.2 Gbps
      • CEC Pass through
      • HDCP Supports up to 2.2

      • Connector
      • Firmware Mini-B USB
      • HDBaseT RJ45 (8P8C)
      • HDMI Type A
      • Power DC 5V locking connector

      • Temperature
      • Operating 0°C to 50°C 32°F to 122°F
      • Storage -20°C to 60°C -4°F to 140°F
      • Humidity 20 to 90% non-condensing

      • Power
      • Consumption 1.55W
      • Idle Consumption 0.58W
      • Supply
      • Input: AC100~240V 50/60Hz
      • Output: DC 5V/1.2A

      • Dimension
      • H x W x D 25 x 109 x 76 (mm) 1 x 4.3 x 3 (inch)
      • w/ears 27 x 129 x 76 (mm) 1.06 x 5.08 x 3 (inch)

      • Weight
      • TX Unit 0.22kg 0.49lbs
      • RX Unit 0.24kg 0.53lbs
      • Shipping 0.80kg 1.76lbs

      • Certification
      • Power Supply CE, FCC, RoHS, cULus, RCM, CCC
      • Product CE, FCC
    • Warranty

      • 10 Years
    • GTIN:
