Atlona AT-HDR-EX-70C-RX 4K HDR HDBaseT Receiver with Control and Remote Power

AT-HDR-EX-70C-RX - Overview

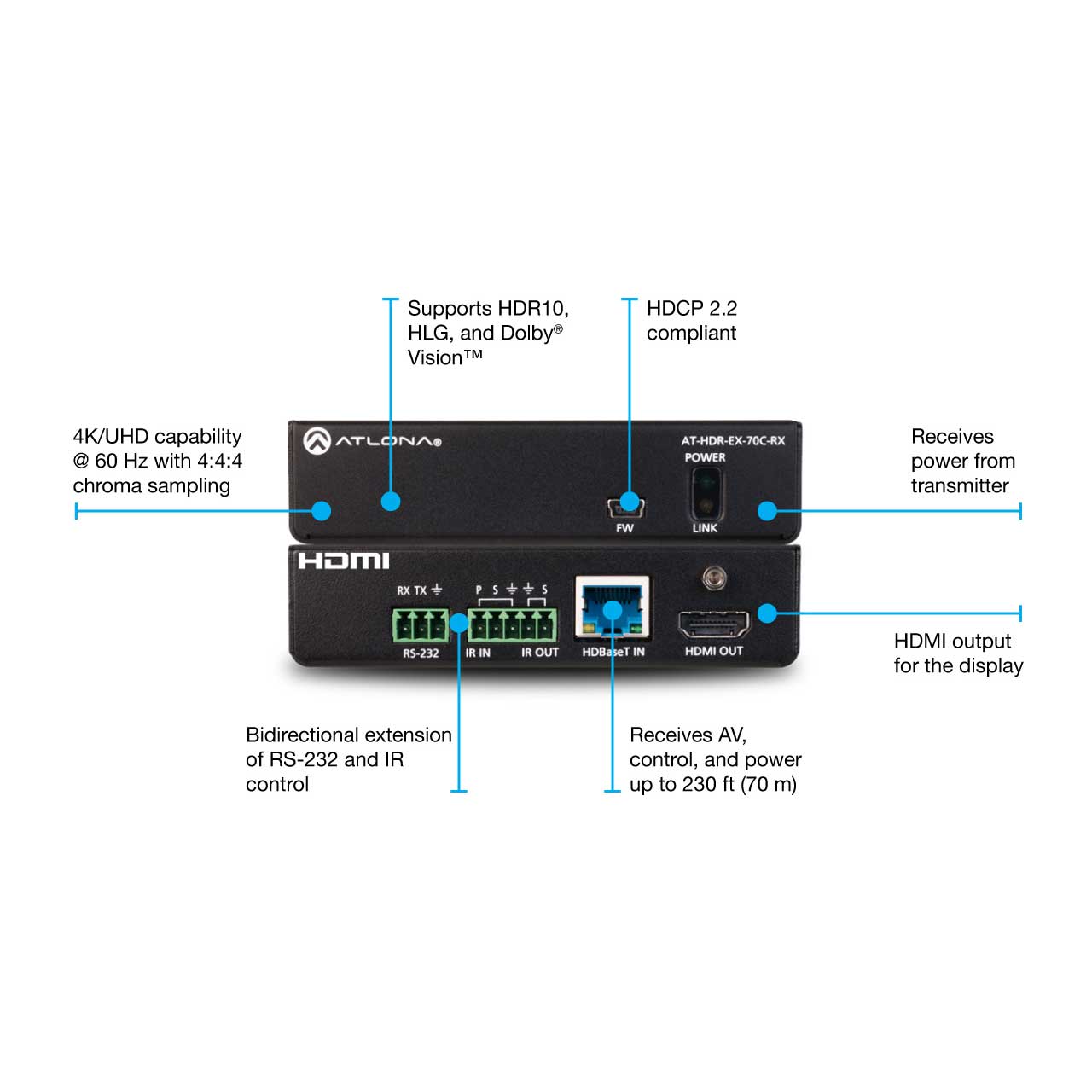

• Features:

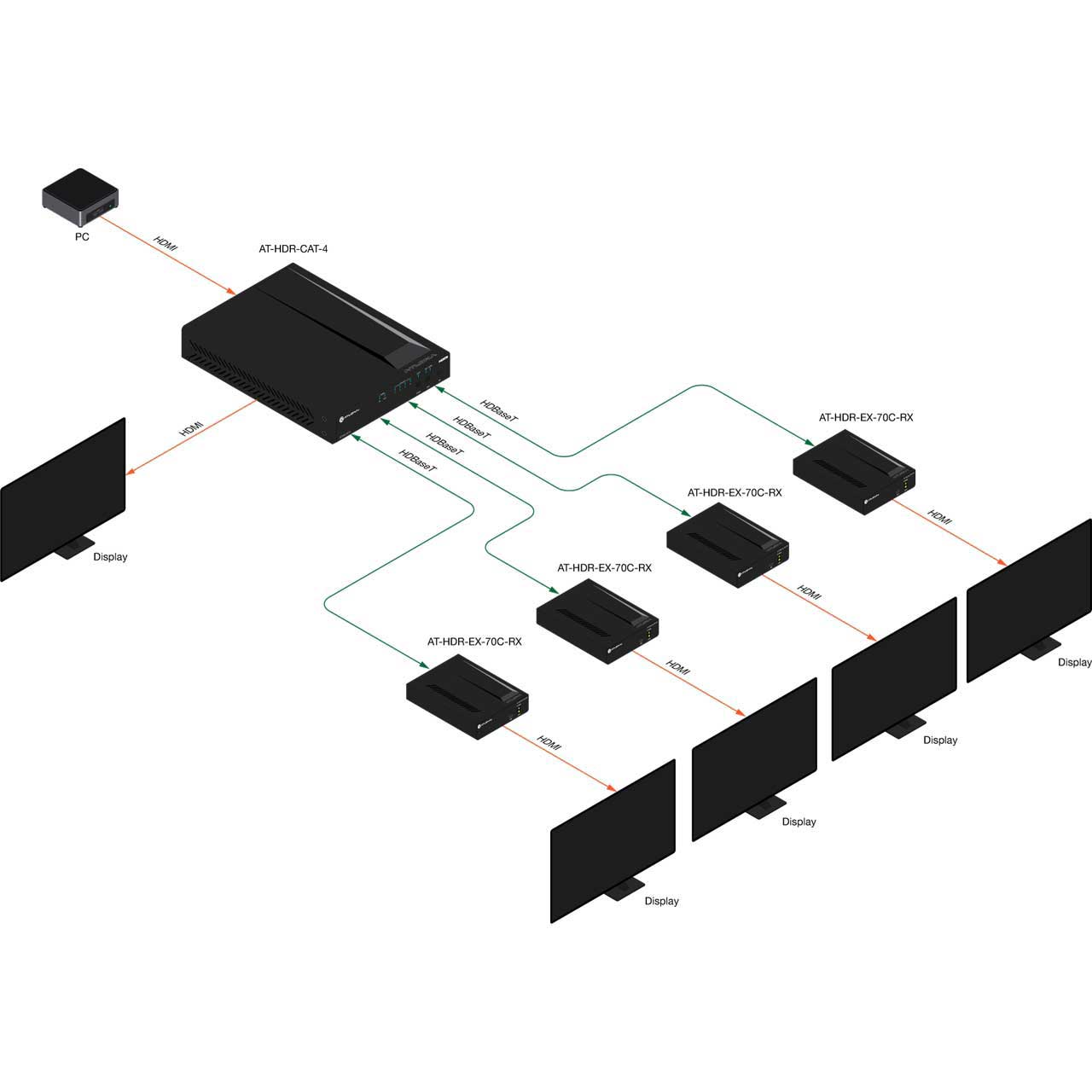

  • HDBaseT receiver for use with the AT-HDR-CAT-2, AT-HDR-CAT-4, and AT-HDR-CAT-8 distribution amplifiers
  • 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling
  • Supports HDR10, HLG, and Dolby Vision HDR formats
  • Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT
  • HDBaseT input receives HDMI, control signals, and power up to 130 feet (40 meters) for 4K HDR or 230 feet (70 meters) for 1080p with Category 6/6A
  • Extends bidirectional RS-232 and IR control signals over HDBaseT
  • Remotely powered by the AT-HDR-CAT distribution amplifiers over HDBaseT
  • Compliant with HDCP 2.2, the latest specification for passing protected content between devices
  • Multi-channel audio pass-through
  • Front panel Power and Link status LEDs
  • Front panel USB port for firmware updates
  • Rear panel connections simplify wire management and save installation time
  • Compact enclosure can be mounted in furniture, behind a display, or above a projector


• Specifications:

  • Video
  • Signal: Input - HDBaseT, Output - HDMI
  • Copy Protection: HDCP 2.2
  • Pixel Clock: 600 MHz
  • UHD/HD/SD: 4096x2160@60/50/30/25/24Hz, 3840x2160@60/50/30/25/24Hz, 1080p@60/59.9/50/30/29.97/25/24/23.98Hz, 1080i@30/29.97/25Hz, 720p@60/59.94/50Hz, 576p@50Hz, 576i@25Hz, 480p@60/59.96Hz, 480i@30Hz
  • VESA( All resolutions are 60Hz): 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1440x900, 1400x1050, 1280x1024, 1280x800, 1366x768, 1360x768, 1152x864, 1024x768, 800x600, 640x480
  • Color Space: YUV, RGB
  • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
  • Color Depth: 8-bit, 10-bit, 12-bit
  • HDR: 4K HDR10 @ 60 Hz and Dolby Vision @ 30 H

    Audio
  • HDMI / HDBaseT
  • Pass-Through Formats: PCM 2.0, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, DTS:X
  • Bit Depth: Up to 24 bits
  • Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

    Resolution / Distance
  • HDMI IN/OUT: 15ft 4K/UHD, 30ft 1080p
  • CAT5e: 115ft 4K/UHD, 200ft 1080p
  • CAT6/6a/7: 130ft 4K/UHD, 230ft 1080p

    Control
  • RS-232: Pass through, up to 115200 baud
  • IR: Pass through, 30kHz to 60kHz
  • CEC: Pass through

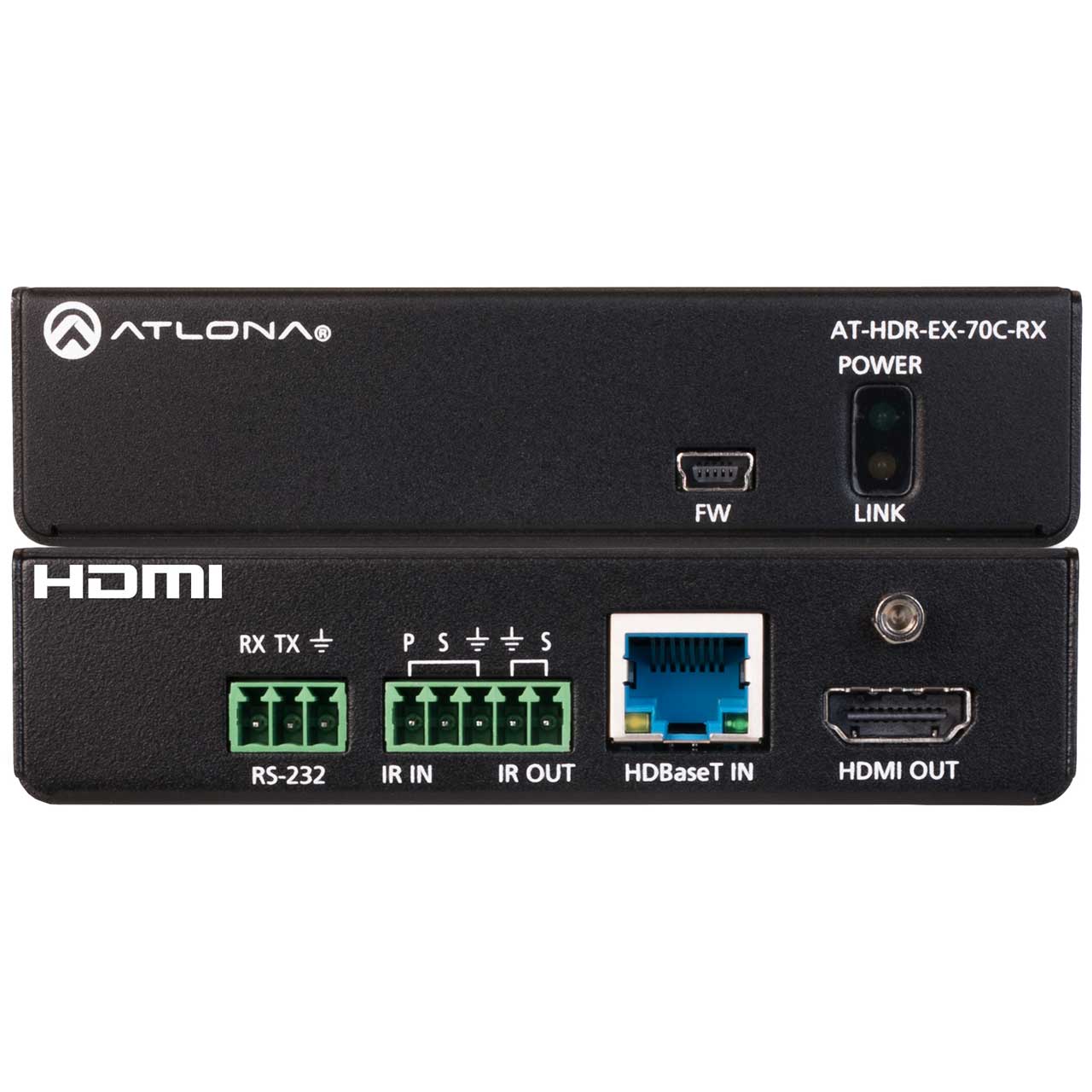

    Connectors
  • HDMI OUT: 1 - Type A, 19-pin female
  • HDBaseT IN: 1 - RJ45, female
  • FW - Firmware: 1 - Mini-A USB
  • RS-232: 1 - 3-pin captive screw connector
  • IR: 1 - 5-pin captive screw connector

    Temperature
  • Operating: 32 to 122°F
  • Storage: -4 to 140°F
  • Operating (RH): 20% to 90%, non-condensing

    Power
  • Consumption: 7.95 W
  • PoE: Powered by compatible 48V transmitters

    Dimensions/Weight
  • Diimensions: 1.02 x 4.29 x 5.00"
  • Weight: 0.85lbs

    Certification
  • Device: CE, FCC


• Item Includes:

  • 1x AT-HDR-EX-70C-RX
  • 2x Mounting brackets
  • 4x Mounting screws
  • 1x 3-pin captive screw connector
  • 1x 5-pin captive screw connector
  • 1x Installation Guide


• Warranty:

  • 10 Years
